| Persona Type Ids : | EU, EUA, LC, OM, SC |
| Persona Type Names : | End User, Consumer, Contractor, Original Equipment Manufacturer, Electrician |
| Awg Gauge : | AWG 12...AWG 2/0 aluminium, AWG 14...AWG 2/0 copper |
| Circuit Breaker Application : | HID rated, HACR rated |
| Protection Type : | short-circuit, overload |
| Tightening Torque : | 3.9-3.9 N.m 2.5-6 mm² (AWG 14...AWG 10), 5.6-5.6 N.m 10-70 mm² (AWG 8...AWG 2/0) |
| Carbon Footprint Of The Distribution Phase A4 : | 0.5113544063428341, 0.5 kg CO2 eq. |
| Carbon Footprint Of The End Of Life Phase C1 To C4 : | 2 kg CO2 eq., 2.4868890922200086 |
| Carbon Footprint Of The Installation Phase A5 : | 0.6029613667047152, 0.6 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 : | 11 kg CO2 eq., 11.402073251851455 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 : | 1 kg CO2 eq., 1.40182223402897 |
| Local Data Status : | Publishable |
| Local Publishable Date : | 2026-03-25 |
| Return Indicator : | Y |
| Stocking Flag : | N |
| Stock Policy : | 2 |
| H And D Domain : | Safety |
| H And D Subrange : | COM |
| H And D Enrichment Assignment : | no |
| H And D Enrichment Function : | MCB |
| H And D Enrichment Class 3 : | Circuit Breakers |
| H And D Enrichment Class 4 : | MCB UL 3P |
| Device Type : | LV equipment - Low voltage circuit breaker |
| Serviceability : | No |
| Traceability : | Yes |
| Field Service Division : | PPIBS |
| Average Life Duration : | 15 year(s) |
| Weee Scope : | Out |
| Scope Perimeter : | Outside of Europe |
| Eoli Availability Display : | No need of specific recycling operations |
| Reach Full Compliance Status : | Reference contains Substances of Very High Concern above the threshold |
| Reach Full Compliance Status Id : | CONTAINS_SVHC |
| Reach Compliance Directive : | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur In Scope : | No |
| Rohs Eur Status : | Compliant By Exemption |
| Rohs Eur Conformity Date : | 2534 |
| Rohs Eur Full Compliance Status : | Compliant By Exemption |
| China Rohs In Scope : | No |
| With Recycled Cardboard : | Yes |
| Without Single Use Plastic : | Yes |
| Product Contributes To Saved And Avoided Emissions : | No |
| Tier Id : | 1 |
| Tier : | 1 |
| Function Option Id : | STANDARD |
| Function Option : | Standard |
| Market Segmentation Id : | COMMERCIAL |
| Market Segmentation : | Commercial |
| Product Kit Identifier : | N |
| Device Short Name : | EGB |
| Electrical Connection : | lugs aluminium |
| Energy Efficiency Optimized : | False |
| Holding Current : | 630 A |
| Local Signalling : | trip indicator |
| Module Type : | E-Frame |
| Mounting Mode : | bolt-on |
| Number Of Poles : | 3 |
| Number Of Spaces : | 3 |
| Number Of Spaces Required : | 3 |
| Product Availability : | Stock - Normally stocked in distribution facility |
| Product Destination : | NF panelboard |
| Product Or Component Type : | miniature circuit-breaker |
| Range Of Product : | 125 A Frame EDB-EGB-EJB |
| Returnability : | Yes |
| Software Version : | v6.2.5-6 |
| Sustainable Packaging : | Yes |
| Total Lifecycle Carbon Footprint : | 16 kg CO2 eq. |
| Trip Unit Rating : | 1800-1800 A |
| Trip Unit Technology : | thermal-magnetic |
| Warranty In Months : | 18 |
| Pep Code : | ENVPEP2510013EN |
| Database Version : | 2024-01 |
| Pep Verification Date : | 2025-11-01 |
| Pcr Version : | PEP-PCR-ed4-2021 09 06 |
| Psr Version : | PSR-0005-ed3.1-EN-2023 12 08 |
| Type Of Verification For The Pep : | Independent internal review |
| Data Source : | extrapolated product |
| Functional-unit Description : | Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icn, and the tripping curve Cd if applicable, and, if applicable, the specific specifications, in the Household/Commercial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years. |
| Functional-unit Quantity : | 1 |
| Functional-unit Unit : | unit |
| Reference Lifetime, In Y : | 20 |
| Energy Model - Manufacturing [A1-a3] : | Electricity Mix; Low voltage; 2020; Mexico, MX |
| Energy Model - Installation [A5] : | No energy used |
| Energy Model - Use [B6] : | Electricity Mix; Low voltage; 2020; United States, US |
| Energy Model - End Of Life [C1-c4] : | Global, European and French datasets are used. |
| Recyclability Potential, In % : | 30 |
| Offer Owner Code : | 190788 |
| Pn : | 1 |

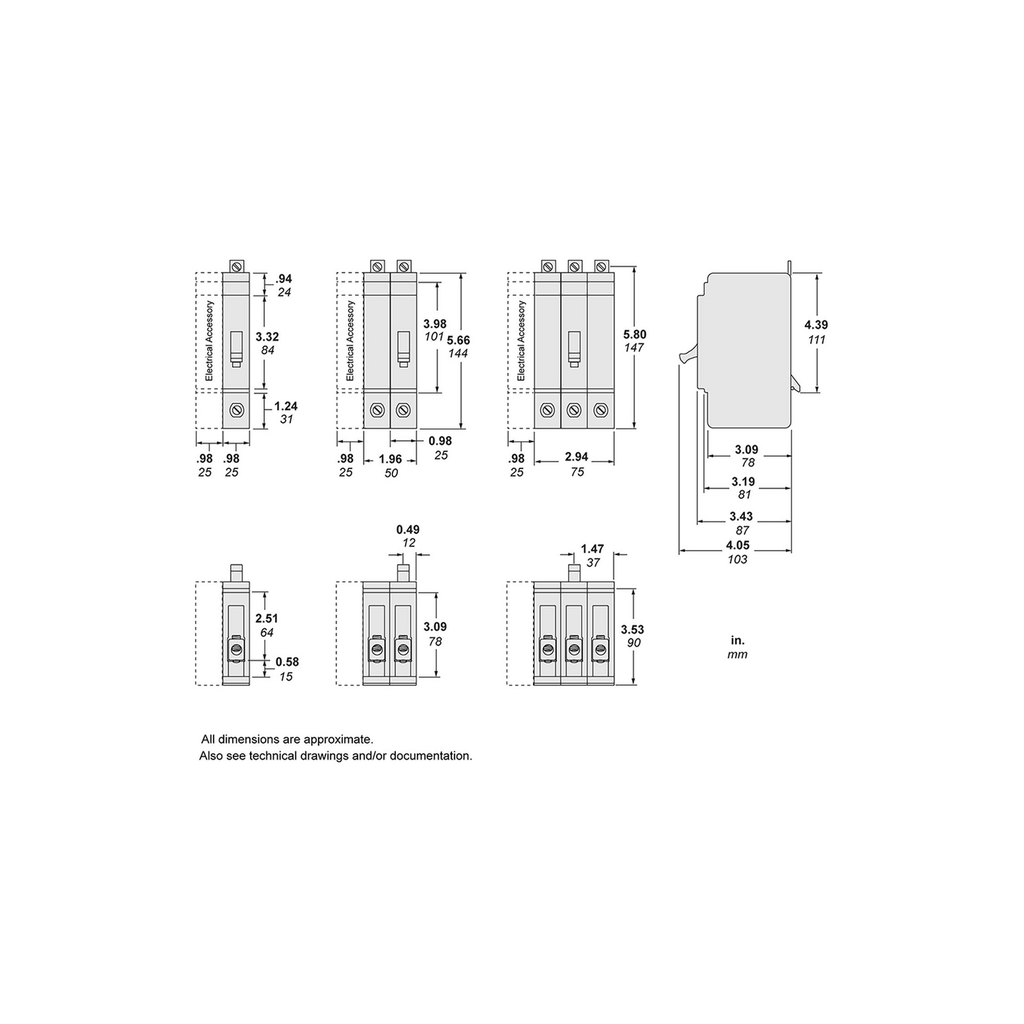

| Height Nominal : | 5.66 in |
| Width Nominal : | 2.94 in |
| Certificate Agency : | cULus |
