ZCE21 | Limit switch head, Limit switches XC Standard, ZCE, roller lever plunger horizontal direction | Tradelco

Description
Resources
Specifications

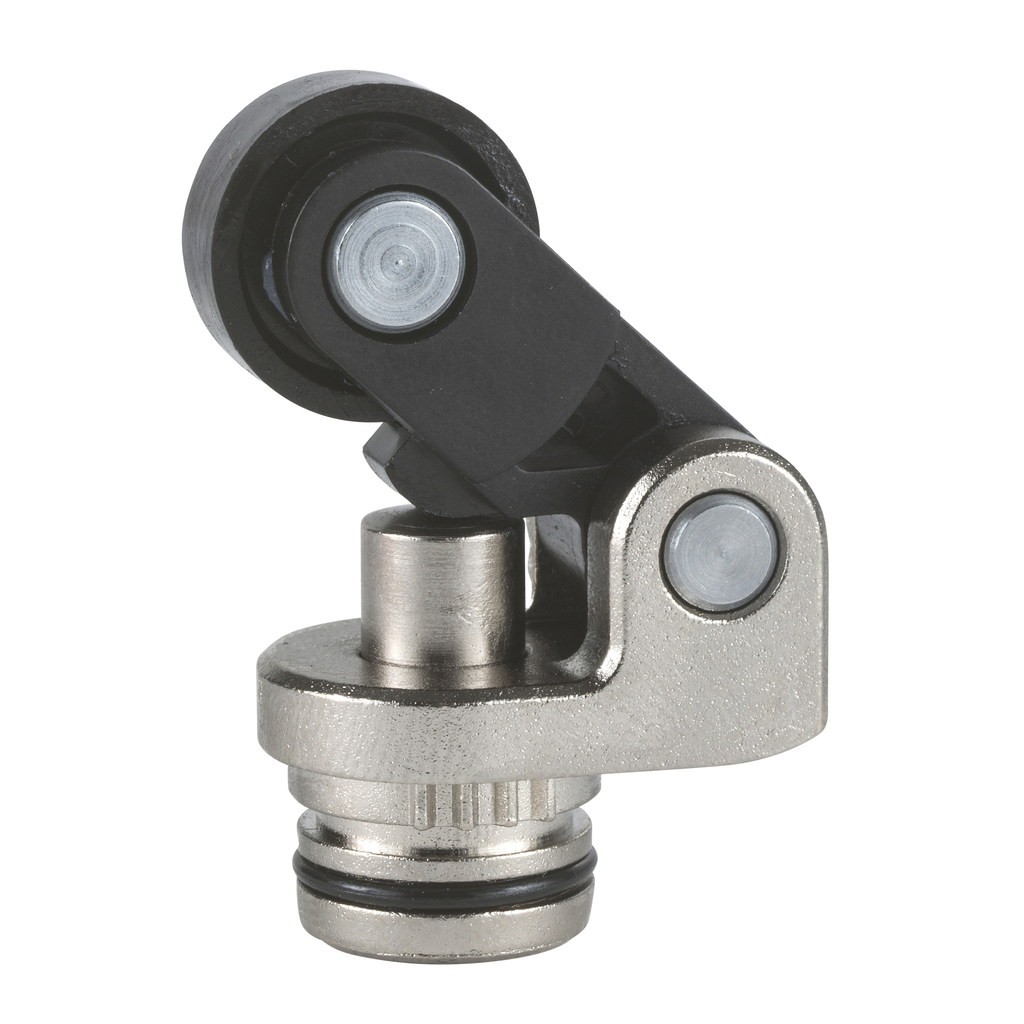

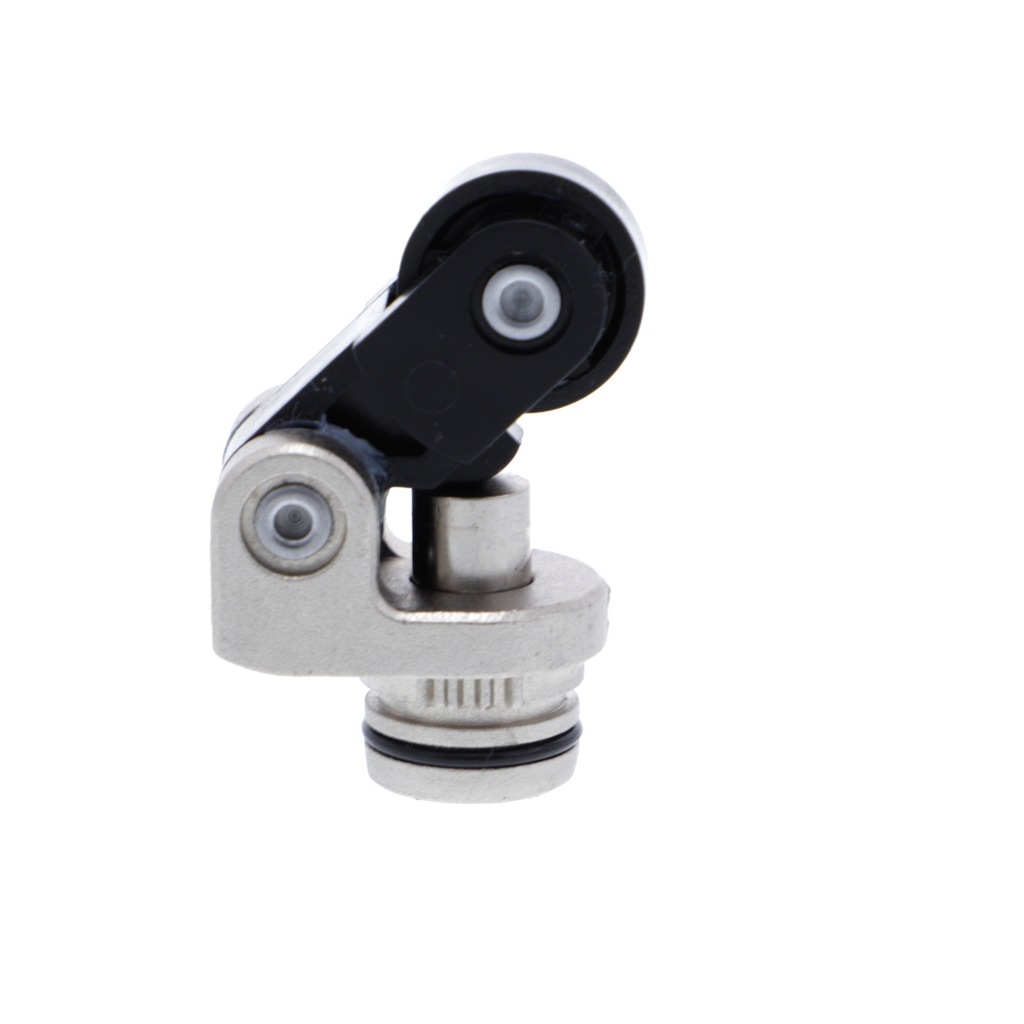

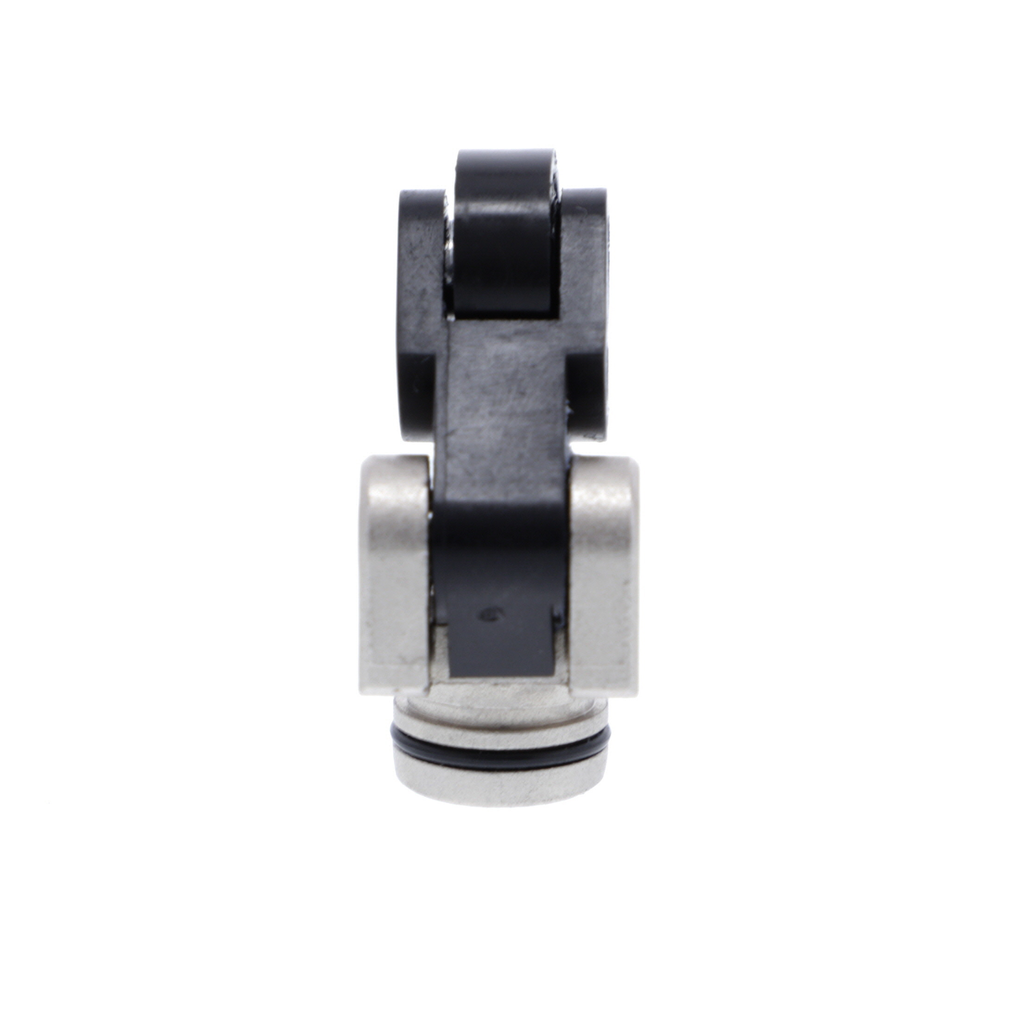

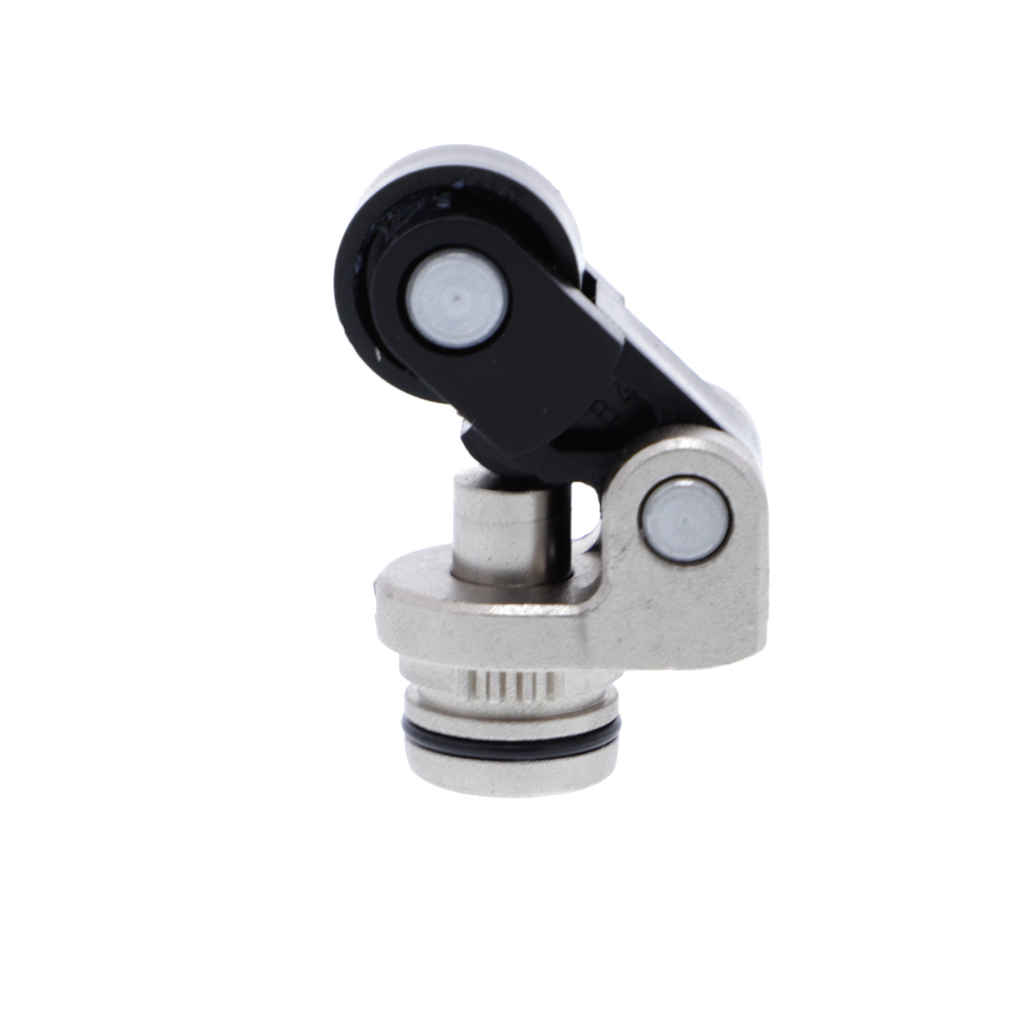

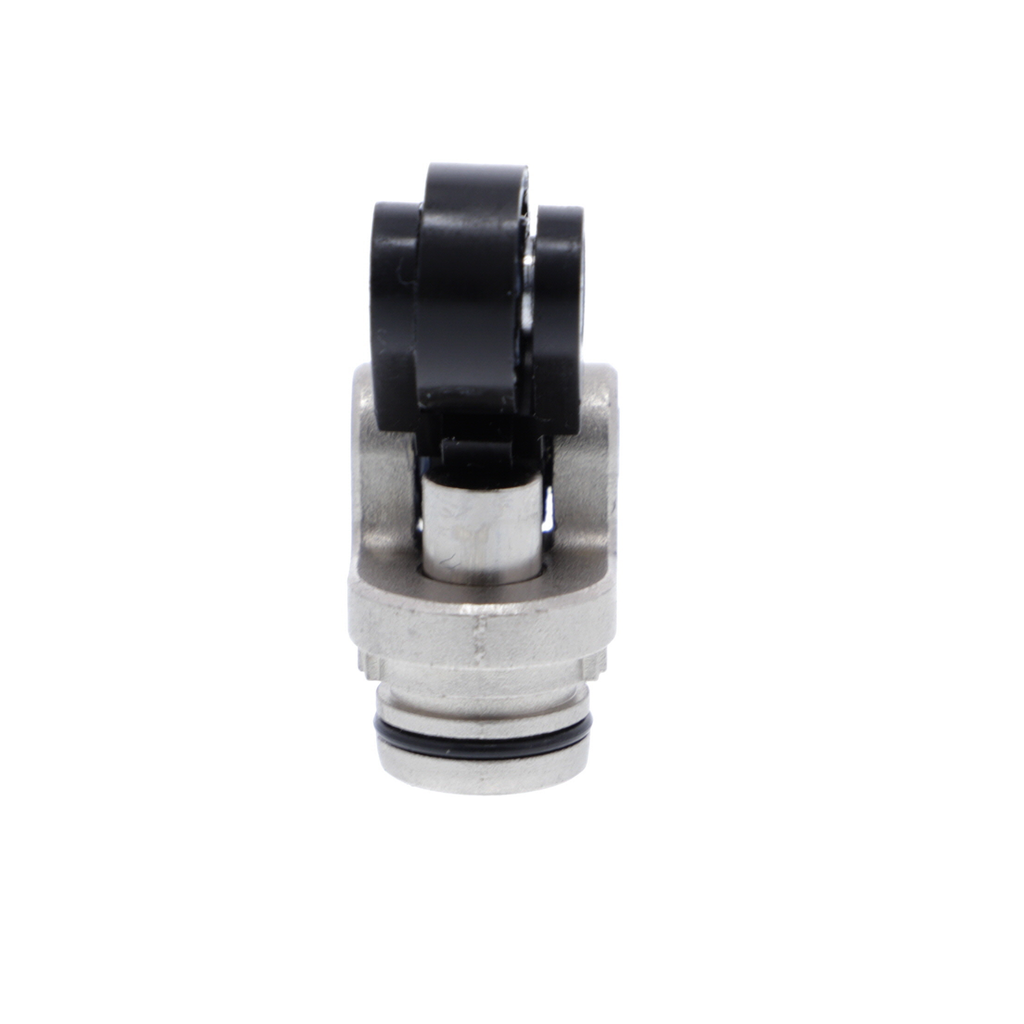

Limit switch head, Limit switches XC Standard, ZCE, roller lever plunger horizontal direction

Item ID #ZCE21

Telemecanique Sensors

Limit switch head, Limit switches XC Standard, ZCE, roller lever plunger horizontal direction

Name: Limit switch head, Limit switches XC Standard, ZCE, roller lever plunger horizontal direction
Brand: Telemecanique Sensors
SKU: ZCE21
Price: 35.34 CAD
Availability: InStock

Item ID #ZCE21

Specifications

See all specifications

Ambient Air Temperature For Operation :	-25-70 °C
Ambient Air Temperature For Storage :	-40-70 °C
Environmental Characteristic :	standard environment

Limit Switches OsiSense XC

EZ Selector

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

This ZCE standard head has a thermoplastic roller lever plunger with horizontal actuation. It can be matched with any body from the XCKD, XCKP and XCKT ranges.

Recommended tools

Environment


Ambient Air Temperature For Operation :	-25-70 °C
Ambient Air Temperature For Storage :	-40-70 °C
Environmental Characteristic :	standard environment

Available0

Your price

$0.00

Offer Sustainability


Rohs Exemption Information :	Yes
Mercury Free :	Yes
Environmental Disclosure :	ENVPEP110614EN
Sustainable Offer Status :	Green Premium product
Eu Rohs Directive :	Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation :	Reference contains Substances of Very High Concern above the threshold

Specifications


Type Of Approach :	lateral approach, 1 direction
Series Name :	standard format
Movement Of Operating Head :	linear
Range Of Product :	Telemecanique Limit switches XC Standard
Type Of Operator :	roller lever plunger spring return thermoplastic
Product Or Component Type :	limit switch head
Associated Body :	ZCMD39L1 \|\| ZCT21N12 \|\| ZCD27 \|\| ZCMD21L5 \|\| ZCD35 \|\| ZCMD21C12 \|\| ZCD31 \|\| ZCT21G11 \|\| ZCMD25L5 \|\| ZCMD41L2 \|\| ZCP27 \|\| ZCMD29L1 \|\| ZCD26 \|\| ZCMD21L08U78 \|\| ZCP35 \|\| ZCT27P16 \|\| ZCMD29L5 \|\| ZCP28 \|\| ZCD25 \|\| ZCD21 \|\| ZCP37 \|\| ZCMD21L08R12 \|\| ZCMD81L1 \|\| ZCMD25L1 \|\| ZCT25G11 \|\| ZCT28G11 \|\| ZCMD29C12 \|\| ZCT26N12 \|\| ZCT27G11 \|\| ZCMD41L5 \|\| ZCMD21M12 \|\| ZCD37 \|\| ZCP29M12 \|\| ZCMD21L2 \|\| ZCT21P16 \|\| ZCD29M12 \|\| ZCMD37L2 \|\| ZCT26G11 \|\| ZCP29 \|\| ZCT28N12 \|\| ZCD28 \|\| ZCMD29L2 \|\| ZCMD21L1 \|\| ZCMD25L2 \|\| ZCMD81L2 \|\| ZCT25N12 \|\| ZCP21M12 \|\| ZCP21 \|\| ZCMD39L2 \|\| ZCMD61M12 \|\| ZCMD61C12 \|\| ZCMD81L5 \|\| ZCD39 \|\| ZCT28P16 \|\| ZCD29 \|\| ZCP39 \|\| ZCP25 \|\| ZCD21M12 \|\| ZCT27N12 \|\| ZCMD37L5 \|\| ZCT25P16 \|\| ZCP31 \|\| ZCMD37L1 \|\| ZCP26 \|\| ZCT26P16 \|\| ZCMD39L5 \|\| ZCMD41L1 \|\| ZCMD69C12
Product Compatibility :	XCKD \|\| XCKP \|\| XCMD \|\| XCKT
Device Short Name :	ZCE
Head Type :	plunger head


Switch Actuation :	by 30° cam
Positive Opening :	with
