ZCKD08 | Limit switch head, Limit switches XC Standard, ZCKD, spring rod lever | Tradelco

Description
Resources
Specifications

Limit switch head, Limit switches XC Standard, ZCKD, spring rod lever

Item ID #ZCKD08

Telemecanique Sensors

Limit switch head, Limit switches XC Standard, ZCKD, spring rod lever

Name: Limit switch head, Limit switches XC Standard, ZCKD, spring rod lever
Brand: Telemecanique Sensors
SKU: ZCKD08
Price: 47.00 CAD
Availability: InStock

Item ID #ZCKD08

Specifications

See all specifications

Ambient Air Temperature For Operation :	-25-70 °C
Ambient Air Temperature For Storage :	-40-70 °C
Environmental Characteristic :	standard environment

Limit Switches OsiSense XC

EZ Selector

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

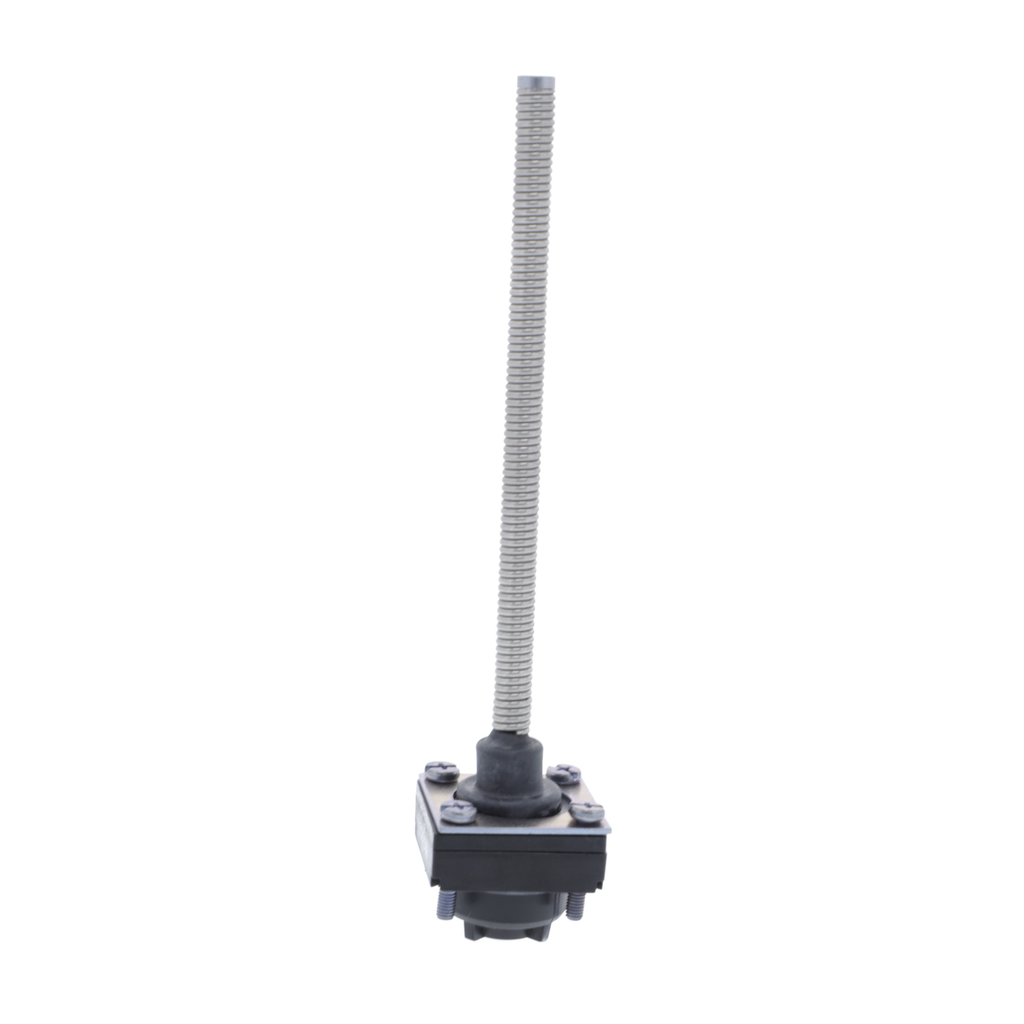

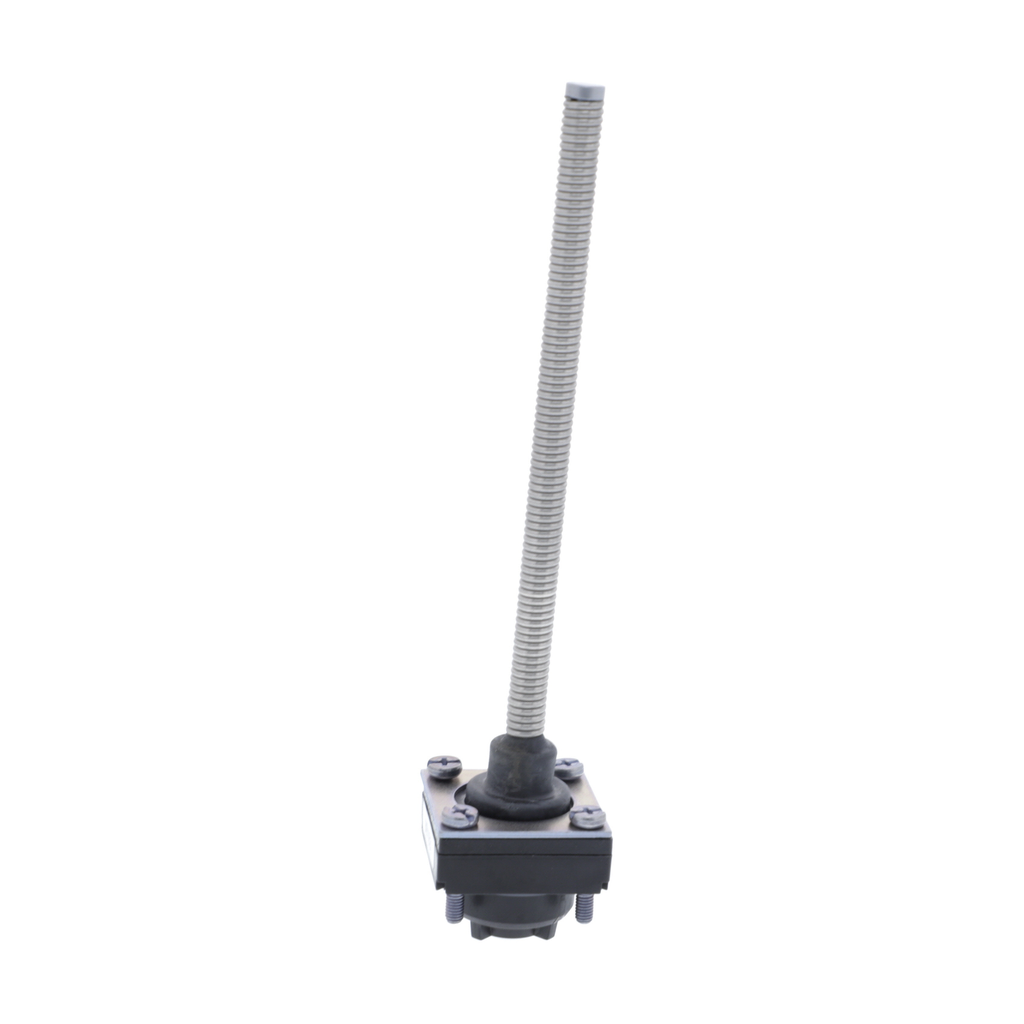

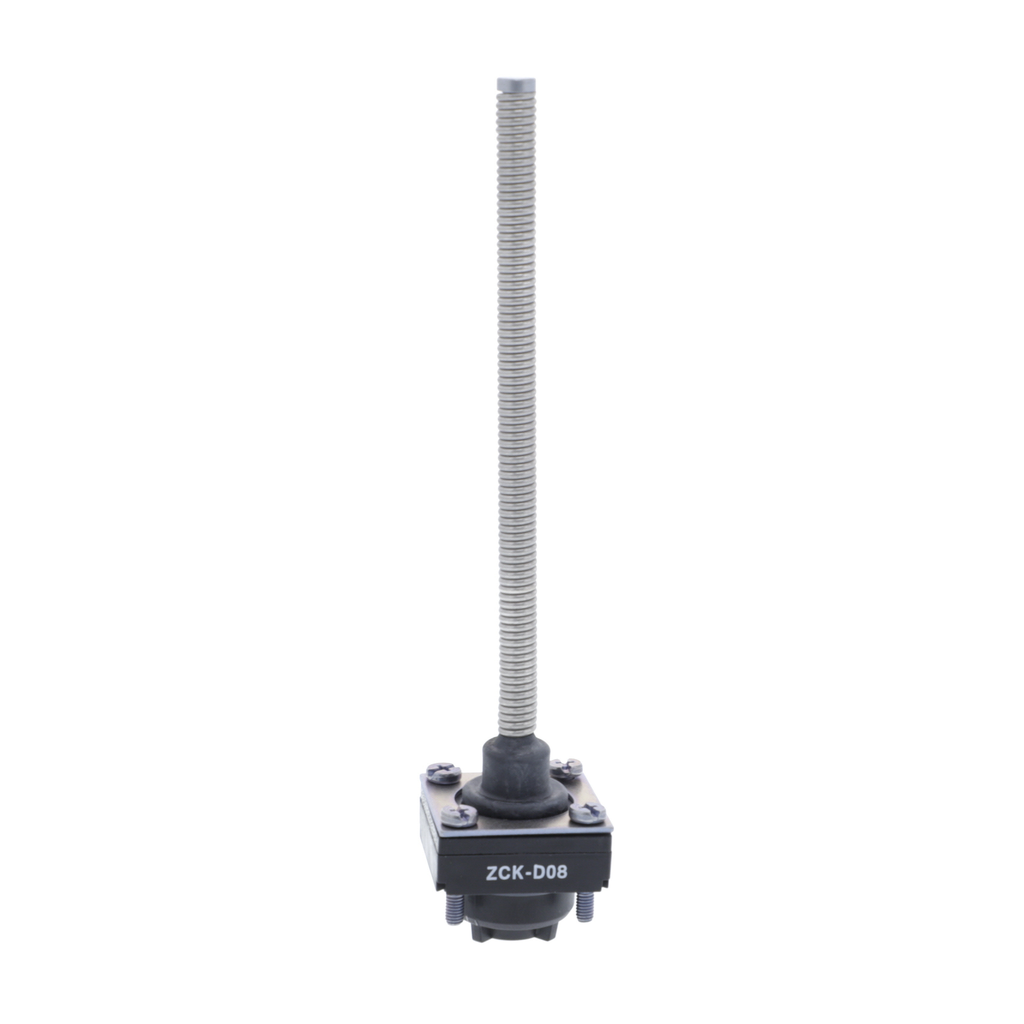

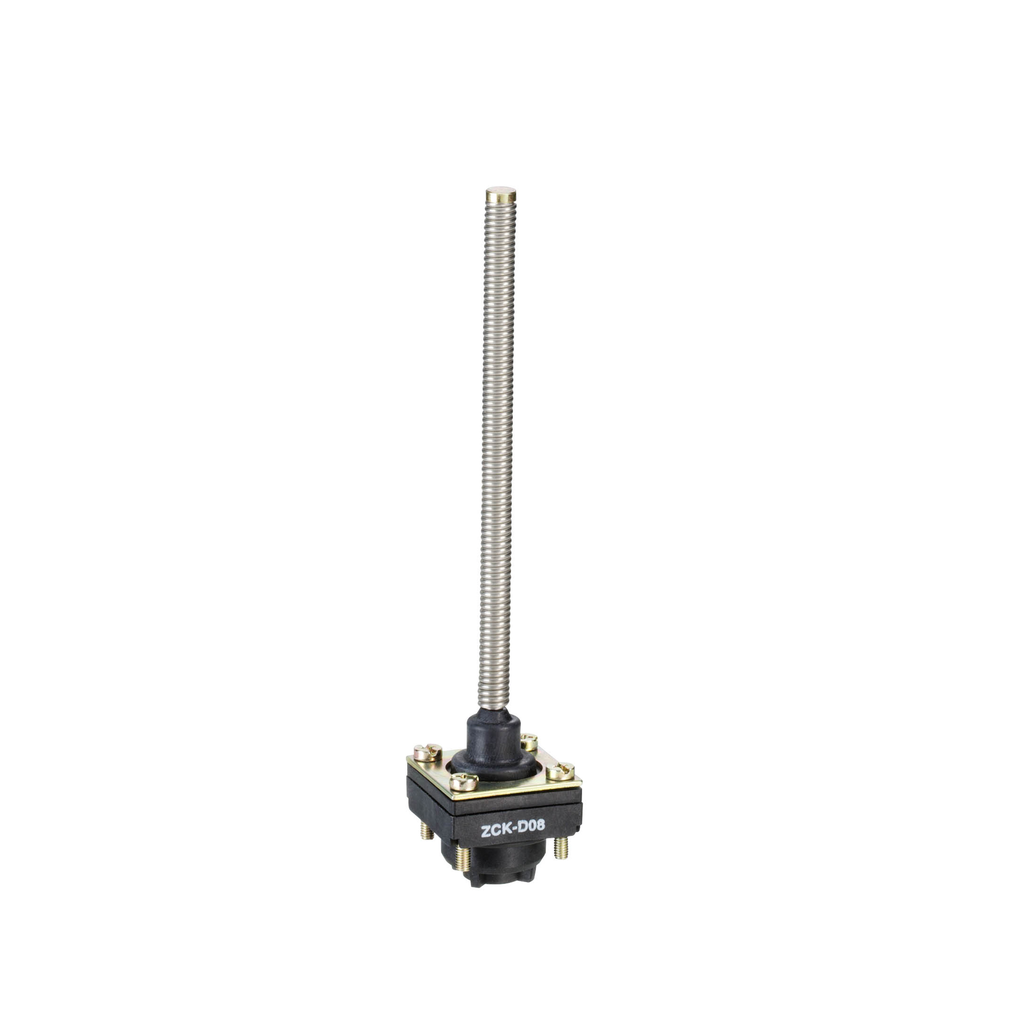

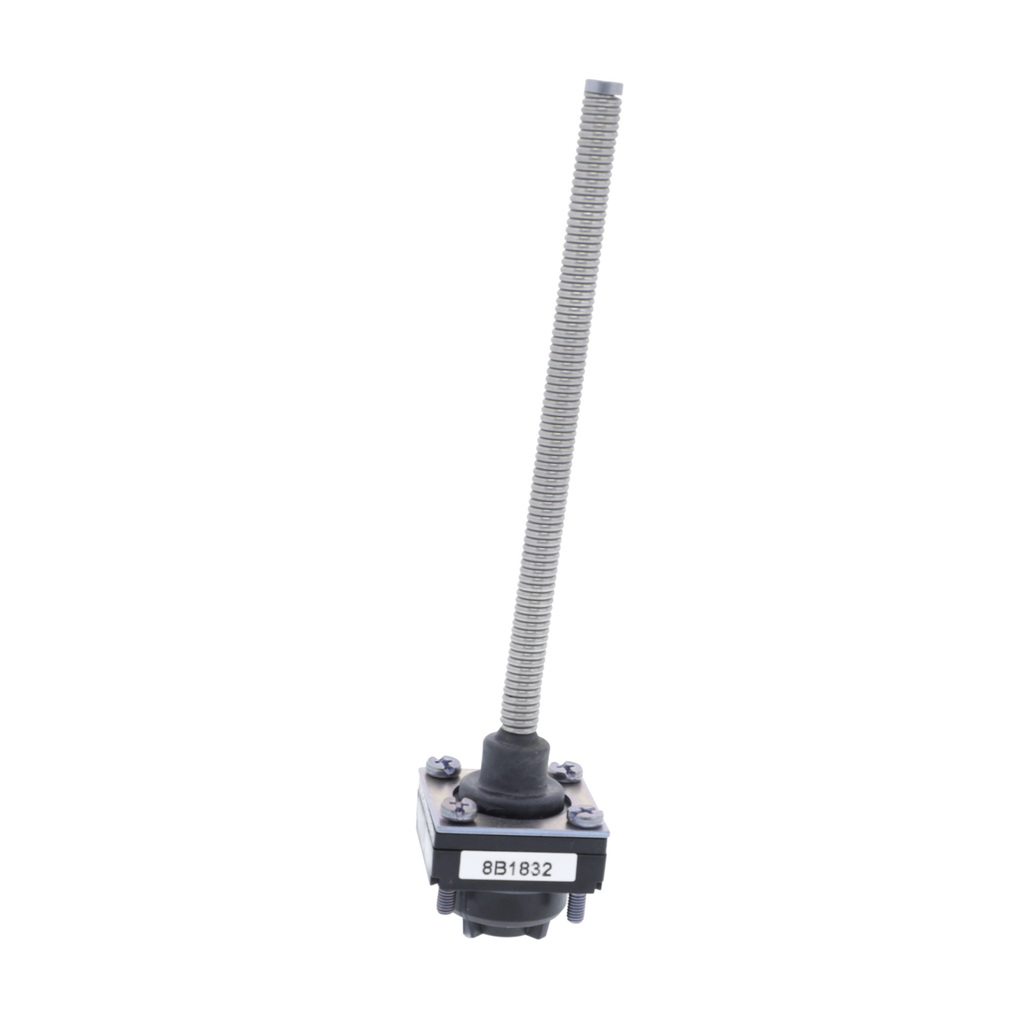

This ZCK standard, classic format head has a spring rod and a nitrile boot. It can be matched with any body from the XCKD, XCKP and XCKT ranges.

Recommended tools

Environment


Ambient Air Temperature For Operation :	-25-70 °C
Ambient Air Temperature For Storage :	-40-70 °C
Environmental Characteristic :	standard environment

Available0

Your price

$0.00

Offer Sustainability


Environmental Disclosure :	ENVPEP110614EN
Eu Rohs Directive :	Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation :	Reference contains Substances of Very High Concern above the threshold

Specifications


Type Of Approach :	multi-directional approach
Series Name :	standard format
Movement Of Operating Head :	multi-directional \|\| rotary
Range Of Product :	Telemecanique Limit switches XC Standard
Type Of Operator :	spring rod spring return
Product Or Component Type :	limit switch head
Associated Body :	ZCKM7H7 \|\| ZCKS1H29 \|\| ZCKM8H7 \|\| ZCKMD31 \|\| ZCKSD37 \|\| ZCKS5 \|\| ZCKS9 \|\| ZCKMD31H7 \|\| ZCKS6 \|\| ZCKL6H7 \|\| ZCKSD35H29 \|\| ZCKSD39H29 \|\| ZCKMD37 \|\| ZCKM6H7 \|\| ZCKSD37H29 \|\| ZCKSD31H29 \|\| ZCKMD39H7 \|\| ZCKS1 \|\| ZCKMD39H29 \|\| ZCKM7 \|\| ZCKSD35 \|\| ZCKM7H29 \|\| ZCKLD39 \|\| ZCKS2 \|\| ZCKS7H29 \|\| ZCKLD31 \|\| ZCKL1H7 \|\| ZCKM5H29 \|\| ZCKM9H29 \|\| ZCKMD39 \|\| ZCKM1 \|\| ZCKL5 \|\| ZCKM5 \|\| ZCKMD35 \|\| ZCKM1H29 \|\| ZCKLD35 \|\| ZCKL1 \|\| ZCKS5H29 \|\| ZCKMD31H29 \|\| ZCKM5H7 \|\| ZCKSD31 \|\| ZCKLD39H7 \|\| ZCKLD37 \|\| ZCKM6 \|\| ZCKL6 \|\| ZCKSD39 \|\| ZCKM8 \|\| ZCKS9H29 \|\| ZCKL8H7 \|\| ZCKS8H29 \|\| ZCKMD35H29 \|\| ZCKM1H7 \|\| ZCKL7 \|\| ZCKMD37H29 \|\| ZCKLD37H7 \|\| ZCKLD35H7 \|\| ZCKL8 \|\| ZCKMD37H7 \|\| ZCKL5H7 \|\| ZCKL7H7 \|\| ZCKS7 \|\| ZCKS8 \|\| ZCKMD35H7 \|\| ZCKM9 \|\| ZCKS6H29 \|\| ZCKS2H29 \|\| ZCKLD31H7 \|\| ZCKM6H29 \|\| ZCKM8H29
Product Compatibility :	XCKL \|\| XCKM \|\| XCKS
Device Short Name :	ZCKD
Head Type :	multi-directional head


Switch Actuation :	by any moving part
Positive Opening :	without
Head Material :	metal
