ZCKD15 | Limit switch head, Limit switches XC Standard, ZCKD, thermoplastic roller lever | Tradelco

Description
Resources
Specifications

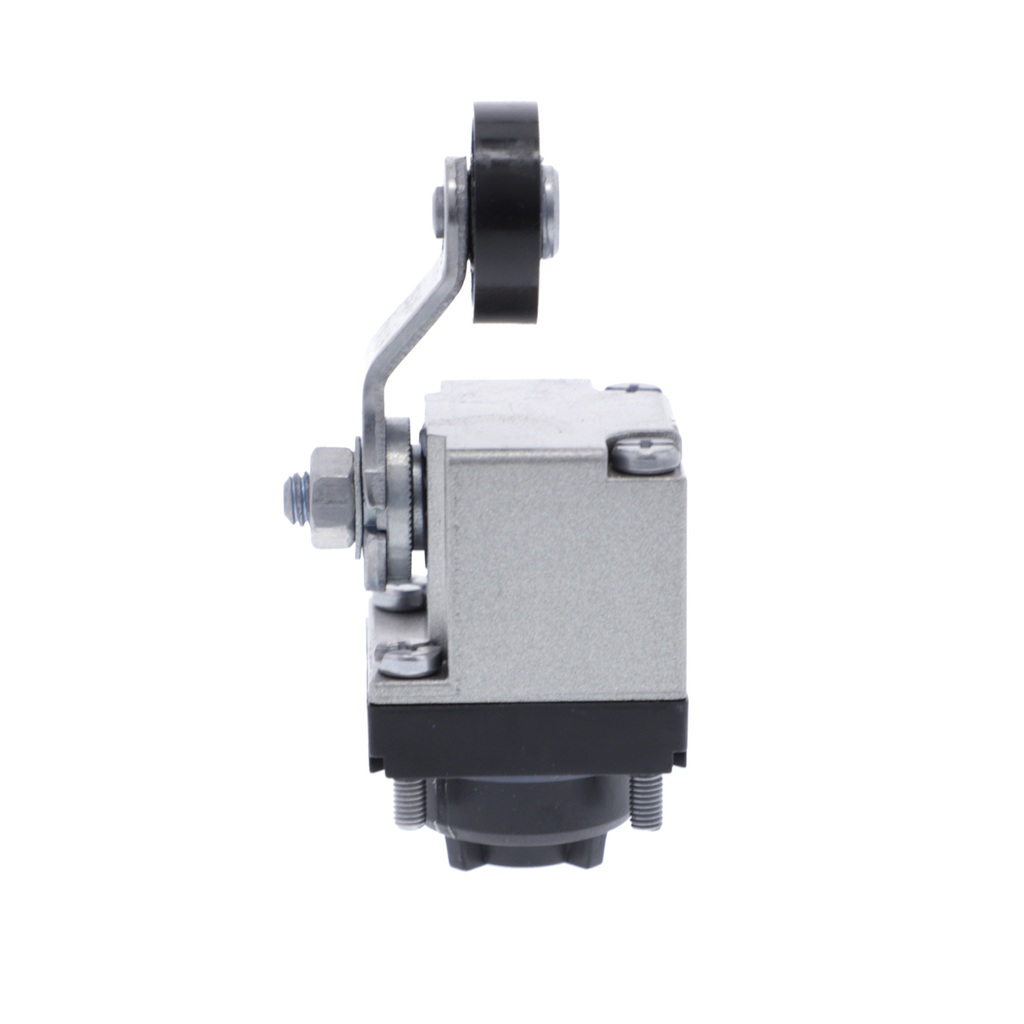

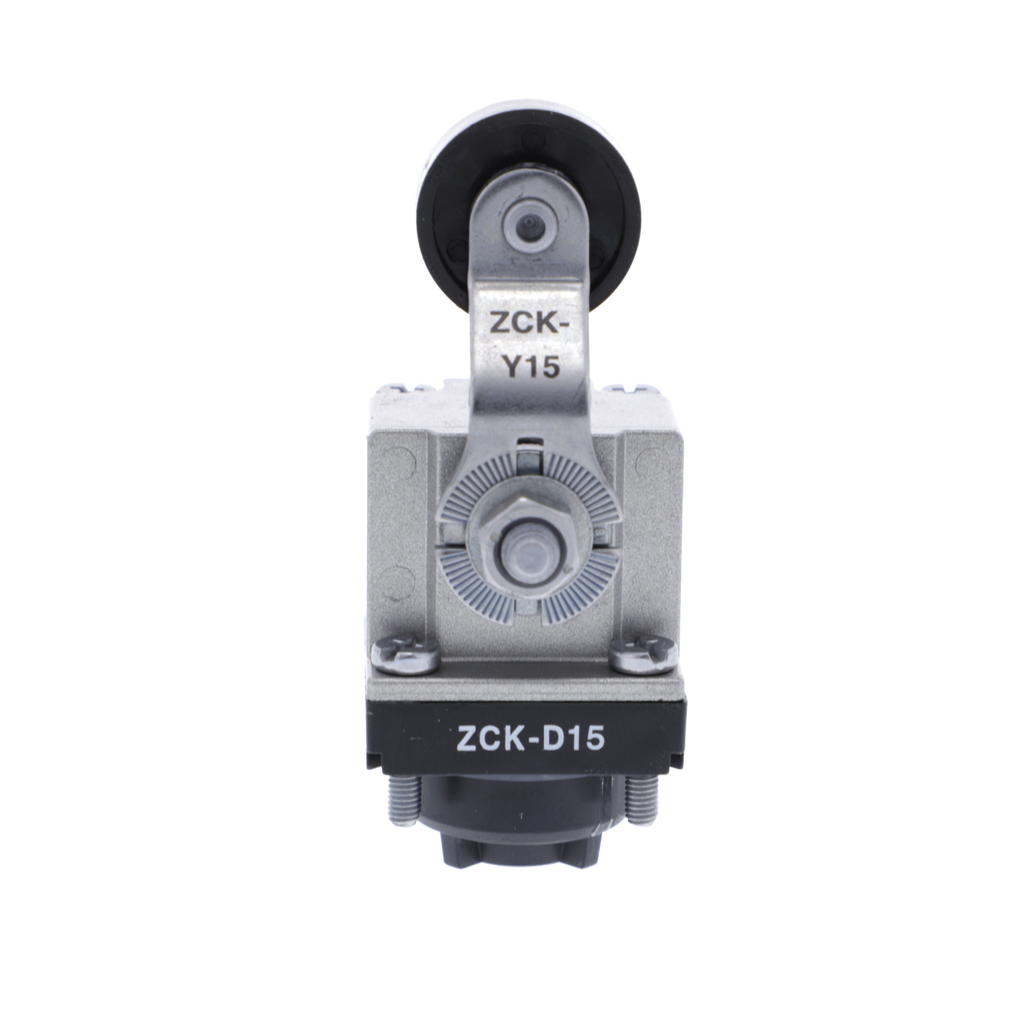

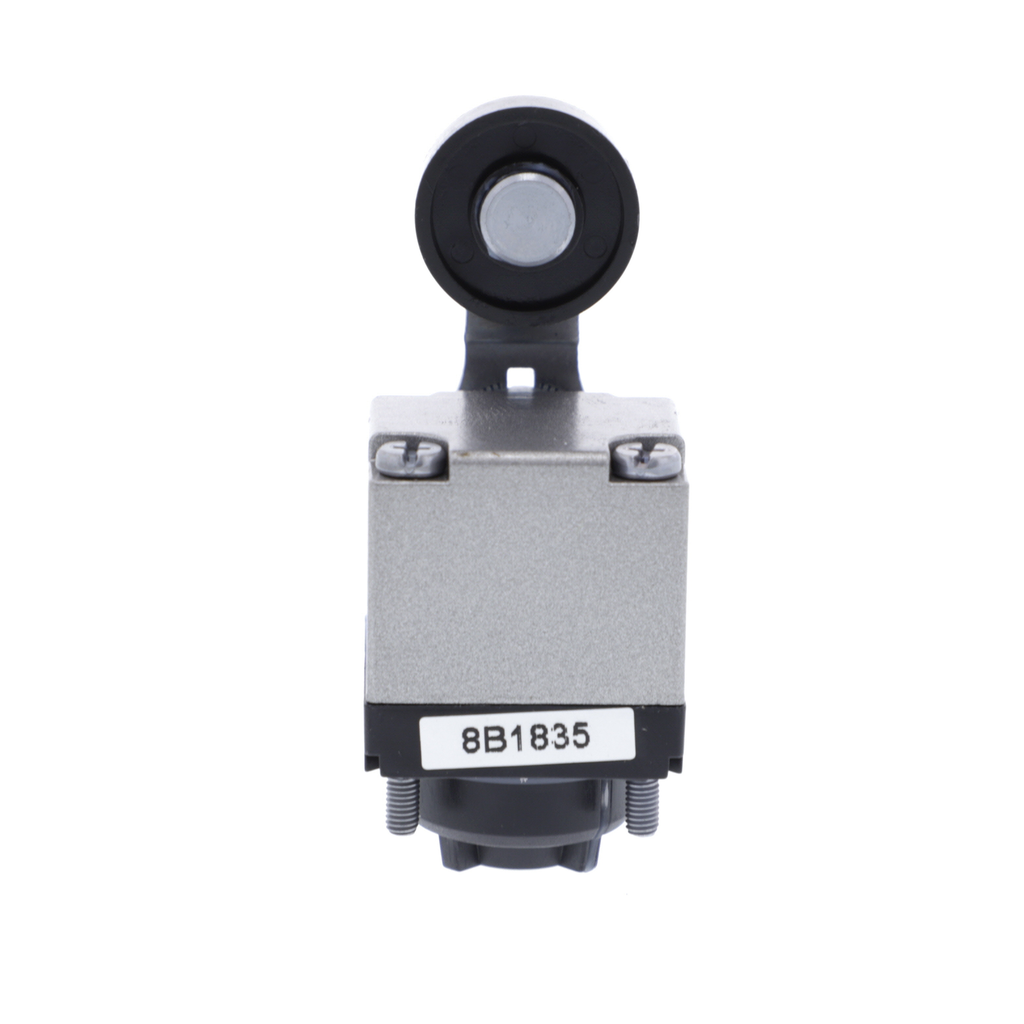

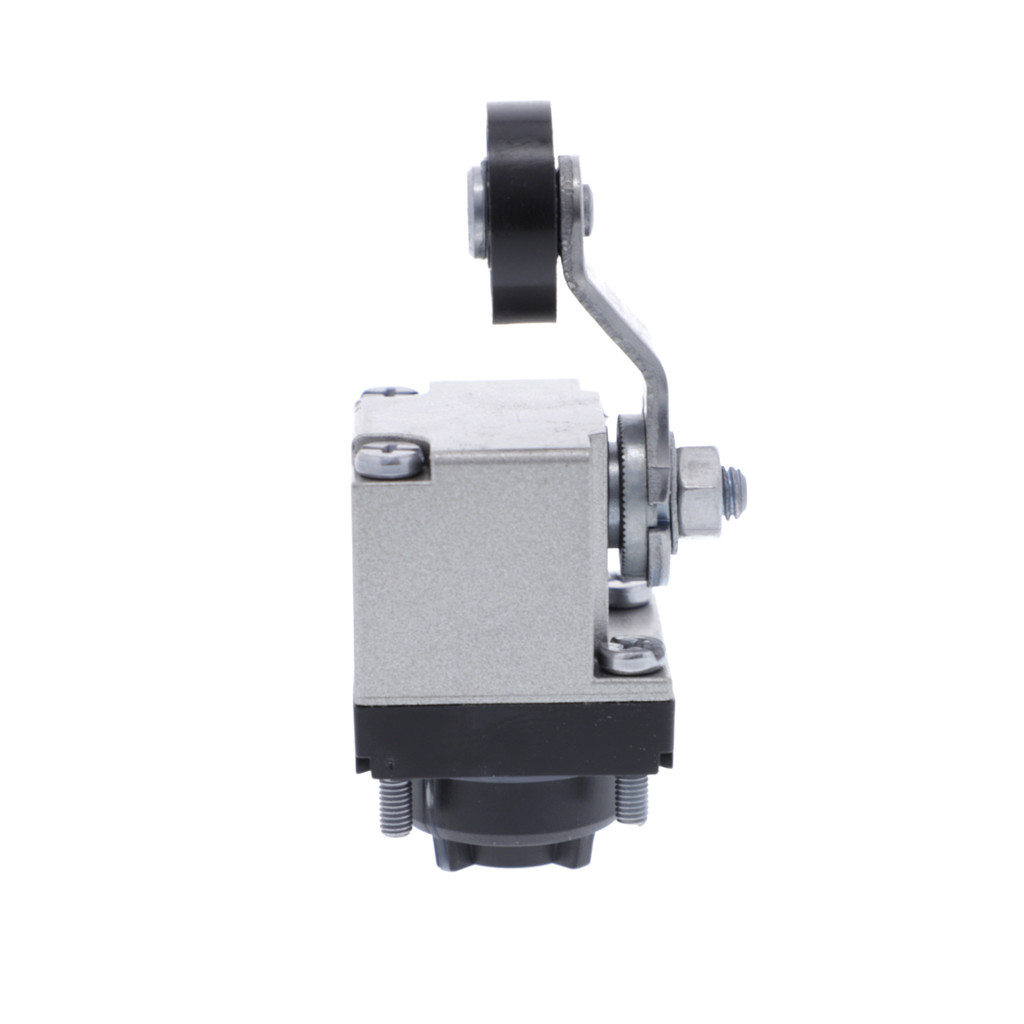

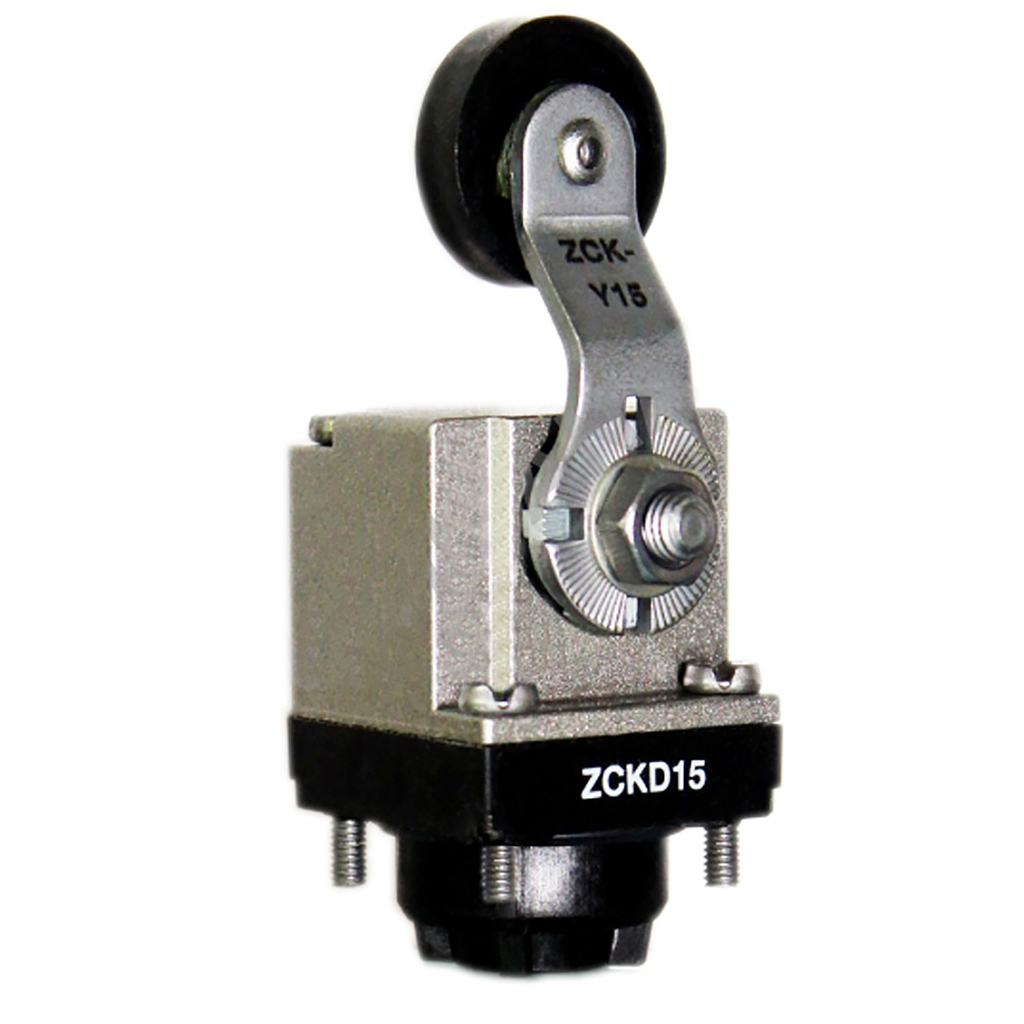

Limit switch head, Limit switches XC Standard, ZCKD, thermoplastic roller lever

Item ID #ZCKD15

Telemecanique Sensors

Limit switch head, Limit switches XC Standard, ZCKD, thermoplastic roller lever

Name: Limit switch head, Limit switches XC Standard, ZCKD, thermoplastic roller lever
Brand: Telemecanique Sensors
SKU: ZCKD15
Price: 31.31 CAD
Availability: InStock

Item ID #ZCKD15

Specifications

See all specifications

Ambient Air Temperature For Operation :	-25-70 °C
Ambient Air Temperature For Storage :	-40-70 °C
Environmental Characteristic :	standard environment

Limit Switches OsiSense XC

EZ Selector

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

This ZCK standard, classic format head has a thermoplastic roller lever. It can be matched with any body from the XCKD, XCKP and XCKT ranges.

Recommended tools

Environment


Ambient Air Temperature For Operation :	-25-70 °C
Ambient Air Temperature For Storage :	-40-70 °C
Environmental Characteristic :	standard environment

Available0

Your price

$0.00

Offer Sustainability


Environmental Disclosure :	ENVPEP110614EN
Eu Rohs Directive :	Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation :	Reference contains Substances of Very High Concern above the threshold

Specifications


Type Of Approach :	lateral approach, 2 directions
Series Name :	standard format
Movement Of Operating Head :	rotary
Range Of Product :	Telemecanique Limit switches XC Standard
Type Of Operator :	roller lever spring return thermoplastic
Product Or Component Type :	limit switch head
Associated Body :	ZCKMD39 \|\| ZCKL1 \|\| ZCKLD31H7 \|\| ZCKLD35H7 \|\| ZCKMD35 \|\| ZCKM1H7 \|\| ZCKM5 \|\| ZCKM1H29 \|\| ZCKLD39H7 \|\| ZCKM8H29 \|\| ZCKL5 \|\| ZCKM1 \|\| ZCKM8H7 \|\| ZCKLD37H7 \|\| ZCKL7H7 \|\| ZCKM6H29 \|\| ZCKM9H29 \|\| ZCKM5H29 \|\| ZCKMD35H7 \|\| ZCKM8 \|\| ZCKMD37H7 \|\| ZCKL7 \|\| ZCKLD39 \|\| ZCKMD37 \|\| ZCKL8 \|\| ZCKMD31 \|\| ZCKLD31 \|\| ZCKL1H7 \|\| ZCKMD35H29 \|\| ZCKM7 \|\| ZCKM6H7 \|\| ZCKM6 \|\| ZCKL5H7 \|\| ZCKM9 \|\| ZCKL6 \|\| ZCKL6H7 \|\| ZCKM7H29 \|\| ZCKM5H7 \|\| ZCKMD31H7 \|\| ZCKM7H7 \|\| ZCKMD31H29 \|\| ZCKLD37 \|\| ZCKMD39H29 \|\| ZCKL8H7 \|\| ZCKMD39H7 \|\| ZCKMD37H29 \|\| ZCKLD35
Product Compatibility :	XCKL \|\| XCKM
Device Short Name :	ZCKD
Head Type :	rotary head


Switch Actuation :	by 30° cam
Positive Opening :	with
Head Material :	metal
