-40-70 °C standard environment || -40-70 °C low temperature
Environmental Characteristic :
standard environment || low temperature
Ambient Air Temperature For Operation :
-25-70 °C standard environment || -40-70 °C low temperature
Available quantity000
Your price
$0.00 / Each
Add to template
Accessories
Must be a multiple of 1 for each
Product Description

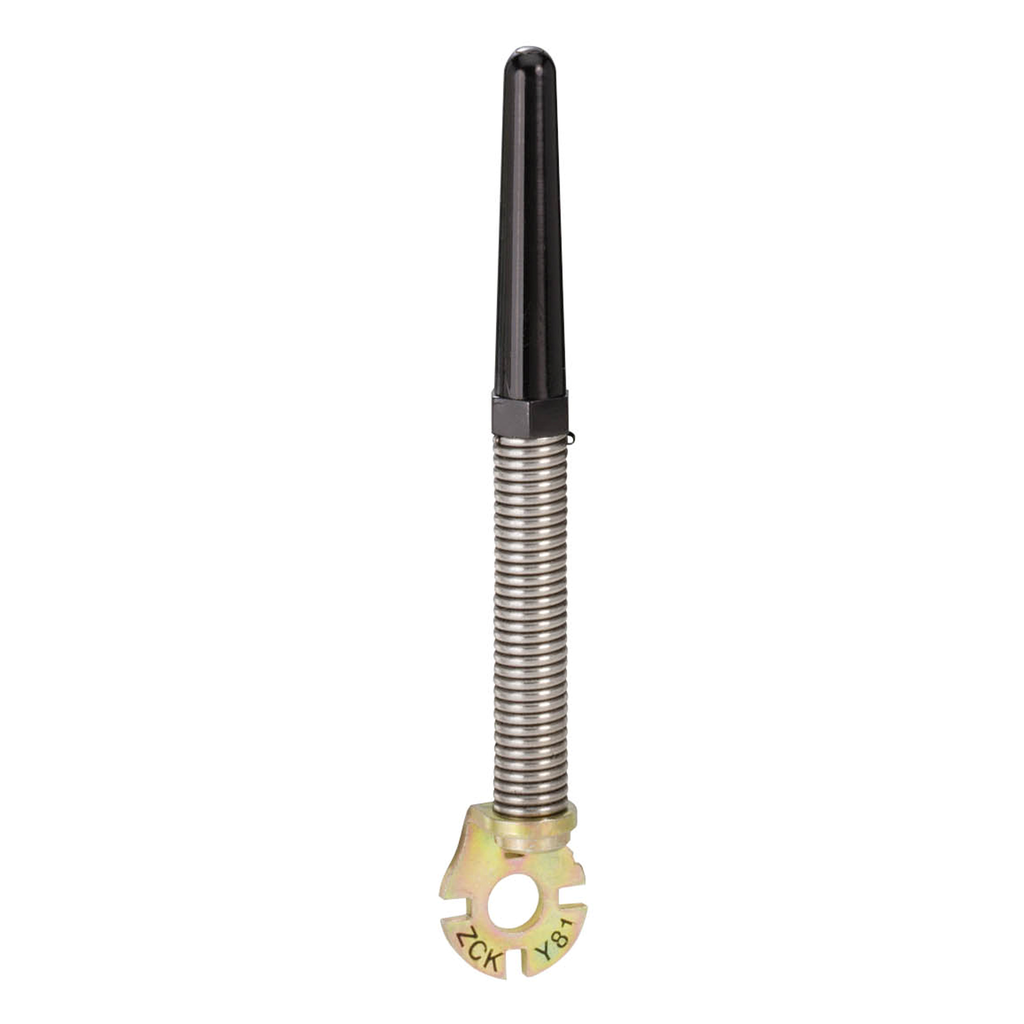

This product is part of the XC Standard range, an offer of limit switches. This limit switch lever has a spring return spring rod (with thermoplastic end) operator and provides a lateral approach without positive opening operation. The switch lever with a rotary movement and switching actuation any moving parts. It is compatible with XCKS, XCKL, XCKJ and XCKM limit switches. The associated heads are ZCKE05 and ZCKD05. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM limit switches ranges.
Recommended tools
Environment
Ambient Air Temperature For Storage :
-40-70 °C standard environment || -40-70 °C low temperature
Environmental Characteristic :
standard environment || low temperature
Ambient Air Temperature For Operation :
-25-70 °C standard environment || -40-70 °C low temperature
Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation :
Reference contains Substances of Very High Concern above the threshold
California Proposition 65 :
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Complementary
Switch Actuation :
by any moving part
Positive Opening :
without
Specifications
Series Name :
standard format
Movement Of Operating Head :
rotary
Type Of Approach :
lateral approach
Range Of Product :
Telemecanique Limit switches XC Standard
Associated Head :
ZCKE05 || ZCKD05
Type Of Operator :
spring rod lever spring return with thermoplastic end)
