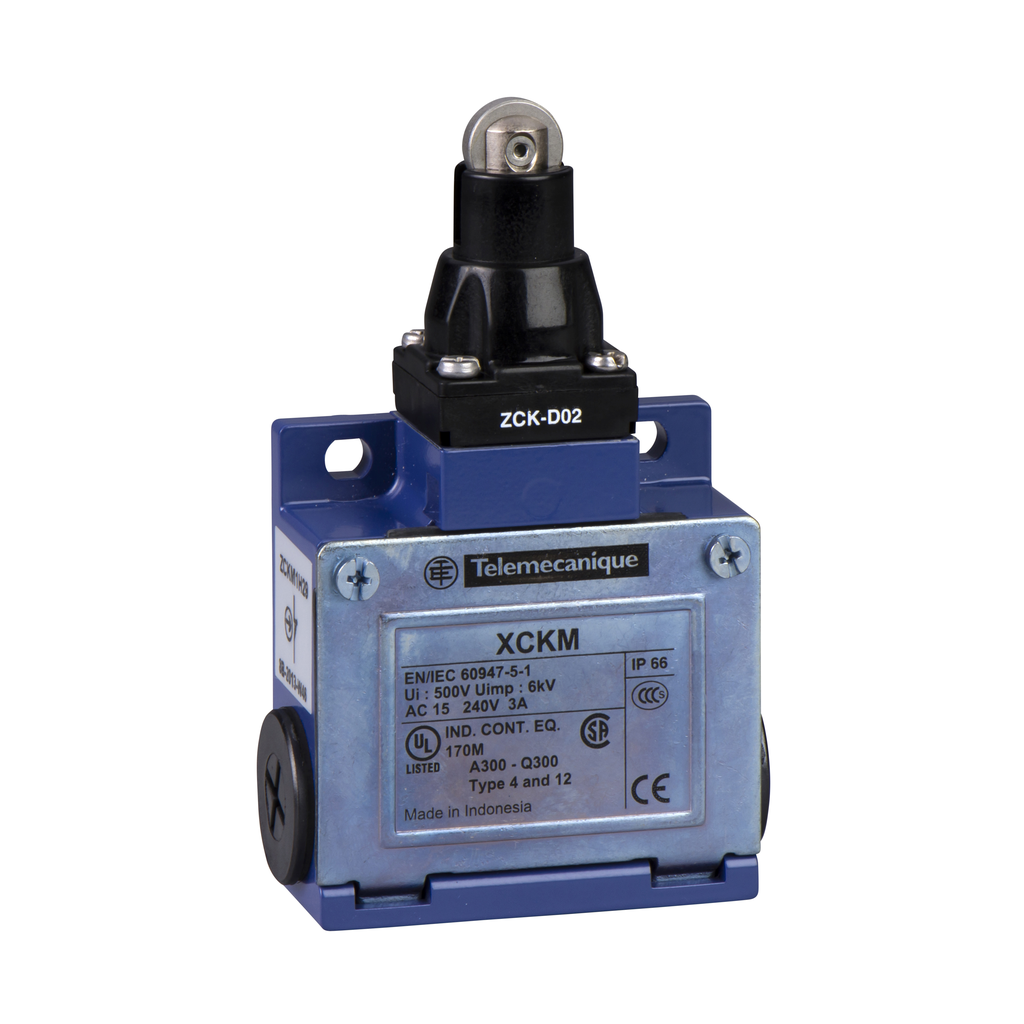

Limit switch, Limit switches XC Standard, XCKM, steel roller plunger, 1NC+1 NO, snap action, 1/2NPT

Item ID #XCKM102H7

Telemecanique Sensors

Limit switch, Limit switches XC Standard, XCKM, steel roller plunger, 1NC+1 NO, snap action, 1/2NPT

Name: Limit switch, Limit switches XC Standard, XCKM, steel roller plunger, 1NC+1 NO, snap action, 1/2NPT
Brand: Telemecanique Sensors
SKU: XCKM102H7
Price: 100.00 CAD
Availability: InStock

Item ID #XCKM102H7

Specifications

See all specifications

Product Certifications :	CSA \|\| UL \|\| CCC
Ik Degree Of Protection :	IK05 EN 50102
Ambient Air Temperature For Operation :	-25-70 °C

Limit Switches OsiSense XC

EZ Selector

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

Schneider C/A positive pressure switch with steel roller push button, 10A 240V, 1NO 1NC, action B

Recommended tools

Environment


Product Certifications :	CSA \|\| UL \|\| CCC
Ik Degree Of Protection :	IK05 EN 50102
Ambient Air Temperature For Operation :	-25-70 °C
Standards :	UL 508 \|\| EN 60947-5-1 \|\| IEC 60204-1 \|\| CSA C22.2 No 14 \|\| IEC 60947-5-1 \|\| EN 60204-1
Shock Resistance :	50 gn 11 ms EN/IEC 60068-2-27
Vibration Resistance :	25 gn 10-500 Hz)EN/IEC 60068-2-6
Ip Degree Of Protection :	IP66 EN/IEC 60529
Ambient Air Temperature For Storage :	-40-70 °C
Electrical Shock Protection Class :	class I IEC 61140 \|\| class I NF C 20-030
Protective Treatment :	TC

Available0

Your price

$0.00

Offer Sustainability


Rohs Exemption Information :	Yes
Mercury Free :	Yes
Environmental Disclosure :	ENVPEP110614EN
Sustainable Offer Status :	Green Premium product
Reach Regulation :	Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive :	Pro-active compliance (Product out of EU RoHS legal scope)

Complementary


Height :	64-64 mm
Terminals Description Iso N°1 :	(21-22)NC \|\| (13-14)NO
Short-Circuit Protection :	10 A cartridge fuse gG
Minimum Actuation Speed :	0.01 m/min
Electrical Connection :	screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
Number Of Steps :	1
[Uimp] Rated Impulse Withstand Voltage :	6 kV IEC 60664 \|\| 6 kV IEC 60947-1
Switch Actuation :	by 30° cam
[Ui] Rated Insulation Voltage :	300 VUL 508 \|\| 500 V 3)IEC 60947-1 \|\| 300 VCSA C22.2 No 14
Electrical Durability :	5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13, inductive, 24 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13, inductive, 48 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Positive Opening Minimum Force :	36 N
Positive Opening :	with
Contacts Insulation Form :	Zb
Mechanical Durability :	20000000 cycles
Maximum Actuation Speed :	0.5 m/s
Minimum Force For Tripping :	12 N
Contact Code Designation :	A300, AC-15 (Ue = 240 V), Ie = 3 A EN/IEC 60947-5-1 appendix A \|\| Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A
Width :	64 mm
Depth :	30 mm
[Ithe] Conventional Enclosed Thermal Current :	10 A AC
Maximum Resistance Across Terminals :	25 MOhm IEC 60255-7 category 3

Specifications


Movement Of Operating Head :	linear
Range Of Product :	Telemecanique Limit switches XC Standard
Fixing Mode :	by the body
Type Of Operator :	spring return roller plunger metal
Cable Entry :	3 entries tapped for 1/2" NPT cable gland
Product Or Component Type :	limit switch
Material :	metal
Head Type :	plunger head
Type Of Approach :	lateral approach, 2 directions
Series Name :	standard format
Contacts Type And Composition :	1 NC + 1 NO
Body Type :	fixed
Contact Operation :	snap action
Body Material :	zamak
Device Short Name :	XCKM
Number Of Poles :	2
