EN/IEC 60204-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/ISO 12100 || UL 508 || EN 1088/ISO 14119
Available quantity000
Your price
$0.00 / Each
Add to template
Accessories
Must be a multiple of 1 for each
Product Description

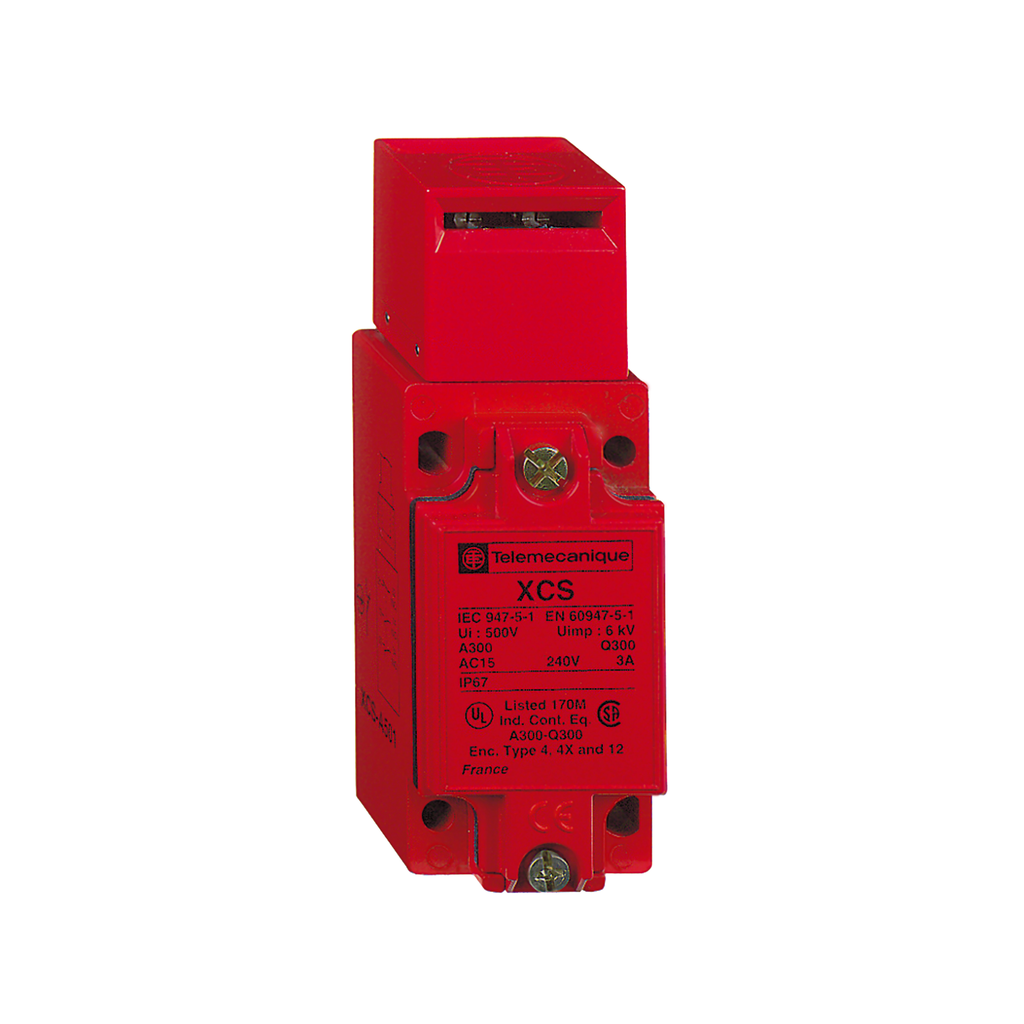

This product is part of the XCS range, safety switches for protection of operators. The safety switch is an electrical switch that makes or breaks contact in the presence of a magnetic field. It is intended for packaging, handling, robotics, machine tools, presses, automotive sector machines. Safety switches are intended to help protect operators, by controlling the safe opening and interlocking of guards and covers in your installations. It has two normally closed and one normally open, slow break contacts, normally closed contact with positive opening operation. It has a rated operational current of 6A at 120VAC, 3A at 240VAC, 0.27A at 250VDC, 0.55 at 125VDC. The key operated turret head limit switch has an industrial metal body which is made of Zamak and has an 24/28V orange LED to signal opening of normally closed contacts. It is without locking. It is furnished with screw clamp terminals for electrical connection. Safety limit switch has one entry tapped for 1/2in NPT cable gland. It is compliant with UL, CSA, and EN/IEC standards and is IP67 rated. The XCS safety switches is one of the most comprehensive ranges of industrial safety switches on the market, providing a range of options for most machine applications. XCS safety switches are designed for the protection of operators, by controlling the safe opening and interlocking of guards and covers in installations.
Recommended tools
Environment
Product Certifications :
CSA || UL
Ambient Air Temperature For Operation :
-25-70 °C
Standards :
EN/IEC 60204-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/ISO 12100 || UL 508 || EN 1088/ISO 14119
6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1
Minimum Actuator Force For Extraction :
20 N
Mechanical Durability :
1000000 cycles
Maximum Actuation Speed :
0.5 m/s
Body Material :
zamak
Safety Reliability Data :
B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear
Width :
40 mm
Depth :
44 mm
Safety Level :
can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Specifications
Range Of Product :
Telemecanique Safety switches XCS
Cable Entry :
1 entry tapped 1/2" NPT
Electrical Connection :
terminal 1 x 0.5...2 x 1.5 mm² with or without cable end
