Product Description

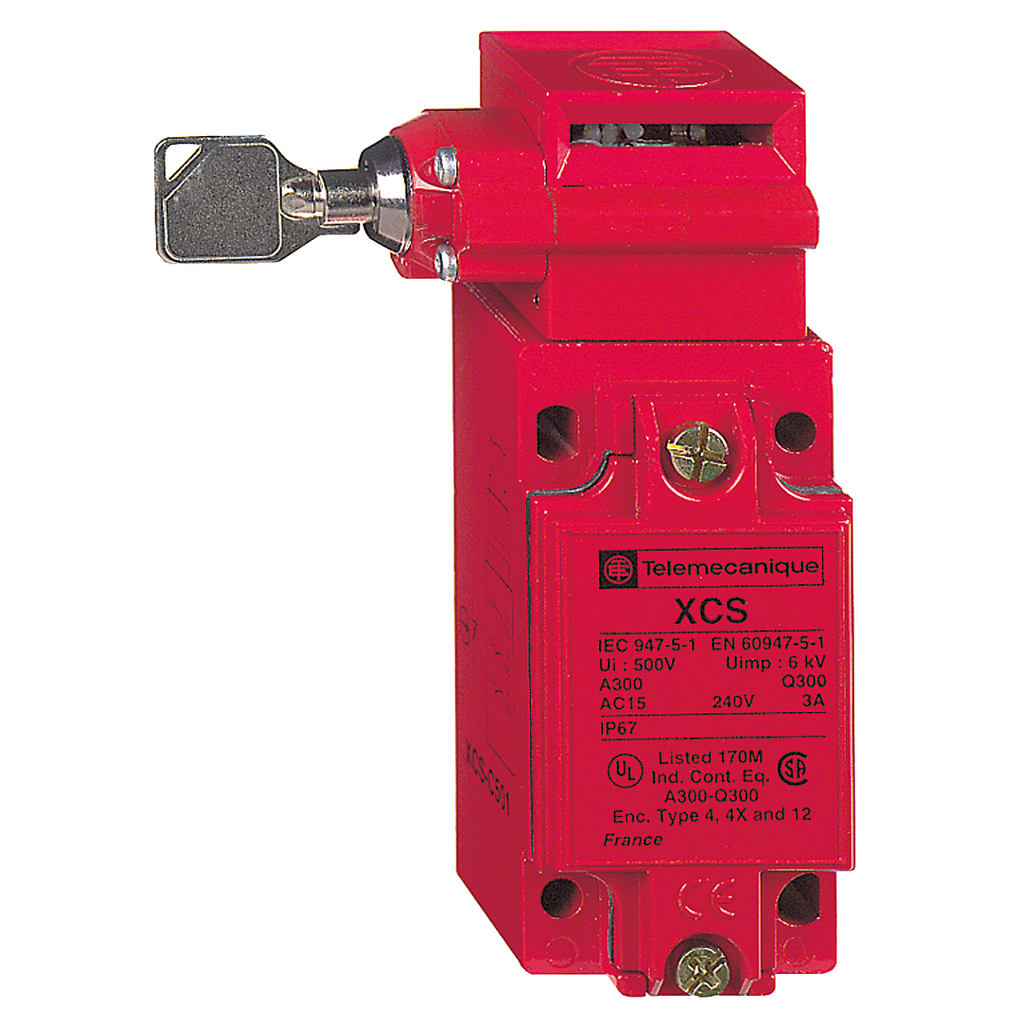

This XCSC Key Operated Safety Switch for guard doors with unlocking by key operated lock has an adjustable turret head and a robust red coated Zamak body with a 1/2" NPT cable gland entry, allowing for flexible installation. It has 1 normally open and 2 normally closed break-before-make (slow break) contacts. Its B10D reliability data is 3 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
Recommended tools
Environment
Product Certifications :
UL || CSA
Ambient Air Temperature For Operation :
-25-70 °C
Standards :
UL 508 || CSA C22.2 No 14 || EN/ISO 12100 || EN/IEC 60947-5-1 || EN/IEC 60204-1 || EN 1088/ISO 14119
6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1
Minimum Actuator Force For Extraction :
20 N
Mechanical Durability :
600000 cycles
Maximum Actuation Speed :
0.5 m/s
Body Material :
zamak
Safety Reliability Data :
B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear
Width :
52 mm
Actuator Forcible Withdrawal Rtc :
1500 N
Depth :
44 mm
Safety Level :
can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Specifications
Range Of Product :
Telemecanique Safety switches XCS
Cable Entry :
1 entry tapped 1/2" NPT
Electrical Connection :
terminal 1 x 0.5...2 x 1.5 mm² with or without cable end
Locking Options Description :
with locking of actuator, unlocking by key operated lock
