Product Description

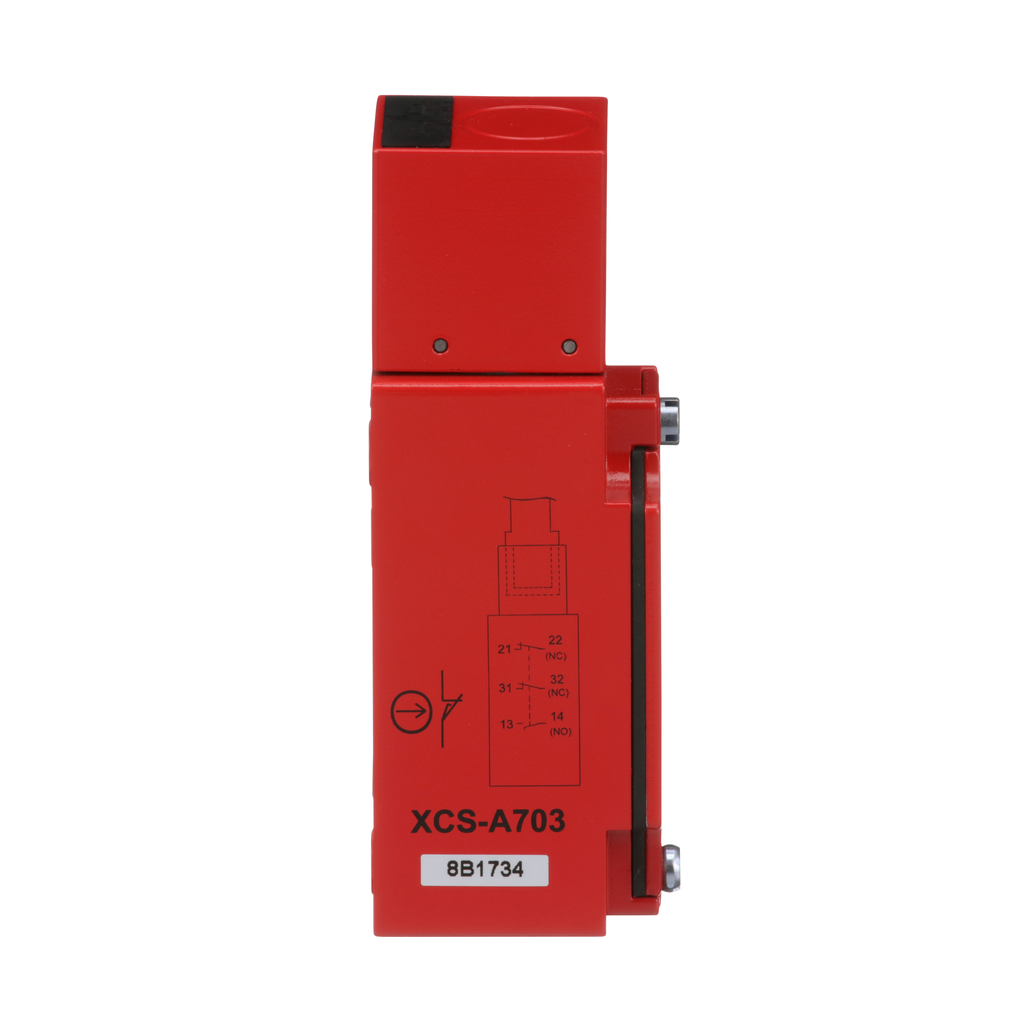

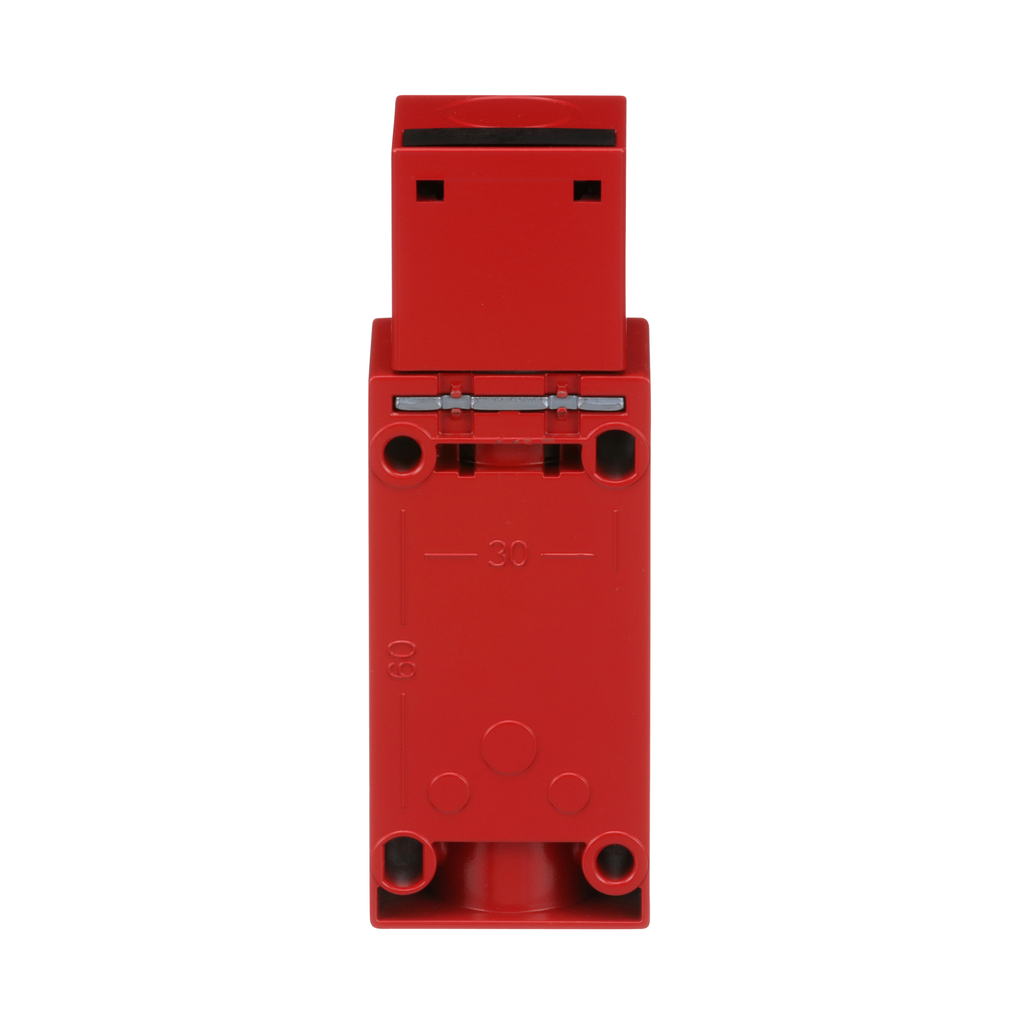

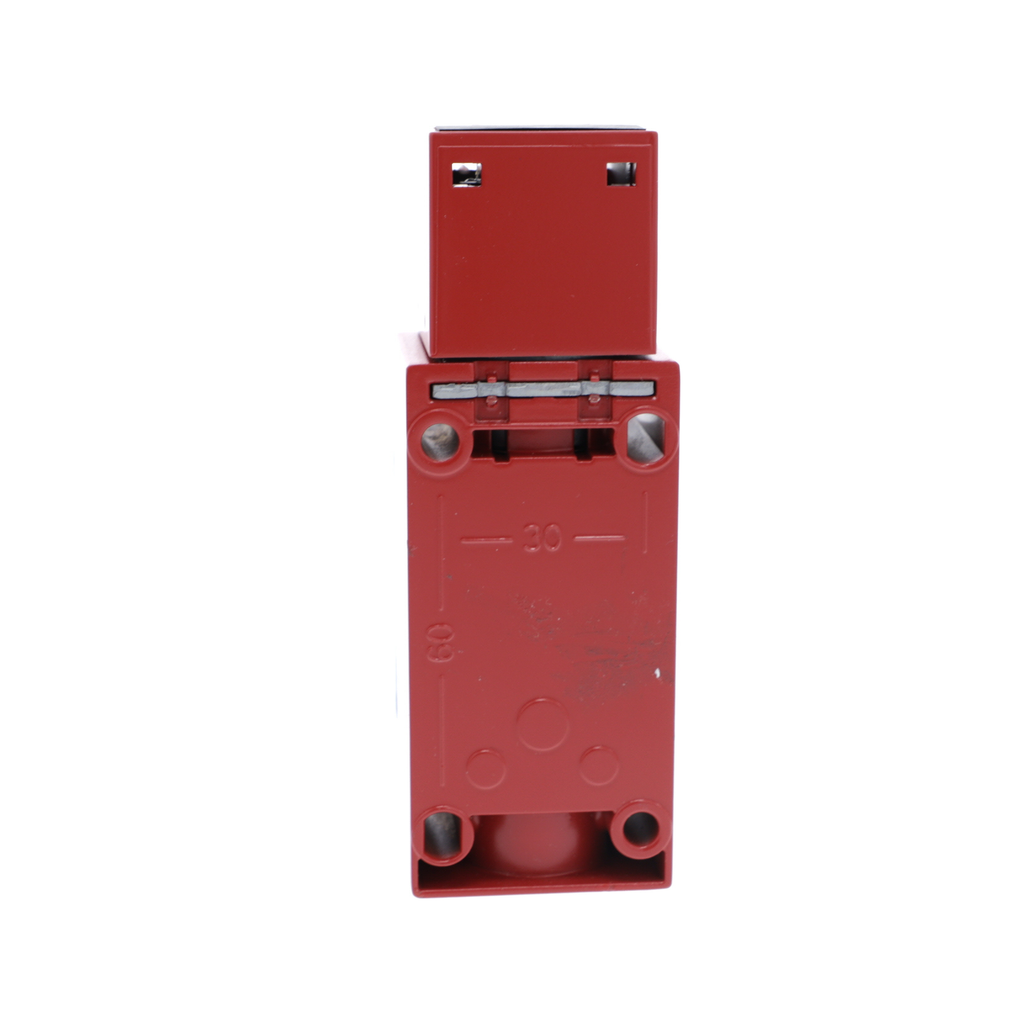

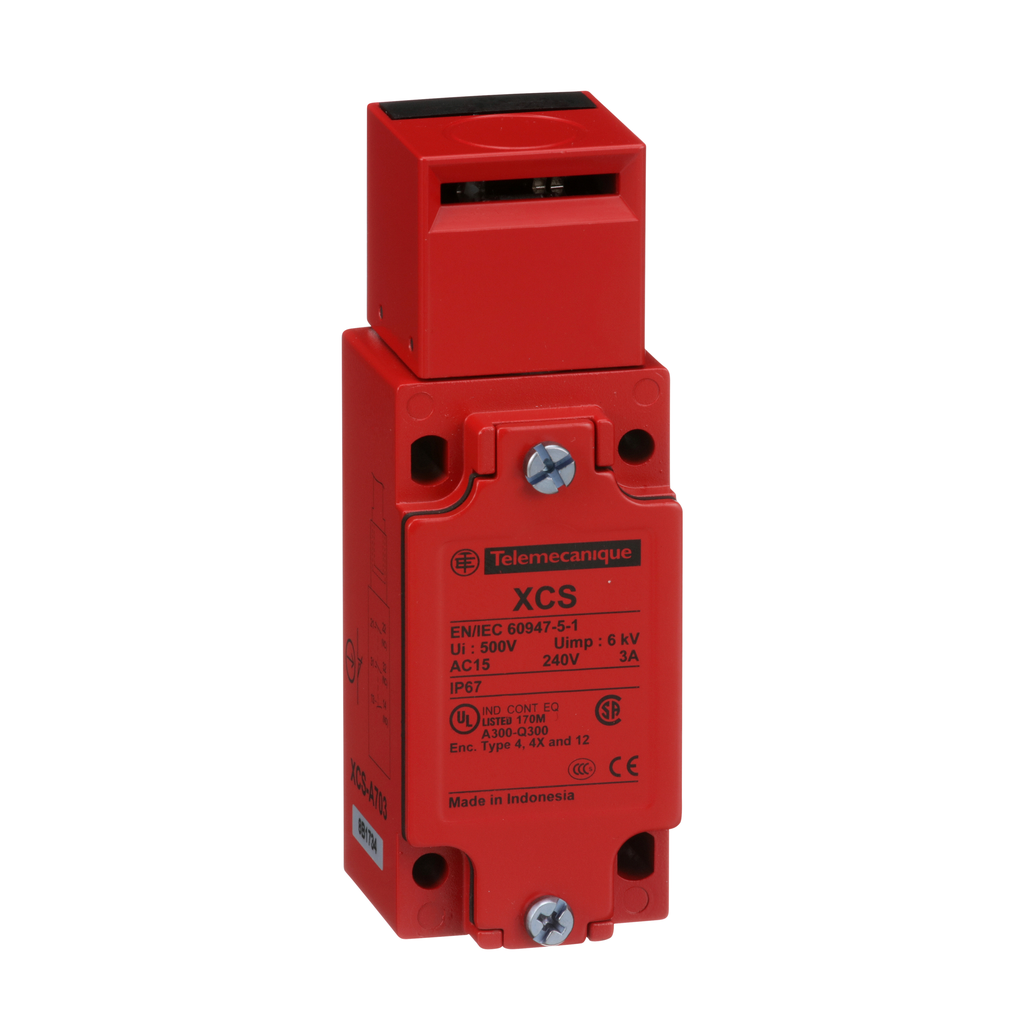

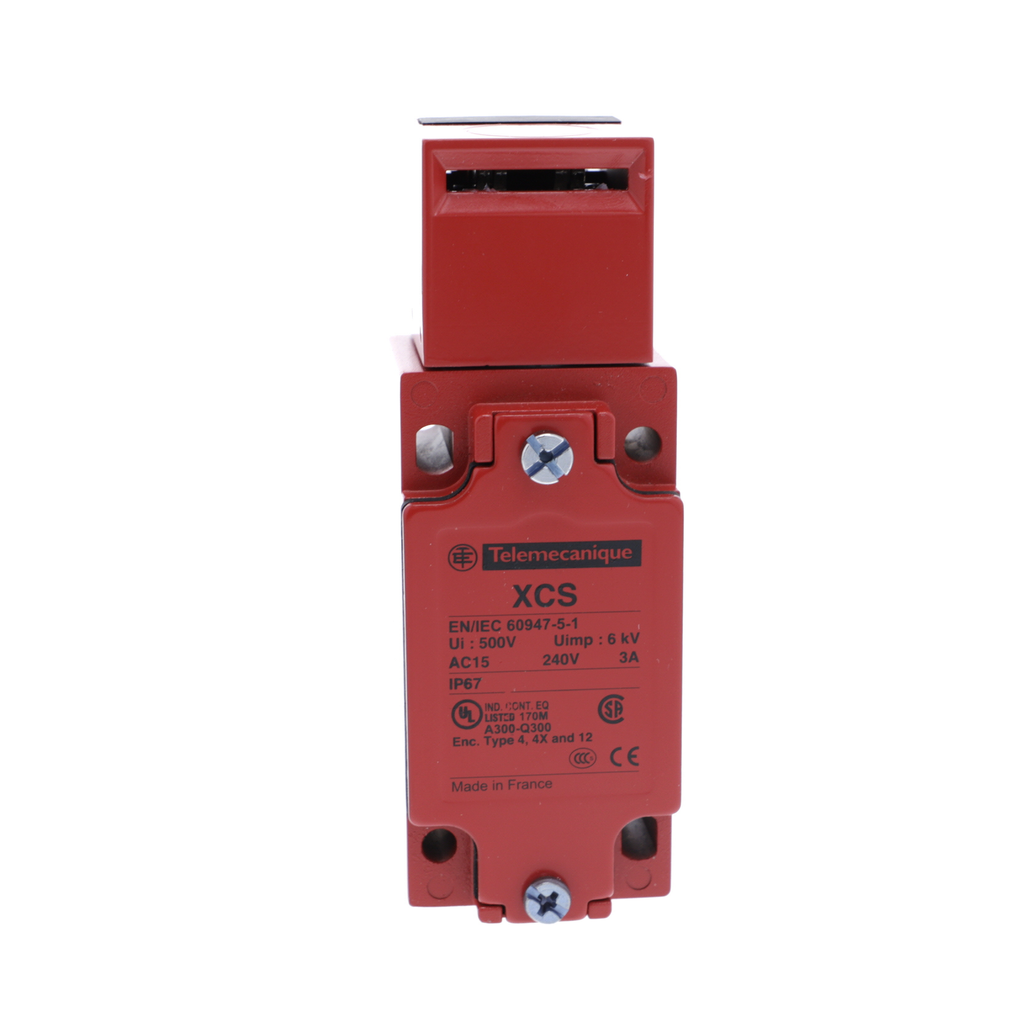

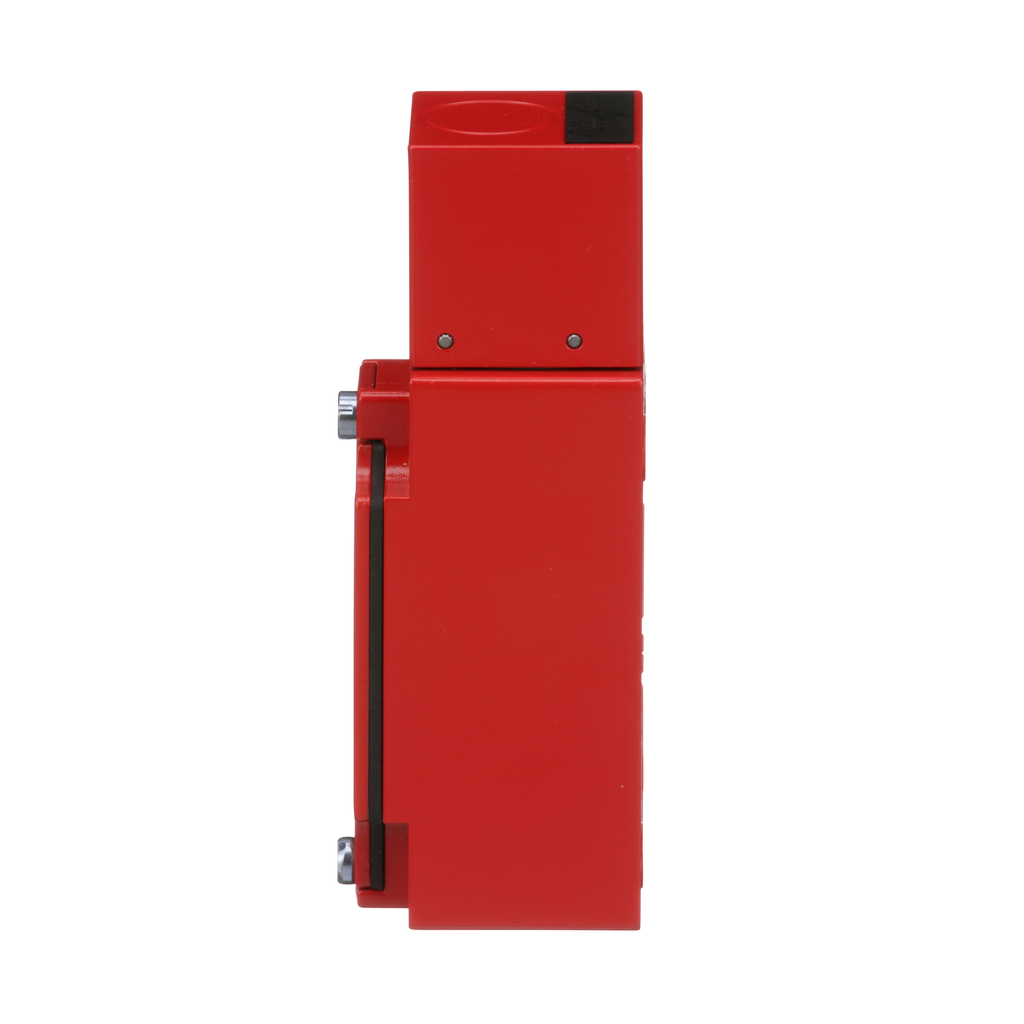

This Preventa XCS Key Operated Safety Switch has an adjustable turret head and a Zamak body. This key operated safety switch for guard doors, with adjustable turret head switch, has a robust red coated Zamak body with one cable gland entry, allowing an easier installation. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. When wired as recommended in relevant standards, it conforms to category 4, performance level PL e, SIL 3 and complies withEN/ISO 13849-1, EN/IEC 61508. It simply ensures a "door-open machine stop" control on your machine, with maximal reliability. It secures the machine and system operation with a key, only available to authorized operators.
Recommended tools
Environment
Product Certifications :
UL || CSA
Ambient Air Temperature For Operation :
-25-70 °C
Standards :
EN/IEC 60204-1 || UL 508 || EN/IEC 60947-5-1 || EN/ISO 12100 || CSA C22.2 No 14 || EN 1088/ISO 14119
6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1
Minimum Actuator Force For Extraction :
20 N
Mechanical Durability :
1000000 cycles
Maximum Actuation Speed :
0.5 m/s
Body Material :
zamak
Safety Reliability Data :
B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear
Width :
40 mm
Depth :
44 mm
Safety Level :
can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Specifications
Range Of Product :
Telemecanique Safety switches XCS
Cable Entry :
1 entry tapped 1/2" NPT
Electrical Connection :
terminal 1 x 0.5...2 x 1.5 mm² with or without cable end
