Safety switch, Telemecanique Safety switches XCS, metal XCSC, 2 NC + 1 NO, slow break, 1 entry tapped 1/2" NPT
Item ID #XCSC703
Telemecanique Sensors
Safety switch, Telemecanique Safety switches XCS, metal XCSC, 2 NC + 1 NO, slow break, 1 entry tapped 1/2" NPT
Item ID #XCSC703Safety switch, Telemecanique Safety switches XCS, metal XCSC, 2 NC + 1 NO, slow break, 1 entry tapped 1/2" NPT
Specifications
See all specifications| Product Certifications : | UL || CSA |
| Ambient Air Temperature For Operation : | -25-70 °C |
| Standards : | UL 508 || CSA C22.2 No 14 || EN/ISO 12100 || EN/IEC 60947-5-1 || EN/IEC 60204-1 || EN 1088/ISO 14119 |
Available quantity000
Your price
$0.00 / Each
Add to template
Product Description

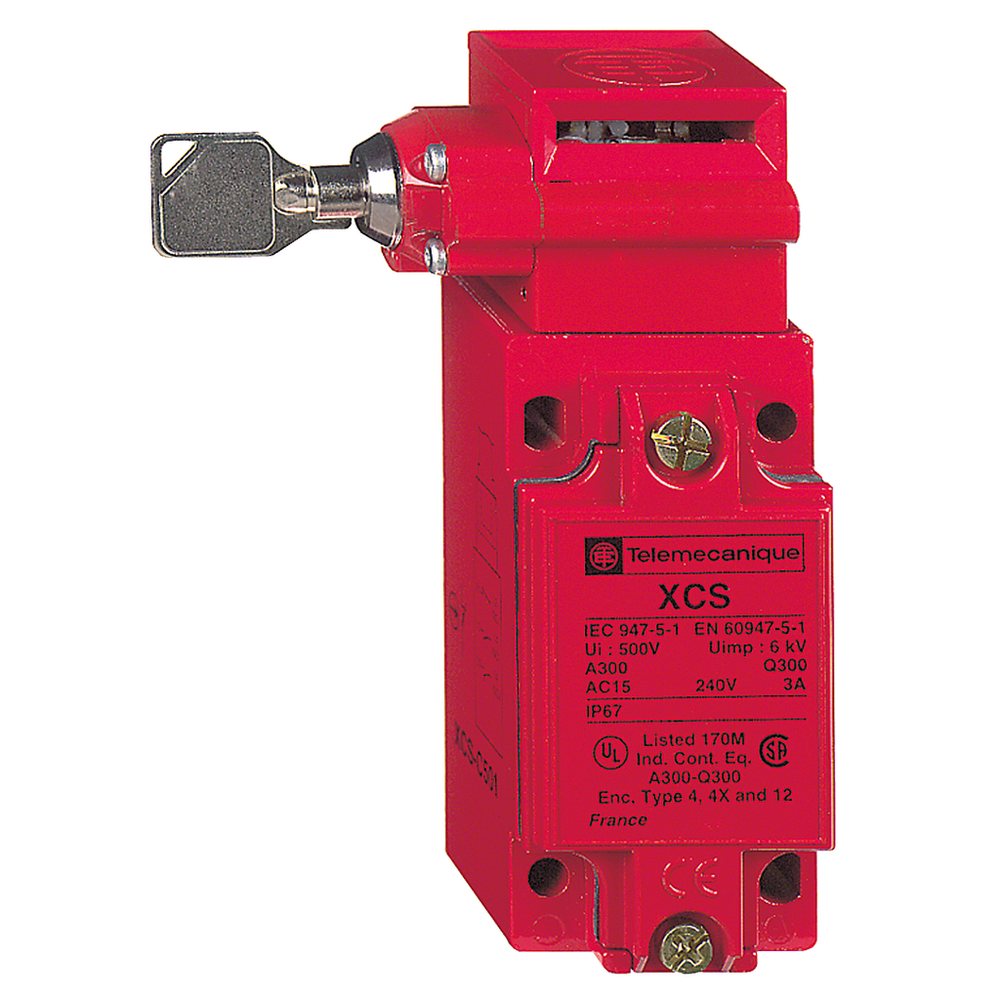

This XCSC Key Operated Safety Switch for guard doors with unlocking by key operated lock has an adjustable turret head and a robust red coated Zamak body with a 1/2" NPT cable gland entry, allowing for flexible installation. It has 1 normally open and 2 normally closed break-before-make (slow break) contacts. Its B10D reliability data is 3 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
Recommended tools
Environment
| Product Certifications : | UL || CSA |
| Ambient Air Temperature For Operation : | -25-70 °C |
| Standards : | UL 508 || CSA C22.2 No 14 || EN/ISO 12100 || EN/IEC 60947-5-1 || EN/IEC 60204-1 || EN 1088/ISO 14119 |
