EN/IEC 60947-5-5 || EN/ISO 13850 || EN/IEC 60204-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || work equipment directive 2009/104/EC || machinery directive 2006/42/EC
Product Certifications :
UL category NISD emergency stop devices || CSA || CCC
Available quantity000
Your price
$0.00 / Each
Add to template
Accessories
Must be a multiple of 1 for each
Product Description

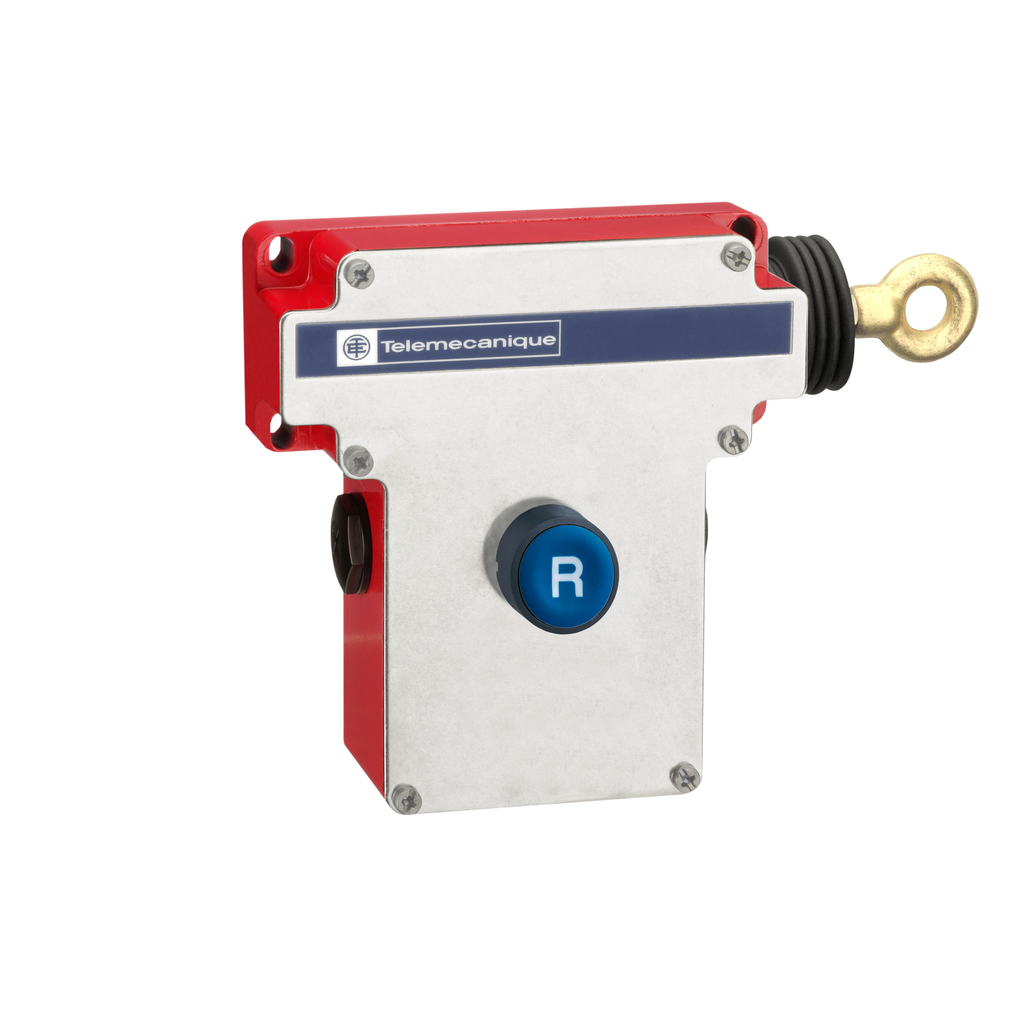

This product is part of the XY2C range, an offer of emergency stop rope pull switches. It is ideal for all machines requiring stopping of dangerous movement in the immediate vicinity of the machine. It is suitable for applications such as woodworking machines, shears, conveyor systems, printing machines, textile machines etc. This emergency stop rope pull switch has 1 normally closed and 1 normally opened, slow-break contacts with positive opening operation. It is a switch with a rated operational current of 0.27A at 250V AC, 3A at 240V AC and a conventional enclosed thermal current of 10A. It is furnished with screw clamp terminals for electrical connection. Switch has three 1/2 inch NPT tapped conduit entries. The trigger cable anchor point at right hand side. Switch can reset by flush pushbutton. It offers long mechanical durability which is about 60000 operating cycles. It is an IP66 rated product. The casing is made of Zamak (red) with stainless steel cover. Its dimensions are 7.68 inches (Width) x 4.13 inches (Depth) x 5.59 inches (Height) and weighs 3.20 lbs. This product meets UL508, CSA C22.2 No 14, EN/ISO 13850, EN/IEC 60947-5-1, EN/IEC 60204-1, EN/IEC 60947-5-5, machinery directive 2006/42/EC and work equipment directive 2009/104/EC standards. This product is certified by UL, CSA and CCC. XY2 emergency stop rope pull switches are intended for all machines requiring stopping of a dangerous movement in the immediate vicinity of the machine.
Recommended tools
Environment
Ambient Air Temperature For Operation :
-25-70 °C
Standards :
EN/IEC 60947-5-5 || EN/ISO 13850 || EN/IEC 60204-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || work equipment directive 2009/104/EC || machinery directive 2006/42/EC
Product Certifications :
UL category NISD emergency stop devices || CSA || CCC
Reference contains Substances of Very High Concern above the threshold
California Proposition 65 :
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs Directive :
Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
Reset :
by flush push-button
Number Of Cables :
1
Terminals Description Iso N°1 :
(13-14)NO || (21-22)NC
Short-Circuit Protection :
10 A cartridge fuse gG EN/IEC 60269
Positive Opening :
with EN/IEC 60947-5-1
[Ithe] Conventional Enclosed Thermal Current :
10 A
Marking :
CE
Local Signalling :
without pilot light
Net Weight :
1.45 kg
[Uimp] Rated Impulse Withstand Voltage :
6 kV EN/IEC 60947-1
Trigger Cable Maximum Length :
70 m
Connections - Terminals :
screw clamp terminal, 1 x 0.5...2 x 1.5 mm²
Contacts Type And Composition :
1 NC + 1 NO
[Ui] Rated Insulation Voltage :
500 V 3)EN/IEC 60947-1 || 300 VUL 508 || 300 VCSA C22.2 No 14
[Ie] Rated Operational Current :
3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Contact Operation :
slow-break
Distance Between Cable Supports :
5-5 m
Mechanical Durability :
60000 cycles
Cable Entry Number :
3 tapped entry 1/2" NPT conduit entry
Compatibility Code :
XY2CE
Body Material :
zamak
Trigger Cable Anchor Point :
RH side
Safety Reliability Data :
B10d = 300000 value given for a life time of 20 years limited by mechanical or contact wear IEC 60947-5-5
Cover Material :
stainless steel
Tightening Torque :
0.8-1.2 N.m
Maximum Resistance Across Terminals :
25 MOhm EN/IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
Safety Level :
can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
