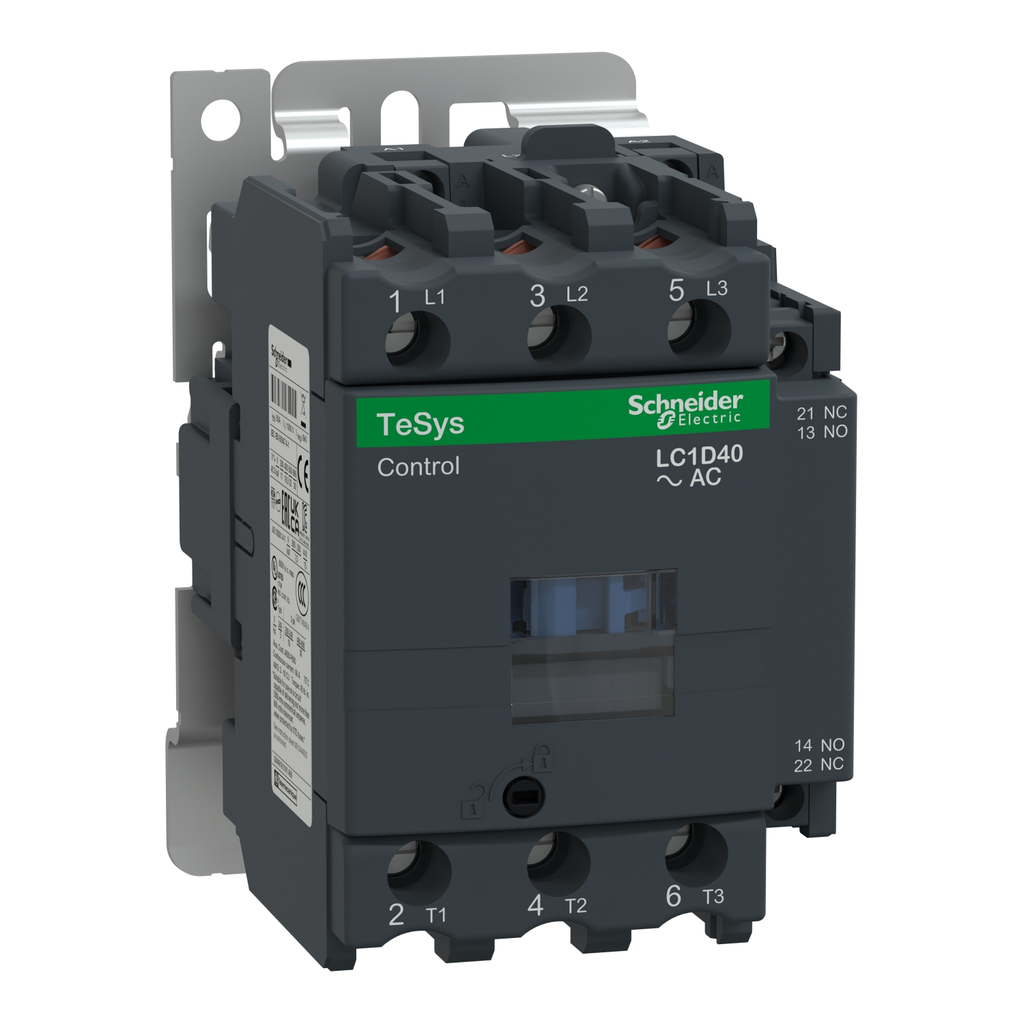

LC1D40M7 | IEC contactor, TeSys D, nonreversing, 40A, 30HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 220VAC 50/60Hz coil, open | Tradelco

Description
Resources
Specifications

IEC contactor, TeSys D, nonreversing, 40A, 30HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 220VAC 50/60Hz coil, open

Item ID #LC1D40M7

Schneider Electric

IEC contactor, TeSys D, nonreversing, 40A, 30HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 220VAC 50/60Hz coil, open

Name: IEC contactor, TeSys D, nonreversing, 40A, 30HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 220VAC 50/60Hz coil, open
Brand: Schneider Electric
SKU: LC1D40M7
Price: 616.00 CAD
Availability: InStock

Item ID #LC1D40M7

Specifications

See all specifications

Control Circuit Type :	AC 50/60 Hz, AC 50/60 Hz
Control Circuit Voltage Limits :	0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz, 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz, 1...1.1 Uc (60-70 °C):operational AC 50/60 Hz
Irms Rated Making Capacity :	800 A at 440 V for power circuit conforming to IEC 60947, 140 A AC for control circuit conforming to IEC 60947-5-1

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 40A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 10HP at 200 to 208VAC, 10HP at 240VAC, 30HP at 480VAC and 30HP at 600VAC three phase. Contactor is also rated for 3HP at 115VAC and 5HP at 240VAC single phase. When used with a 480VAC up to 110A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 90A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 220 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.17 inches wide and 4.72 inches deep. It weighs 1.87 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Recommended tools

Complementary Attributes


Control Circuit Type :	AC 50/60 Hz, AC 50/60 Hz
Control Circuit Voltage Limits :	0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz, 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz, 1...1.1 Uc (60-70 °C):operational AC 50/60 Hz
Irms Rated Making Capacity :	800 A at 440 V for power circuit conforming to IEC 60947, 140 A AC for control circuit conforming to IEC 60947-5-1
Maximum Horse Power Rating :	10 hp at 230/240 V AC 60 Hz for 3 phase motors3 hp at 115 V AC 60 Hz for 1 phase motors, 5 hp at 230/240 V AC 60 Hz for 1 phase motors, 10 hp at 200/208 V AC 60 Hz for 3 phase motors, 30 hp at 460/480 V AC 60 Hz for 3 phase motors, 30 hp at 575/600 V AC 60 Hz for 3 phase motors
Ie Rated Operational Current :	40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 40 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Uc Control Circuit Voltage :	220 V, 220 V AC 50/60 Hz
Ui Rated Insulation Voltage :	power circuit 600 V UL, power circuit 690 V IEC 60947-1control circuit 600 V CSA, control circuit 600 V UL, power circuit 600 V CSA, control circuit 690 V IEC 60947-1
Maximum Motor Phase Current :	40 A
Maximum Operating Rate :	3600 cyc/h at 60 °C
Minimum Switching Current :	5 mA for control circuit
Minimum Switching Voltage :	17 V for control circuit
Rated Breaking Capacity :	800 A at 440 V for power circuit conforming to IEC 60947
Ue Rated Operational Voltage :	power circuit <= 690 V AC 25...400 Hz
Uimp Rated Impulse Withstand Voltage :	8 kV IEC 60947

Important Information Attributes


Persona Type Ids :	EU, LC, OM, OM8, PB, SI
Persona Type Names :	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation Id :	COMMERCIAL, INDUSTRIAL
Market Segmentation :	Commercial, Industrial
Associated Fuse Rating :	10 A gG for control circuit conforming to IEC 60947-5-1, 80 A gG at <= 690 V coordination type 1 for power circuit, 80 A gG at <= 690 V coordination type 2 for power circuit
Coil Technology :	without built-in bidirectional peak limiting diode suppressor
Contactor Application :	motor control, resistive load
Hold In Power Consumption In Va :	13-13 VA 60 Hz cos phi 0.3 (at 20 °C), 15-15 VA 50 Hz cos phi 0.3 (at 20 °C)
Inrush Power In Va :	140-140 VA cos phi 0.75 (at 20 °C), 160-160 VA cos phi 0.75 (at 20 °C)
Insulation Resistance :	> 10 MOhm for control circuit, > 10 MOhm for control circuit> 10 MOhm for control circuit, > 10 MOhm for control circuit
Mechanical Robustness :	shocks contactor opened 10 Gn for 11 ms), shocks contactor closed 15 Gn for 11 ms), vibrations contactor opened 2 Gn, 5...300 Hz), vibrations contactor closed 4 Gn, 5...300 Hz)
Motor Power Kw :	22 kW at 500 V AC 50 Hz (AC-3e), 30 kW at 660...690 V AC 50 Hz (AC-3e), 22 kW at 1000 V AC 50 Hz (AC-3e), 22 kW at 415 V AC 50 Hz (AC-3e), 22 kW at 440 V AC 50 Hz (AC-3e), 11 kW at 220...230 V AC 50 Hz (AC-3e)18.5 kW at 380...400 V AC 50 Hz (AC-3), 22 kW at 500 V AC 50 Hz (AC-3), 30 kW at 660...690 V AC 50 Hz (AC-3), 22 kW at 1000 V AC 50 Hz (AC-3), 22 kW at 415 V AC 50 Hz (AC-3), 22 kW at 440 V AC 50 Hz (AC-3), 11 kW at 220...230 V AC 50 Hz (AC-3), 9 kW at 400 V AC 50 Hz (AC-4), 18.5 kW at 380...400 V AC 50 Hz (AC-3e)
Mounting Support :	plate, rail
Non Overlap Time :	1.5 ms on de-energisation between NC and NO contacts, 1.5 ms on energisation between NC and NO contacts
Operating Time :	4...19 ms opening, 12...26 ms closing
Poles Description :	3P
Power Dissipation Per Pole :	5.4 W AC-1, 2.4 W AC-3, 2.4 W AC-3e
Product Or Component Type :	contactor
Range :	TeSys
Safety Reliability Level :	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Terminals Description Iso N 1 :	(21-22)NC, (13-14)NO, (A1-A2)CO, (21-22)NC, (13-14)NO, (A1-A2)CO
Tightening Torque :	control circuit 1.7 N.m screw clamp terminal flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminal Philips No 2, power circuit 5 N.m screw terminal flat Ø 6 to Ø 8 mm, control circuit 1.7 N.m lugs pozidriv No 2
Utilisation Category :	AC-1, AC-4, AC-2, AC-3, AC-3e
Connections Terminals :	control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 2 2.5-16 mm² - cable stiffness: rigid, power circuit: screw clamp terminals 1 2.5-25 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 2 2.5-16 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 1 2.5-25 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: flexible with cable end, screw clamp terminals, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: rigid, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: rigid, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 2.5-25 mm² - cable stiffness: rigid
Ie Rated Operational Current :	40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 40 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Ith Conventional Free Air Thermal Current :	10 A (at 60 °C) for control circuit, 60 A (at 60 °C) for power circuit
Carbon Footprint Of The Distribution Phase A4 :	0.1760063361869087, 0.2 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4 :	3.328416174215296, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5 :	0.3 kg CO2 eq., 0.2523595925959343
Carbon Footprint Of The Manufacturing Phase A1 To A3 :	9 kg CO2 eq., 8.921945858891672
Carbon Footprint Of The Use Phase B2 B3 B4 B6 :	40 kg CO2 eq., 39.799710144927516
Control Circuit Voltage :	220 V
Certificate Agency :	GL, BV, DNV, LROS (Lloyds register of shipping), RINA, UL, CCC, CSA, GOST, UKCA, CB
Local Data Status :	Publishable
Local Publishable Date :	2025-04-05
Return Indicator :	Y
Stocking Flag :	Y
Stock Policy :	1
Device Type :	LV equipment - LV contactor
Serviceability :	No
Traceability :	No
Field Service Division :	PPIBS
Average Life Duration :	20 year(s)
Weee Scope :	In
Weee Product Category :	5
Scope Perimeter :	At least in Europe
Eoli Availability Display :	No need of specific recycling operations
Reach Full Compliance Status :	Free of Substances of Very High Concern above the threshold
Reach Full Compliance Status Id :	NOT_CONTAINING_SVHC
Reach Compliance Directive :	Free of Substances of Very High Concern above the threshold
Rohs Eur In Scope :	Yes
Rohs Eur Status :	Compliant
Rohs Eur Conformity Date :	1926
Rohs Eur Full Compliance Status :	Compliant
China Rohs In Scope :	No
China Rohs Label :	1
With Recycled Cardboard :	Yes
Without Single Use Plastic :	Yes
Product Contributes To Saved And Avoided Emissions :	No
Tier Id :	1
Tier :	1
Function Option Id :	STANDARD
Function Option :	Standard
Product Kit Identifier :	N
Compatibility Code :	LC1D
Device Short Name :	LC1D
Fire Resistance :	850 °C IEC 60695-2-1
Flame Retardance :	V1 conforming to UL 94
Heat Dissipation :	4-5 W at 50/60 Hz for control circuit
Mechanical Durability :	6 Mcycles
Overvoltage Category :	III
Pole Contact Composition :	3 NO
Product Availability :	Stock - Normally stocked in distribution facility
Range Of Product :	TeSys Deca
Returnability :	Yes
Software Version :	v5.9.4
Sustainable Packaging :	Yes
Total Lifecycle Carbon Footprint :	52 kg CO2 eq.
Weee Label :	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Warranty In Months :	18
Inf Motor Phase Current :	40 A
Pep Code :	ENVPEP1102005EN
Database Version :	2022-01
Pep Verification Date :	2025-11-20
Pcr Version :	PEP-PCR-ed4-2021 09 06
Psr Version :	PSR-0005-ed2-2016 03 29
Type Of Verification For The Pep :	Independent internal review
Data Source :	extrapolated product
Functional-unit Description :	Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(3NO), a control circuit voltage 230V AC, a power circuit voltage 690V and a rated operational current 80A
Functional-unit Quantity :	1
Functional-unit Unit :	unit
Reference Lifetime, In Y :	20
Energy Consumption On Product Lifetime, In Kwh :	595.68
Energy Model - Manufacturing [A1-a3] :	Electricity Mix; Production mix; Low voltage; CZ
Energy Model - Installation [A5] :	Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6] :	Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4] :	Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential, In % :	76
Offer Owner Code :	190788
Pn :	1
Height Nominal :	127 mm
Width Nominal :	75 mm

Environment Attributes Main


China Rohs Regulation :	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Ip Degree Of Protection :	IP2X IEC 60529, IP2X VDE 0106
Take Back :	No
Reach Free Shvc :	Yes
Recycled Metal Content At Cr Level :	0 %
Toxic Heavy Metal Free :	Yes
Mercury Free :	Yes
Carbon Footprint :	52.47843810681733
Climatic Withstand :	IACS E10 exposure to damp heat
Environmental Disclosure :	ENVPEP1102005EN
Eu Rohs Directive :	Compliant
Operating Altitude :	0...9842.52 ft (0...3000 m)
Packaging Made With Recycled Cardboard :	Yes
Packaging Without Single Use Plastic :	Yes
Reach Free Of Svhc :	Yes
Reach Regulation :	Free of Substances of Very High Concern above the threshold
Pep Code :	ENVPEP1102005EN
Pep Verification Date :	2025-11-20
Pcr Version :	PEP-PCR-ed4-2021 09 06
Psr Version :	PSR-0005-ed2-2016 03 29
Type Of Verification For The Pep :	Independent internal review


ETIM 8 :	EC000066
ETIM 9 :	EC000066


Warranty Period :	18 months
Warranty :	18 months


Country of Origin :	Czechia, France, United States
Depth :	119 mm
