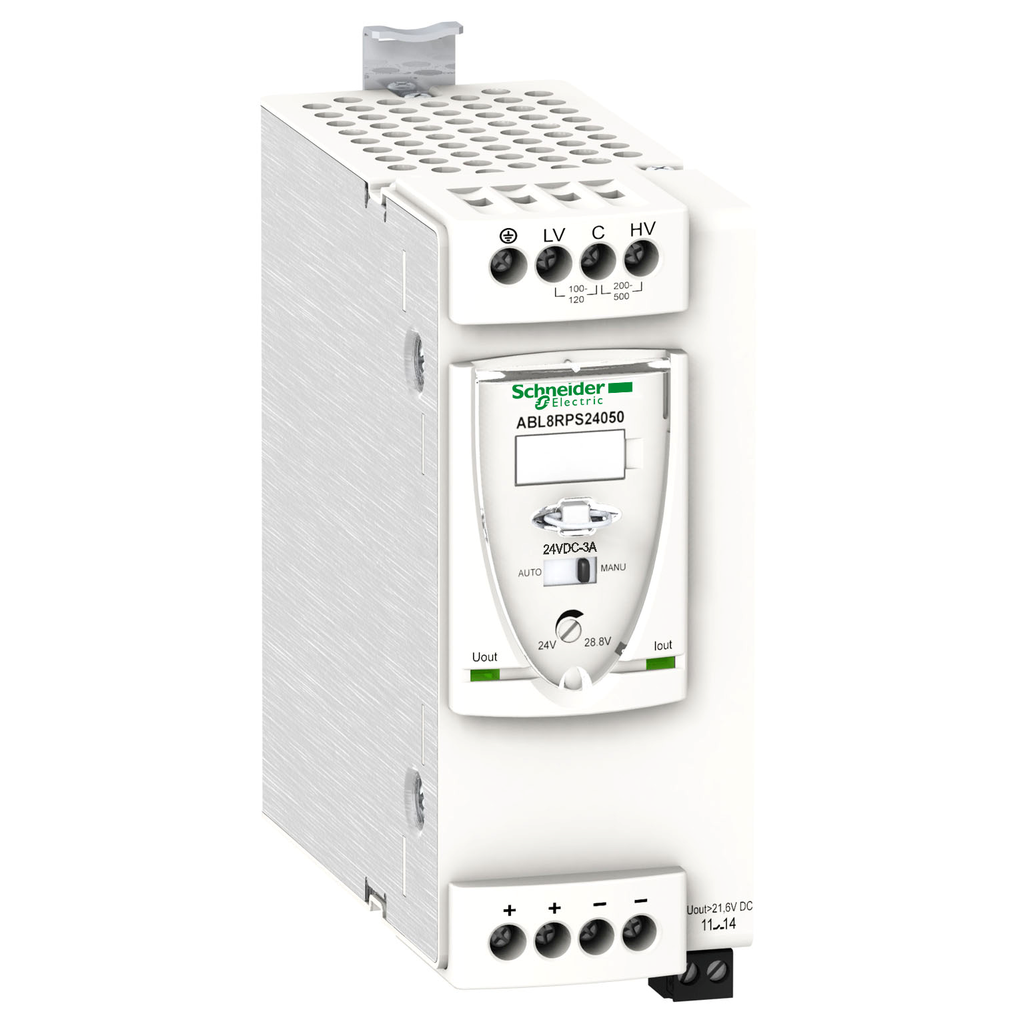

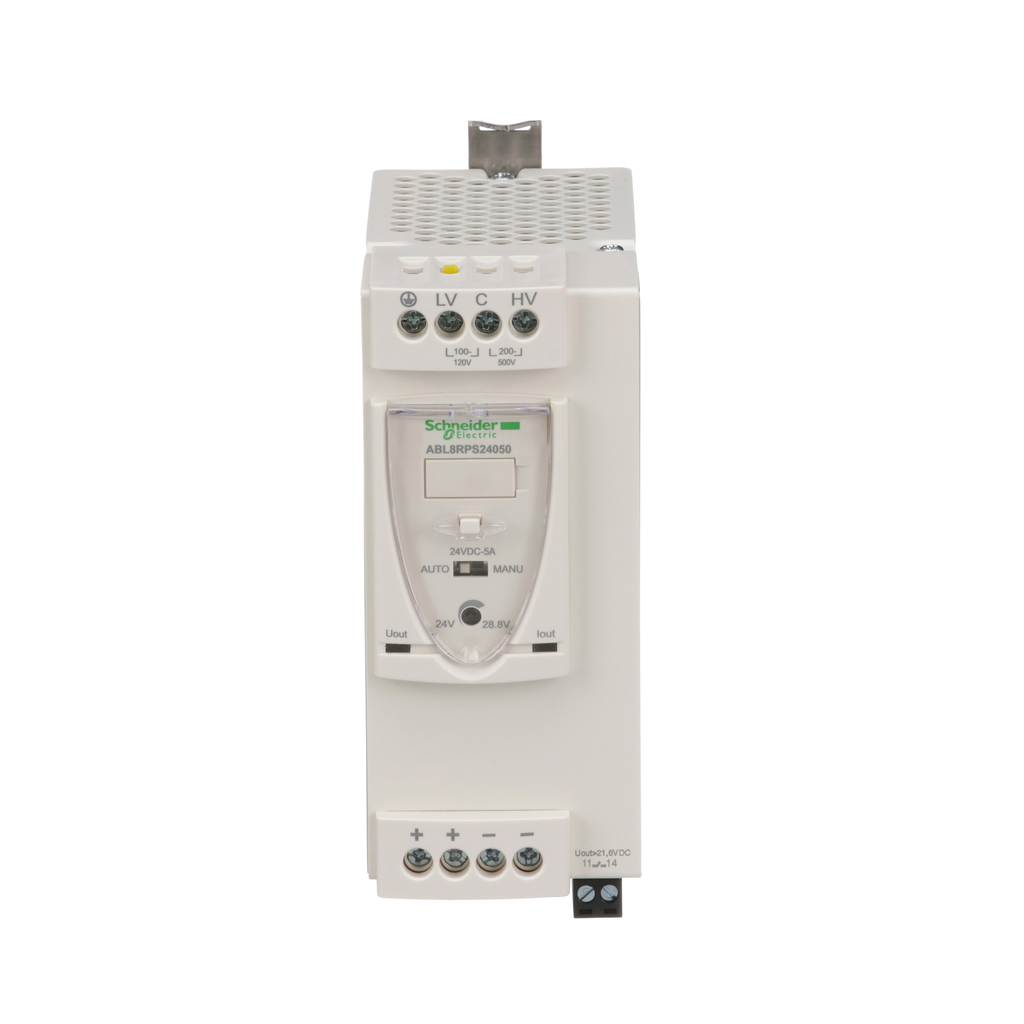

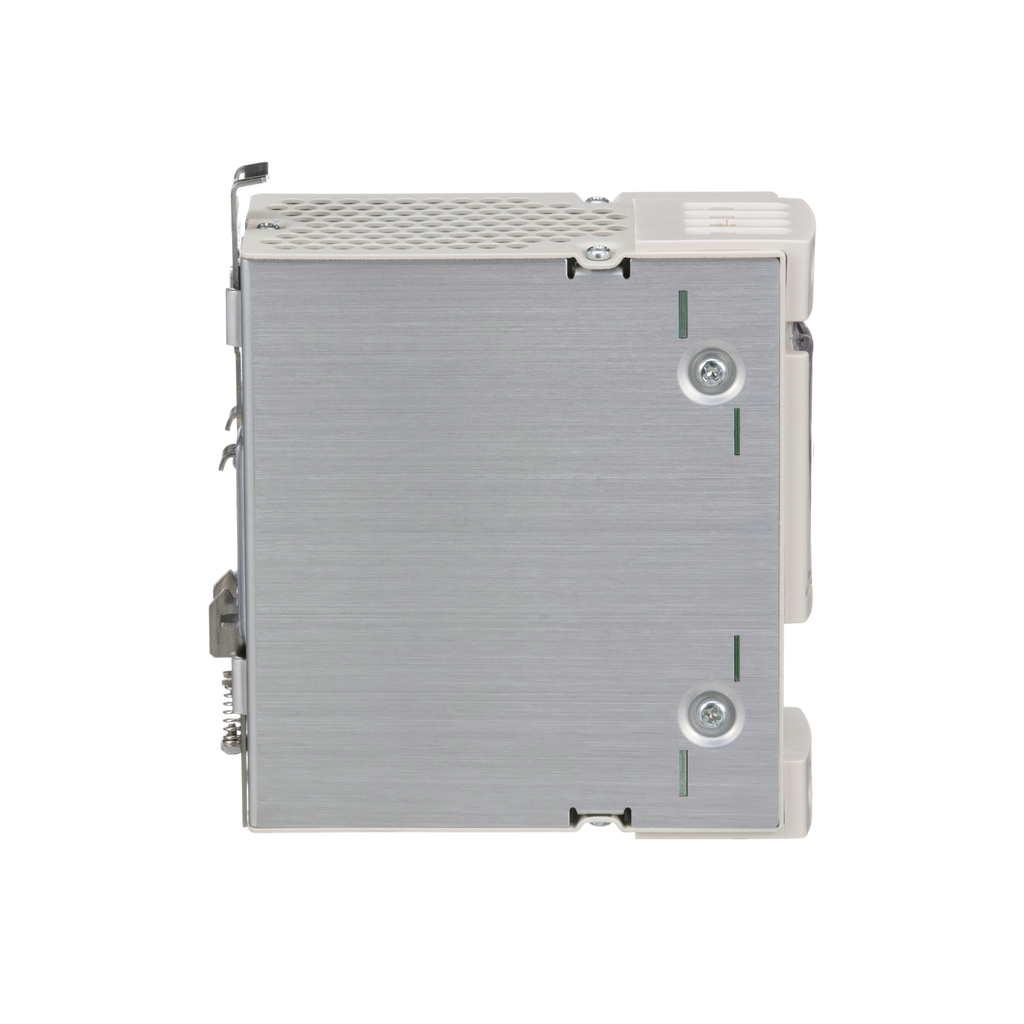

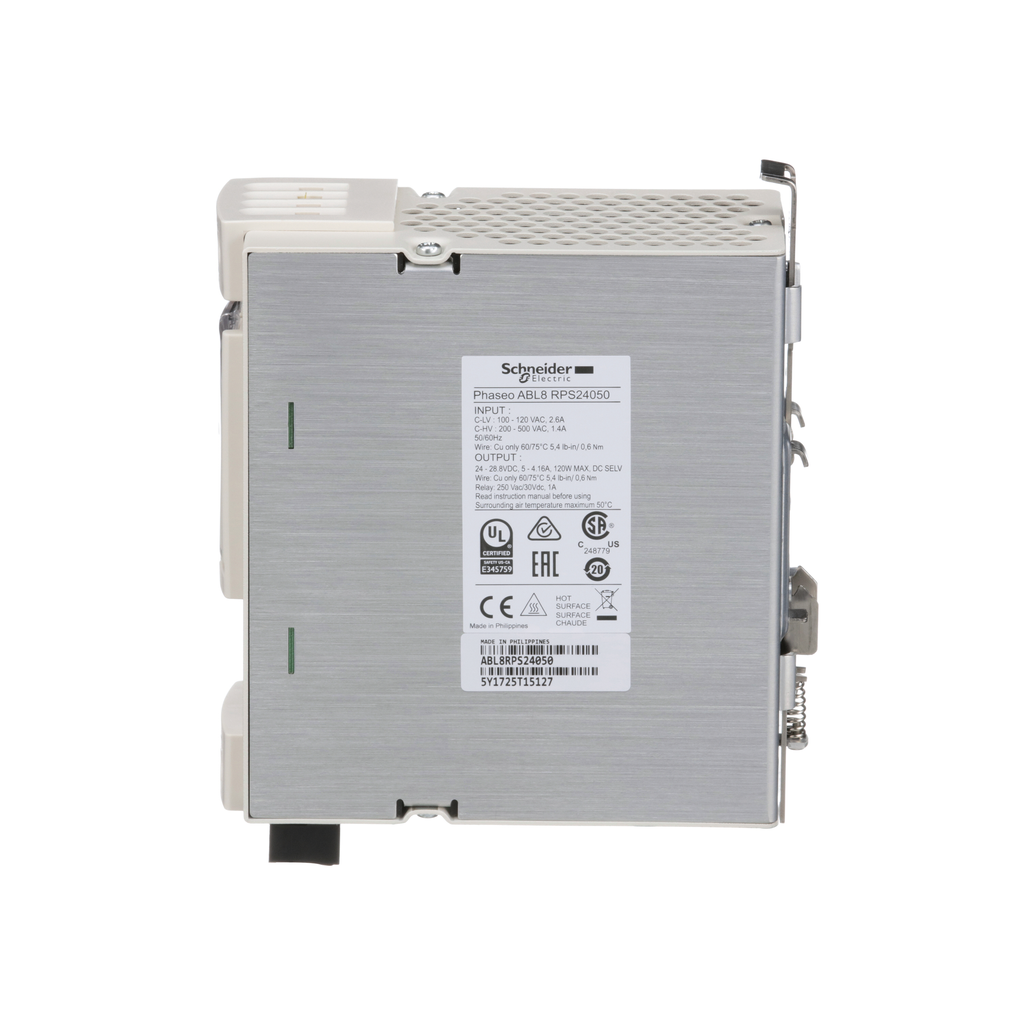

This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 500V AC, a rated output current of 5A at 24V DC and a rated power output of 120W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It is also equipped with a PFC (Power Factor Correction) filter. It has LED diagnostics indicator available in the front for troubleshooting instantly. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It installs on DIN rail and is 56mm-wide. It weighs 0,700kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GB2CD07, GB2CD08, GV2RT06 and GV2ME06 thermal magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Recommended tools
Environment
Standards :
CSA C22.2 No 60950-1 || UL 508 || EN/IEC 62368-1
Ambient Air Temperature For Operation :
50-60 °C with derating factor mounting position A < 2000 m || -25-50 °C without derating mounting position A < 2000 m
Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation :
X
Circularity Profile :
ENVEOLI120913EN
Eu Rohs Directive :
Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
Output Coupling :
parallel || series
Height :
143 mm
Provided Equipment :
power factor correction filter IEC 61000-3-2
Status Led :
1 LED (green and red) output voltage || 1 LED (green, red and orange) output current
Input Voltage Limits :
85...132 V AC || 170...550 V AC
Connections - Terminals :
removable screw terminal block 2 x 2.5 mm², diagnostic relay || screw type terminals 3 x 0.5...3 x 4 mm², AWG 22...AWG 12) input connection || screw type terminals 1 x 0.5...1 x 4 mm², AWG 22...AWG 12) input ground connection || screw type terminals 4 x 0.5...4 x 4 mm², AWG 22...AWG 12) output connection || screw type terminals 1 x 0.5...1 x 4 mm², AWG 22...AWG 12) output ground connection
Dielectric Strength :
3500 V between input and ground || 4000 V between input and output || 500 V between output and ground
Marking :
CE
Supply :
SELV IEC 60950-1 || SELV IEC 60204-1 || SELV IEC 60364-4-41
Net Weight :
0.7 kg
Output Protection Type :
against overload manual or automatic reset || against overvoltage 30...32 V, manual reset || against short-circuits manual or automatic reset || against undervoltage tripping if U < 21.6 V || thermal automatic reset
Power Dissipation In W :
15.5 W
Output Voltage Limits :
24...28.8 V adjustable

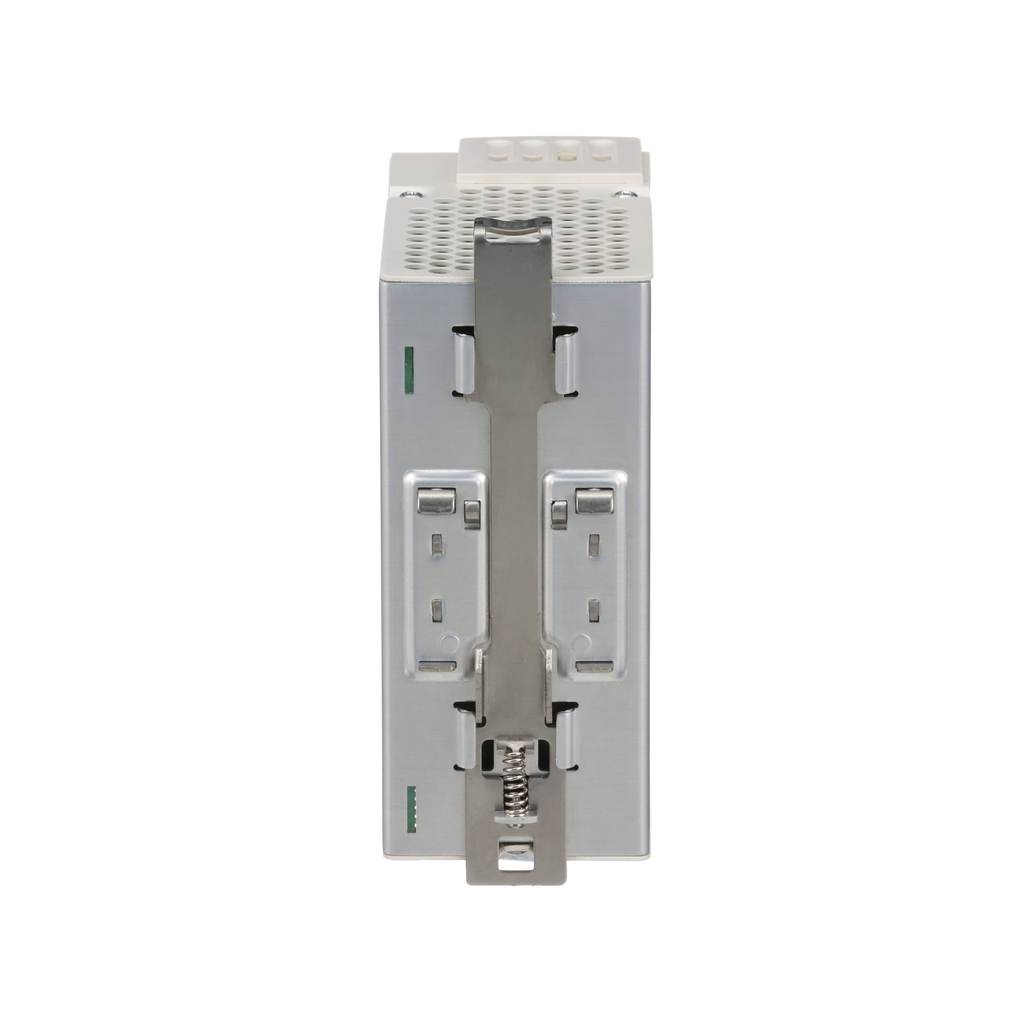

Mounting Support :
35 x 15 mm symmetrical DIN rail || 35 x 7.5 mm symmetrical DIN rail
Operating Position :
vertical
Width :
56 mm
Inrush Current :
30 A
Efficiency :
87 %
Depth :
125 mm
Power Factor :
0.51 at 240 V AC || 0.59 at 120 V AC
Specifications
Range Of Product :
Modicon Power Supply
Output Voltage :
24 V DC
Product Or Component Type :
power supply
Power Supply Type :
regulated switch mode
Anti-Harmonic Filter :
low frequency harmonic currents
Input Voltage :
100...120 V AC single phase N-L1 || 200...500 V AC phase to phase L1-L2
