BSH0552T11A1A | servo motor BSH, Lexium 05, 0.9N.m, 6000rpm, 55mm, keyed shaft, Sincos single turn, without brake, IP50, straight | Tradelco

Description
Resources
Specifications

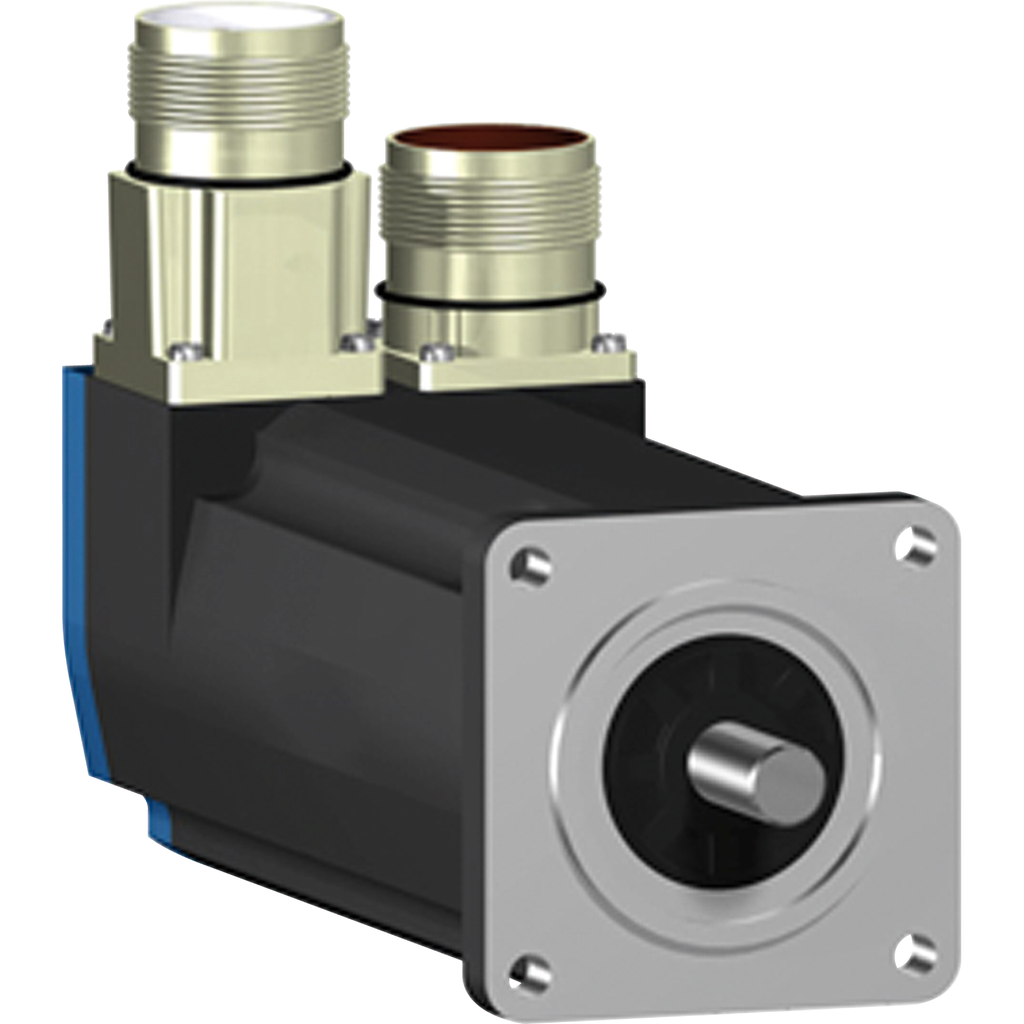

servo motor BSH, Lexium 05, 0.9N.m, 6000rpm, 55mm, keyed shaft, Sincos single turn, without brake, IP50, straight

Item ID #BSH0552T11A1A

Schneider Electric

servo motor BSH, Lexium 05, 0.9N.m, 6000rpm, 55mm, keyed shaft, Sincos single turn, without brake, IP50, straight

Name: servo motor BSH, Lexium 05, 0.9N.m, 6000rpm, 55mm, keyed shaft, Sincos single turn, without brake, IP50, straight
Brand: Schneider Electric
SKU: BSH0552T11A1A
Price: 1427.00 CAD
Availability: OutOfStock

Item ID #BSH0552T11A1A

Specifications

See all specifications

Rohs Exemption Information :	Yes
Mercury Free :	Yes
Environmental Disclosure :	ENVPEP111049EN

EZ Selector

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

Schneider IP40 servo motor key

Recommended tools

Offer Sustainability


Rohs Exemption Information :	Yes
Mercury Free :	Yes
Environmental Disclosure :	ENVPEP111049EN
Sustainable Offer Status :	Green Premium product
Pvc Free :	Yes
Reach Regulation :	Reference contains Substances of Very High Concern above the threshold
Weee :	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
China Rohs Regulation :	X
Circularity Profile :	N/A
Eu Rohs Directive :	Pro-active compliance (Product out of EU RoHS legal scope)

Available0

Your price

$0.00

Complementary


Circle Diameter Of The Mounting Holes :	63 mm
Maximum Permanent Current :	8.8 A
Continuous Power :	0.67 W
Switching Frequency :	8 kHz
Stator Electrical Time Constant :	2.04 ms 20 °C
Maximum Radial Force Fr :	190 N 7000 rpm \|\| 190 N 8000 rpm \|\| 200 N 6000 rpm \|\| 220 N 5000 rpm \|\| 230 N 4000 rpm \|\| 260 N 3000 rpm \|\| 290 N 2000 rpm \|\| 370 N 1000 rpm
Number Of Motor Stacks :	2
Rotor Inertia :	0.096 kg.cm²
Number Of Motor Poles :	6
Back Emf Constant :	22 V/krpm 120 °C
Maximum Axial Force Fa :	0.2 x Fr
Centring Collar Depth :	2 mm
Second Shaft :	without second shaft end
Shaft Length :	20 mm
Network Number Of Phases :	three phase
Length :	154.4 mm
Maximum Current Irms :	6 A LXM32.U90M2 115 V \|\| 8.8 A LXM05BD17F1 \|\| 8.8 A LXM05BD10M2 \|\| 8.8 A LXM05BD10M3X \|\| 8.8 A LXM05CD10F1 \|\| 8.8 A LXM05CD17F1 \|\| 8.8 A LXM05CD10M2 \|\| 8.8 A LXM05CD10M3X \|\| 8.8 A LXM32.U90M2 230 V \|\| 10.3 A LXM15LD13M3 \|\| 8.8 A LXM05AD10F1 \|\| 8.8 A LXM05AD17F1 \|\| 8.8 A LXM05CU70M2 \|\| 8.8 A LXM05AD10M2 \|\| 8.8 A LXM05AD10M3X \|\| 8.8 A LXM05BD10F1
Net Weight :	1.5 kg
Centring Collar Diameter :	40 mm
Stator Inductance :	10.6 mH 20 °C
Motor Flange Size :	55 mm
[Us] Rated Supply Voltage :	480 V
Number Of Mounting Holes :	4
Shaft Diameter :	9 mm
Key Width :	12 mm
Mounting Holes Diameter :	5.5 mm
Type Of Cooling :	natural convection
Feedback Type :	single turn SinCos Hiperface
Stator Resistance :	5.2 Ohm 20 °C
Range Compatibility :	Lexium 05 \|\| Lexium 32 \|\| Lexium 15
Continuous Stall Current :	2.2 A
Torque Constant :	0.36 N.m/A 120 °C

Specifications


Maximum Mechanical Speed :	9000 rpm
Mounting Support :	international standard flange
Holding Brake :	without
Speed Feedback Resolution :	131072 points/turn
Product Or Component Type :	servo motor
Nominal Output Power :	250 W LXM32.U90M2 3 A, 115 V, single phase \|\| 450 W LXM05AD10M2, 200...240 V, single phase \|\| 450 W LXM05BD10M2, 200...240 V, single phase \|\| 450 W LXM05CD10M2, 200...240 V, single phase \|\| 450 W LXM15LD13M3, 230 V, single phase \|\| 450 W LXM05AD10M3X, 200...240 V, three phase \|\| 450 W LXM05BD10M3X, 200...240 V, three phase \|\| 450 W LXM05CD10M3X, 200...240 V, three phase \|\| 570 W LXM15LD13M3, 230 V, three phase \|\| 450 W LXM32.U90M2 3 A, 230 V, single phase \|\| 240 W LXM05CU70M2, 200...240 V, single phase \|\| 250 W LXM05AD10F1, 110...120 V, single phase \|\| 250 W LXM05AD17F1, 110...120 V, single phase \|\| 250 W LXM05BD10F1, 110...120 V, single phase \|\| 250 W LXM05BD17F1, 110...120 V, single phase \|\| 250 W LXM05CD10F1, 110...120 V, single phase \|\| 250 W LXM05CD17F1, 110...120 V, single phase
Peak Stall Torque :	1.9 N.m LXM32.U90M2 3 A, 115 V, single phase \|\| 2.7 N.m LXM05BD17F1, 110...120 V, single phase \|\| 1.77 N.m LXM05CD10F1, 110...120 V, single phase \|\| 1.77 N.m LXM05CD10M2, 200...240 V, single phase \|\| 2.7 N.m LXM05CD17F1, 110...120 V, single phase \|\| 1.5 N.m LXM15LD13M3, 230 V, three phase \|\| 1.77 N.m LXM05AD10M3X, 200...240 V, three phase \|\| 1.77 N.m LXM05BD10M3X, 200...240 V, three phase \|\| 1.77 N.m LXM05CD10M3X, 200...240 V, three phase \|\| 2.5 N.m LXM32.U90M2 3 A, 230 V, single phase \|\| 1.5 N.m LXM15LD13M3, 230 V, single phase \|\| 1.31 N.m LXM05CU70M2, 200...240 V, single phase \|\| 1.77 N.m LXM05AD10F1, 110...120 V, single phase \|\| 1.77 N.m LXM05AD10M2, 200...240 V, single phase \|\| 2.7 N.m LXM05AD17F1, 110...120 V, single phase \|\| 1.77 N.m LXM05BD10F1, 110...120 V, single phase \|\| 1.77 N.m LXM05BD10M2, 200...240 V, single phase
Product Compatibility :	LXM05AD10F1 110...120 V single phase \|\| LXM05CU70M2 200...240 V single phase \|\| LXM15LD13M3 230 V single phase \|\| LXM32.U90M2 115 V single phase \|\| LXM32.U90M2 230 V single phase \|\| LXM05AD10M3X 200...240 V three phase \|\| LXM05BD10M3X 200...240 V three phase \|\| LXM05CD10M3X 200...240 V three phase \|\| LXM15LD13M3 230 V three phase \|\| LXM05AD10M2 200...240 V single phase \|\| LXM05AD17F1 110...120 V single phase \|\| LXM05BD10F1 110...120 V single phase \|\| LXM05BD10M2 200...240 V single phase \|\| LXM05BD17F1 110...120 V single phase \|\| LXM05CD10F1 110...120 V single phase \|\| LXM05CD10M2 200...240 V single phase \|\| LXM05CD17F1 110...120 V single phase
Ip Degree Of Protection :	IP50 standard
Shaft End :	keyed
Nominal Speed :	3000 rpm LXM32.U90M2 3 A, 115 V, single phase \|\| 6000 rpm LXM05AD10M3X, 200...240 V, three phase \|\| 6000 rpm LXM05BD10M3X, 200...240 V, three phase \|\| 6000 rpm LXM05CD10M3X, 200...240 V, three phase \|\| 8000 rpm LXM15LD13M3, 230 V, three phase \|\| 3000 rpm LXM05AD17F1, 110...120 V, single phase \|\| 3000 rpm LXM05BD17F1, 110...120 V, single phase \|\| 3000 rpm LXM05CD17F1, 110...120 V, single phase \|\| 6000 rpm LXM15LD13M3, 230 V, single phase \|\| 6000 rpm LXM32.U90M2 3 A, 230 V, single phase \|\| 3000 rpm LXM05AD10F1, 110...120 V, single phase \|\| 3000 rpm LXM05BD10F1, 110...120 V, single phase \|\| 3000 rpm LXM05CD10F1, 110...120 V, single phase \|\| 3000 rpm LXM05CU70M2, 200...240 V, single phase \|\| 6000 rpm LXM05AD10M2, 200...240 V, single phase \|\| 6000 rpm LXM05BD10M2, 200...240 V, single phase \|\| 6000 rpm LXM05CD10M2, 200...240 V, single phase
Electrical Connection :	straight connectors
Nominal Torque :	0.77 N.m LXM32.U90M2 3 A, 115 V, single phase \|\| 0.9 N.m LXM05BD17F1, 110...120 V, single phase \|\| 0.9 N.m LXM05CD10F1, 110...120 V, single phase \|\| 0.9 N.m LXM05CD10M2, 200...240 V, single phase \|\| 0.9 N.m LXM05CD17F1, 110...120 V, single phase \|\| 0.68 N.m LXM15LD13M3, 230 V, three phase \|\| 0.9 N.m LXM05AD10M3X, 200...240 V, three phase \|\| 0.9 N.m LXM05BD10M3X, 200...240 V, three phase \|\| 0.9 N.m LXM05CD10M3X, 200...240 V, three phase \|\| 0.74 N.m LXM32.U90M2 3 A, 230 V, single phase \|\| 0.72 N.m LXM15LD13M3, 230 V, single phase \|\| 0.77 N.m LXM05CU70M2, 200...240 V, single phase \|\| 0.9 N.m LXM05AD10F1, 110...120 V, single phase \|\| 0.9 N.m LXM05AD10M2, 200...240 V, single phase \|\| 0.9 N.m LXM05AD17F1, 110...120 V, single phase \|\| 0.9 N.m LXM05BD10F1, 110...120 V, single phase \|\| 0.9 N.m LXM05BD10M2, 200...240 V, single phase
Device Short Name :	BSH
Continuous Stall Torque :	0.8 N.m LXM32.U90M2 3 A, 115 V, single phase \|\| 0.9 N.m LXM15LD13M3, 230 V, three phase \|\| 0.77 N.m LXM05CU70M2, 200...240 V, single phase \|\| 0.9 N.m LXM05AD10F1, 110...120 V, single phase \|\| 0.9 N.m LXM05AD17F1, 110...120 V, single phase \|\| 0.9 N.m LXM05BD10F1, 110...120 V, single phase \|\| 0.9 N.m LXM05BD17F1, 110...120 V, single phase \|\| 0.9 N.m LXM05CD10F1, 110...120 V, single phase \|\| 0.9 N.m LXM05CD17F1, 110...120 V, single phase \|\| 0.8 N.m LXM32.U90M2 3 A, 230 V, single phase \|\| 0.9 N.m LXM05AD10M2, 200...240 V, single phase \|\| 0.9 N.m LXM05BD10M2, 200...240 V, single phase \|\| 0.9 N.m LXM05CD10M2, 200...240 V, single phase \|\| 0.9 N.m LXM05AD10M3X, 200...240 V, three phase \|\| 0.9 N.m LXM05BD10M3X, 200...240 V, three phase \|\| 0.9 N.m LXM05CD10M3X, 200...240 V, three phase \|\| 0.9 N.m LXM15LD13M3, 230 V, single phase
