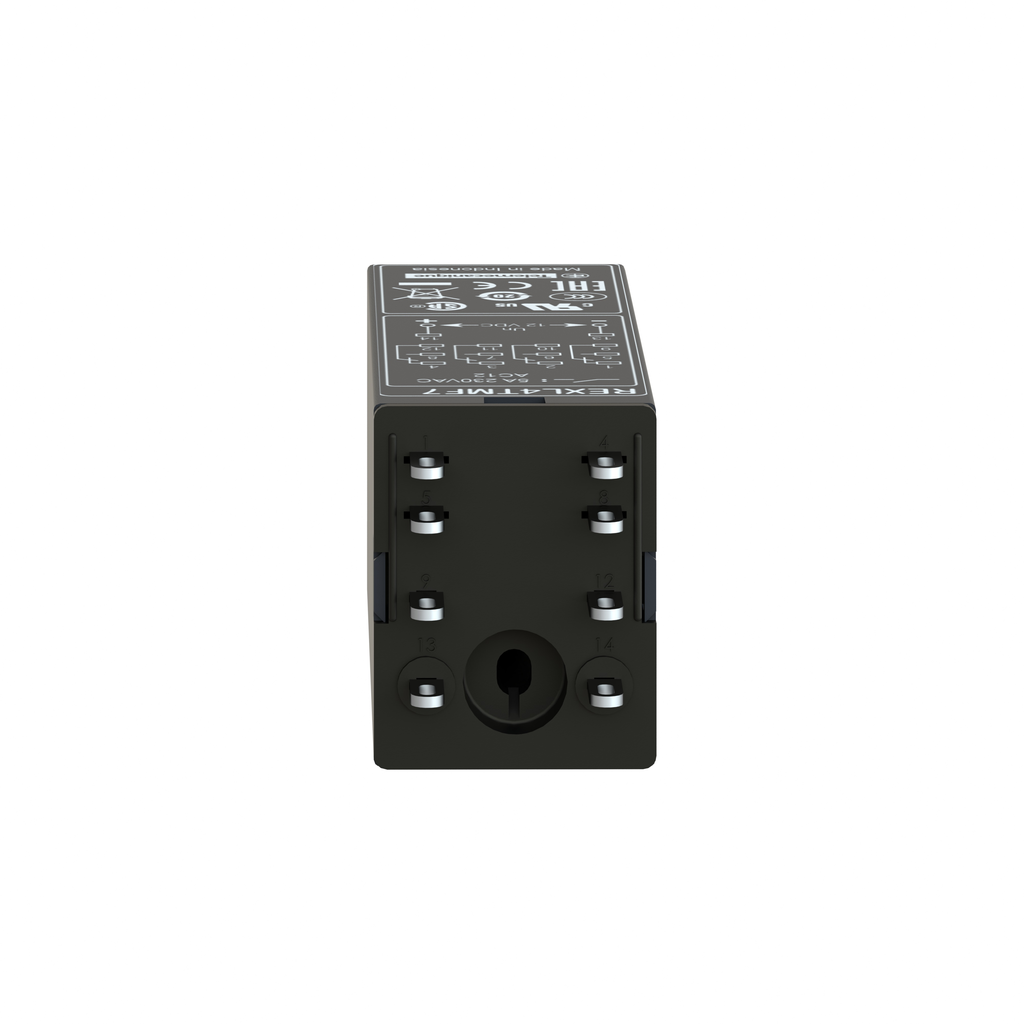

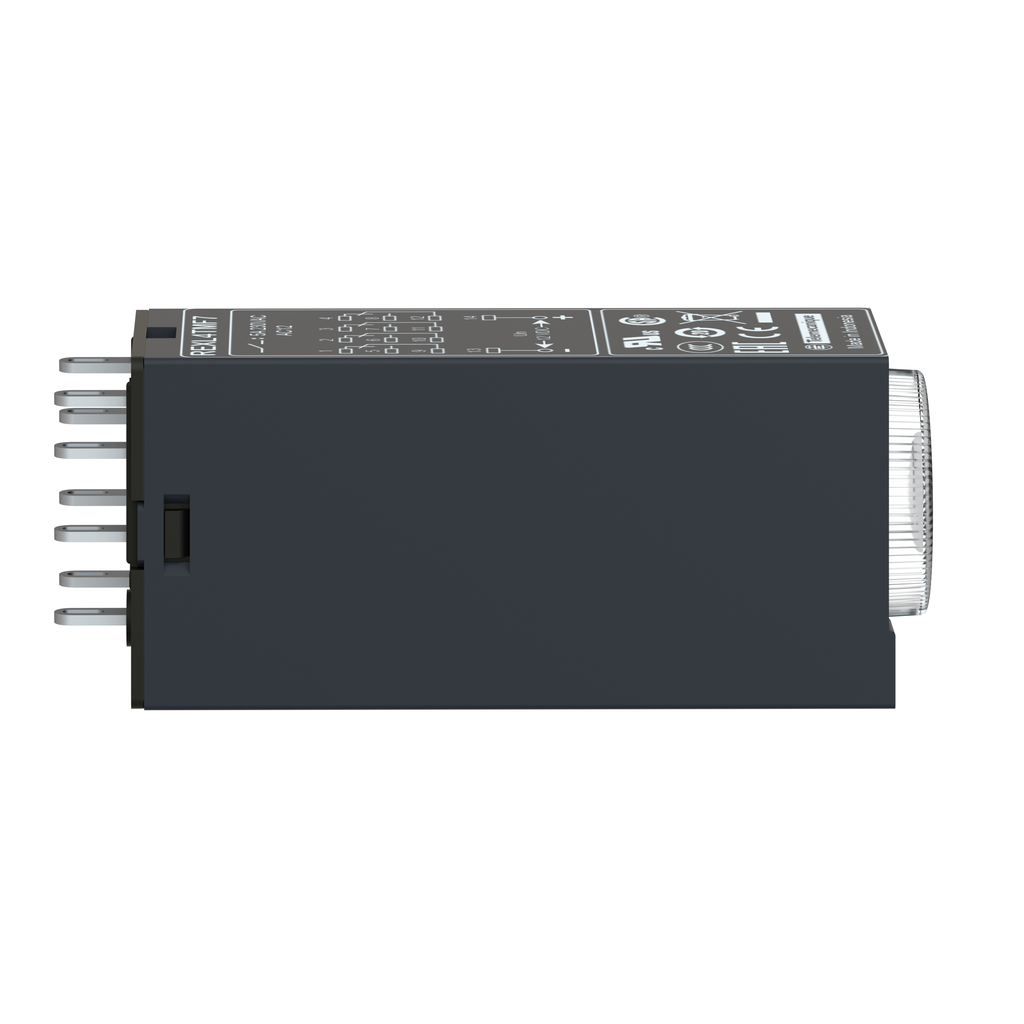

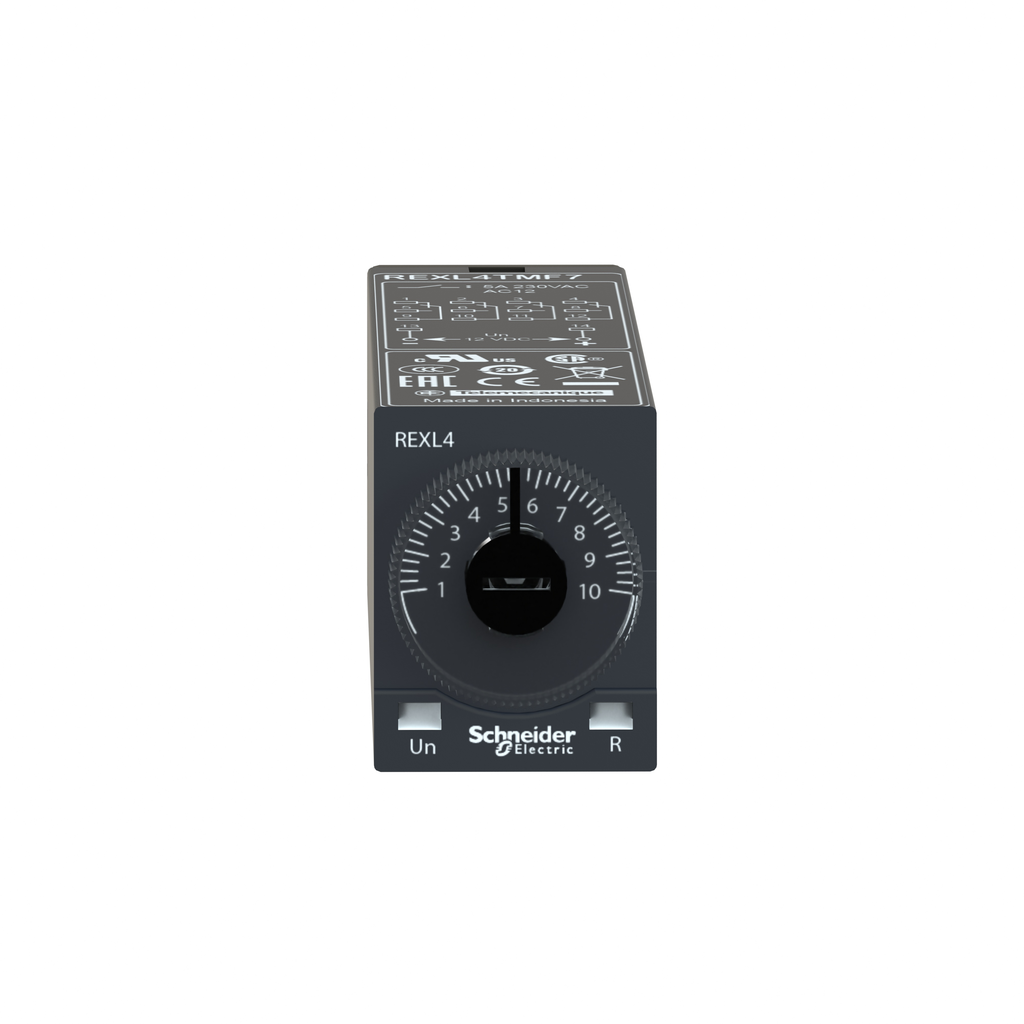

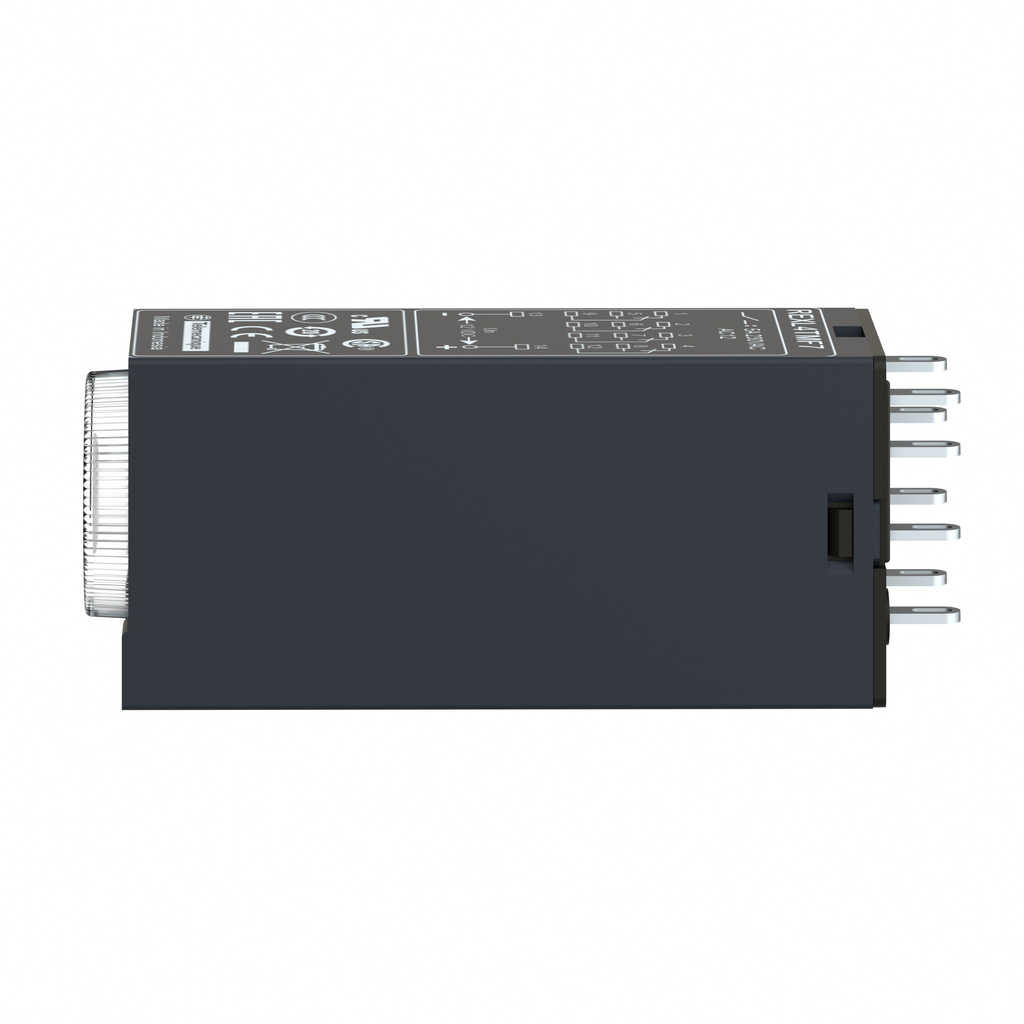

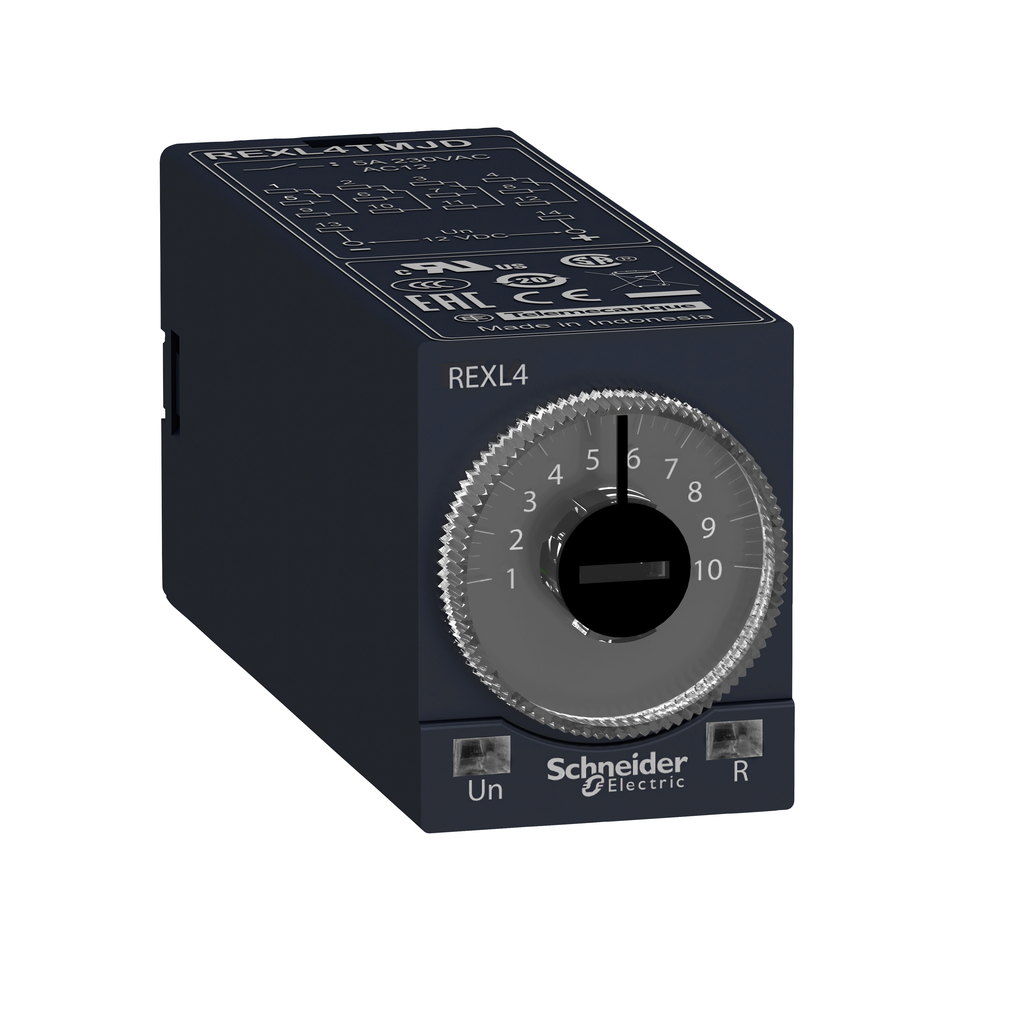

single function relay, Harmony Timer Relays, 5A, 4CO, 0.1s..100h, on delay, 120V AC

Item ID #REXL4TMF7

Schneider Electric

single function relay, Harmony Timer Relays, 5A, 4CO, 0.1s..100h, on delay, 120V AC

Name: single function relay, Harmony Timer Relays, 5A, 4CO, 0.1s..100h, on delay, 120V AC
Brand: Schneider Electric
SKU: REXL4TMF7
Price: 103.00 CAD
Availability: OutOfStock

Item ID #REXL4TMF7

Specifications

See all specifications

Product Certifications :	cUL \|\| UL
Ambient Air Temperature For Operation :	-20-60 °C
Resistance To Electromagnetic Fields :	10 V/m IEC 61000-4-3 level 3

EZ Selector

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

This Harmony REXL timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 5A, is 48mm wide and can be supplied with 120V AC. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for socket plug in, this allows quick and easy installation and minimizes set up and repair time. Status display with 2 LEDs, visually inspect the status of you system without specialized tools. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Recommended tools

Environment


Product Certifications :	cUL \|\| UL
Ambient Air Temperature For Operation :	-20-60 °C
Resistance To Electromagnetic Fields :	10 V/m IEC 61000-4-3 level 3
Standards :	IEC 61000-6-2 \|\| IEC 60601-1 \|\| 89/336/EEC \|\| 93/68/EEC \|\| IEC 61812-1 \|\| IEC 60601-2 \|\| 73/23/EEC \|\| EN 50081-2
Disturbance Radiated/Conducted :	class B EN 55022 (EN 55011 group 1)
Immunity To Microbreaks :	5 ms
Immunity To Voltage Dips :	>= 95 % / 1 s IEC 61000-4-11 \|\| 30 % / 10 ms IEC 61000-4-11 \|\| 60 % / 100 ms IEC 61000-4-11
Vibration Resistance :	0.35 mm 10-55 Hz)IEC 60068-2-6
Ip Degree Of Protection :	IP50 IEC 60529
Ambient Air Temperature For Storage :	-40-70 °C
Relative Humidity :	95-95 % without condensation IEC 60068-2-6
Resistance To Electrostatic Discharge :	6 kV in contact IEC 61000-4-2 level 3 \|\| 8 kV in air IEC 61000-4-2 level 3
Immunity To Radioelectric Fields :	10 V 0.15...80 MHz)IEC 61000-4-6 level 3
Dielectric Strength :	2 kV 1 mA/1 minute 50 Hz IEC 60601-1 \|\| 2 kV 1 mA/1 minute 50 Hz IEC 61812-1
Resistance To Fast Transients :	2 kV IEC 61000-4-4 level 3


Rohs Exemption Information :	Yes
Mercury Free :	Yes
Environmental Disclosure :	ENVPEP1310019EN
Sustainable Offer Status :	Green Premium product
Reach Regulation :	Reference contains Substances of Very High Concern above the threshold
Weee :	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
China Rohs Regulation :	X
Circularity Profile :	N/A
Eu Rohs Directive :	Pro-active compliance (Product out of EU RoHS legal scope)


Setting Accuracy Of Time Delay :	10 % at full scale 25 °C IEC 61812-1
[In] Rated Current :	5 A AC
Creepage Distance :	4 kV/3 IEC 60664-1
Repeat Accuracy :	+/- 0.5 %
Contacts Material :	cadmium free
Output Overvoltage Protection :	2 J
Voltage Range :	0.85...1.15 Us
Electrical Durability :	100000 cycles 250 V AC resistive
Net Weight :	0.05 kg
Voltage Drift :	+/- 0.2 %/V
Reset Time :	250 ms after time delay, on de-energisation \|\| 50 ms during time delay, on de-energisation
Power Consumption In Va :	2.6 VA
[Us] Rated Supply Voltage :	120 V AC 50/60 Hz
Temperature Drift :	0.05 %/°C
Surge Withstand :	2 kV IEC 61000-4-5 level 3
[Ui] Rated Insulation Voltage :	250 V IEC 255 Group C \|\| 250 V VDE 0010
Minimum Switching Current :	100 mA
Temporary Permissible Current :	10 A < 10 s
Local Signalling :	output in operation 1 LED red) \|\| power ON 1 LED yellow)
Mechanical Durability :	10000000 cycles
Maximum Switching Capacity :	4 x 5 A


Discrete Output Type :	relay
Range Of Product :	Harmony Timer Relays
Product Or Component Type :	single function relay
Component Name :	REXL
Fixing Mode :	plug-in (socket)
Contacts Type And Composition :	4 C/O
Time Delay Range :	1...10 min \|\| 10...100 h \|\| 6...60 s \|\| 0.1...1 s \|\| 1...10 h \|\| 6...60 min \|\| 1...10 s
Time Delay Type :	power on-delay
