| Control Type : | without test button |
| Dielectric Test Voltage : | 2 kV AC 50 Hz, 1 min IEC 60255-5, 2 kV AC 50 Hz, 1 min IEC 60664-1 |
| Electromagnetic Compatibility : | emission standard for industrial environments conforming to IEC 61000-6-4, emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, immunity for industrial environments conforming to IEC 61000-6-2 |
| Insulation Resistance : | > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60664-1, > 500 MOhm 500 V DC IEC 60664-1, > 500 MOhm 500 V DC IEC 60664-1, > 500 MOhm 500 V DC IEC 60664-1> 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60664-1 |
| Local Signalling : | LED (green) for power ON, LED (yellow) for relay ON |
| Measurement Error : | < 0.05 %/°C with temperature variation, < 0.05 %/°C with temperature variation, < 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation< 0.05 %/°C with temperature variation, < 0.05 %/°C with temperature variation, < 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation |
| Mounting Support : | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Non Dissipating Shock Wave : | 4 kV IEC 60255-5, 4 kV IEC 60664-1, 4 kV IEC 61000-4-5 |
| Operating Rate : | <= 360 operations/hour full load, <= 360 operations/hour full load<= 360 operations/hour full load, <= 360 operations/hour full load |
| Product Or Component Type : | 3-phase control relay |
| Relay Monitored Parameters : | phase failure detection, undervoltage and overvoltage in window modeasymmetryphase sequencephase failure detection |
| Repeat Accuracy : | 0.5 % input and measurement circuit, 3 % time delay |
| Response Time : | < 200 ms (in the event of a fault), < 200 ms (in the event of a fault)< 200 ms (in the event of a fault), < 200 ms (in the event of a fault) |
| Safety Reliability Data : | MTTFd = 502.2 years, B10d = 470000 |
| Threshold Adjustment Voltage : | -2...-17 % in the range 220 V AC, +2...+10 % in the range 480 V AC, -2...-12 % in the range 208 V AC, 2...20 % of Un selected, -2...-17 % in the range 220 V AC, +2...+10 % in the range 480 V AC, -2...-12 % in the range 208 V AC |
| Tightening Torque : | 0.6-1 N.m IEC 60947-1 |
| Time Delay Type : | adjustable 0.1...10 s, +/- 10 % of the full scale value Tt- time delay upon fault |
| Utilisation Category : | AC-12 IEC 60947-5-1, AC-13 IEC 60947-5-1, AC-14 IEC 60947-5-1, AC-15 IEC 60947-5-1, DC-12 IEC 60947-5-1, DC-13 IEC 60947-5-1 |
| Vibration Resistance : | 0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6, 1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1 |
| Connections Terminals : | screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end, screw connectors |
| Carbon Footprint Of The Distribution Phase A4 : | 0.2245281871626276, 0.2 kg CO2 eq. |
| Carbon Footprint Of The End Of Life Phase C1 To C4 : | 0.205285316128549, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 : | 0 kg CO2 eq., 0.0003402431929488164 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 : | 2 kg CO2 eq., 1.722847623721569 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 : | 95 kg CO2 eq., 95.41983755211217 |
| Certificate Agency : | GOST, C-tick, CSA, UL, GL |
| Local Data Status : | Publishable |
| Local Publishable Date : | 2026-03-26 |
| Return Indicator : | Y |
| Stocking Flag : | N |
| Stock Policy : | 2 |
| Weee Scope : | Out |
| Weee Product Category : | 5 |
| Scope Perimeter : | At least in Europe |
| Eoli Availability Display : | Yes |
| End Of Life Doc Ref : | ENVEOLI1601001EN |
| Reach Full Compliance Status : | Reference contains Substances of Very High Concern above the threshold |
| Reach Full Compliance Status Id : | CONTAINS_SVHC |
| Reach Compliance Directive : | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur In Scope : | No |
| Rohs Eur Status : | Compliant By Exemption |
| Rohs Eur Conformity Date : | 1918 |
| Rohs Eur Full Compliance Status : | Compliant By Exemption |
| China Rohs In Scope : | Yes |
| China Rohs Label : | 5 |
| With Recycled Cardboard : | Yes |
| Without Single Use Plastic : | Yes |
| Product Contributes To Saved And Avoided Emissions : | No |
| Tier Id : | 1 |
| Tier : | 1 |
| Function Option Id : | STANDARD |
| Function Option : | Standard |
| Product Kit Identifier : | N |
| Adjustment Of Asymmetry Threshold : | 5...15 % of Un selected |
| Compatibility Code : | RM17 |
| Contacts Type And Composition : | 1 C/O |
| Electrical Durability : | 100000 cycles |
| Functionality : | undervoltage and overvoltage in window mode |
| Housing Material : | polycarbonate |
| Hysteresis : | 2-2 % |
| Marking : | CE |
| Measurement Range : | 208...480 V AC |
| Measurement Voltage Limits : | 183-528 V AC |
| Mechanical Durability : | 30000000 cycles |
| Operating Position : | any position without derating |
| Overvoltage Category : | III conforming to IEC 60664-1 |
| Phase Failure Sensitivity : | 0.7 Un |
| Power Consumption In Va : | 0-22 VA 400 V AC 50 Hz |
| Product Availability : | Stock - Normally stocked in distribution facility |
| Product Specific Application : | for 3-phase supply |
| Range Of Product : | Harmony Control Relays |

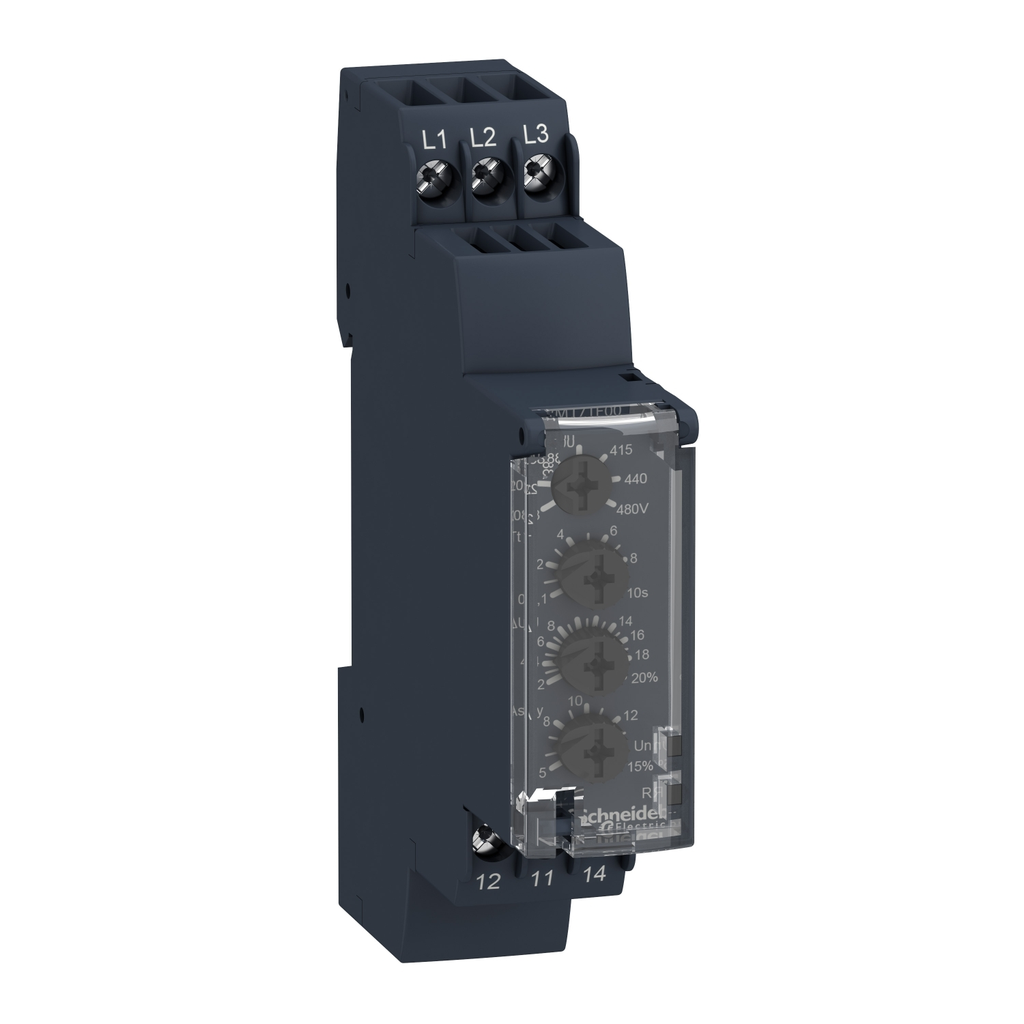

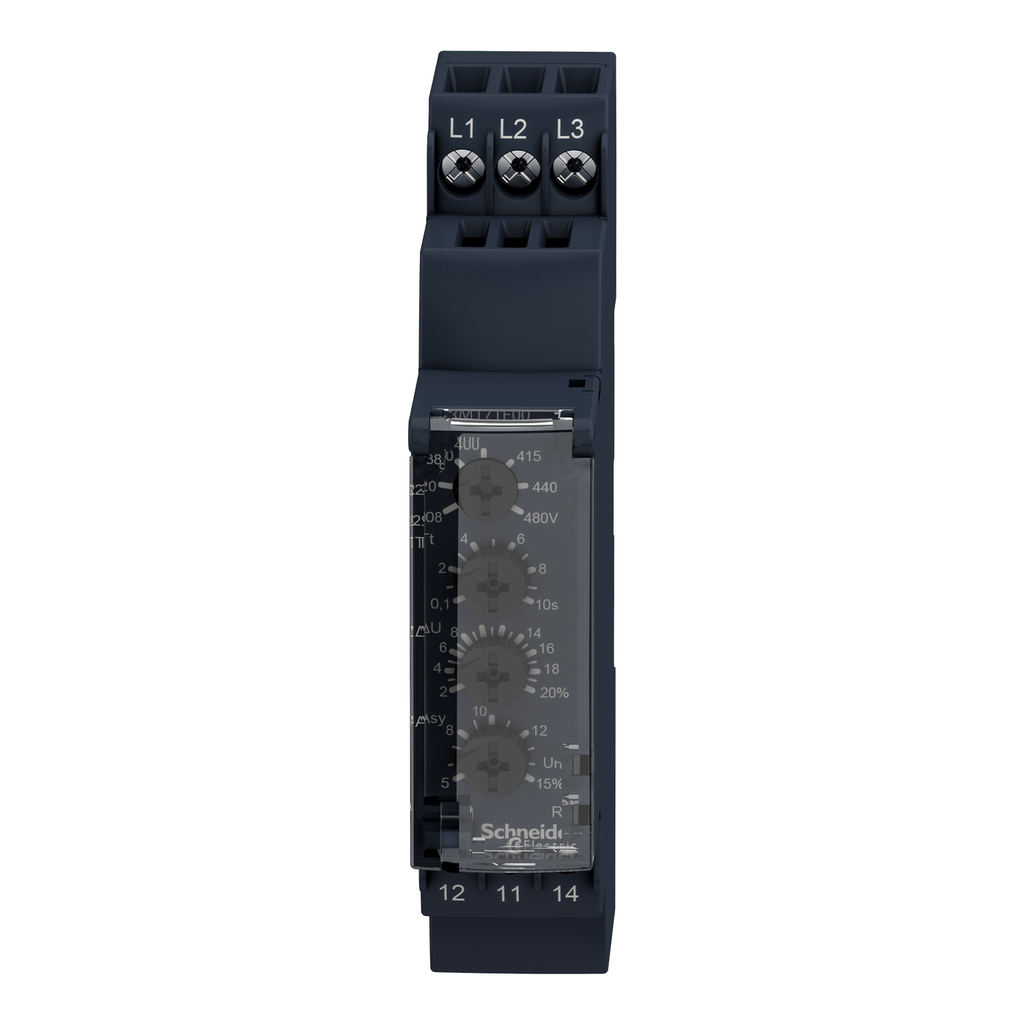

| Relay Name : | RM17TE |
| Relay Type : | multifunction control relay |
| Reset Time : | 1500 ms time delay |
| Returnability : | Yes |
| Run Up Delay At Power Up : | 650 ms |
| Shock Resistance : | 15 gn 11 ms IEC 60255-21-1 |
| Software Version : | v6.2-6 |
| Supply Frequency : | 50/60 Hz +/- 10 % |
| Supply Voltage Limits : | 183-528 V AC |
| Sustainable Packaging : | Yes |
| Switching Capacity In Va : | 1250 VA |
| Total Lifecycle Carbon Footprint : | 98 kg CO2 eq. |
| Voltage Range : | 208...480 V phase to phase |
| Warranty In Months : | 18 |
| Contacts Composition : | 1 C/O |
| Measurement Range 4 : | 208...480 V AC |
| Pep Code : | ENVPEP1601001EN |
| Database Version : | 2024-04 |
| Pep Verification Date : | 2025-03-09 |
| Pcr Version : | PCR-4-ed4-EN-2021 09 06 |
| Psr Version : | PSR-0005-ed3.1-EN-2023 12 08 |
| Type Of Verification For The Pep : | Independent internal review |
| Data Source : | referent product |
| Functional-unit Description : | Harmony RM17-TE relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase supply control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It works with power consumption of 2.7 W in 80% active mode with life span of 10 years. |
| Functional-unit Quantity : | 1 |
| Functional-unit Unit : | Unit |
| Reference Lifetime, In Y : | 10 |
| Energy Model - Manufacturing [A1-a3] : | Indonesia, ID |
| Energy Model - Installation [A5] : | Electricity Mix; Low voltage; 2018; Asia Pacific, APAC |
| Energy Model - Use [B6] : | Electricity Mix; Low voltage; 2018; Asia Pacific, APAC |
| Energy Model - End Of Life [C1-c4] : | Electricity Mix; Low voltage; 2018; Asia Pacific, APAC |

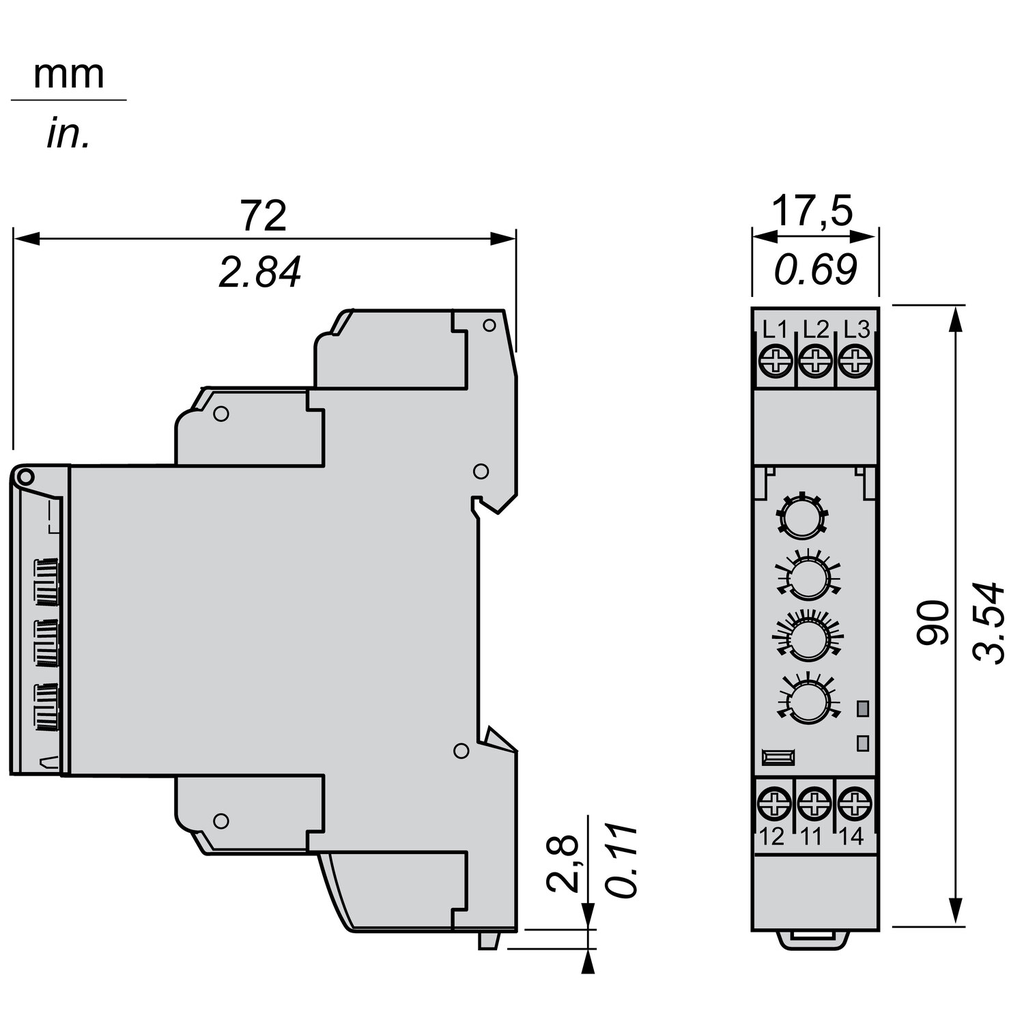

| Width Nominal : | 17.5 mm |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : | 0.18 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : | 0.18 |
