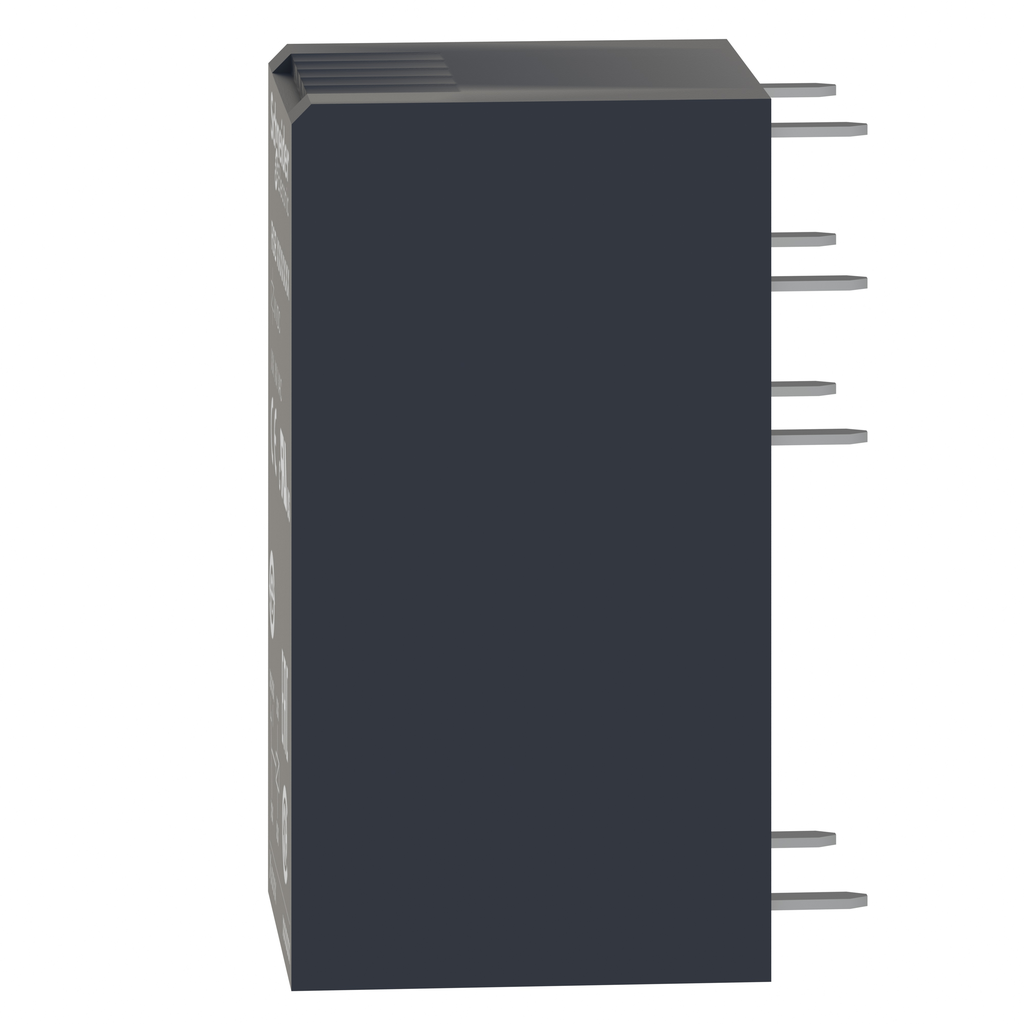

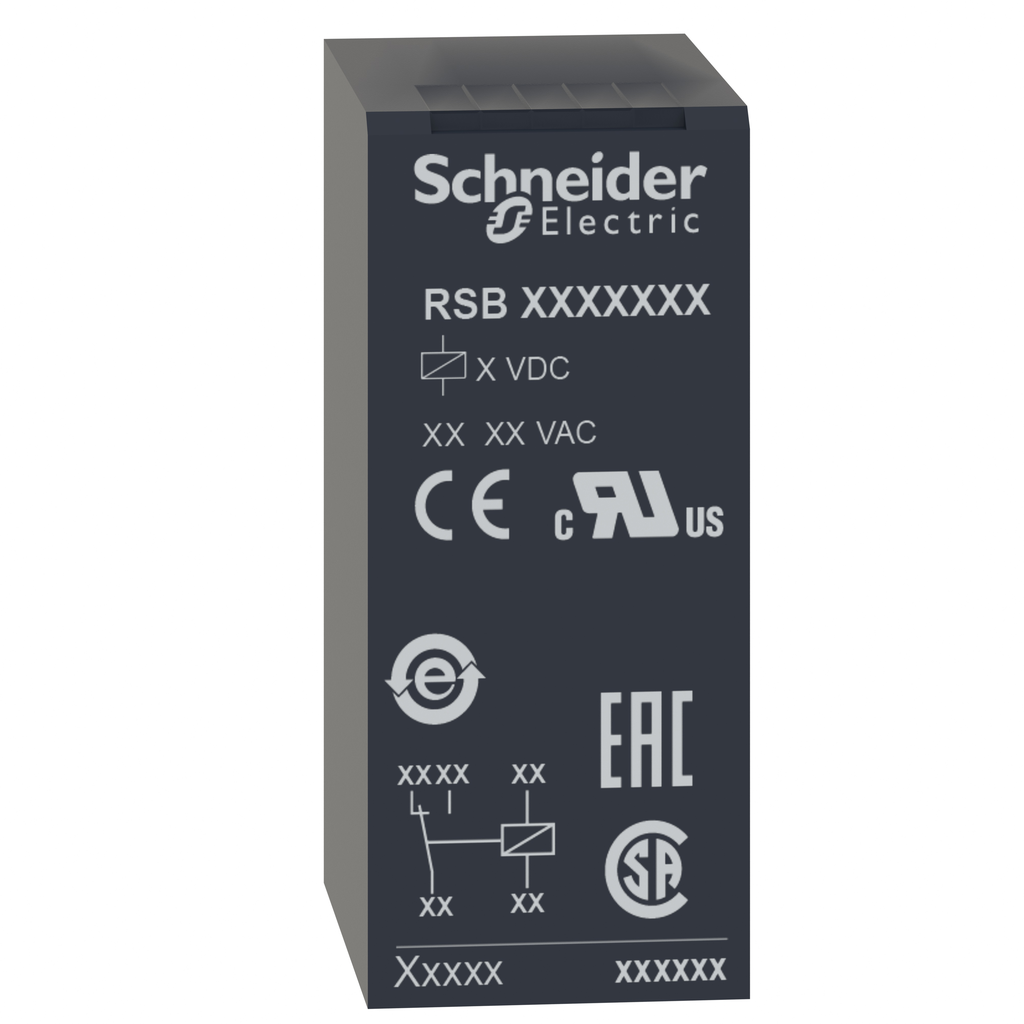

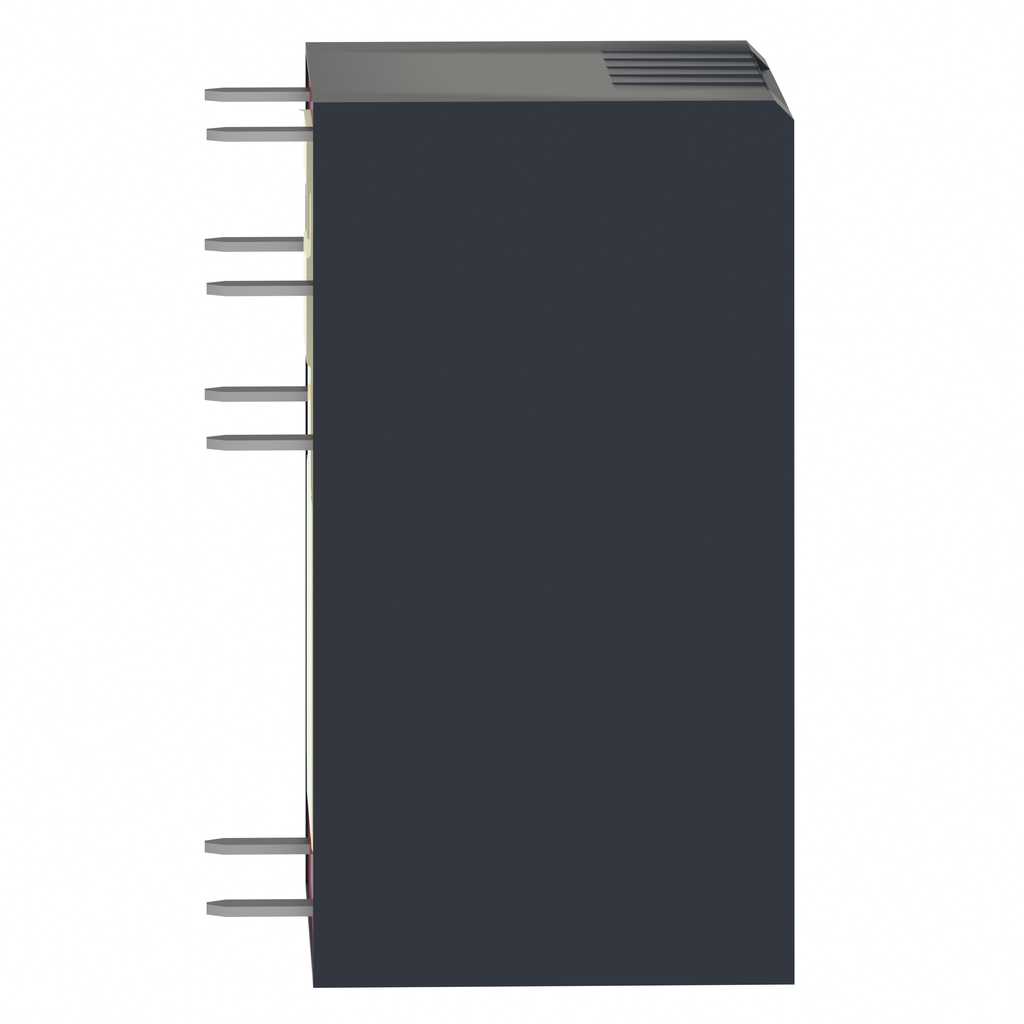

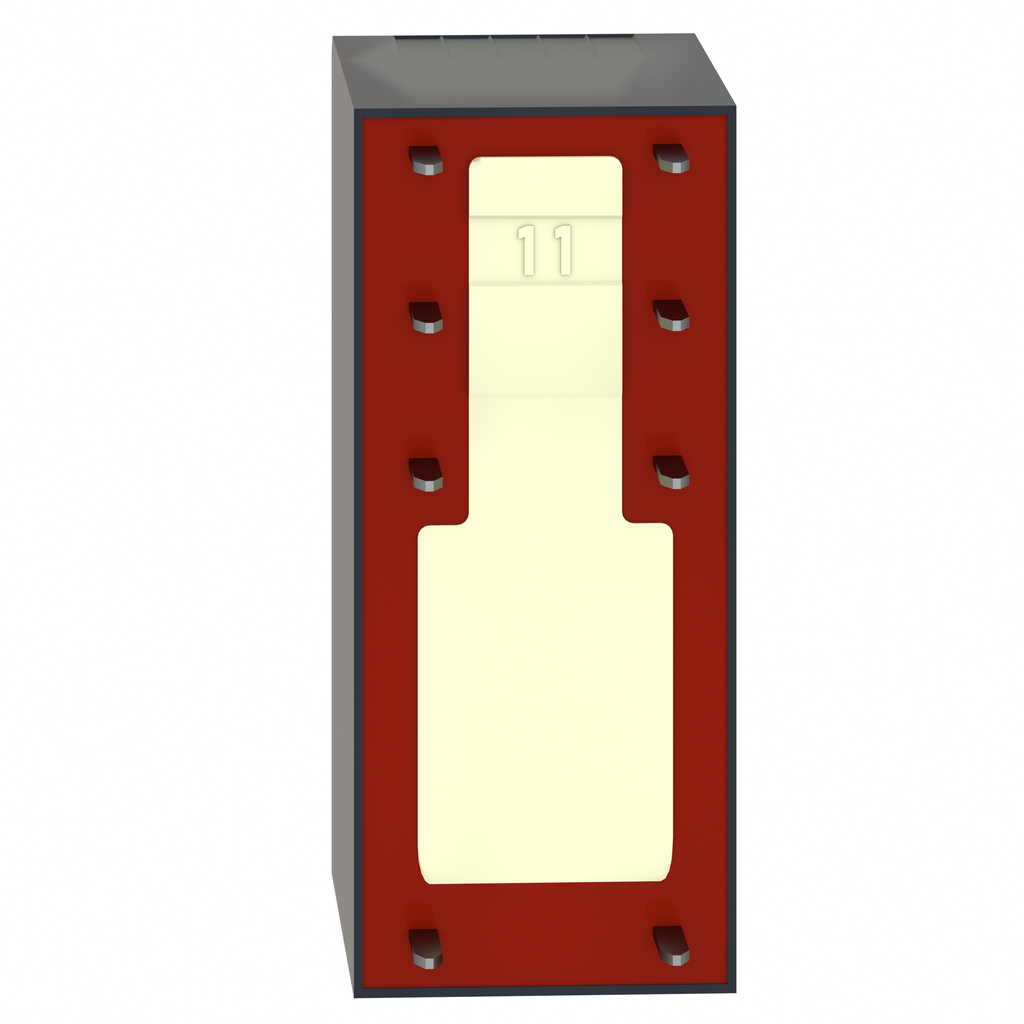

interface plug-in relay, Harmony electromechanical relays, 8A, 2CO, 12V DC

Item ID #RSB2A080JD

Schneider Electric

interface plug-in relay, Harmony electromechanical relays, 8A, 2CO, 12V DC

Name: interface plug-in relay, Harmony electromechanical relays, 8A, 2CO, 12V DC
Brand: Schneider Electric
SKU: RSB2A080JD
Price: 16.50 CAD
Availability: InStock

Item ID #RSB2A080JD

Specifications

See all specifications

Product Certifications :	CSA \|\| EAC \|\| UL
Standards :	UL 508 \|\| IEC 61810-1 \|\| CSA C22.2 No 14
Ambient Air Temperature For Operation :	-40-85 °C DC)

EZ Selector

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

This Harmony RSB interfacing plug-in relay has a control coil voltage of 12V DC and has 2 changeover contacts double pole double throw with a rating of 8A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0

Recommended tools

Environment


Product Certifications :	CSA \|\| EAC \|\| UL
Standards :	UL 508 \|\| IEC 61810-1 \|\| CSA C22.2 No 14
Ambient Air Temperature For Operation :	-40-85 °C DC)
Shock Resistance :	10 gn 11 ms) not operating IEC 60068-2-27 \|\| 5 gn 11 ms) in operation IEC 60068-2-27
Dielectric Strength :	1000 V AC between contacts \|\| 2500 V AC between poles \|\| 5000 V AC between coil and contact
Vibration Resistance :	+/- 1 mm 10-55 Hz)IEC 60068-2-6
Ip Degree Of Protection :	IP40 IEC 60529
Ambient Air Temperature For Storage :	-40-85 °C

Description
Resources
Specifications

interface plug-in relay, Harmony electromechanical relays, 8A, 2CO, 12V DC

Item ID #RSB2A080JD

Schneider Electric

interface plug-in relay, Harmony electromechanical relays, 8A, 2CO, 12V DC

Item ID #RSB2A080JD

interface plug-in relay, Harmony electromechanical relays, 8A, 2CO, 12V DC

Specifications

See all specifications

Product Certifications :	CSA \|\| EAC \|\| UL
Standards :	UL 508 \|\| IEC 61810-1 \|\| CSA C22.2 No 14
Ambient Air Temperature For Operation :	-40-85 °C DC)

EZ Selector

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

Recommended tools

Environment


Product Certifications :	CSA \|\| EAC \|\| UL
Standards :	UL 508 \|\| IEC 61810-1 \|\| CSA C22.2 No 14
Ambient Air Temperature For Operation :	-40-85 °C DC)
Shock Resistance :	10 gn 11 ms) not operating IEC 60068-2-27 \|\| 5 gn 11 ms) in operation IEC 60068-2-27
Dielectric Strength :	1000 V AC between contacts \|\| 2500 V AC between poles \|\| 5000 V AC between coil and contact
Vibration Resistance :	+/- 1 mm 10-55 Hz)IEC 60068-2-6
Ip Degree Of Protection :	IP40 IEC 60529
Ambient Air Temperature For Storage :	-40-85 °C


Rohs Exemption Information :	Yes
Mercury Free :	Yes
Environmental Disclosure :	ENVPEP1406006EN
Sustainable Offer Status :	Green Premium product
Toxic Heavy Metal Free :	Yes
Reach Regulation :	Reference contains Substances of Very High Concern above the threshold
Weee :	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
China Rohs Regulation :	X
Circularity Profile :	N/A
Eu Rohs Directive :	Pro-active compliance (Product out of EU RoHS legal scope)


Maximum Switching Capacity :	2000 VA/224 W
Safety Reliability Data :	B10d = 100000
[Ue] Rated Operational Voltage :	8.4...18 V DC
Operating Rate :	<= 600 cycles/hour under load \|\| <= 18000 cycles/hour no-load
Protection Category :	RT I
Test Levels :	level A group mounting
Contacts Material :	silver alloy (AgNi)
Shape Of Pin :	flat (PCB type)
Marking :	CE
Net Weight :	0.014 kg
[Uimp] Rated Impulse Withstand Voltage :	3.6 kV IEC 61000-4-5
Maximum Switching Voltage :	300 V DC IEC
Average Resistance :	360 Ohm AC 20 °C +/- 10 %
Device Presentation :	complete product
Switching Voltage :	12 V
Average Coil Consumption :	0.45 W DC
[Ie] Rated Operational Current :	4 A AC-1/DC-1) NC IEC \|\| 8 A AC-1/DC-1) NO IEC
Sale Per Indivisible Quantity :	10
[Ui] Rated Insulation Voltage :	400 V IEC 60947
Minimum Switching Current :	10 mA
Electrical Durability :	100000 cycles, 8 A 250 V, AC-1 NO \|\| 100000 cycles, 4 A 250 V, AC-1 NC
Mechanical Durability :	30000000 cycles
Operating Position :	any position
Operating Time :	20 ms operating \|\| 20 ms reset
Load Current :	8 A 250 V AC \|\| 8 A 28 V DC
Drop-Out Voltage Threshold :	>= 0.1 Uc DC
Minimum Switching Capacity :	120 mW 10 mA, 12 V


[Uc] Control Circuit Voltage :	12 V DC
Range Of Product :	Harmony Electromechanical Relays
Product Or Component Type :	plug-in relay
Status Led :	without
Control Type :	without push-button
Series Name :	interface relay
Contacts Type And Composition :	2 C/O
Contact Operation :	standard
Device Short Name :	RSB
[Ithe] Conventional Enclosed Thermal Current :	8 A -40-40 °C
