Harmony, Universal plug-in relay, 10 A, 2 CO, with LED, with lockable test button, 48 V DC
Item ID #RUMC22ED
Schneider Electric
Harmony, Universal plug-in relay, 10 A, 2 CO, with LED, with lockable test button, 48 V DC
Item ID #RUMC22ED
Harmony, Universal plug-in relay, 10 A, 2 CO, with LED, with lockable test button, 48 V DC
Specifications
See all specifications| Ie Rated Operational Current : | 10 A at 28 V DC (NO) conforming to IEC10 A at 277 V AC conforming to CSA, 10 A at 277 V AC conforming to UL10 A at 30 V DC conforming to UL, 10 A at 30 V DC conforming to CSA5 A at 250 V AC (NC) conforming to IEC, 5 A at 28 V DC (NC) conforming to IEC, 10 A at 250 V AC (NO) conforming to IEC |
| Uc Control Circuit Voltage : | DC, 48 V |
| Ui Rated Insulation Voltage : | 250 V IEC300 V CSA, 300 V UL |
Available quantity000
Your price
$0.00 / Each
Add to template
Product Description

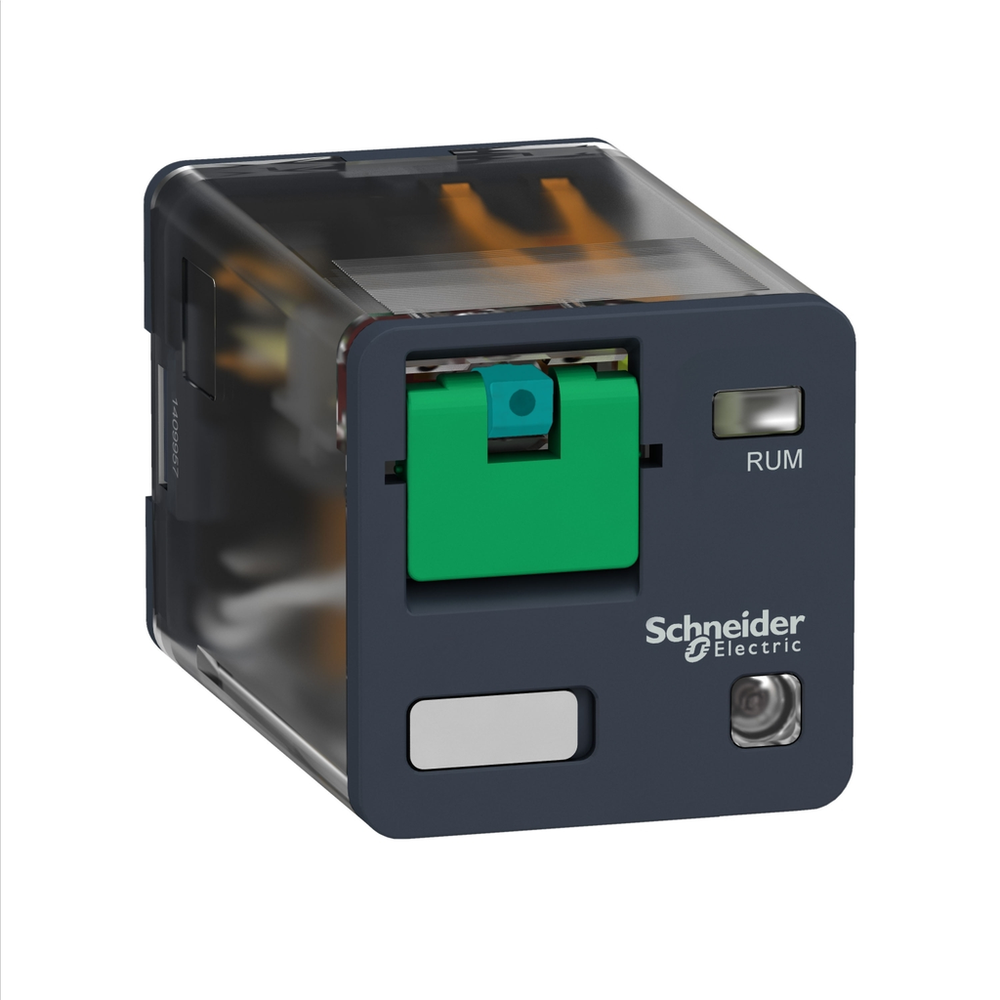

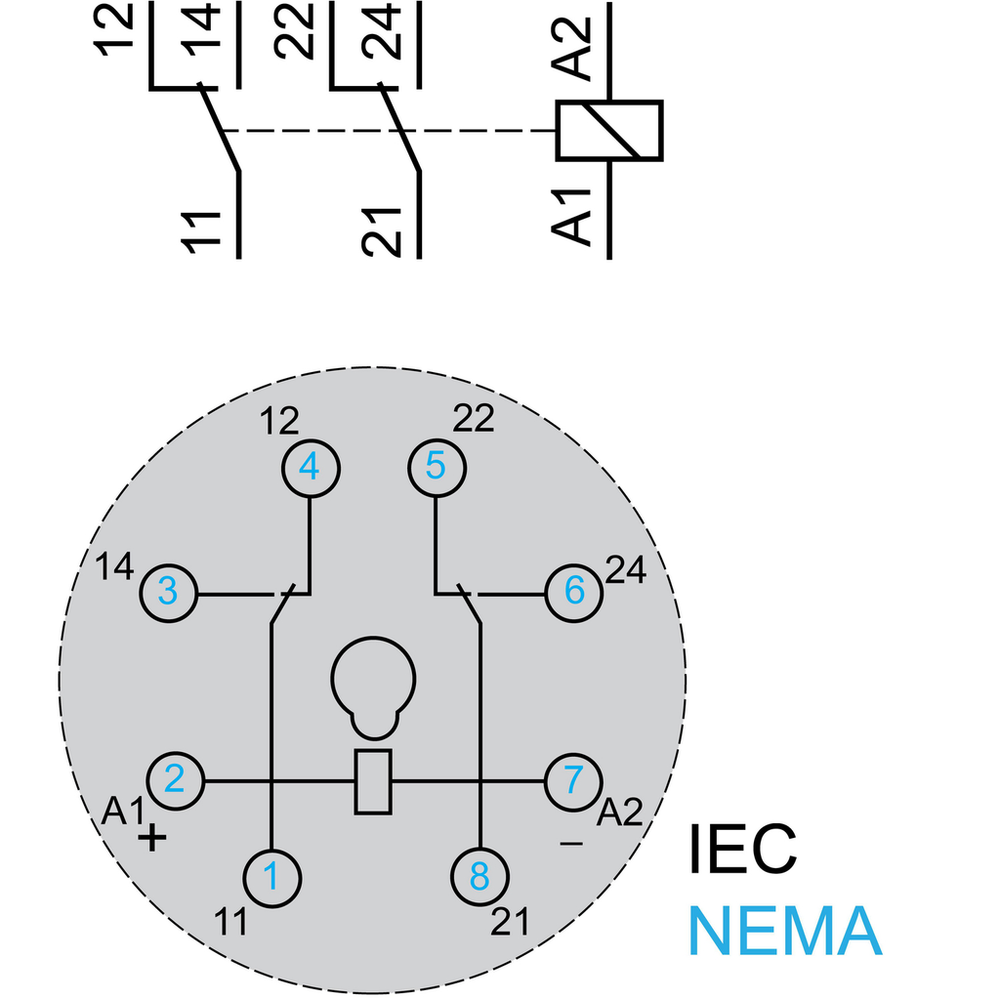

"This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 48V DC and has 2 changeover contacts double pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button and “Power On” LED for readiness." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night."
Recommended tools
Complementary Attributes
| Ie Rated Operational Current : | 10 A at 28 V DC (NO) conforming to IEC10 A at 277 V AC conforming to CSA, 10 A at 277 V AC conforming to UL10 A at 30 V DC conforming to UL, 10 A at 30 V DC conforming to CSA5 A at 250 V AC (NC) conforming to IEC, 5 A at 28 V DC (NC) conforming to IEC, 10 A at 250 V AC (NO) conforming to IEC |
| Uc Control Circuit Voltage : | DC, 48 V |
| Ui Rated Insulation Voltage : | 250 V IEC300 V CSA, 300 V UL |
