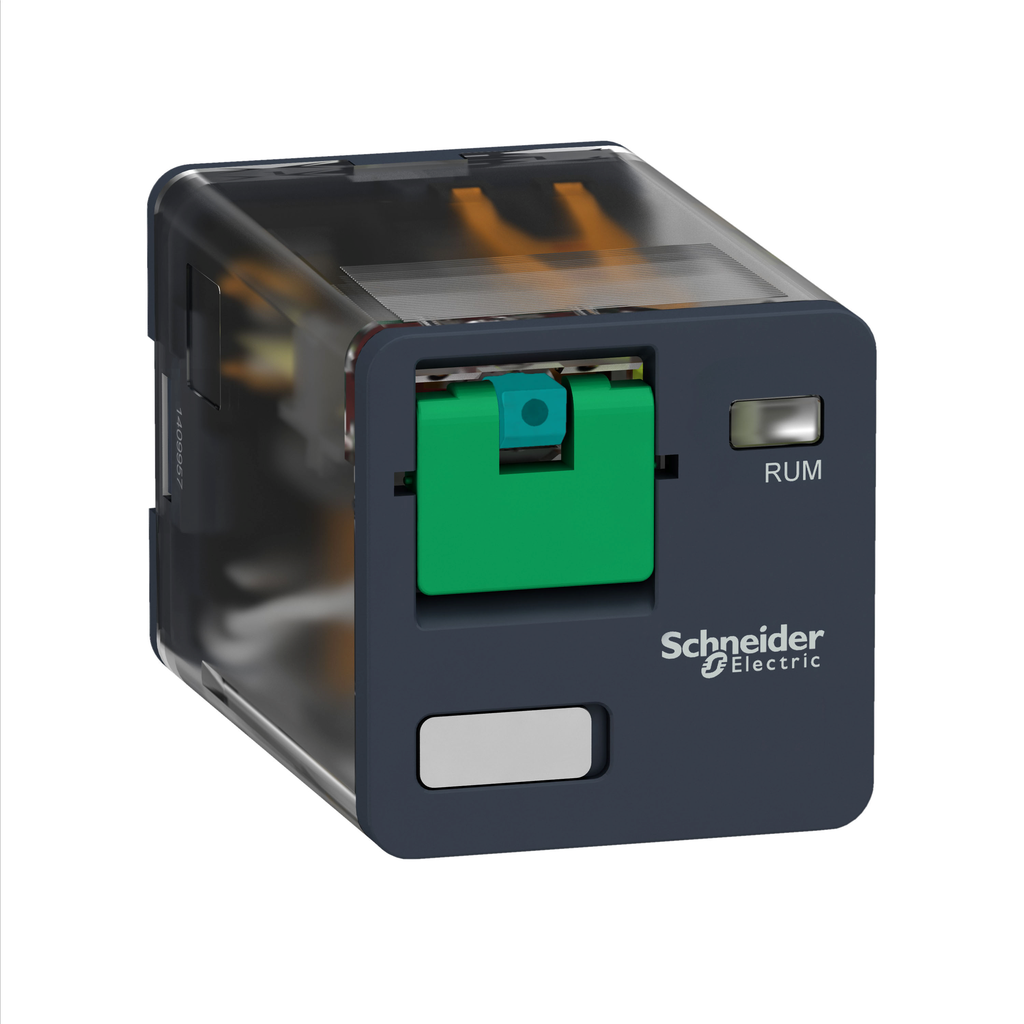

This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 12V DC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0
Recommended tools
Offer Sustainability
Rohs Exemption Information :
Yes
Environmental Disclosure :
ENVPEP1406038EN
Sustainable Offer Status :
Green Premium product
Reach Regulation :
Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc :
Yes
China Rohs Regulation :
X
Circularity Profile :
N/A
Eu Rohs Directive :
Pro-active compliance (Product out of EU RoHS legal scope)
<= 18000 cycles/hour no-load || <= 1200 cycles/hour under load
Protection Category :
RT I
Test Levels :
level A group mounting
Electrical Durability :
100000 cycles resistive
Contacts Material :
AgNi
Shape Of Pin :
cylindrical
Reset Time :
20 ms at nominal voltage
Net Weight :
0.086 kg
[Uimp] Rated Impulse Withstand Voltage :
4 kV 1.2/50 µs)
Maximum Switching Voltage :
250 V IEC
Average Resistance :
120 Ohm 20 °C +/- 15 %
Device Presentation :
complete product
[Ie] Rated Operational Current :
10 A 277 V AC UL || 10 A 30 V DC UL || 10 A 277 V AC same polarity)CSA || 10 A 30 V DC CSA || 5 A 250 V AC NC)IEC || 5 A 28 V DC NC)IEC || 10 A 250 V AC NO)IEC || 10 A 28 V DC NO)IEC
Average Coil Consumption :
1.4 W
Rated Operational Voltage Limits :
9.6...13.2 V DC
[Ui] Rated Insulation Voltage :
250 V IEC || 300 V CSA || 300 V UL
Mechanical Durability :
5000000 cycles
Operating Position :
any position
Operating Time :
20 ms at nominal voltage
Load Current :
10 A 250 V AC || 10 A 28 V DC
Drop-Out Voltage Threshold :
>= 0.1 Uc DC
Minimum Switching Capacity :
170 mW 10 mA, 17 V
Environment
Product Certifications :
UL || EAC || CSA
Standards :
UL 508 || CSA C22.2 No 14 || IEC 61810-1
Pollution Degree :
2
Ambient Air Temperature For Operation :
-40-55 °C
Dielectric Strength :
1500 V AC between contacts micro disconnection || 2500 V AC between coil and contact reinforced || 2000 V AC between poles basic
Vibration Resistance :
3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Shock Resistance :
10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
