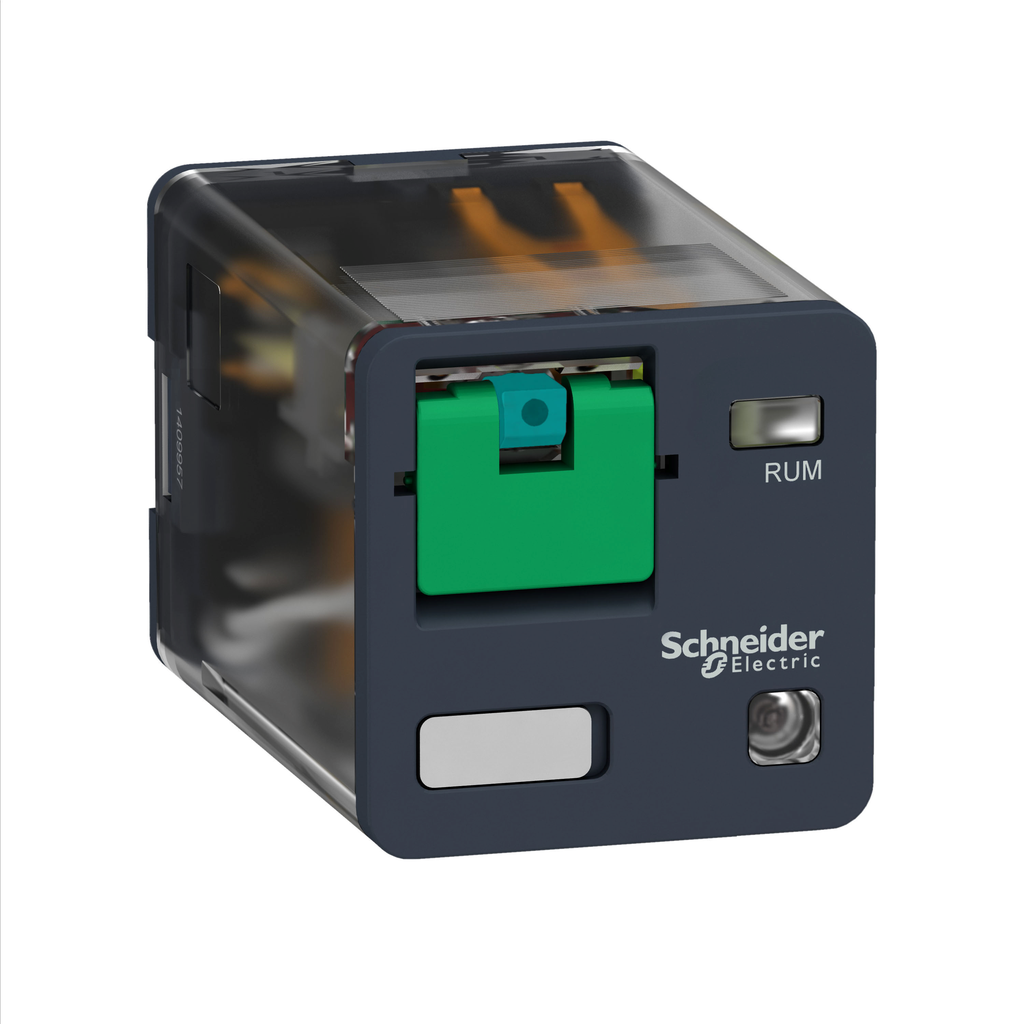

This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 12V DC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button and “Power On” LED for readiness." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
Recommended tools
Complementary
Maximum Switching Capacity :
2500 VA/280 W
Safety Reliability Data :
B10d = 100000
Operating Rate :
<= 18000 cycles/hour no-load || <= 1200 cycles/hour under load
Protection Category :
RT I
Test Levels :
level A group mounting
Electrical Durability :
100000 cycles resistive
Contacts Material :
AgNi
Shape Of Pin :
cylindrical
Reset Time :
20 ms at nominal voltage
Net Weight :
0.086 kg
[Uimp] Rated Impulse Withstand Voltage :
4 kV 1.2/50 µs)
Maximum Switching Voltage :
250 V IEC
Average Resistance :
120 Ohm 20 °C +/- 15 %
Device Presentation :
complete product
[Ie] Rated Operational Current :
10 A 277 V AC UL || 10 A 30 V DC UL || 10 A 277 V AC same polarity)CSA || 10 A 30 V DC CSA || 5 A 250 V AC NC)IEC || 5 A 28 V DC NC)IEC || 10 A 250 V AC NO)IEC || 10 A 28 V DC NO)IEC
