| Dielectric Strength : | 1000 V AC between contacts with micro disconnection, 5000 V AC between coil and contact with reinforced insulation |
| Drop Out Voltage Threshold : | >= 0.3 Uc AC, >= 0.3 Uc AC, >= 0.3 Uc AC, >= 0.3 Uc AC |
| Electrical Durability : | 100000 cycles NO resistive at 55 °C, 100000 cycles NC resistive at 55 °C |
| Operating Rate : | <= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load, <= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load |
| Vibration Resistance : | 3 gn +/- 0.75 mm 10-150 Hz)in operation, 5 gn +/- 0.75 mm 10-150 Hz)not in operation |
| Ie Rated Operational Current : | 10 A at 250 V (AC) conforming to IEC, 10 A at 30 V (DC) conforming to UL, 10 A at 30 V (DC) conforming to IEC, 10 A at 250 V (AC) conforming to UL |
| Local Data Status : | Publishable |
| Local Publishable Date : | 2026-01-12 |
| Global Commercial Status : | End of commercialisation |
| Return Indicator : | N |
| Stocking Flag : | Y |
| Stock Policy : | 2 |
| Legacy Weee Scope : | Out |
| Weee Product Category : | 5 |
| Scope Perimeter : | At least in Europe |
| Eoli Availability Display : | No need of specific recycling operations |
| Rohs Eur In Scope : | No |
| Rohs Eur Status : | Compliant |
| Rohs Eur Conformity Date : | 1930 |
| Rohs Eur Full Compliance Status : | Compliant |
| China Rohs In Scope : | Yes |
| China Rohs Label : | 1 |
| Product Kit Identifier : | N |
| Average Resistance : | 260 Ohm at 23 °C +/- 10 % |
| Contact Resistance : | 100 mOhm |
| Contacts Material : | silver alloy (AgSnO2In2O3) |

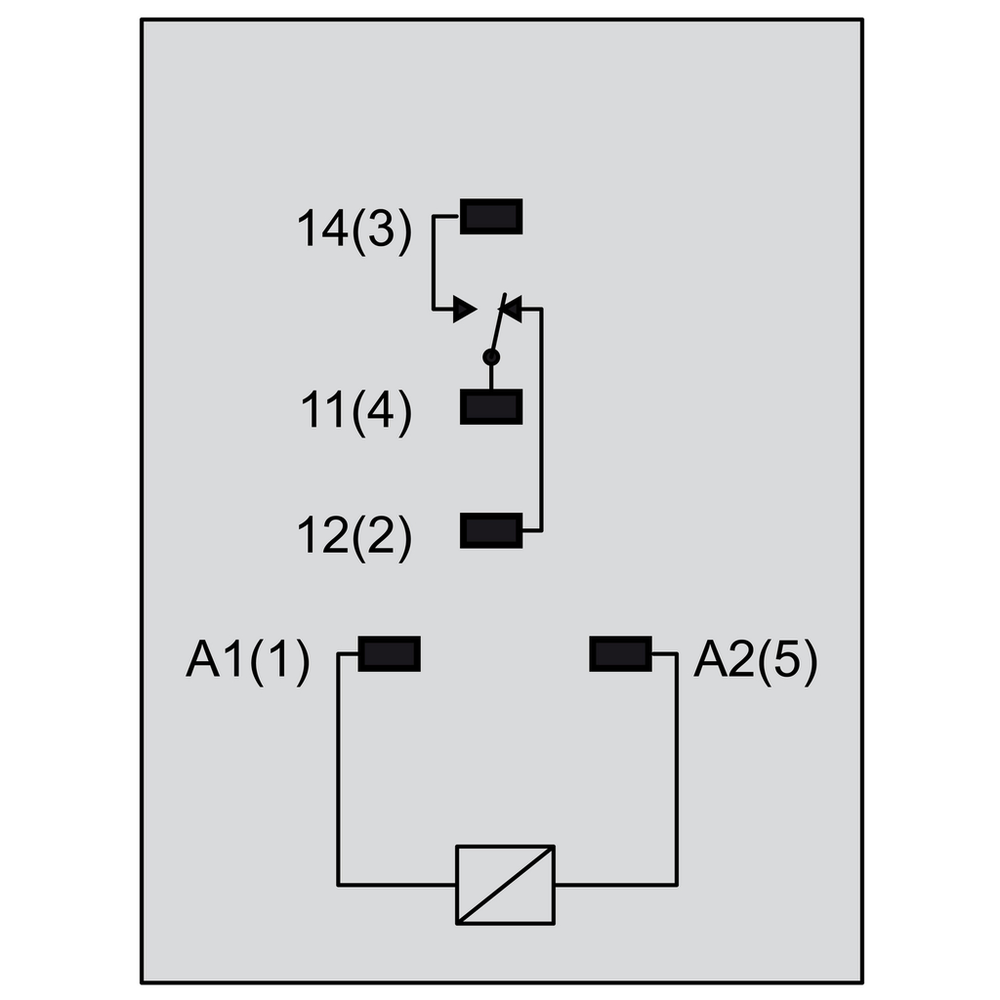

| Contacts Type And Composition : | 1 C/O |
| Device Short Name : | RXG |
| Electrical Insulation Class : | class F |
| Insulation Resistance : | 1000 MOhm at 500 V DC |
| Load Current : | 10 A 250 V AC |
| Mechanical Durability : | 10000000 cycles |
| Mounting Position : | any position |
| Operating Time : | 20 ms |
| Overvoltage Category : | III |
| Product Availability : | Non-Stock - Not normally stocked in distribution facility |

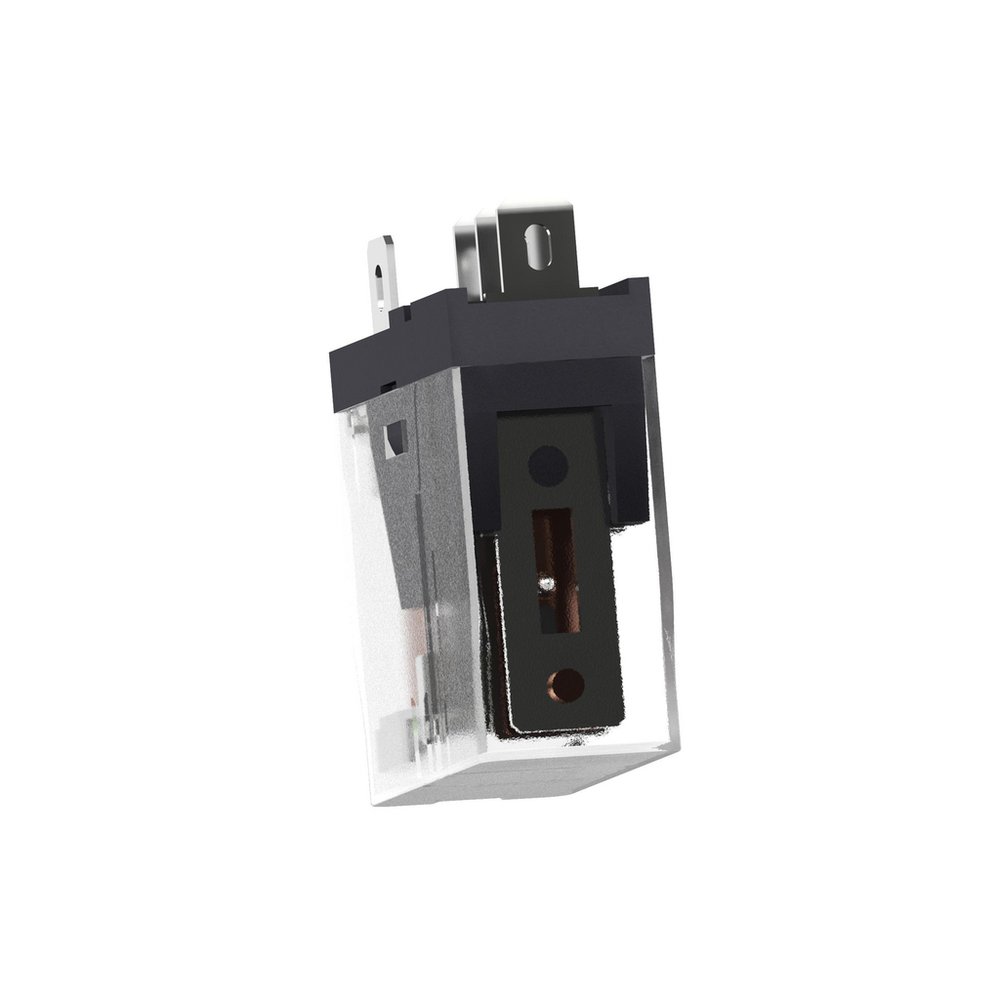

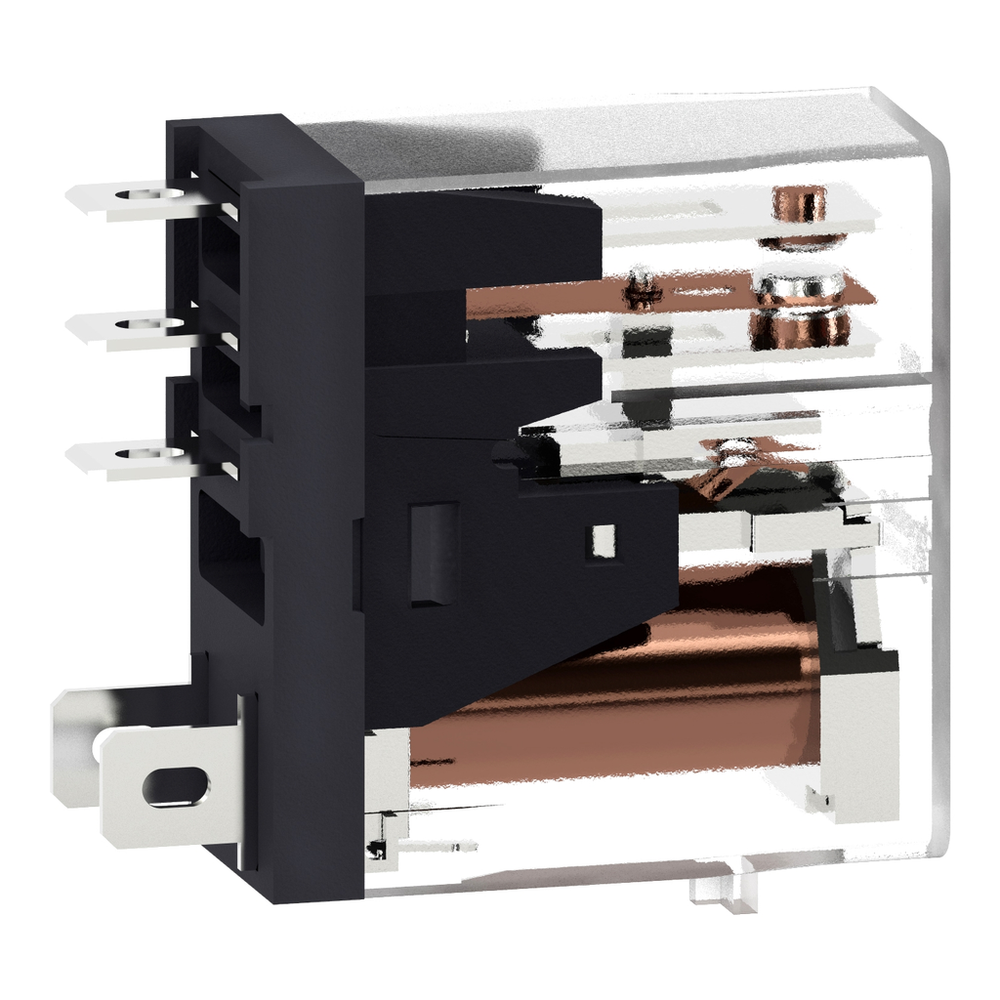

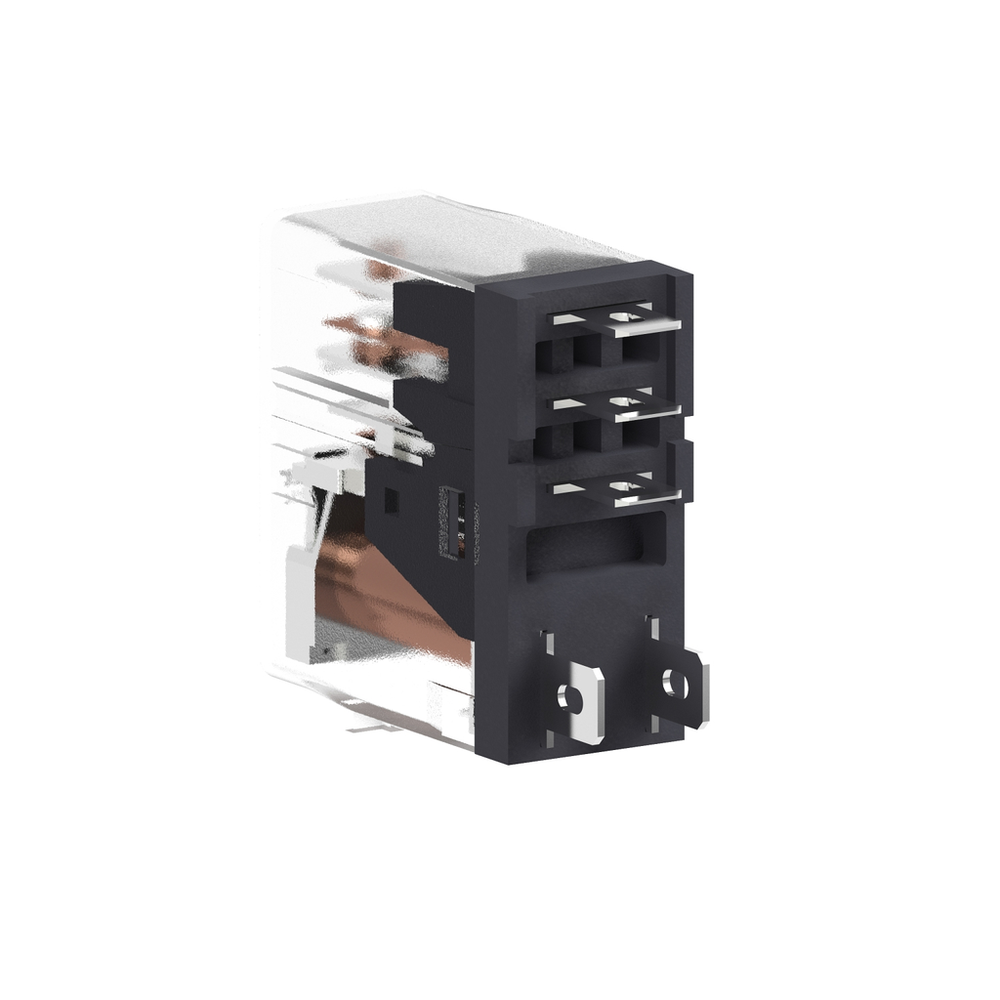

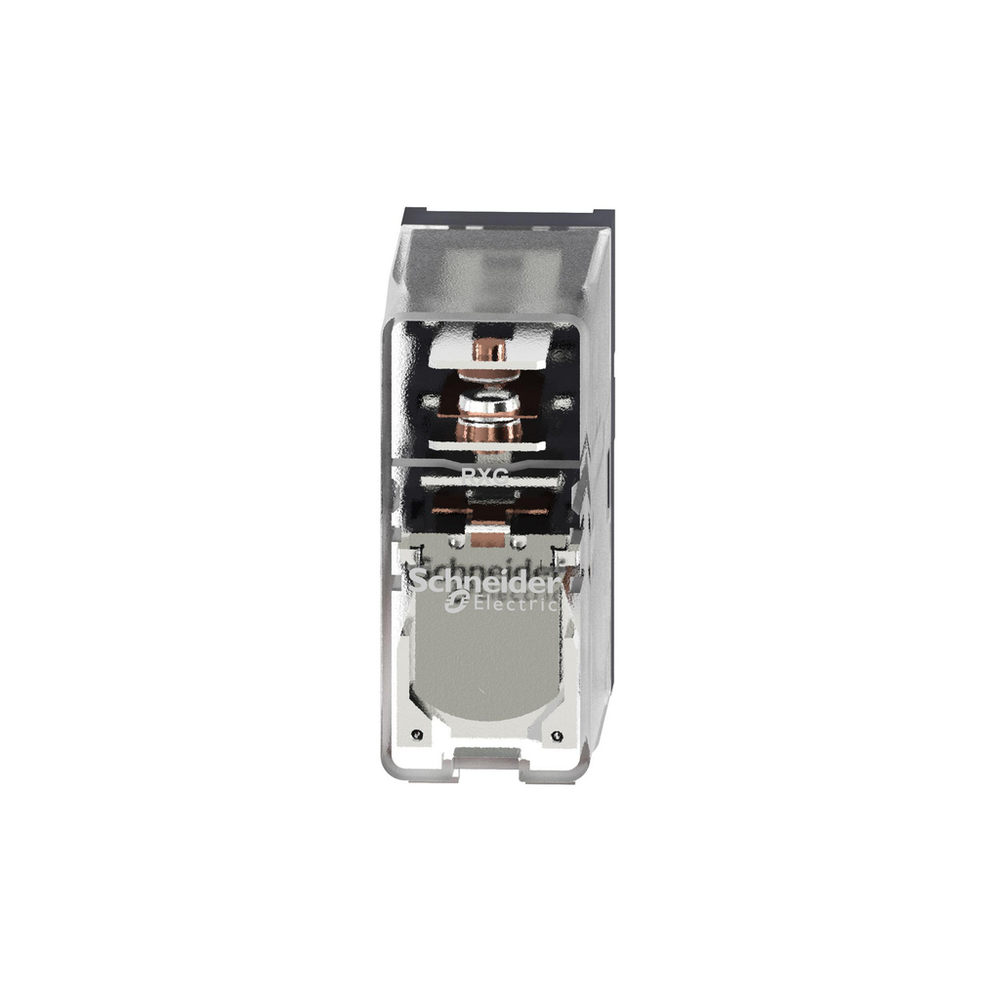

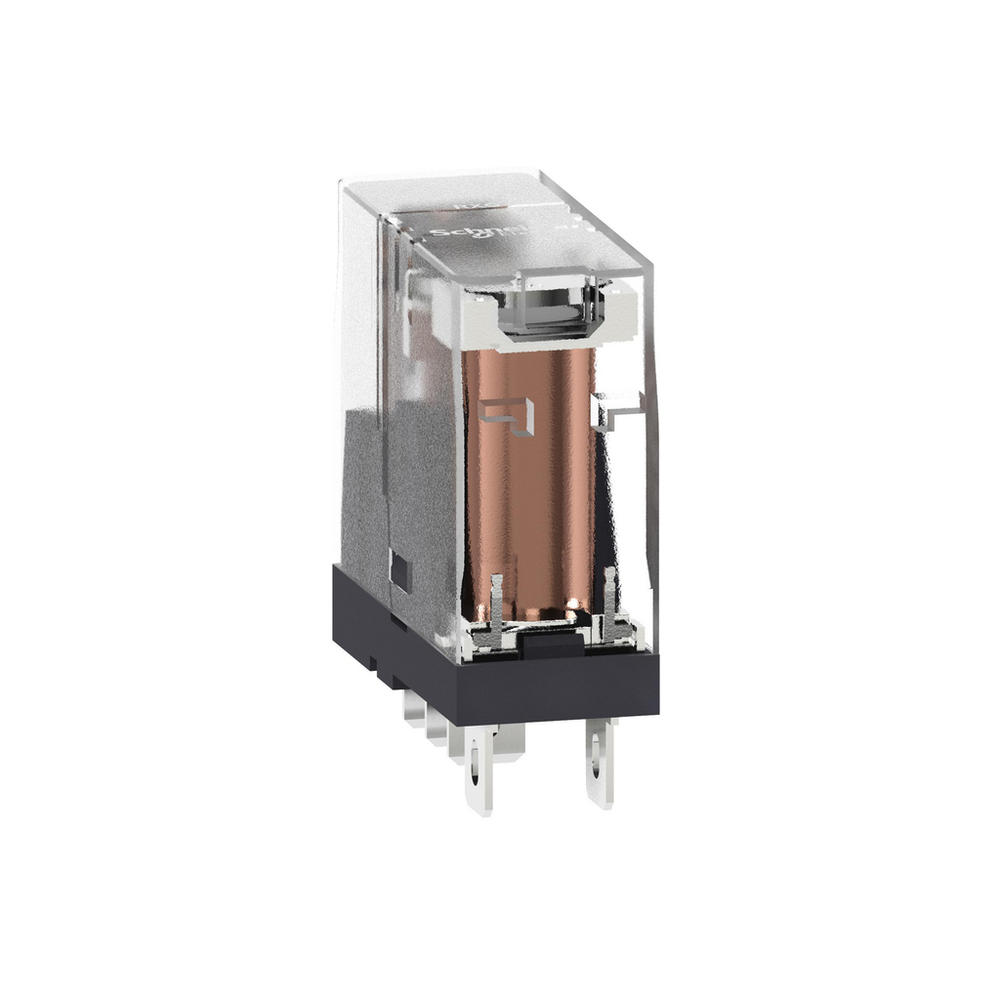

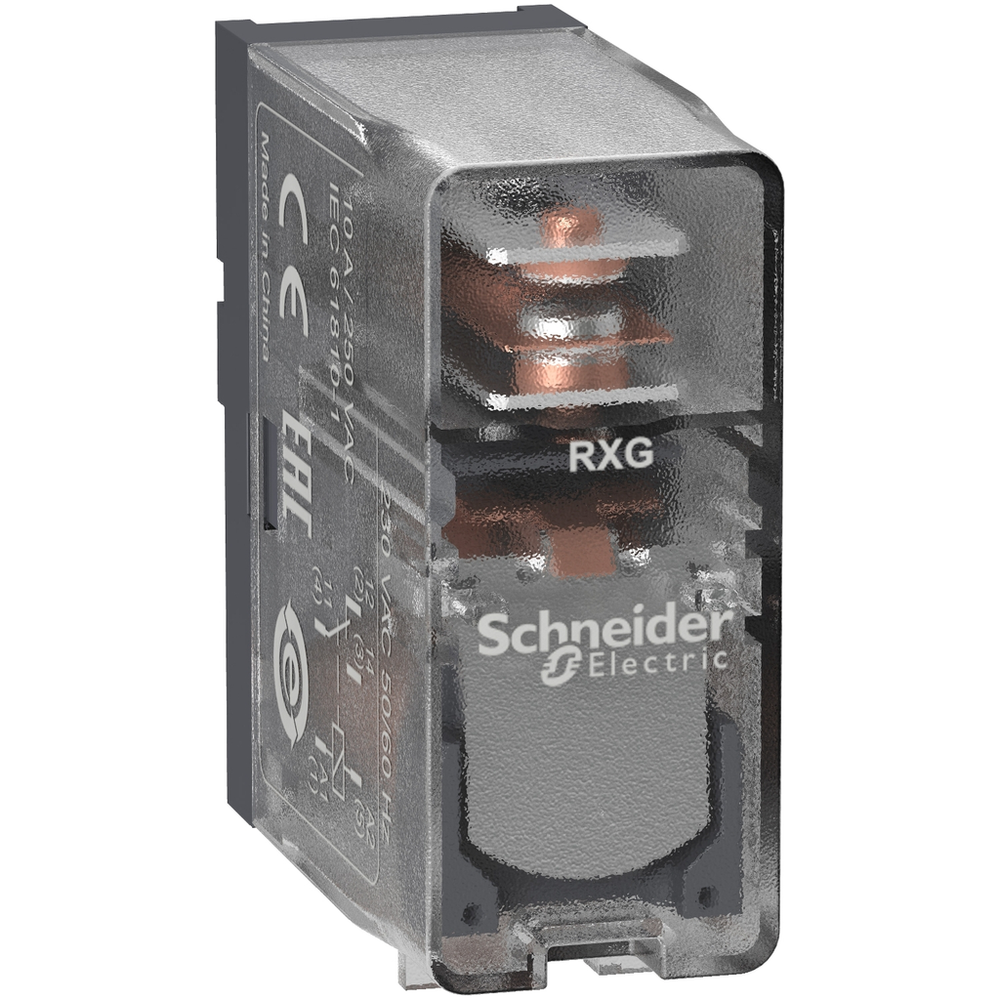

| Product Or Component Type : | plug-in relay |
| Protection Category : | RT I |
| Range Of Product : | Harmony Relay |
| Reset Time : | 20 ms |
| Returnability : | No |
| Safety Reliability Data : | B10d = 100000 |
| Series Name : | interface relay |
| Sustainable Packaging : | No |
| Test Levels : | level A group mounting |
| Torque Value : | 0.8 N.m |
| Utilisation Coefficient : | 20 % |
| Color Of Cover : | transparent |
| Ithe Conventional Enclosed Thermal Current : | 10 A -40-55 °C |
