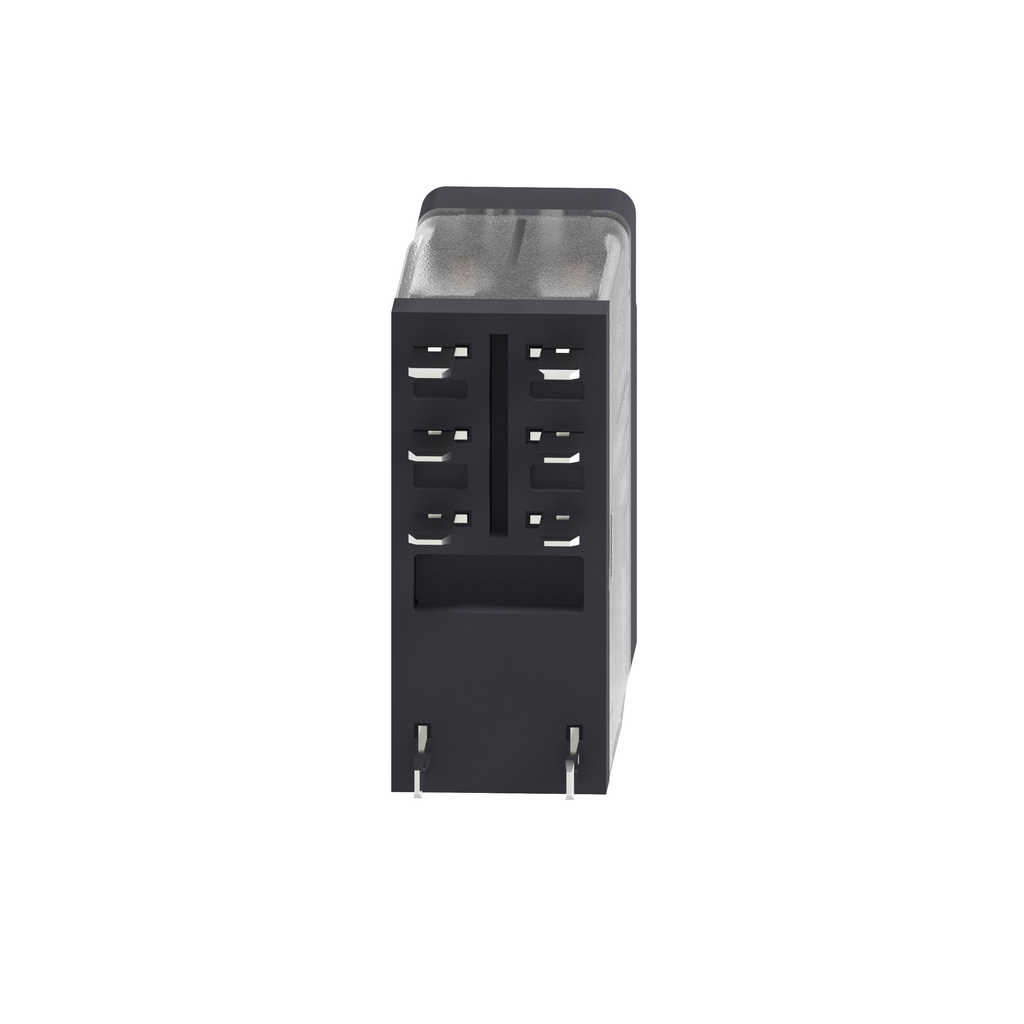

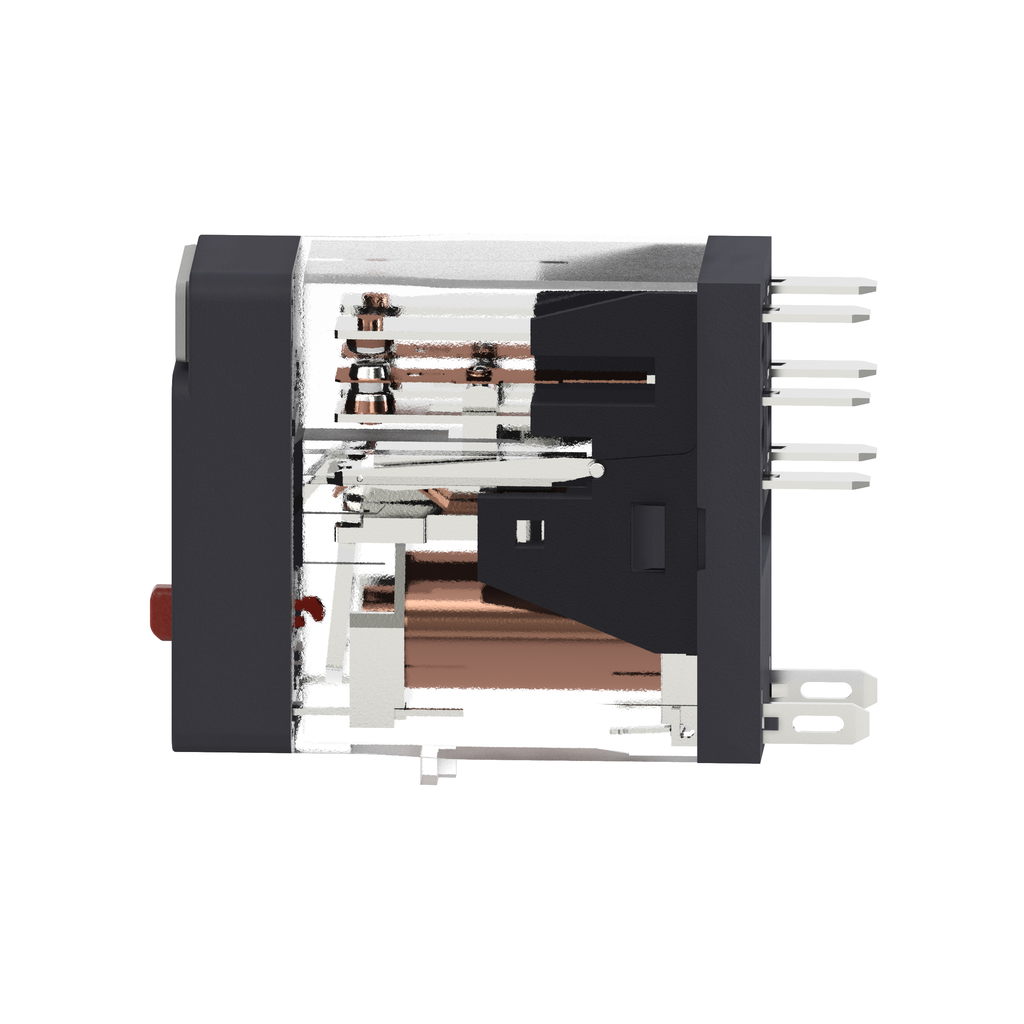

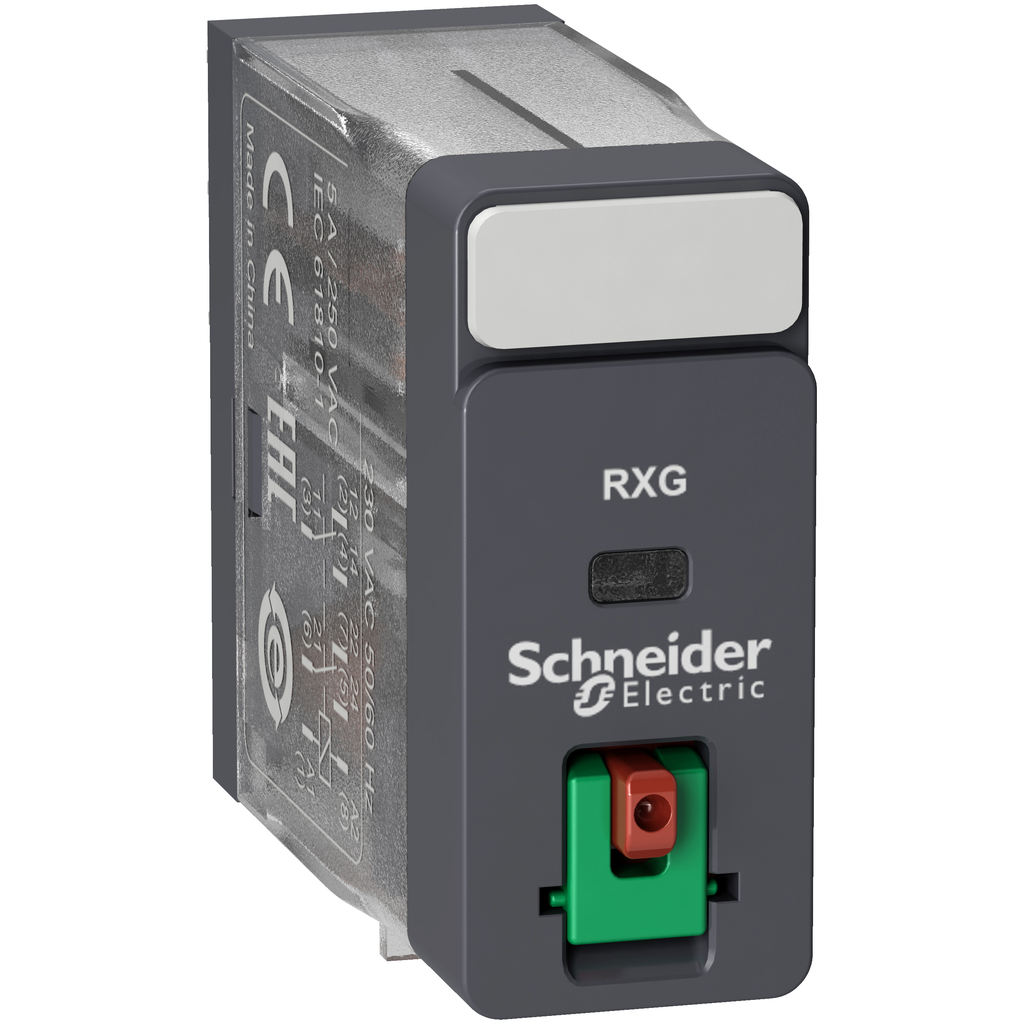

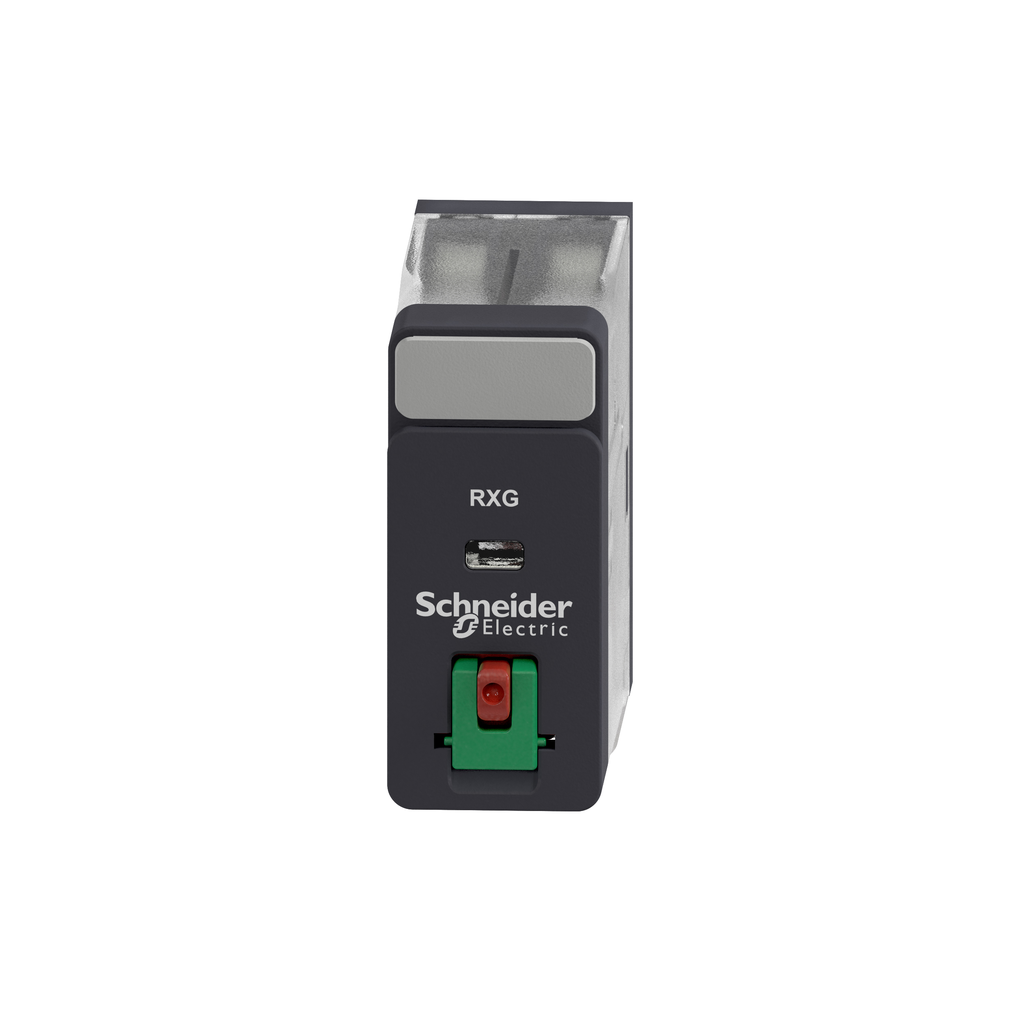

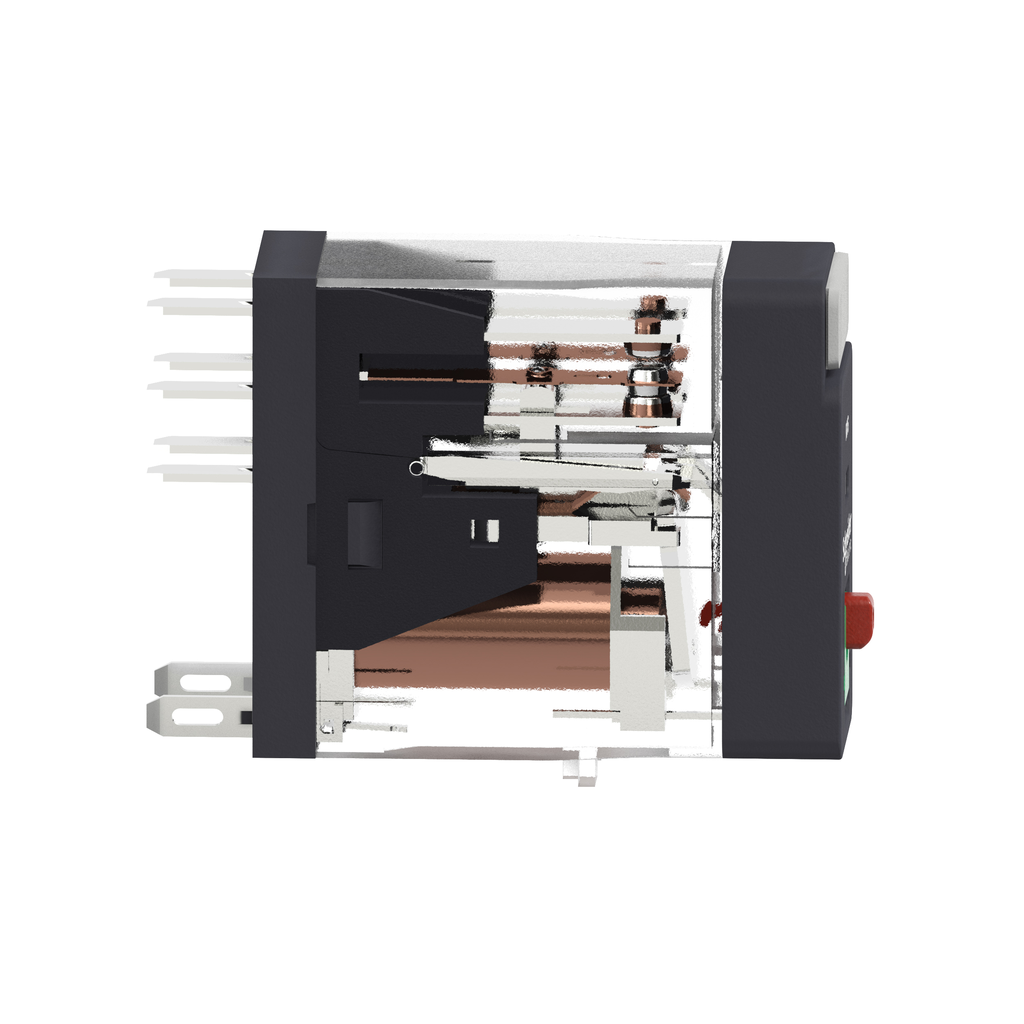

interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, lockable test but to n, 24V AC

Item ID #RXG21B7

Schneider Electric

interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, lockable test but to n, 24V AC

Name: interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, lockable test but to n, 24V AC
Brand: Schneider Electric
SKU: RXG21B7
Price: 25.60 CAD
Availability: OutOfStock

Item ID #RXG21B7

Specifications

See all specifications

Utilisation Coefficient :	20 %
Maximum Switching Capacity :	1250 VA
Safety Reliability Data :	B10d = 100000

EZ Selector

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

This Harmony RXG plug-in relay socket has a coil control voltage of 24V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers a lockable test button." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0

Recommended tools

Complementary


Utilisation Coefficient :	20 %
Maximum Switching Capacity :	1250 VA
Safety Reliability Data :	B10d = 100000
[Uc] Control Circuit Voltage :	24 V AC 50/60 Hz
Average Consumption :	0.82 VA 60 Hz
Insulation Resistance :	1000 MOhm 500 V DC
Operating Rate :	<= 1800 cycles/hour under load \|\| <= 18000 cycles/hour no-load
Torque Value :	0.8 N.m
Protection Category :	RT I
Test Levels :	level A group mounting
Contacts Material :	silver alloy (AgSnO2In2O3)
Pollution Degree :	2
Shock Resistance :	20 gn in operation \|\| 100 gn not in operation
Dielectric Strength :	1000 V AC between contacts micro disconnection \|\| 5000 V AC between coil and contact reinforced insulation \|\| 3000 V AC between poles basic insulation
Status Led :	without
Net Weight :	0.02 kg
Colour Of Cover :	standard
Maximum Switching Voltage :	250 V AC \|\| 30 V DC
Control Type :	lockable test button
Device Presentation :	complete product
[Ie] Rated Operational Current :	5 A 30 V DC) UL \|\| 5 A 30 V DC) IEC \|\| 5 A 250 V AC) IEC \|\| 5 A 250 V AC) UL
[Ui] Rated Insulation Voltage :	250 V IEC \|\| 300 V CSA \|\| 300 V UL
Electrical Durability :	100000 cycles NO resistive at 55 °C \|\| 100000 cycles NC resistive at 55 °C
Mechanical Durability :	10000000 cycles
Resistance :	260 Ohm +/- 10 %
Control Circuit Voltage Limits :	0.8...1.1 Uc AC
Mounting Position :	any position
Overvoltage Category :	III
Load Current :	5 A 250 V AC
Drop-Out Voltage Threshold :	>= 0.3 Uc AC
Minimum Switching Capacity :	50 mW 10 mA, 5 V DC

Description
Resources
Specifications

interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, lockable test but to n, 24V AC

Item ID #RXG21B7

Schneider Electric

interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, lockable test but to n, 24V AC

Item ID #RXG21B7

interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, lockable test but to n, 24V AC

Specifications

See all specifications

Utilisation Coefficient :	20 %
Maximum Switching Capacity :	1250 VA
Safety Reliability Data :	B10d = 100000

EZ Selector

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

Recommended tools

Complementary


Utilisation Coefficient :	20 %
Maximum Switching Capacity :	1250 VA
Safety Reliability Data :	B10d = 100000
[Uc] Control Circuit Voltage :	24 V AC 50/60 Hz
Average Consumption :	0.82 VA 60 Hz
Insulation Resistance :	1000 MOhm 500 V DC
Operating Rate :	<= 1800 cycles/hour under load \|\| <= 18000 cycles/hour no-load
Torque Value :	0.8 N.m
Protection Category :	RT I
Test Levels :	level A group mounting
Contacts Material :	silver alloy (AgSnO2In2O3)
Pollution Degree :	2
Shock Resistance :	20 gn in operation \|\| 100 gn not in operation
Dielectric Strength :	1000 V AC between contacts micro disconnection \|\| 5000 V AC between coil and contact reinforced insulation \|\| 3000 V AC between poles basic insulation
Status Led :	without
Net Weight :	0.02 kg
Colour Of Cover :	standard
Maximum Switching Voltage :	250 V AC \|\| 30 V DC
Control Type :	lockable test button
Device Presentation :	complete product
[Ie] Rated Operational Current :	5 A 30 V DC) UL \|\| 5 A 30 V DC) IEC \|\| 5 A 250 V AC) IEC \|\| 5 A 250 V AC) UL
[Ui] Rated Insulation Voltage :	250 V IEC \|\| 300 V CSA \|\| 300 V UL
Electrical Durability :	100000 cycles NO resistive at 55 °C \|\| 100000 cycles NC resistive at 55 °C
Mechanical Durability :	10000000 cycles
Resistance :	260 Ohm +/- 10 %
Control Circuit Voltage Limits :	0.8...1.1 Uc AC
Mounting Position :	any position
Overvoltage Category :	III
Load Current :	5 A 250 V AC
Drop-Out Voltage Threshold :	>= 0.3 Uc AC
Minimum Switching Capacity :	50 mW 10 mA, 5 V DC


Rohs Exemption Information :	Yes
Mercury Free :	Yes
Environmental Disclosure :	ENVPEP1406006EN
Sustainable Offer Status :	Green Premium product
Toxic Heavy Metal Free :	Yes
Reach Regulation :	Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc :	Yes
China Rohs Regulation :	X
Circularity Profile :	N/A
Eu Rohs Directive :	Pro-active compliance (Product out of EU RoHS legal scope)


Product Certifications :	CSA \|\| UL \|\| EAC \|\| CE \|\| DNV-GL
Ambient Air Temperature For Operation :	-40-70 °C
Standards :	UL 508 \|\| IEC 61810-1 \|\| CSA C22.2 No 14
Vibration Resistance :	3 gn +/- 0.75 mm 10-150 Hz)in operation \|\| 5 gn +/- 0.75 mm 10-150 Hz)not in operation
Relative Humidity :	10-85 %
Ambient Air Temperature For Storage :	-40-85 °C
Ip Degree Of Protection :	IP40


Range Of Product :	Harmony Electromechanical Relays
Product Or Component Type :	plug-in relay
Series Name :	interface relay
Contacts Type And Composition :	2 C/O
Local Signalling :	flag
Device Short Name :	RXG
[Ithe] Conventional Enclosed Thermal Current :	5 A -40-55 °C
