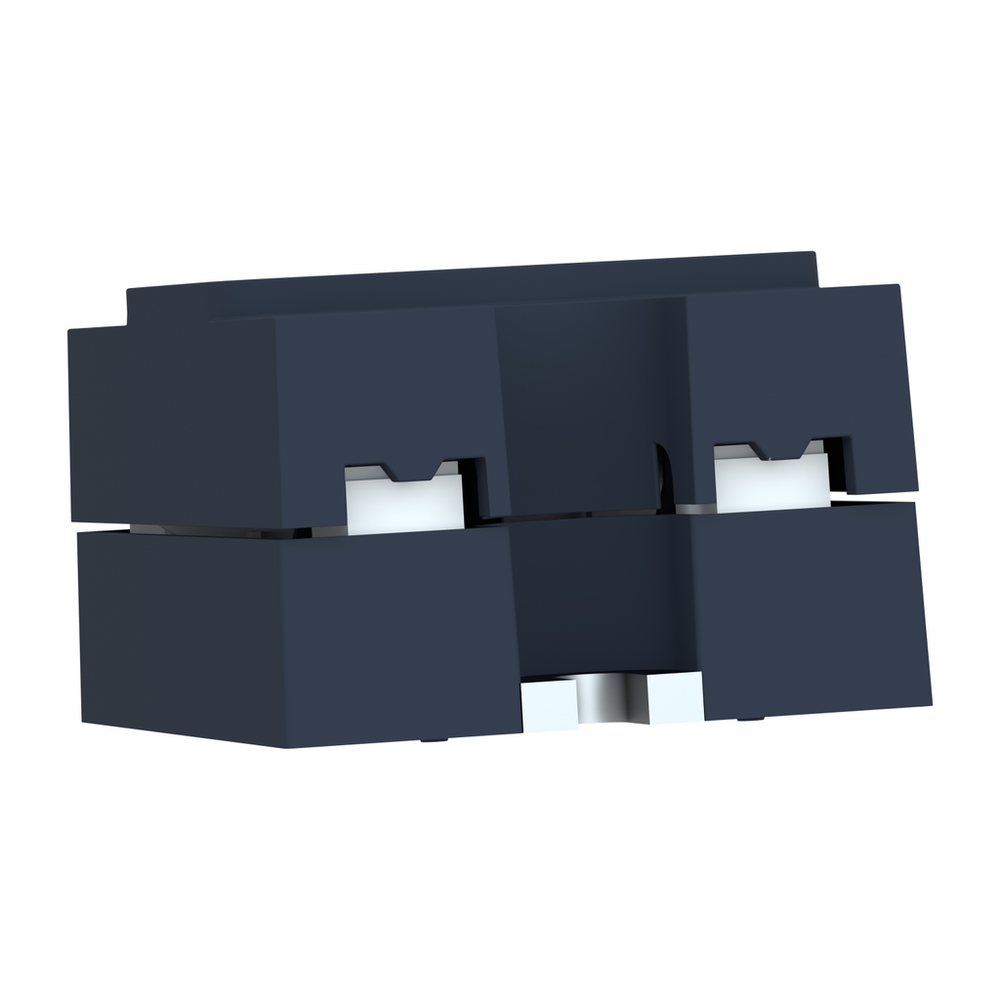

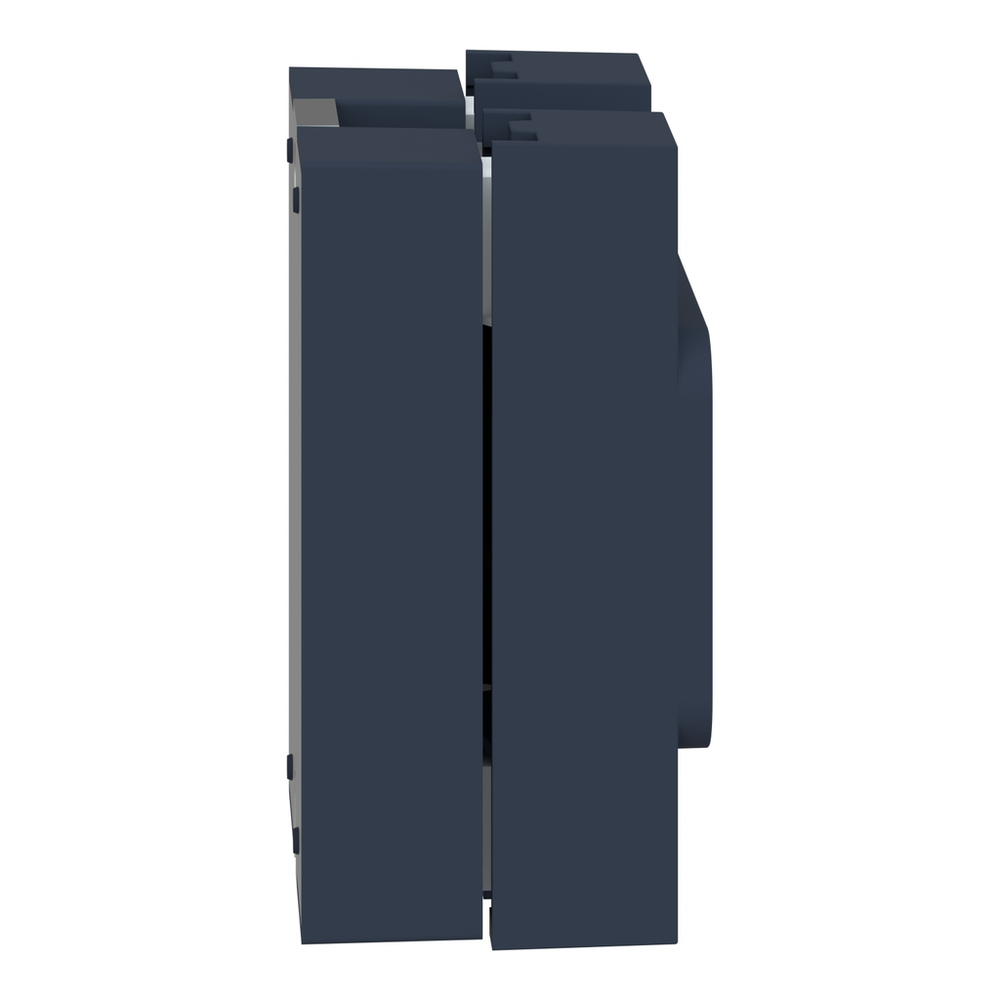

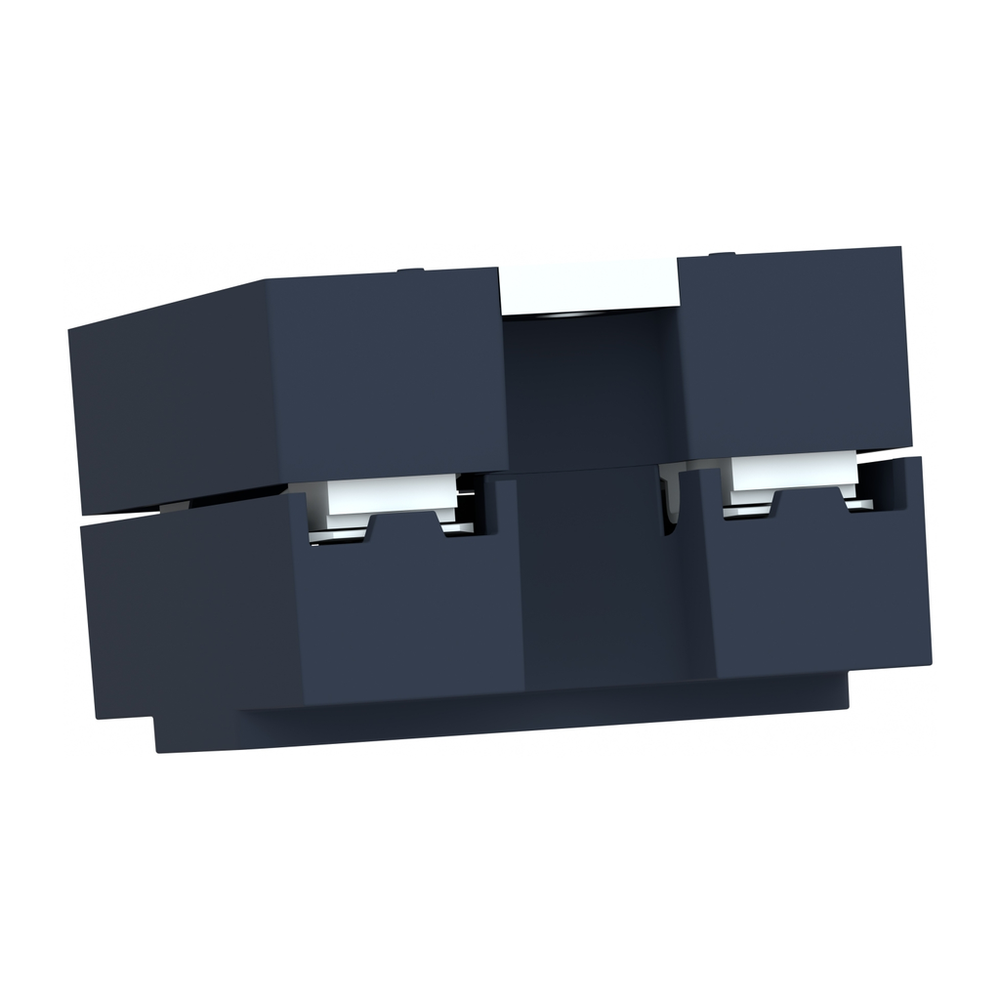

single phase relay, Harmony Solid State Relays, 25A, panel mount, zero voltage switching, thermal pad, input 90 to 280V AC, output 24 to 300V AC

Item ID #SSP1A125M7T

Schneider Electric

single phase relay, Harmony Solid State Relays, 25A, panel mount, zero voltage switching, thermal pad, input 90 to 280V AC, output 24 to 300V AC

Name: single phase relay, Harmony Solid State Relays, 25A, panel mount, zero voltage switching, thermal pad, input 90 to 280V AC, output 24 to 300V AC
Brand: Schneider Electric
SKU: SSP1A125M7T
Price: 78.00 CAD
Availability: OutOfStock

Item ID #SSP1A125M7T

Specifications

See all specifications

Maximum Voltage Drop :	<1.15 V on-state, <1.15 V on-state<1.15 V on-state, <1.15 V on-state
Uc Control Circuit Voltage :	AC, 90...280 V
Uimp Rated Impulse Withstand Voltage :	6 kV output to case, 6 kV input to output

Solid State Relays

EZ Selector

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

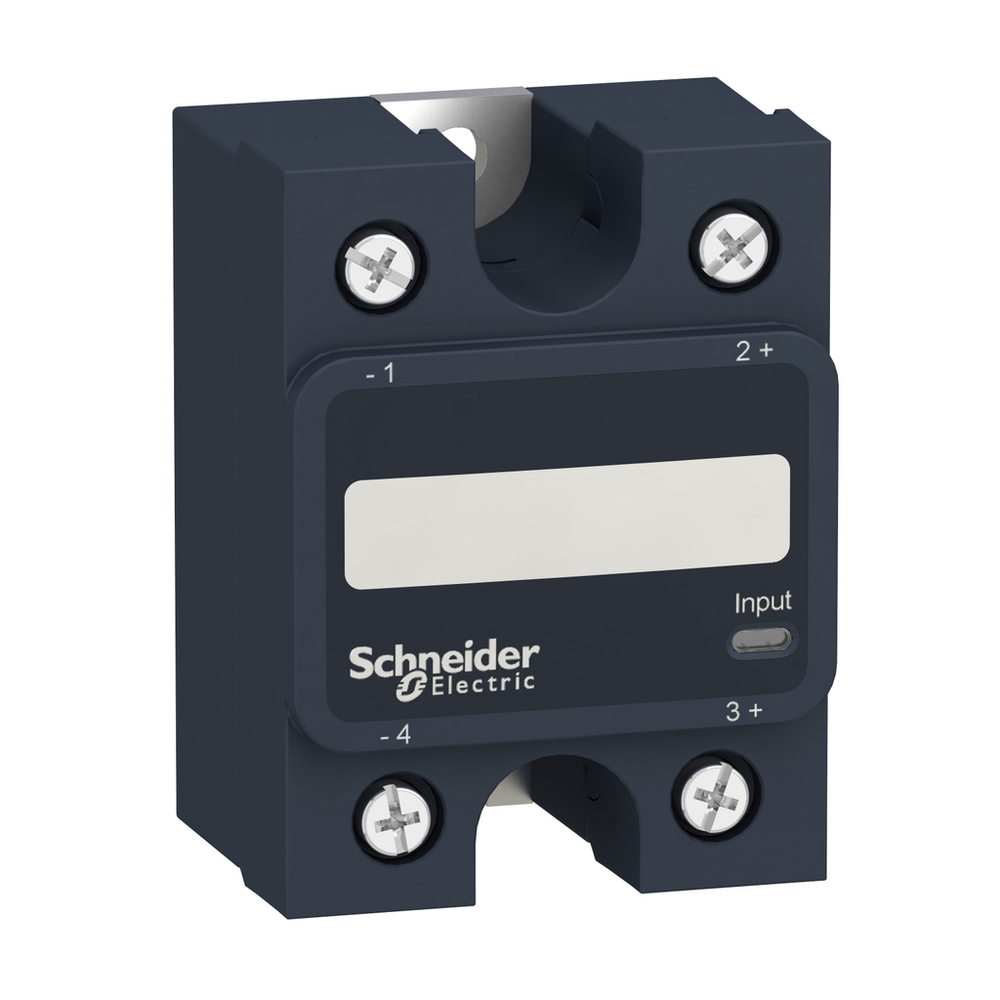

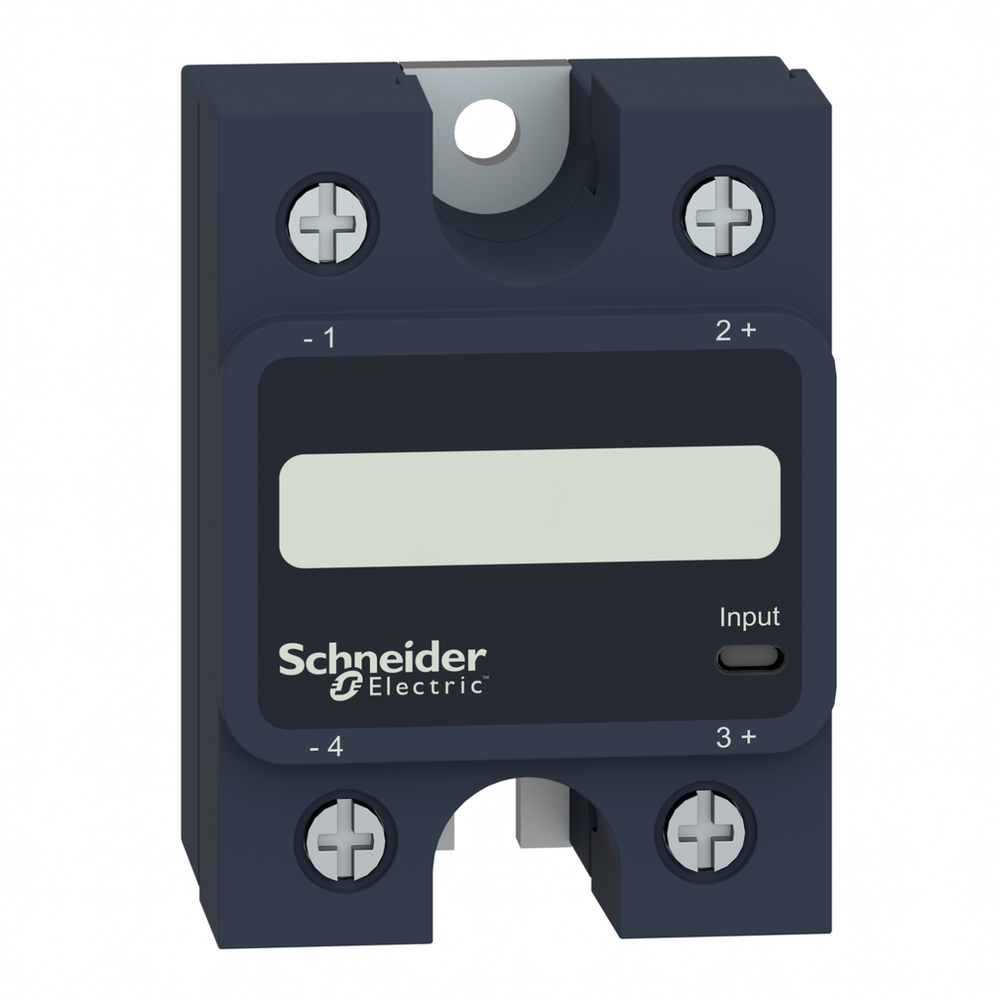

This Harmony SSP solid state panel mount single-phase relay is rated 25A, is controlled with a 90V to 280V AC input, has a rated load voltage of 24V to 300V AC with zero voltage switching, ideal for resistive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts.

Recommended tools

Complementary Attributes


Maximum Voltage Drop :	<1.15 V on-state, <1.15 V on-state<1.15 V on-state, <1.15 V on-state
Uc Control Circuit Voltage :	AC, 90...280 V
Uimp Rated Impulse Withstand Voltage :	6 kV output to case, 6 kV input to output
Absolute Maximum Voltage :	600 V
Line Rated Current :	25 A
Maximum Horse Power Rating :	0.5 hp 120 V AC1 hp 240 V AC
Maximum Leakage Current :	1 mA off-state
Maximum Switching Voltage :	10 V AC turn-off
Minimum Switching Voltage :	90 V AC turn-on
Rated Current :	25 A

Description
Resources
Specifications

single phase relay, Harmony Solid State Relays, 25A, panel mount, zero voltage switching, thermal pad, input 90 to 280V AC, output 24 to 300V AC

Item ID #SSP1A125M7T

Schneider Electric

single phase relay, Harmony Solid State Relays, 25A, panel mount, zero voltage switching, thermal pad, input 90 to 280V AC, output 24 to 300V AC

Item ID #SSP1A125M7T

single phase relay, Harmony Solid State Relays, 25A, panel mount, zero voltage switching, thermal pad, input 90 to 280V AC, output 24 to 300V AC

Specifications

See all specifications

Maximum Voltage Drop :	<1.15 V on-state, <1.15 V on-state<1.15 V on-state, <1.15 V on-state
Uc Control Circuit Voltage :	AC, 90...280 V
Uimp Rated Impulse Withstand Voltage :	6 kV output to case, 6 kV input to output

Solid State Relays

EZ Selector

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

Recommended tools

Complementary Attributes


Maximum Voltage Drop :	<1.15 V on-state, <1.15 V on-state<1.15 V on-state, <1.15 V on-state
Uc Control Circuit Voltage :	AC, 90...280 V
Uimp Rated Impulse Withstand Voltage :	6 kV output to case, 6 kV input to output
Absolute Maximum Voltage :	600 V
Line Rated Current :	25 A
Maximum Horse Power Rating :	0.5 hp 120 V AC1 hp 240 V AC
Maximum Leakage Current :	1 mA off-state
Maximum Switching Voltage :	10 V AC turn-off
Minimum Switching Voltage :	90 V AC turn-on
Rated Current :	25 A

Persona Type Ids :

BM9, EU, LC, OM, OM8, PB, SC, SI, VR

Persona Type Names :

Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner

Market Segmentation Id :

COMMERCIAL, INDUSTRIAL


Persona Type Ids :	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Persona Type Names :	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation Id :	COMMERCIAL, INDUSTRIAL
Market Segmentation :	Commercial, Industrial
Control Type :	without test button, without test button
Dielectric Strength :	4 kV AC for input/output, 4 kV AC for input or output to case
Marking :	UL, CSA, EAC, CE
Safety Reliability Data :	MTTFd = 1875.9 years, B10d = 1731395
Connections Terminals :	ring lugs 11.7 x 4.5 mm outputscrew terminals 0.2...3.3 mm², 24 AWG...12 AWG) with cable end input, screw terminals 0.5...5.26 mm², 20 AWG...10 AWG) with cable end output, screw terminals 0.2...3.3 mm², 24 AWG...12 AWG) without cable end inputscrew terminals 0.5...8.26 mm², 20 AWG...8 AWG) without cable end outputforked type tag connectors 9.2 x 4 mm input, ring lugs 9.2 x 4 mm input, forked type tag connectors 11.7 x 4.5 mm output, screw connectors
Control Circuit Voltage :	90...280 V
Certificate Agency :	CSA, UL, CE, EAC
Maximum I²T For Fusing :	259 A².s for 8.33 ms at 60 Hz, 285 A².s for 10 ms at 50 Hz
Carbon Footprint Of The Distribution Phase A4 :	0.0127730412, 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4 :	0 kg CO2 eq., 0.0234374845
Carbon Footprint Of The Installation Phase A5 :	0.0005551553, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3 :	1 kg CO2 eq., 1.0987979381
Carbon Footprint Of The Use Phase B2 B3 B4 B6 :	2 823 kg CO2 eq., 2822.6373323456
Local Data Status :	Publishable
Local Publishable Date :	2026-08-10
Return Indicator :	Y
Weee Scope :	Out
Weee Product Category :	5
Scope Perimeter :	At least in Europe
Eoli Availability Display :	Yes
End Of Life Doc Ref :	ENVEOLI1505006EN
Reach Full Compliance Status :	Reference contains Substances of Very High Concern above the threshold
Reach Full Compliance Status Id :	CONTAINS_SVHC
Reach Compliance Directive :	Reference contains Substances of Very High Concern above the threshold
Rohs Eur In Scope :	No
Rohs Eur Status :	Compliant By Exemption
Rohs Eur Conformity Date :	1930
Rohs Eur Full Compliance Status :	Compliant By Exemption
China Rohs In Scope :	Yes
China Rohs Label :	5
With Recycled Cardboard :	Yes
Without Single Use Plastic :	Yes
Product Contributes To Saved And Avoided Emissions :	No
Tier Id :	1
Tier :	1
Function Option Id :	STANDARD
Function Option :	Standard
Product Kit Identifier :	N
Cos Phi :	0.5-0.5 (with maximum load)
Device Short Name :	SSP1
Insulation Resistance :	1000 MOhm at 500 V DC
Load Current :	0.15-25 A
Local Signalling :	LED, green input
Mounting Support :	panel
Overvoltage Category :	III
Phase :	1 phase
Product Availability :	Stock - Normally stocked in distribution facility
Product Or Component Type :	panel mount relay
Protection Device Type :	type 1 - 25 A miniature circuit breaker (MCB) Btype 2 - 20 A miniature circuit breaker (MCB) B

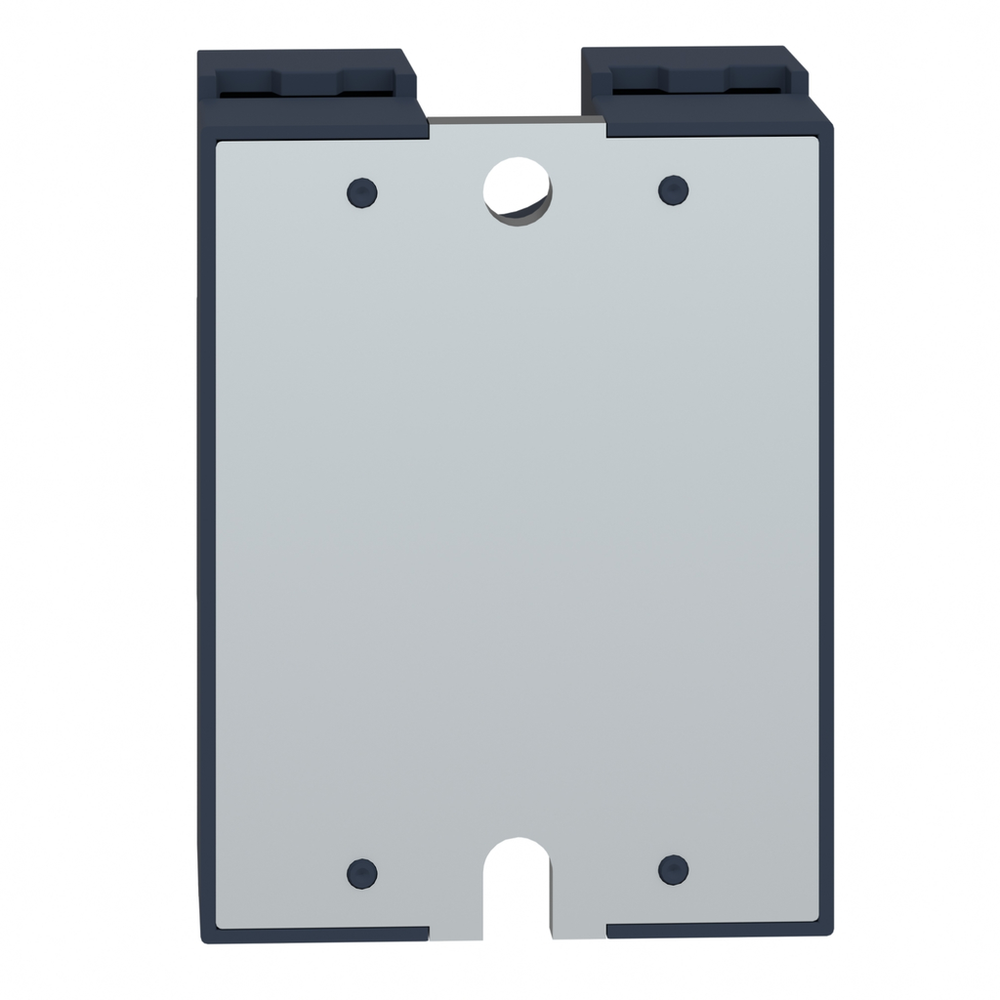

Provided Equipment :	thermal pad
Range Of Product :	Harmony Solid State Relays
Response Time :	30 ms (turn-off)25 ms (turn-on)
Returnability :	Yes
Software Version :	EIME v5.8.1
Sustainable Packaging :	Yes
Thermal Impedance :	0.48 °C-in²/W at 25 psi
Thermal Resistance :	0.8 °C/W junction to case
Tightening Torque :	1.5...1.7 N.m for input2...2.2 N.m for output
Total Lifecycle Carbon Footprint :	2 824 kg CO2 eq.
Database Version :	2016-11
Data Source :	extrapolated product
Dv/Dt :	500 V/µs off-state at maximum voltage
Nbr. Of Units In Pkg. :	1
Customs Code :	8536490080
Warranty In Months :	18
Functional Unit Description :	To switch ON/OFF electronic contact during 10 years at a 50% use rate.
Functional Unit Quantity :	1
Functional Unit Unit :	unité (unit)
Reference Lifetime In Y :	10
Energy Consumption On Product Lifetime In Kwh :	4780.7524
Recyclability Potential In % :	56


Ambient Air Temperature For Operation :	-40-80 °C, -40-80 °C
Ambient Air Temperature For Storage :	-40-125 °C, -40-125 °C
Take Back :	No
Recycled Metal Content At Cr Level :	0 %
China Rohs Regulation :	X
Mercury Free :	Yes
Carbon Footprint :	2823.7728959648002
Circularity Profile :	ENVEOLI1505006EN
Environmental Disclosure :	ENVPEP1505006EN
Eu Rohs Directive :	Compliant By Exemption
Ip Degree Of Protection :	IP20
Packaging Made With Recycled Cardboard :	Yes
Packaging Without Single Use Plastic :	Yes
Reach Regulation :	Reference contains Substances of Very High Concern above the threshold
Pep Code :	ENVPEP1505006EN
Pep Verification Date :	2019-05-01
Pcr Version :	PCR-ed3-EN-2015 04 02
Psr Version :	PSR-0005-ed2-EN-2016 03 29
Type Of Verification For The Pep :	Independent internal review


Phase :	1 phase
Product Or Component Type :	panel mount relay
Provided Equipment :	thermal pad
Range Of Product :	Harmony Solid State Relays


ETIM 8 :	EC002055
ETIM 9 :	EC002055
ETIM 10 :	EC002055


Solid State Output Type :	SCR output, zero voltage switching
Output Switching Mode :	zero voltage switching
Output Voltage :	24...300 V AC


Cos Phi :	0.5-0.5 (with maximum load)
Input Current Limits :	5-10 mA


Country of Origin :	Mexico
Weight :	99 g
