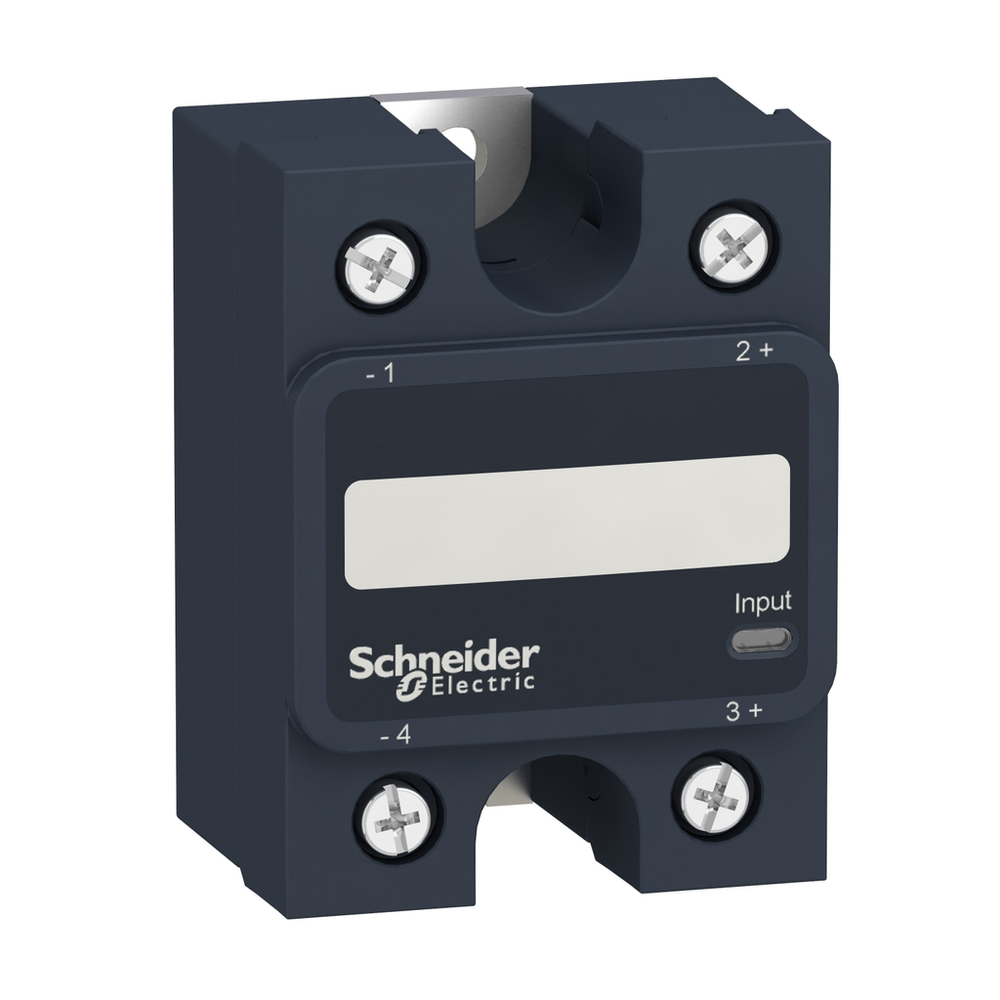

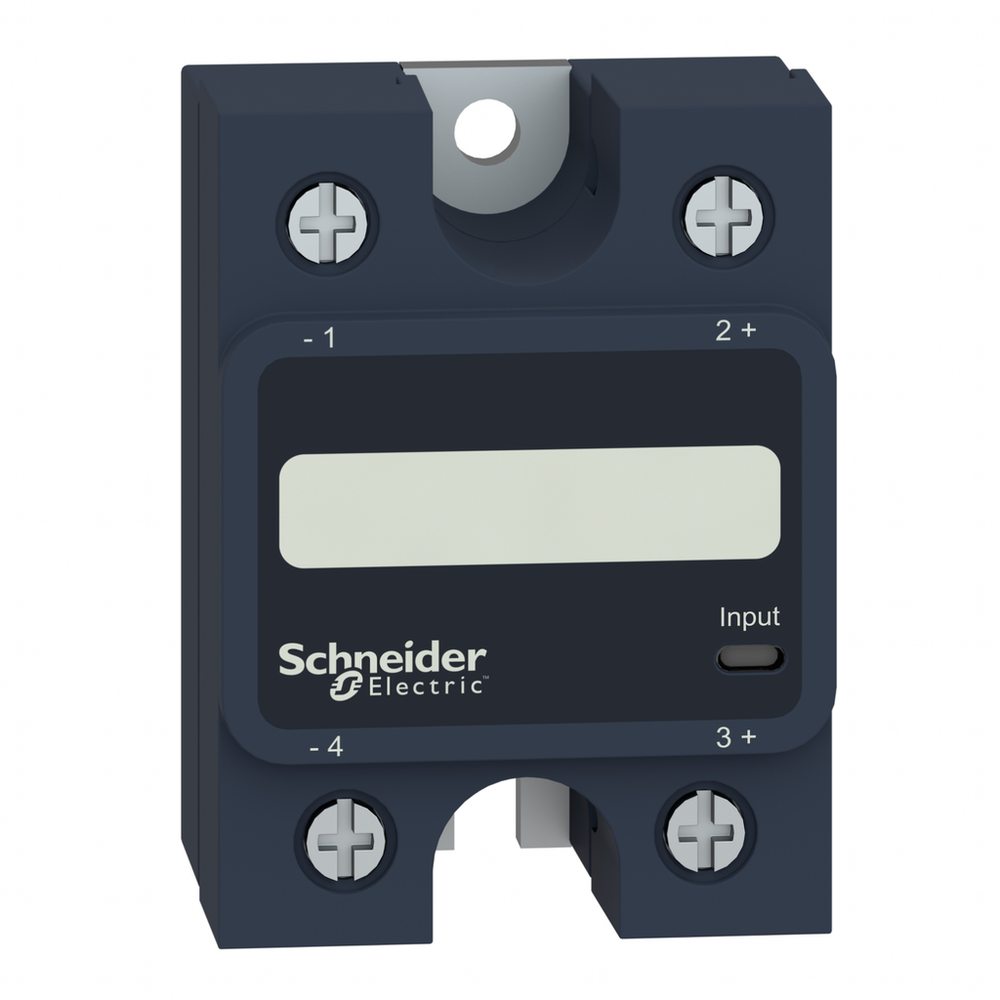

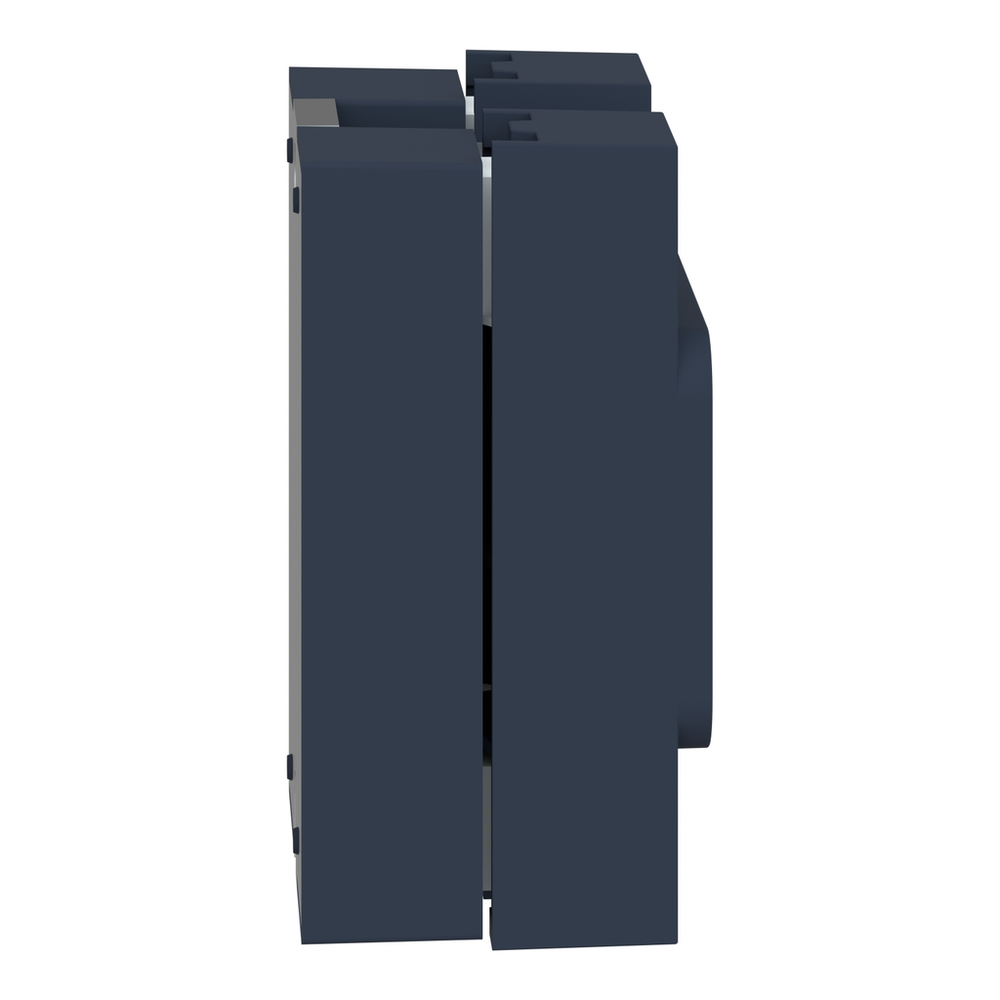

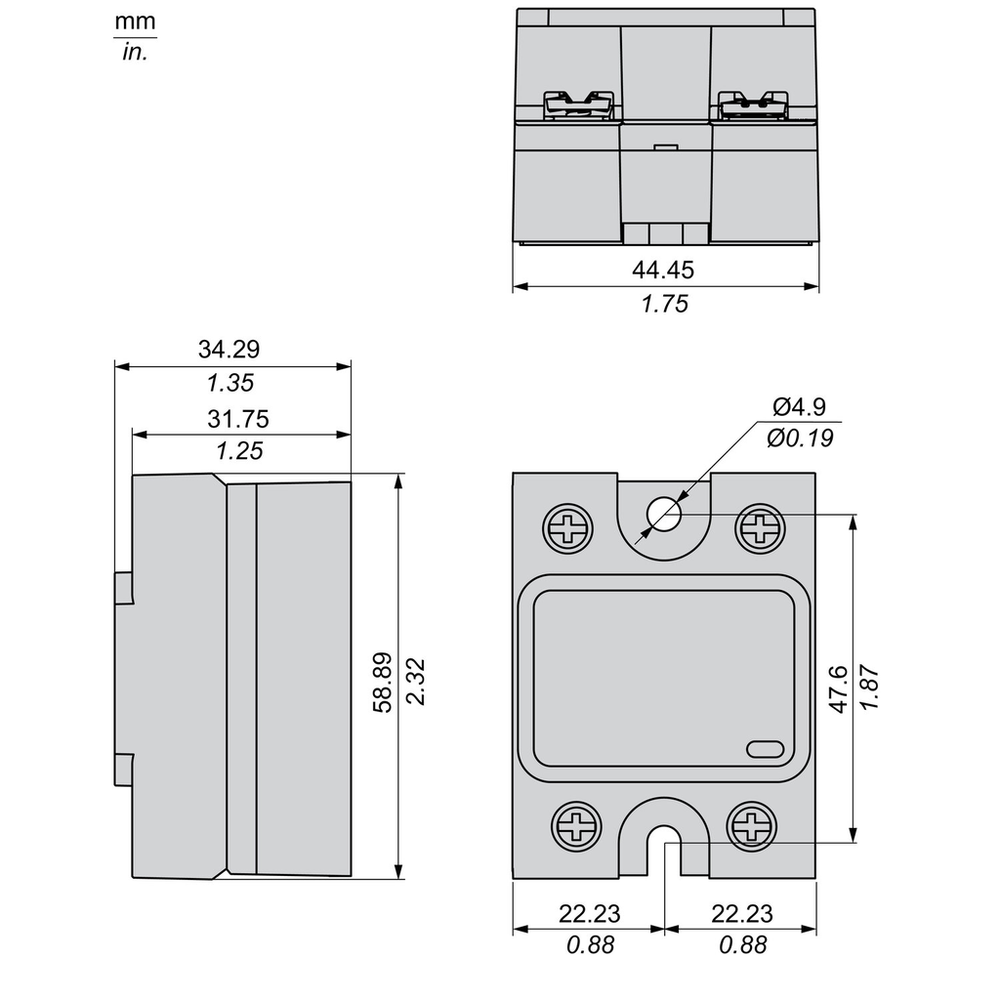

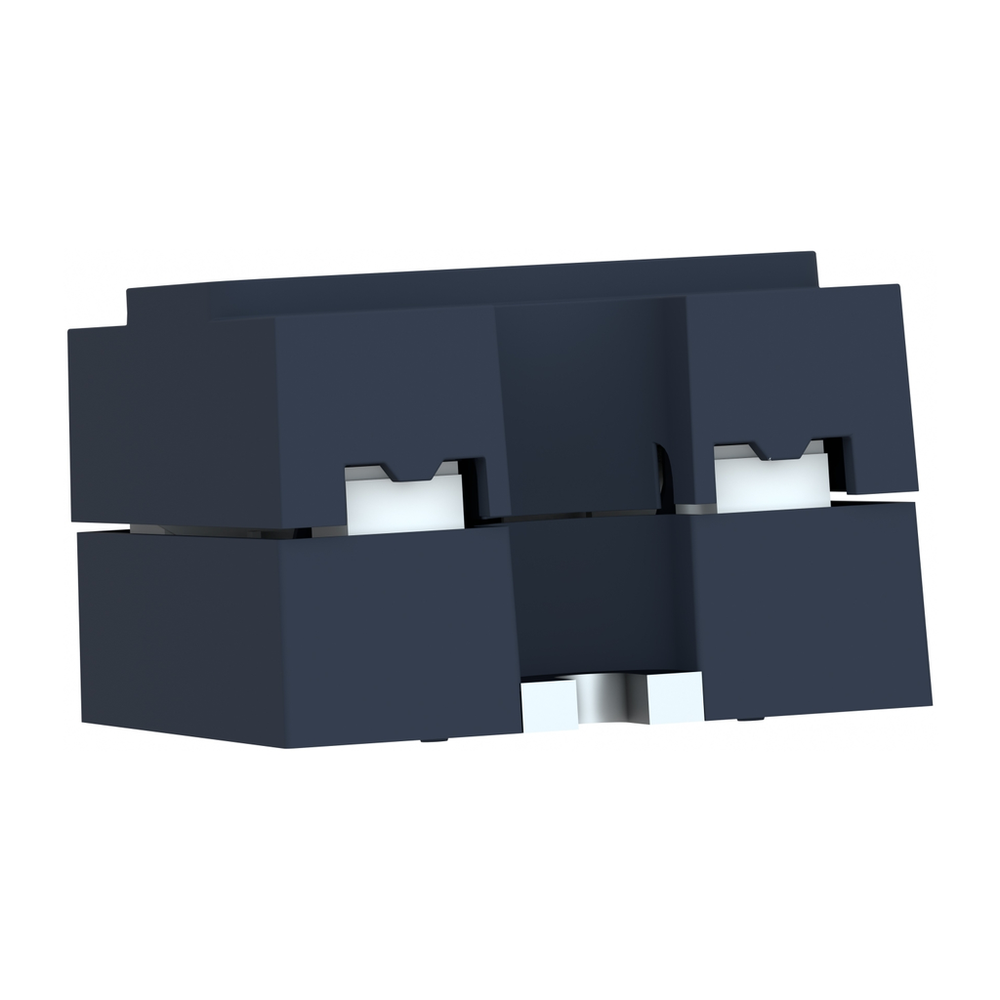

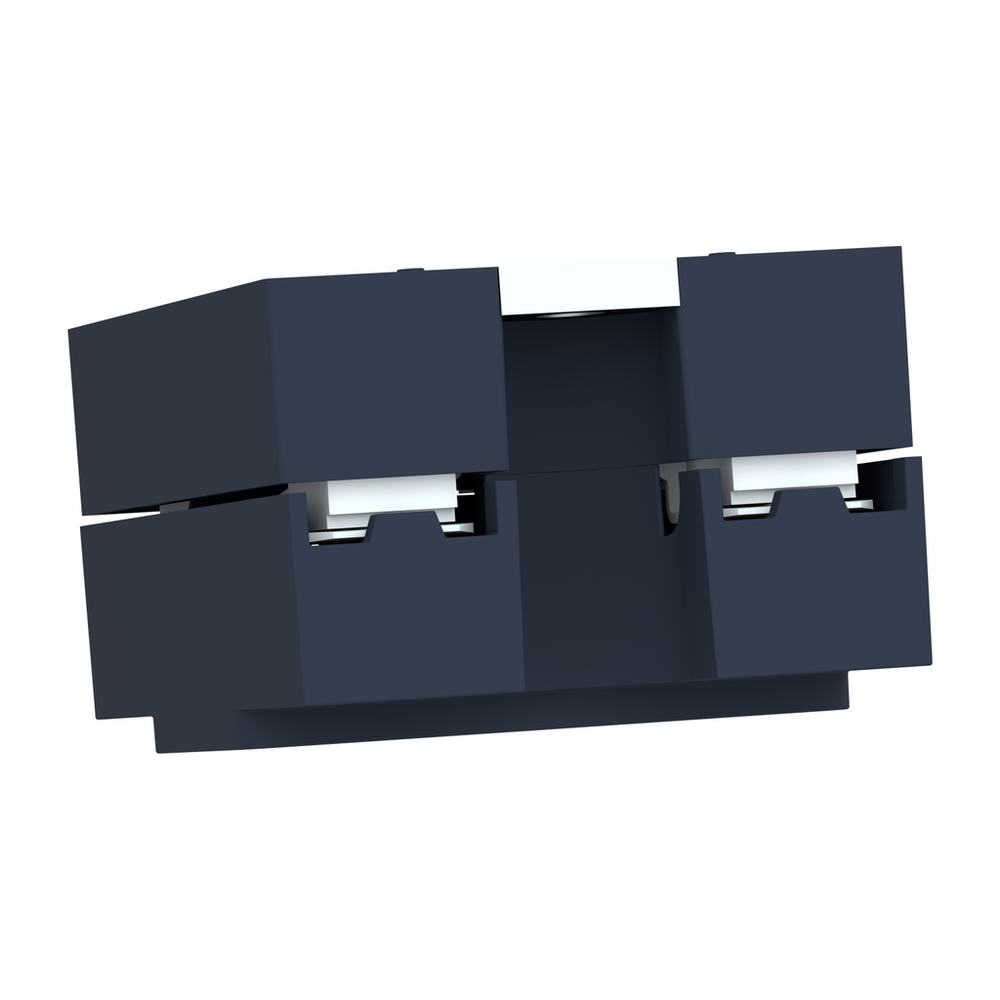

single phase relay, Harmony Solid State Relays, 50A, panel mount, zero voltage switching, thermal pad, input 4 to 32V DC, output 48 to 660V AC

Item ID #SSP1A450BDT

Schneider Electric

single phase relay, Harmony Solid State Relays, 50A, panel mount, zero voltage switching, thermal pad, input 4 to 32V DC, output 48 to 660V AC

Name: single phase relay, Harmony Solid State Relays, 50A, panel mount, zero voltage switching, thermal pad, input 4 to 32V DC, output 48 to 660V AC
Brand: Schneider Electric
SKU: SSP1A450BDT
Price: 132.00 CAD
Availability: OutOfStock

Item ID #SSP1A450BDT

Specifications

See all specifications

Maximum Horse Power Rating :	0.75 hp 120 V AC, 2 hp 240 V AC, 5 hp 480 V AC
Maximum I T For Fusing :	1770 A².s for 10 ms at 50 Hz, 1629 A².s for 8.33 ms at 60 Hz
Maximum Voltage Drop :	<1.15 V on-state, <1.15 V on-state<1.15 V on-state, <1.15 V on-state

EZ Selector

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

This Harmony SSP solid state panel mount single-phase relay is rated 50A, is controlled with a 4V to 32V DC input, has a rated load voltage of 48V to 660V AC with zero voltage switching, ideal for resistive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Recommended tools

Complementary Attributes


Maximum Horse Power Rating :	0.75 hp 120 V AC, 2 hp 240 V AC, 5 hp 480 V AC
Maximum I T For Fusing :	1770 A².s for 10 ms at 50 Hz, 1629 A².s for 8.33 ms at 60 Hz
Maximum Voltage Drop :	<1.15 V on-state, <1.15 V on-state<1.15 V on-state, <1.15 V on-state
Uc Control Circuit Voltage :	4...32 V DC, 4...32 V
Uimp Rated Impulse Withstand Voltage :	6 kV output to case, 6 kV input to output
Absolute Maximum Voltage :	1200 V
Line Rated Current :	50 A
Maximum Leakage Current :	1 mA off-state
Maximum Switching Voltage :	1 V DC turn-off
Minimum Switching Voltage :	4 V DC turn-on
Rated Current :	50 A

Description
Resources
Specifications

single phase relay, Harmony Solid State Relays, 50A, panel mount, zero voltage switching, thermal pad, input 4 to 32V DC, output 48 to 660V AC

Item ID #SSP1A450BDT

Schneider Electric

single phase relay, Harmony Solid State Relays, 50A, panel mount, zero voltage switching, thermal pad, input 4 to 32V DC, output 48 to 660V AC

Item ID #SSP1A450BDT

single phase relay, Harmony Solid State Relays, 50A, panel mount, zero voltage switching, thermal pad, input 4 to 32V DC, output 48 to 660V AC

Specifications

See all specifications

Maximum Horse Power Rating :	0.75 hp 120 V AC, 2 hp 240 V AC, 5 hp 480 V AC
Maximum I T For Fusing :	1770 A².s for 10 ms at 50 Hz, 1629 A².s for 8.33 ms at 60 Hz
Maximum Voltage Drop :	<1.15 V on-state, <1.15 V on-state<1.15 V on-state, <1.15 V on-state

EZ Selector

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

Recommended tools

Complementary Attributes


Maximum Horse Power Rating :	0.75 hp 120 V AC, 2 hp 240 V AC, 5 hp 480 V AC
Maximum I T For Fusing :	1770 A².s for 10 ms at 50 Hz, 1629 A².s for 8.33 ms at 60 Hz
Maximum Voltage Drop :	<1.15 V on-state, <1.15 V on-state<1.15 V on-state, <1.15 V on-state
Uc Control Circuit Voltage :	4...32 V DC, 4...32 V
Uimp Rated Impulse Withstand Voltage :	6 kV output to case, 6 kV input to output
Absolute Maximum Voltage :	1200 V
Line Rated Current :	50 A
Maximum Leakage Current :	1 mA off-state
Maximum Switching Voltage :	1 V DC turn-off
Minimum Switching Voltage :	4 V DC turn-on
Rated Current :	50 A

Persona Type Ids :

BM9, EU, LC, OM, OM8, PB, SC, SI, VR

Persona Type Names :

Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner

Market Segmentation Id :

COMMERCIAL, INDUSTRIAL


Persona Type Ids :	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Persona Type Names :	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation Id :	COMMERCIAL, INDUSTRIAL
Market Segmentation :	Commercial, Industrial
Control Type :	without test button, without test button
Dielectric Strength :	4 kV AC for input/output, 4 kV AC for input or output to case
Marking :	EAC, UL, CE, CSA
Mounting Support :	panel
Product Or Component Type :	panel mount relay
Protection Device Type :	type 1 - 40 A miniature circuit breaker (MCB) B, type 2 - 32 A miniature circuit breaker (MCB) B
Response Time :	0.5 cycle (turn-on), 0.5 cycle (turn-off)
Safety Reliability Data :	B10d = 1731395, MTTFd = 1875.9 years
Tightening Torque :	1.5...1.7 N.m for input, 2...2.2 N.m for output
Connections Terminals :	ring lugs 11.7 x 4.5 mm output, screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input, screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output, screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input, screw terminals 0.5...8.26 mm², AWG 20...AWG 8) without cable end output, forked type tag connectors 9.2 x 4 mm input, ring lugs 9.2 x 4 mm input, forked type tag connectors 11.7 x 4.5 mm output, screw connectors
Carbon Footprint Of The Distribution Phase A4 :	0.0123859794, 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4 :	0 kg CO2 eq., 0.0227272577
Carbon Footprint Of The Installation Phase A5 :	0.0005383324, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3 :	1 kg CO2 eq., 1.0655010309
Carbon Footprint Of The Use Phase B2 B3 B4 B6 :	5 221 kg CO2 eq., 5221.1995303353
Control Circuit Voltage :	4...32 V
Certificate Agency :	UL, CE, EAC, CSA
Local Data Status :	Publishable
Local Publishable Date :	2026-03-26
Return Indicator :	Y
Stocking Flag :	N
Stock Policy :	2
Weee Scope :	Out
Weee Product Category :	5
Scope Perimeter :	At least in Europe
Eoli Availability Display :	Yes
End Of Life Doc Ref :	ENVEOLI1505006EN
Reach Full Compliance Status :	Reference contains Substances of Very High Concern above the threshold
Reach Full Compliance Status Id :	CONTAINS_SVHC
Reach Compliance Directive :	Reference contains Substances of Very High Concern above the threshold
Rohs Eur In Scope :	No
Rohs Eur Status :	Compliant By Exemption
Rohs Eur Conformity Date :	1930
Rohs Eur Full Compliance Status :	Compliant By Exemption
China Rohs In Scope :	Yes
China Rohs Label :	5
With Recycled Cardboard :	Yes
Without Single Use Plastic :	Yes
Product Contributes To Saved And Avoided Emissions :	No
Tier Id :	1
Tier :	1
Function Option Id :	STANDARD
Function Option :	Standard
Product Kit Identifier :	N
Cos Phi :	0.5-0.5 (with maximum load)
Device Short Name :	SSP1
Dv Dt :	500 V/µs off-state at maximum voltage
Insulation Resistance :	1000 MOhm at 500 V DC
Load Current :	0.15-50 A
Local Signalling :	LED, green input
Overvoltage Category :	III
Phase :	1 phase
Product Availability :	Stock - Normally stocked in distribution facility

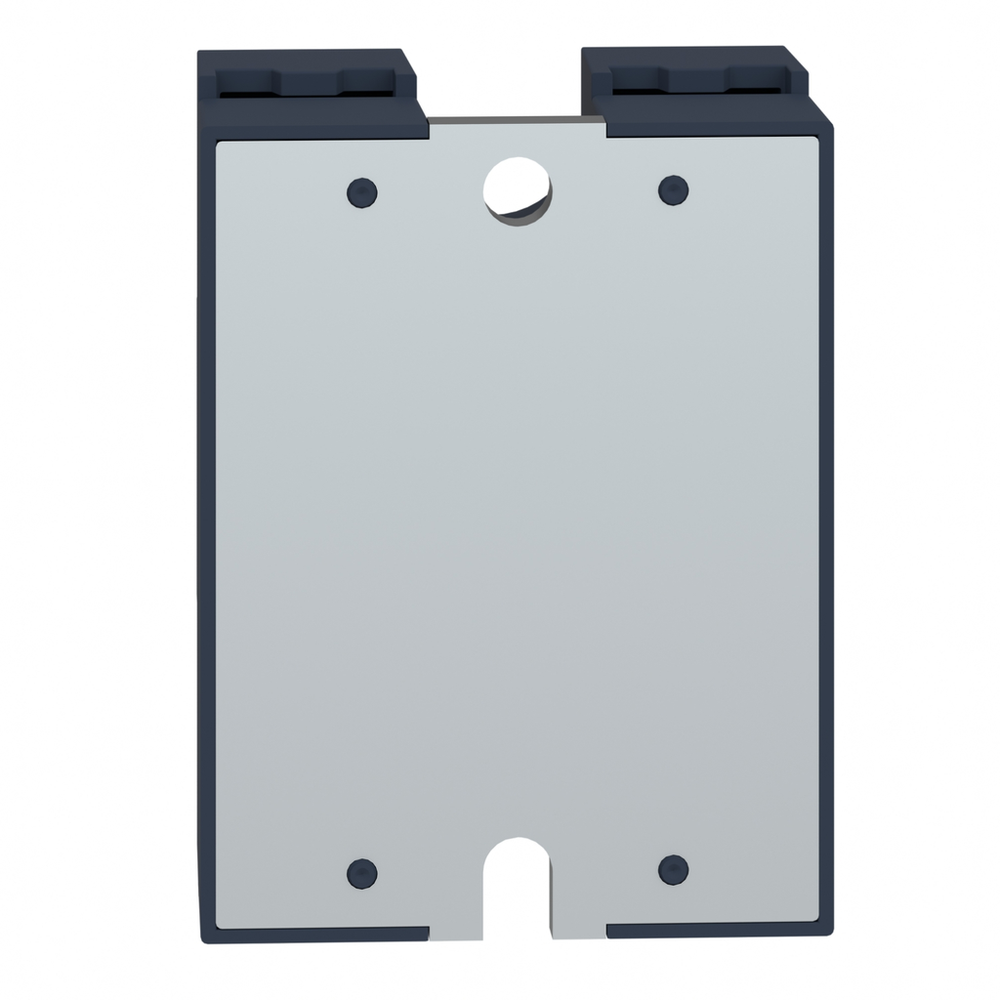

Provided Equipment :	thermal pad

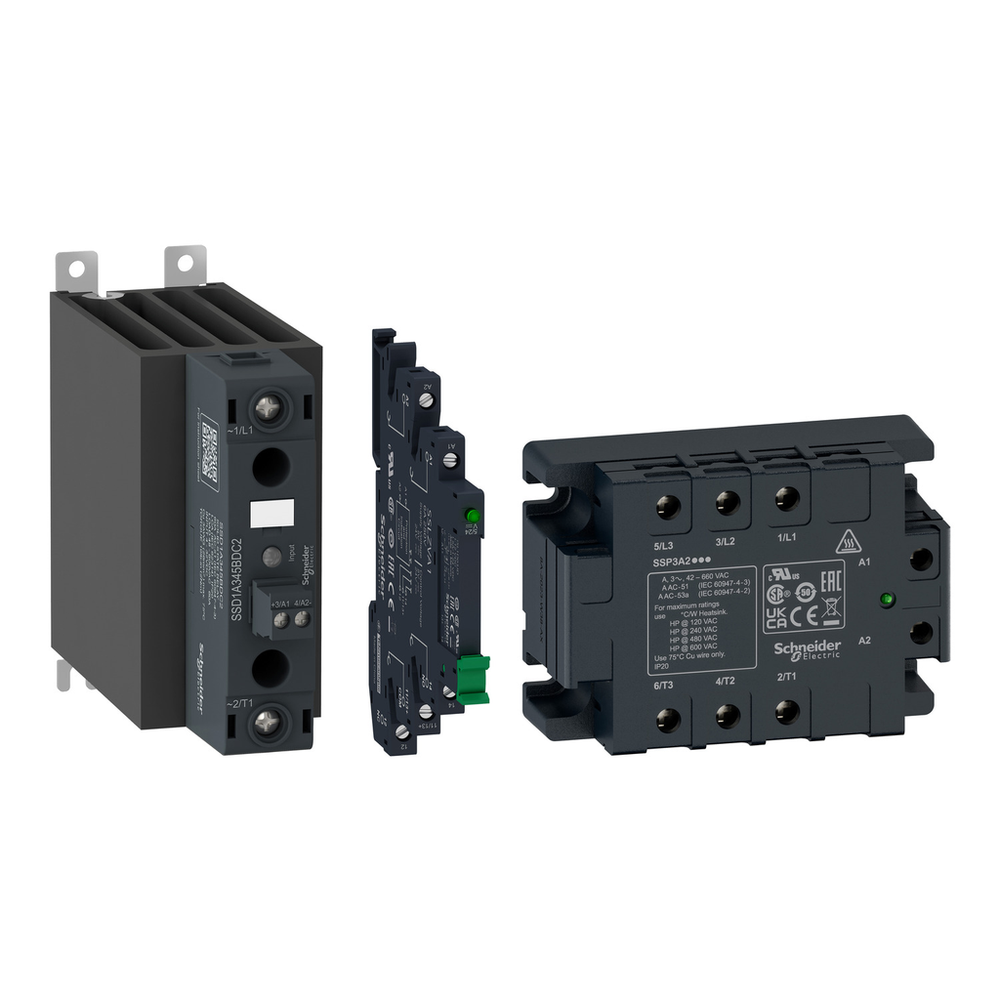

Range Of Product :	Harmony Solid State Relays
Returnability :	Yes
Software Version :	EIME v5.8.1
Sustainable Packaging :	Yes
Thermal Impedance :	0.48 °C-in²/W at 25 psi
Thermal Resistance :	0.45 °C/W junction to case
Total Lifecycle Carbon Footprint :	5 222 kg CO2 eq.
Warranty In Months :	18
Pep Code :	ENVPEP1505006EN
Database Version :	2016-11
Pep Verification Date :	2019-05-01
Pcr Version :	PCR-ed3-EN-2015 04 02
Psr Version :	PSR-0005-ed2-EN-2016 03 29
Type Of Verification For The Pep :	Independent internal review
Data Source :	extrapolated product
Functional-unit Description :	To switch ON/OFF electronic contact during 10 years at a 50% use rate.
Functional-unit Quantity :	1
Functional-unit Unit :	unité (unit)
Reference Lifetime, In Y :	10
Energy Consumption On Product Lifetime, In Kwh :	8843.241
Energy Model - Manufacturing [A1-a3] :	Energy model used: Mexico
Energy Model - Installation [A5] :	Electricity Mix; AC; < 1kV; EU-27
Energy Model - Use [B6] :	Electricity Mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4] :	Electricity Mix; AC; < 1kV; EU-27


Ambient Air Temperature For Operation :	-40-80 °C, -40-80 °C
Ambient Air Temperature For Storage :	-40-125 °C, -40-125 °C
Take Back :	No
Recycled Metal Content At Cr Level :	0 %
China Rohs Regulation :	X
Mercury Free :	Yes
Carbon Footprint :	5222.3006829357
Circularity Profile :	ENVEOLI1505006EN
Environmental Disclosure :	ENVPEP1505006EN
Eu Rohs Directive :	Compliant By Exemption
Ip Degree Of Protection :	IP20
Packaging Made With Recycled Cardboard :	Yes
Packaging Without Single Use Plastic :	Yes
Reach Regulation :	Reference contains Substances of Very High Concern above the threshold
Pep Code :	ENVPEP1505006EN
Pep Verification Date :	2019-05-01
Pcr Version :	PCR-ed3-EN-2015 04 02
Psr Version :	PSR-0005-ed2-EN-2016 03 29
Type Of Verification For The Pep :	Independent internal review


Product Or Component Type :	panel mount relay
Phase :	1 phase
Provided Equipment :	thermal pad
Range Of Product :	Harmony Solid State Relays


ETIM 8 :	EC002055
ETIM 9 :	EC002055


Output Switching Mode :	zero voltage switching
Solid State Output Type :	SCR output, zero voltage switching
Output Voltage :	48...660 V AC


Cos Phi :	0.5-0.5 (with maximum load)
Input Current Limits :	7-12 mA
