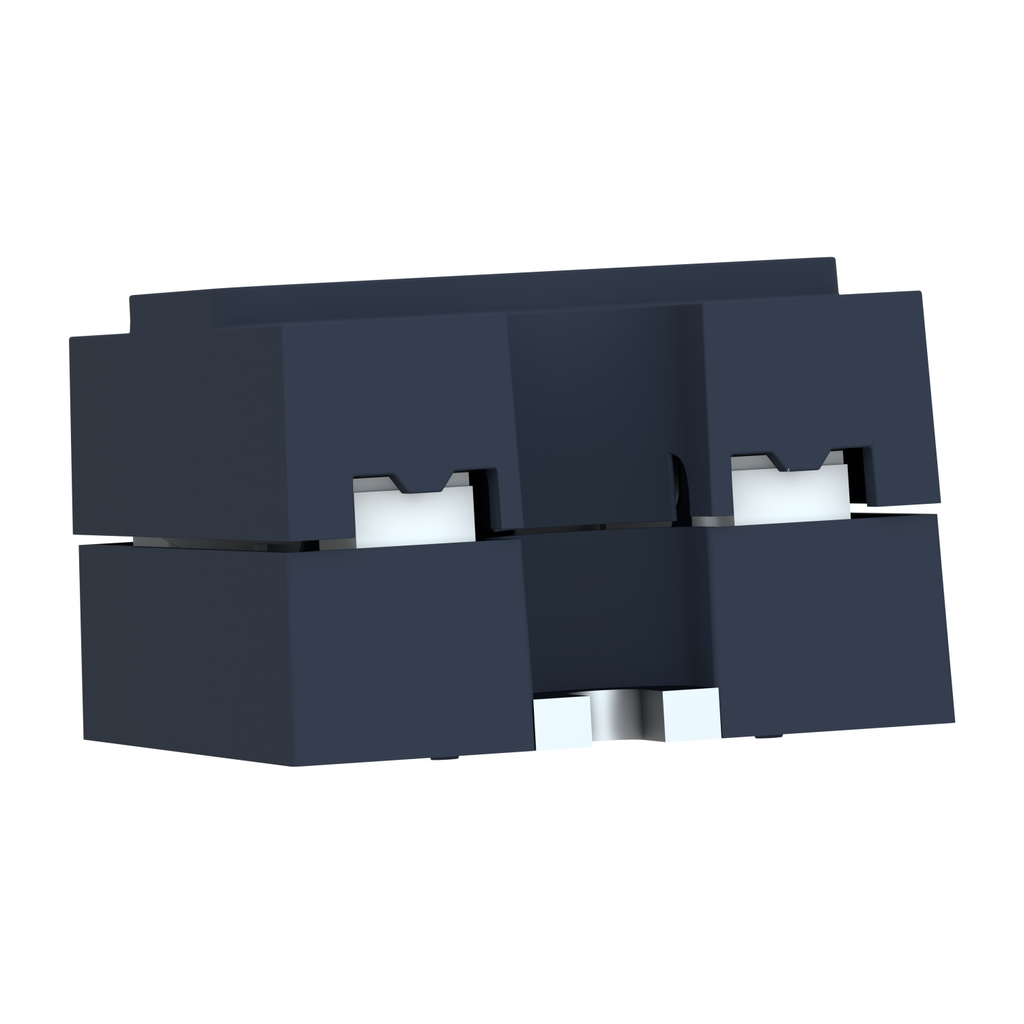

single phase relay, Harmony Solid State Relays, 125A, panel mount, zero voltage switching, thermal pad, input 90 to 280V AC, output 48 to 660V AC

Item ID #SSP1A4125M7T

Schneider Electric

single phase relay, Harmony Solid State Relays, 125A, panel mount, zero voltage switching, thermal pad, input 90 to 280V AC, output 48 to 660V AC

Name: single phase relay, Harmony Solid State Relays, 125A, panel mount, zero voltage switching, thermal pad, input 90 to 280V AC, output 48 to 660V AC
Brand: Schneider Electric
SKU: SSP1A4125M7T
Price: 228.00 CAD
Availability: OutOfStock

Item ID #SSP1A4125M7T

Specifications

See all specifications

Maximum Horse Power Rating :	2 hp 120 V AC, 5 hp 240 V AC, 10 hp 480 V AC
Maximum I T For Fusing :	12709 A².s for 8.33 ms at 60 Hz, 13950 A².s for 10 ms at 50 Hz
Maximum Voltage Drop :	<1.15 V on-state, <1.15 V on-state<1.15 V on-state, <1.15 V on-state

Solid State Relays

EZ Selector

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

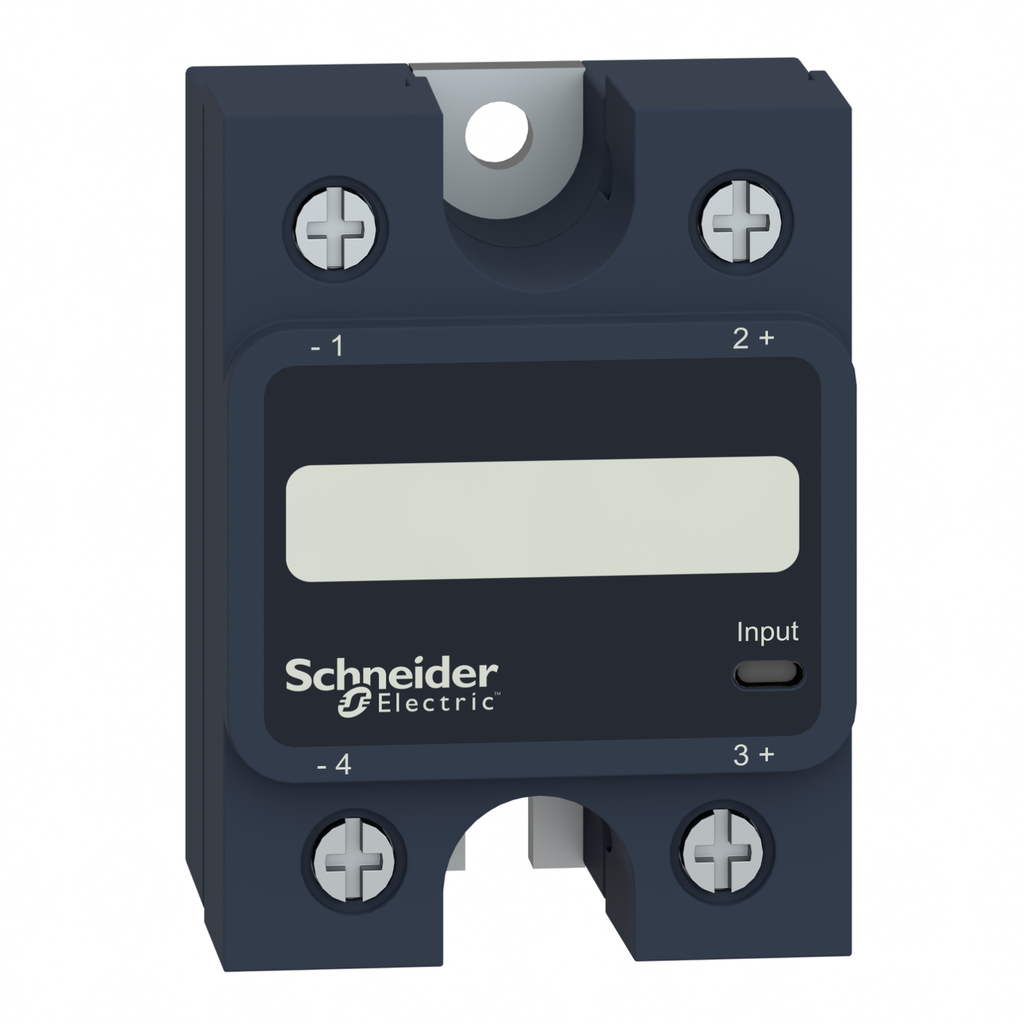

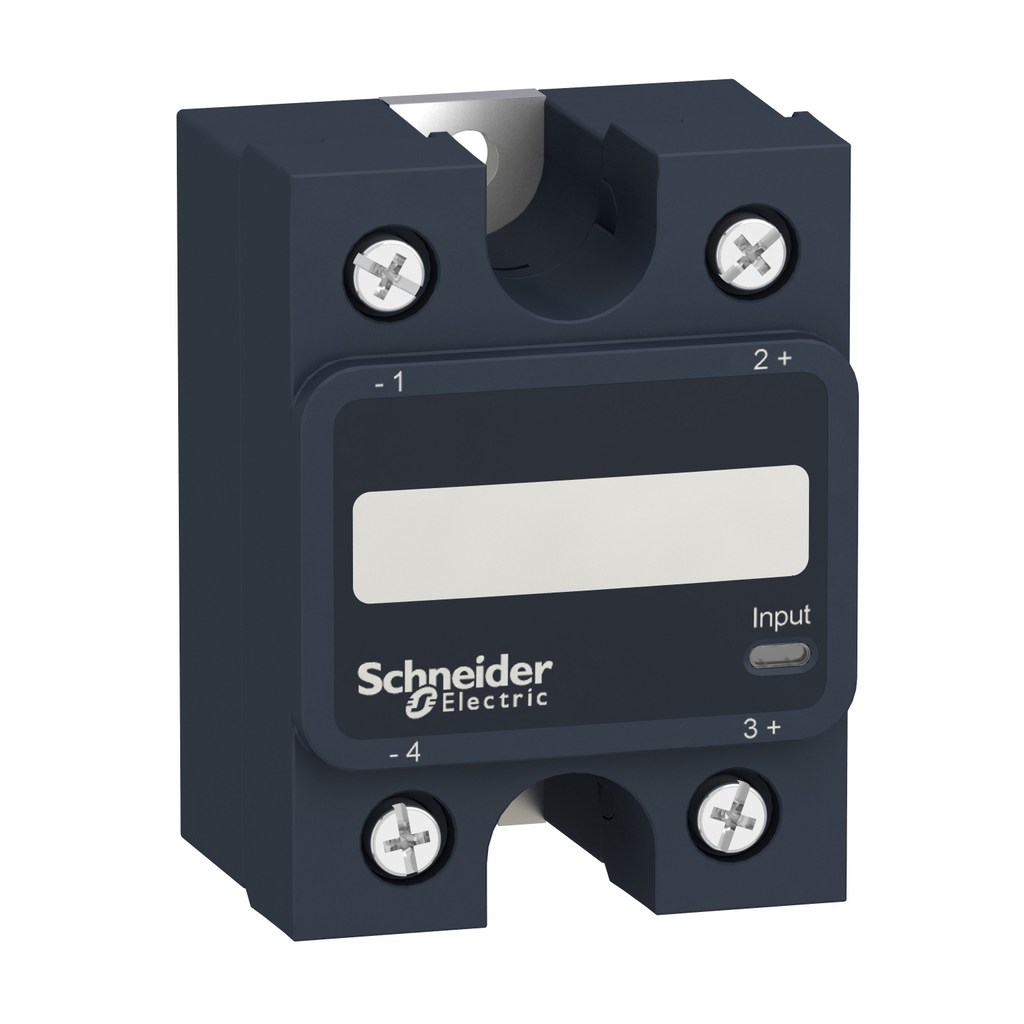

This Harmony SSP solid state panel mount single-phase relay is rated 125A, is controlled with a 90V to 280V AC input, has a rated load voltage of 48V to 660V AC with zero voltage switching, ideal for resistive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts. 0 0 0 0 0 0 0 0 0 0 0 0

Recommended tools

Complementary Attributes


Maximum Horse Power Rating :	2 hp 120 V AC, 5 hp 240 V AC, 10 hp 480 V AC
Maximum I T For Fusing :	12709 A².s for 8.33 ms at 60 Hz, 13950 A².s for 10 ms at 50 Hz
Maximum Voltage Drop :	<1.15 V on-state, <1.15 V on-state<1.15 V on-state, <1.15 V on-state
Uc Control Circuit Voltage :	90...280 V AC, 90...280 V
Uimp Rated Impulse Withstand Voltage :	6 kV output to case, 6 kV input to output
Absolute Maximum Voltage :	1200 V
Line Rated Current :	125 A
Maximum Leakage Current :	1 mA off-state
Maximum Switching Voltage :	10 V AC turn-off
Minimum Switching Voltage :	90 V AC turn-on
Rated Current :	125 A

Description
Resources
Specifications

single phase relay, Harmony Solid State Relays, 125A, panel mount, zero voltage switching, thermal pad, input 90 to 280V AC, output 48 to 660V AC

Item ID #SSP1A4125M7T

Schneider Electric

single phase relay, Harmony Solid State Relays, 125A, panel mount, zero voltage switching, thermal pad, input 90 to 280V AC, output 48 to 660V AC

Item ID #SSP1A4125M7T

single phase relay, Harmony Solid State Relays, 125A, panel mount, zero voltage switching, thermal pad, input 90 to 280V AC, output 48 to 660V AC

Specifications

See all specifications

Maximum Horse Power Rating :	2 hp 120 V AC, 5 hp 240 V AC, 10 hp 480 V AC
Maximum I T For Fusing :	12709 A².s for 8.33 ms at 60 Hz, 13950 A².s for 10 ms at 50 Hz
Maximum Voltage Drop :	<1.15 V on-state, <1.15 V on-state<1.15 V on-state, <1.15 V on-state

Solid State Relays

EZ Selector

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

Recommended tools

Complementary Attributes


Maximum Horse Power Rating :	2 hp 120 V AC, 5 hp 240 V AC, 10 hp 480 V AC
Maximum I T For Fusing :	12709 A².s for 8.33 ms at 60 Hz, 13950 A².s for 10 ms at 50 Hz
Maximum Voltage Drop :	<1.15 V on-state, <1.15 V on-state<1.15 V on-state, <1.15 V on-state
Uc Control Circuit Voltage :	90...280 V AC, 90...280 V
Uimp Rated Impulse Withstand Voltage :	6 kV output to case, 6 kV input to output
Absolute Maximum Voltage :	1200 V
Line Rated Current :	125 A
Maximum Leakage Current :	1 mA off-state
Maximum Switching Voltage :	10 V AC turn-off
Minimum Switching Voltage :	90 V AC turn-on
Rated Current :	125 A

Persona Type Ids :

BM9, EU, LC, OM, OM8, PB, SC, SI, VR

Persona Type Names :

Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner

Market Segmentation Id :

COMMERCIAL, INDUSTRIAL


Persona Type Ids :	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Persona Type Names :	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation Id :	COMMERCIAL, INDUSTRIAL
Market Segmentation :	Commercial, Industrial
Control Type :	without test button, without test button
Dielectric Strength :	4 kV AC for input/output, 4 kV AC for input or output to case
Marking :	UL, CE, EAC, CSA
Product Or Component Type :	panel mount relay
Protection Device Type :	type 1 - 80 A miniature circuit breaker (MCB) B, type 2 - 63 A miniature circuit breaker (MCB) B
Response Time :	30 ms (turn-off), 25 ms (turn-on)
Safety Reliability Data :	B10d = 1731395, MTTFd = 1875.9 years
Tightening Torque :	1.5...1.7 N.m for input, 2...2.2 N.m for output
Connections Terminals :	ring lugs 11.7 x 4.5 mm output, screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input, screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output, screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input, screw terminals 0.5...8.26 mm², AWG 20...AWG 8) without cable end output, forked type tag connectors 9.2 x 4 mm input, ring lugs 9.2 x 4 mm input, forked type tag connectors 11.7 x 4.5 mm output, screw connectors
Carbon Footprint Of The Distribution Phase A4 :	0.013147201, 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4 :	0 kg CO2 eq., 0.0241240371
Carbon Footprint Of The Installation Phase A5 :	0.0005714174, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3 :	1 kg CO2 eq., 1.1309849485
Carbon Footprint Of The Use Phase B2 B3 B4 B6 :	13 243 kg CO2 eq., 13243.2887382841
Control Circuit Voltage :	90...280 V
Certificate Agency :	CSA, EAC, UL, CE
Local Data Status :	Publishable
Local Publishable Date :	2026-03-26
Return Indicator :	N
Stocking Flag :	Y
Stock Policy :	2
Weee Scope :	Out
Weee Product Category :	5
Scope Perimeter :	At least in Europe
Eoli Availability Display :	Yes
End Of Life Doc Ref :	ENVEOLI1505006EN
Reach Full Compliance Status :	Reference contains Substances of Very High Concern above the threshold
Reach Full Compliance Status Id :	CONTAINS_SVHC
Reach Compliance Directive :	Reference contains Substances of Very High Concern above the threshold
Rohs Eur In Scope :	No
Rohs Eur Status :	Compliant By Exemption
Rohs Eur Conformity Date :	1930
Rohs Eur Full Compliance Status :	Compliant By Exemption
China Rohs In Scope :	Yes
China Rohs Label :	5
With Recycled Cardboard :	Yes
Without Single Use Plastic :	Yes
Product Contributes To Saved And Avoided Emissions :	No
Tier Id :	2
Tier :	2
Function Option Id :	STANDARD
Function Option :	Standard
Product Kit Identifier :	N
Cos Phi :	0.5-0.5 (with maximum load)
Device Short Name :	SSP1
Dv Dt :	500 V/µs off-state at maximum voltage
Insulation Resistance :	1000 MOhm at 500 V DC
Load Current :	0.15-125 A
Local Signalling :	LED, green input
Overvoltage Category :	III
Phase :	1 phase
Product Availability :	Non-Stock - Not normally stocked in distribution facility
Provided Equipment :	thermal pad
Range Of Product :	Harmony Solid State Relays
Returnability :	No
Software Version :	EIME v5.8.1
Sustainable Packaging :	Yes
Thermal Impedance :	0.48 °C-in²/W at 25 psi
Thermal Resistance :	0.22 °C/W junction to case
Total Lifecycle Carbon Footprint :	13 244 kg CO2 eq.
Warranty In Months :	18
Pep Code :	ENVPEP1505006EN
Database Version :	2016-11
Pep Verification Date :	2019-05-01
Pcr Version :	PCR-ed3-EN-2015 04 02
Psr Version :	PSR-0005-ed2-EN-2016 03 29
Type Of Verification For The Pep :	Independent internal review
Data Source :	extrapolated product
Functional-unit Description :	To switch ON/OFF electronic contact during 10 years at a 50% use rate.
Functional-unit Quantity :	1
Functional-unit Unit :	unité (unit)
Reference Lifetime, In Y :	10
Energy Consumption On Product Lifetime, In Kwh :	22430.4
Energy Model - Manufacturing [A1-a3] :	Energy model used: Mexico
Energy Model - Installation [A5] :	Electricity Mix; AC; < 1kV; EU-27
Energy Model - Use [B6] :	Electricity Mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4] :	Electricity Mix; AC; < 1kV; EU-27


Ambient Air Temperature For Operation :	-40-80 °C, -40-80 °C
Ambient Air Temperature For Storage :	-40-125 °C, -40-125 °C
Take Back :	No
Recycled Metal Content At Cr Level :	0 %
China Rohs Regulation :	X
Mercury Free :	Yes
Carbon Footprint :	13244.457565888
Circularity Profile :	ENVEOLI1505006EN
Environmental Disclosure :	ENVPEP1505006EN
Eu Rohs Directive :	Compliant By Exemption
Ip Degree Of Protection :	IP20
Packaging Made With Recycled Cardboard :	Yes
Packaging Without Single Use Plastic :	Yes
Reach Regulation :	Reference contains Substances of Very High Concern above the threshold
Pep Code :	ENVPEP1505006EN
Pep Verification Date :	2019-05-01
Pcr Version :	PCR-ed3-EN-2015 04 02
Psr Version :	PSR-0005-ed2-EN-2016 03 29
Type Of Verification For The Pep :	Independent internal review


Product Or Component Type :	panel mount relay
Phase :	1 phase
Provided Equipment :	thermal pad
Range Of Product :	Harmony Solid State Relays


ETIM 8 :	EC002055
ETIM 9 :	EC002055


Output Switching Mode :	zero voltage switching
Solid State Output Type :	SCR output, zero voltage switching
Output Voltage :	48...660 V AC


Cos Phi :	0.5-0.5 (with maximum load)
Input Current Limits :	5-10 mA
