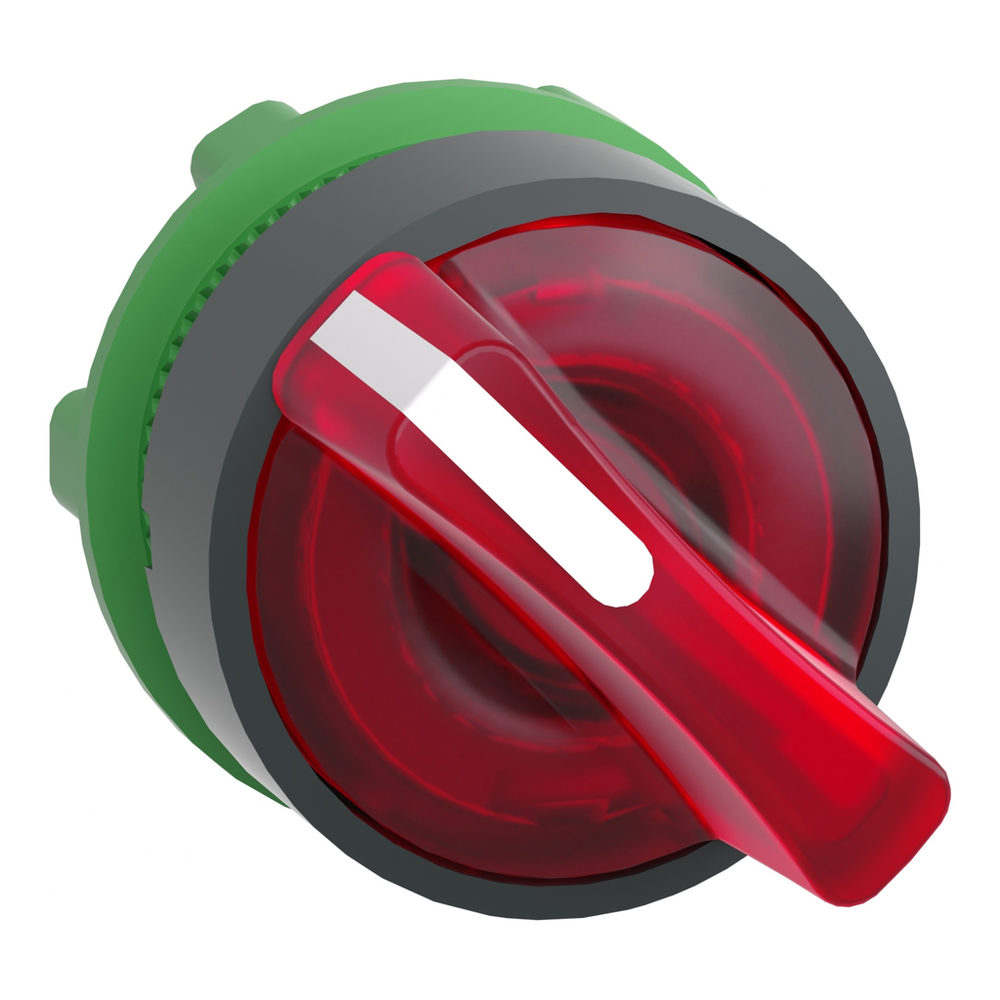

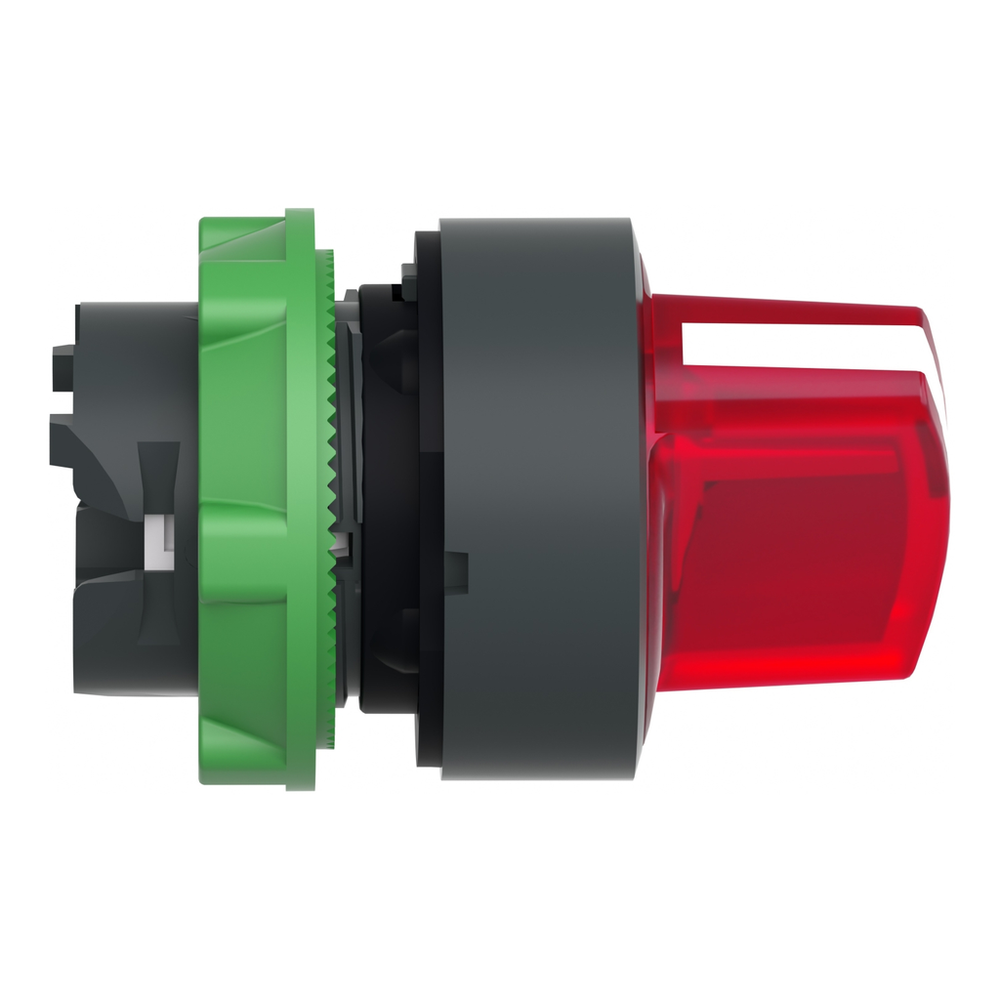

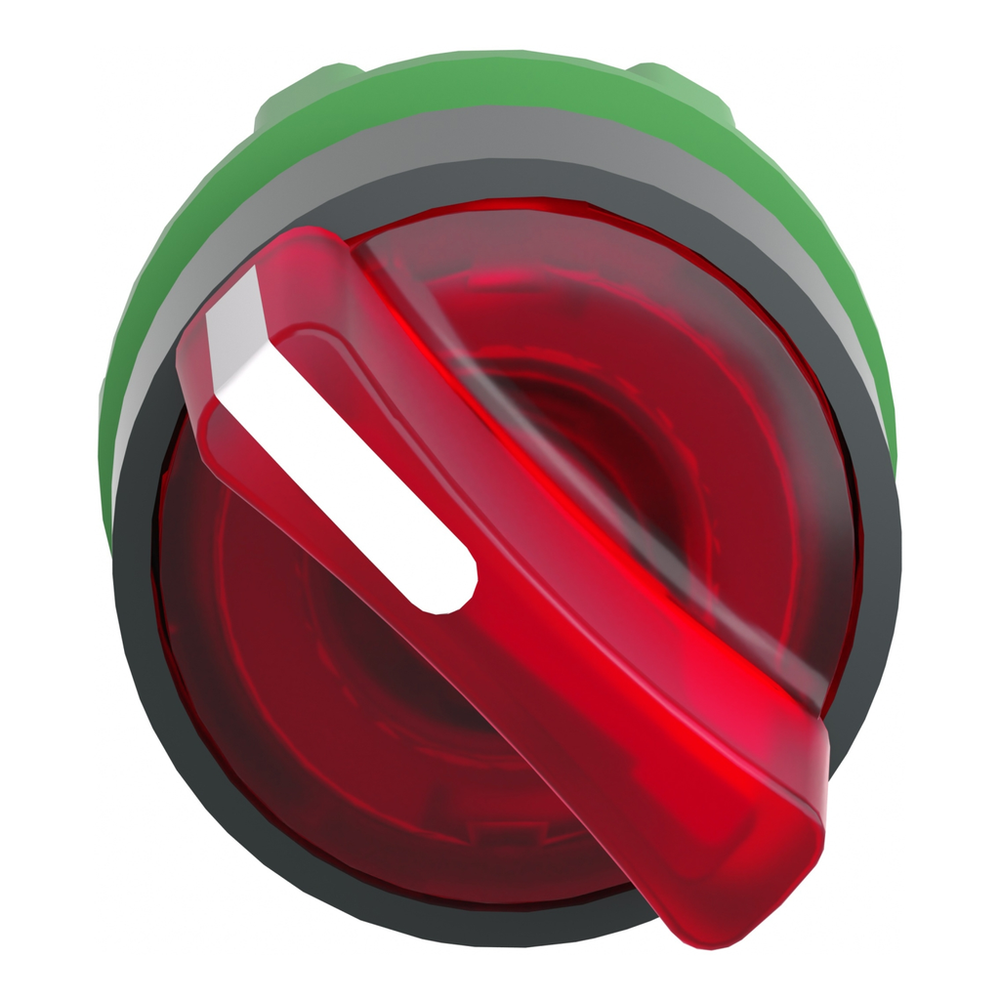

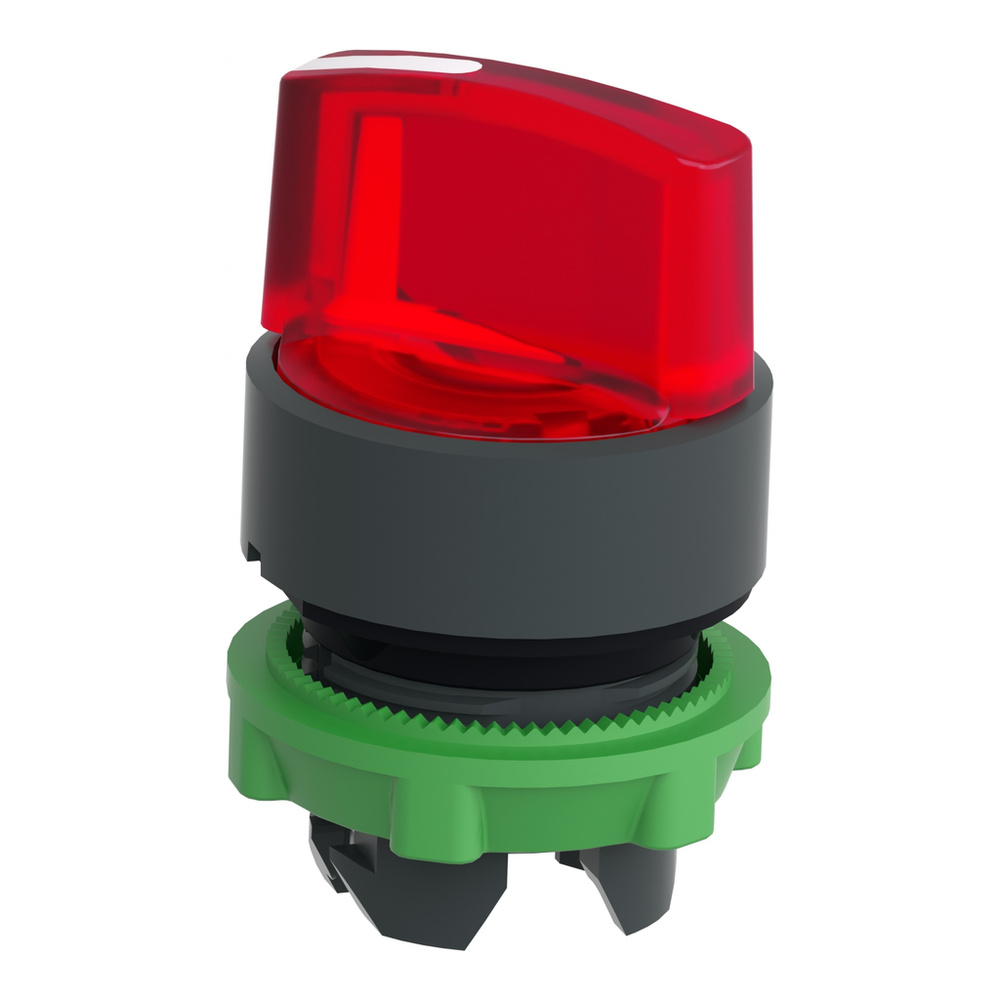

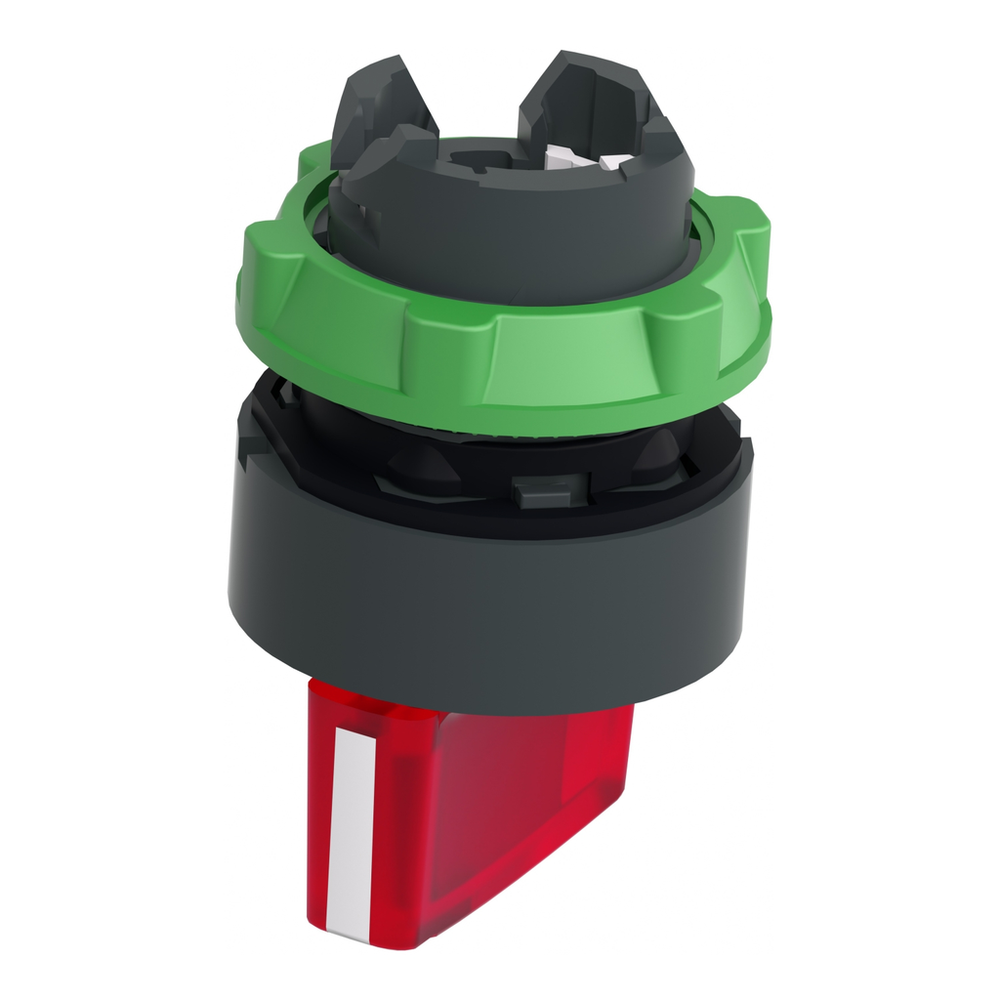

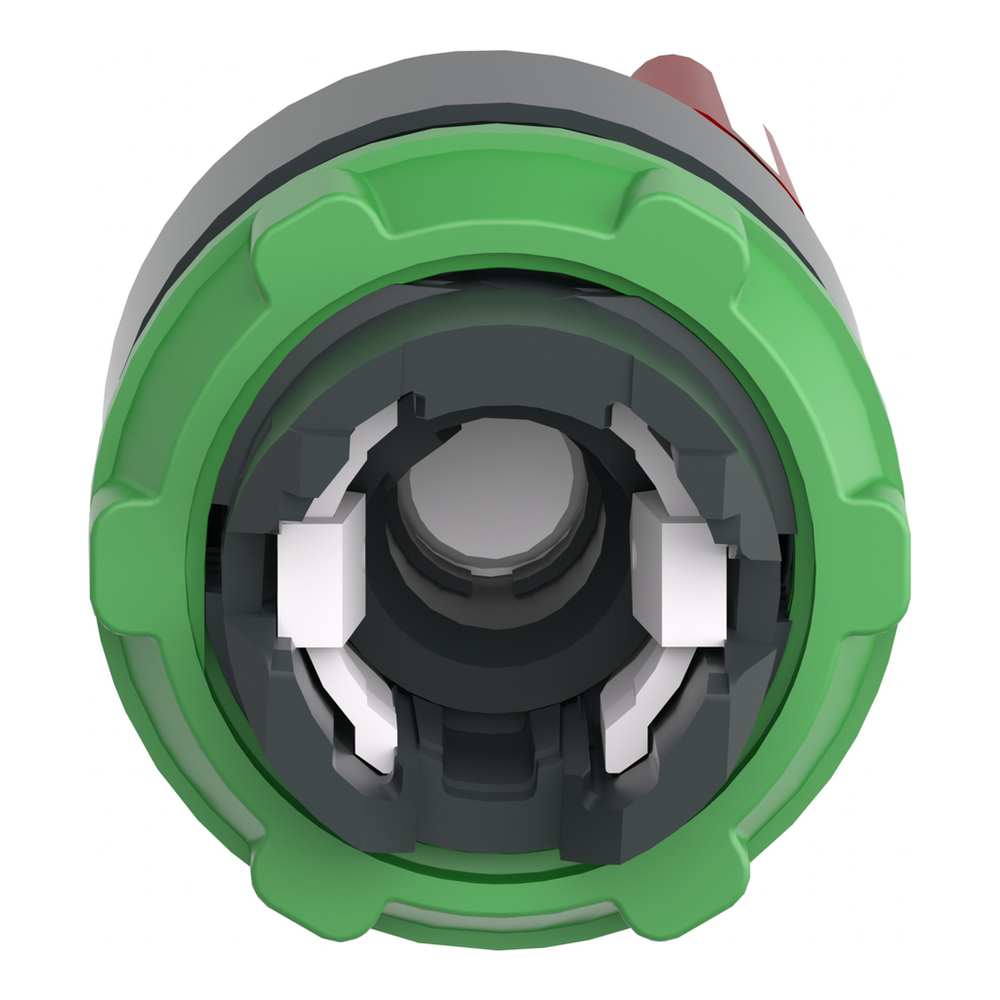

Head for illuminated selector switch, Harmony XB5, plastic, red handle, 22mm, universal LED, 2 positions, spring return

Item ID #ZB5AK1443

Schneider Electric

Head for illuminated selector switch, Harmony XB5, plastic, red handle, 22mm, universal LED, 2 positions, spring return

Name: Head for illuminated selector switch, Harmony XB5, plastic, red handle, 22mm, universal LED, 2 positions, spring return
Brand: Schneider Electric
SKU: ZB5AK1443
Price: 49.31 CAD
Availability: OutOfStock

Item ID #ZB5AK1443

Specifications

See all specifications

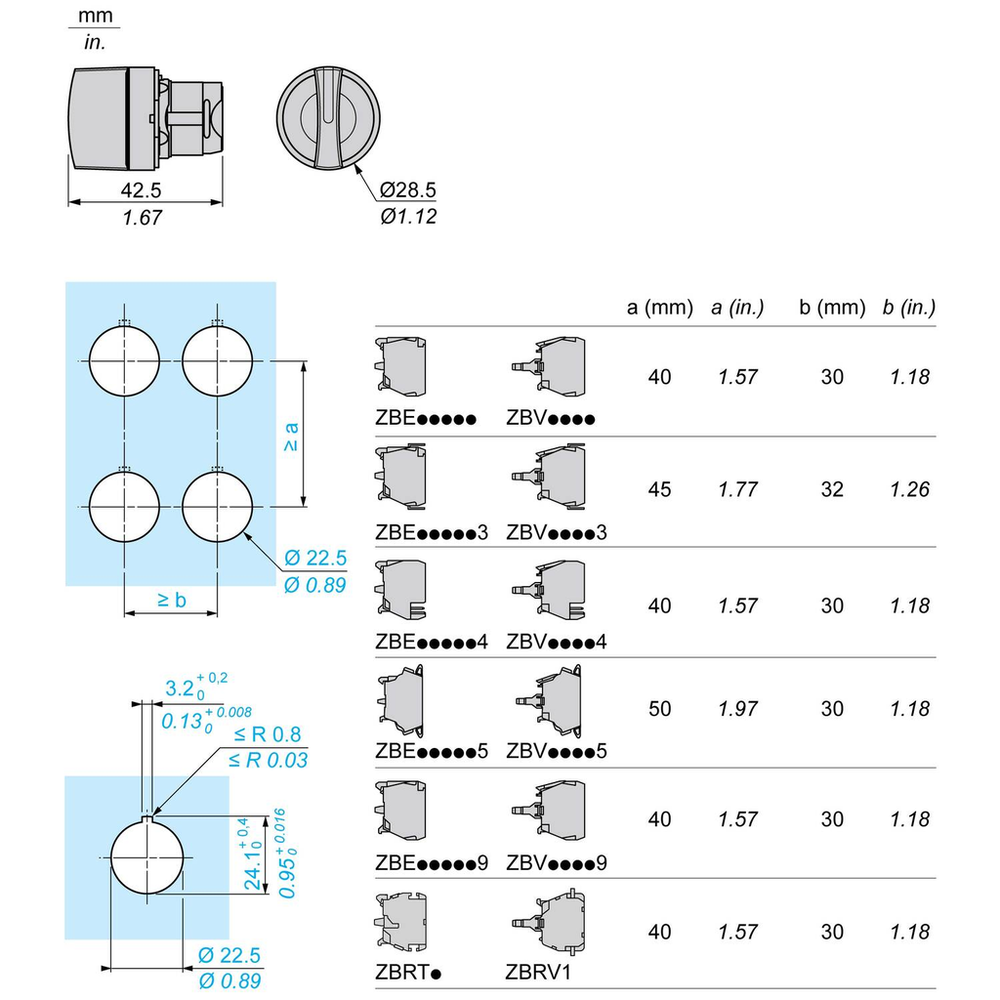

Cad Overall Depth :	43 mm
Cad Overall Height :	29 mm
Cad Overall Width :	29 mm

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

This red illuminated switch head for integral LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms. It offers a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It makes it ideal for operation in harsh environments.

Recommended tools

Physical Attributes


Cad Overall Depth :	43 mm
Cad Overall Height :	29 mm
Cad Overall Width :	29 mm
Cap Operator Or Lens Color :	red

Customizable :

0, no

Electrical Composition Code :

M3 4 single front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, MF1 2 single front mounting integral LED, MR1 2 single rear mounting integral LED, M4 4 single and double front mounting integral LED

Shock Resistance :

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27


Customizable :	0, no
Electrical Composition Code :	M3 4 single front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, MF1 2 single front mounting integral LED, MR1 2 single rear mounting integral LED, M4 4 single and double front mounting integral LED
Shock Resistance :	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Station Name :	XALD 1...5 cut-outs, XALK 2...5 cut-outs
Certificate Agency :	UL Listed, GL, CSA, LROS (Lloyds register of shipping), BV, DNV
Local Data Status :	Publishable
Local Publishable Date :	2026-01-12
Return Indicator :	N
Stocking Flag :	Y
Stock Policy :	2
Weee Scope :	Out
Scope Perimeter :	At least in Europe
Rohs Eur In Scope :	No
Rohs Eur Status :	Compliant
Rohs Eur Conformity Date :	1930
Rohs Eur Full Compliance Status :	Compliant
China Rohs In Scope :	Yes
China Rohs Label :	1
Product Kit Identifier :	N
Bezel Material :	dark grey plastic
Compatibility Code :	ZB5
Device Short Name :	ZB5
Group Of Product :	illum. integral LED
Head Type :	standard
Important Message :	A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Main Group :	illum select switch
Mechanical Durability :	500000 cycles
Mounting Diameter :	22 mm
Operator Position Information :	2 positions 90°
Operator Profile :	red standard handle
Overvoltage Category :	class II conforming to IEC 60536
Product Availability :	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type :	head for illuminated selector switch
Protective Treatment :	TH
Range Of Product :	Harmony XB5
Resistance To High Pressure Washer :	7000000 Pa 55 °C 0.1 m
Returnability :	No
Sale Per Indivisible Quantity :	1
Shape Of Signaling Unit Head :	round
Sustainable Packaging :	No
Type Of Operator :	right to left spring return
Vibration Resistance :	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Cap Operator Or Lens Color :	red
Warranty In Months :	18
Offer Owner Code :	190786
Pn :	1


Ambient Air Temperature For Operation :	-40-70 °C, -40-70 °C
Ambient Air Temperature For Storage :	-40-70 °C, -40-70 °C
Ip Degree Of Protection :	IP66 IEC 60529, IP67, IP69, IP69K
Nema Degree Of Protection :	NEMA 13, NEMA 4X
Reach Free Shvc :	Yes
China Rohs Regulation :	X
Toxic Heavy Metal Free :	Yes
Mercury Free :	Yes
Eu Rohs Directive :	Compliant
Product Compatibility :	universal LED
Reach Free Of Svhc :	Yes


Product Or Component Type :	head for illuminated selector switch
Range Of Product :	Harmony XB5


ETIM 8 :	EC000222
ETIM 9 :	EC000222


Warranty Period :	18 months
Warranty :	18 months
