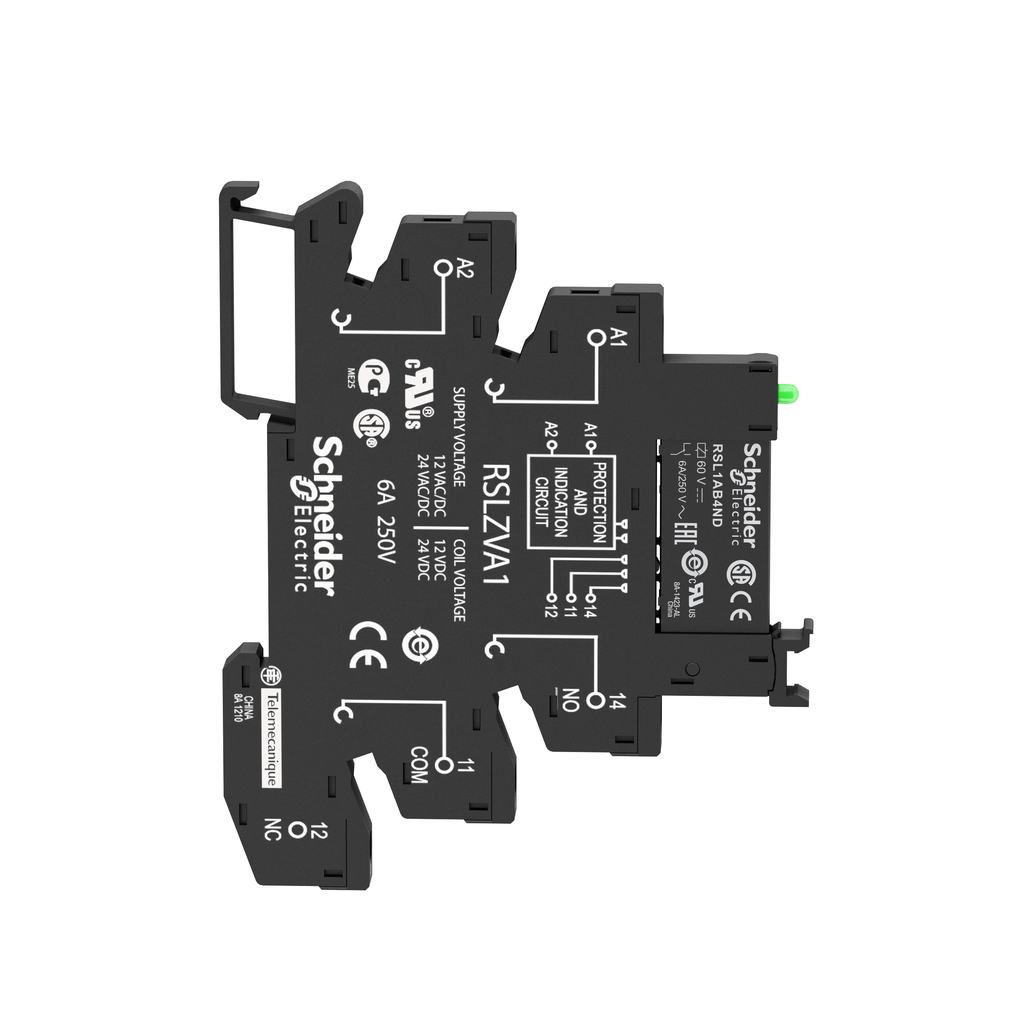

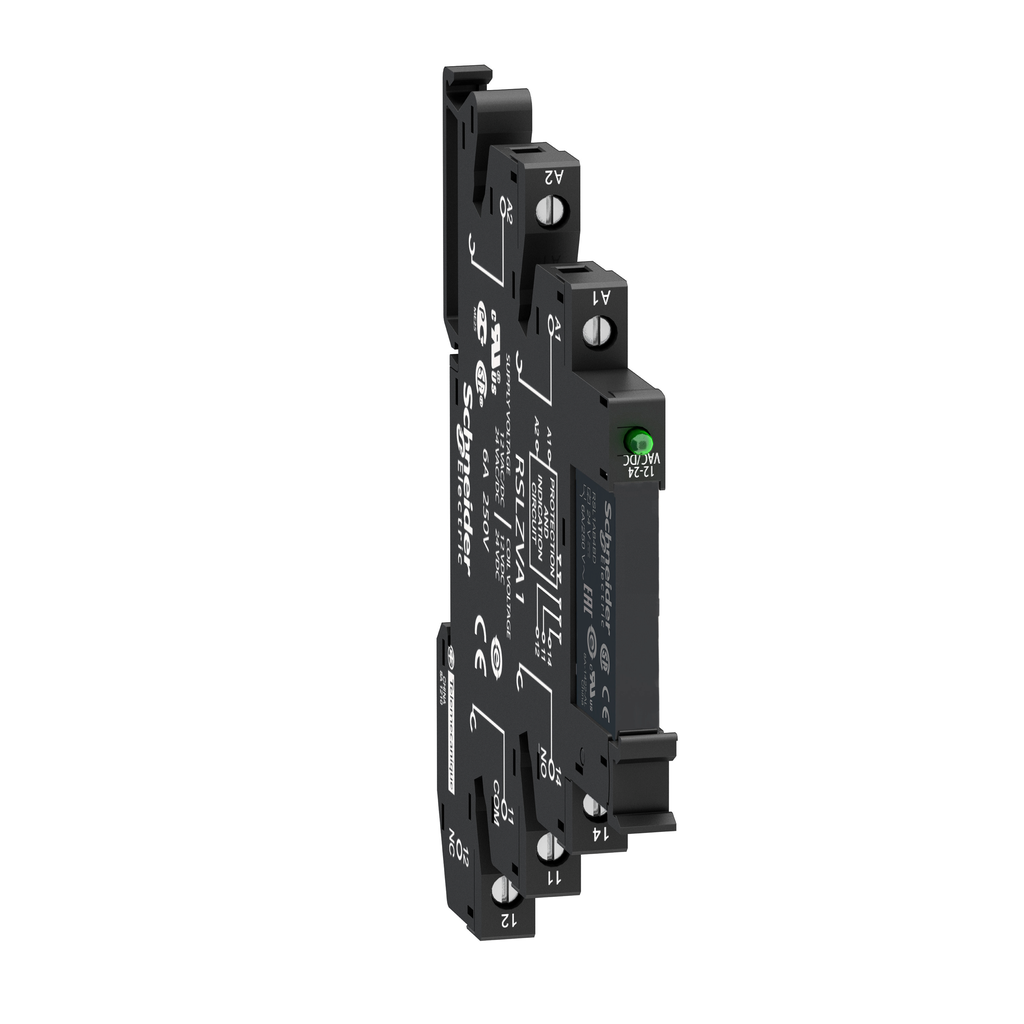

The RSL relays in the Harmony range are distinguished by their ultra-thin design, measuring only 6 mm wide. This allows for high mounting density on DIN rails and significant space savings in electrical cabinets. Each RSL relay features a changeover contact (1 CO) with a conventional thermal current of up to 6 A, making it ideal for signaling, logic, or simple control applications.

The control voltages cover a wide range from 12 V to 230 V, in alternating current (AC) or direct current (DC), depending on the model chosen. An integrated LED indicator provides immediate visualization of the relay status, and a protective circuit integrated into the base effectively protects against overvoltages and reverse polarity.

The RSL relays are available with screw or spring-loaded (push-in) connections for quick, tool-free installation. A locking/unlocking lever makes it easy to replace the relay without having to disconnect the wires, simplifying maintenance operations.

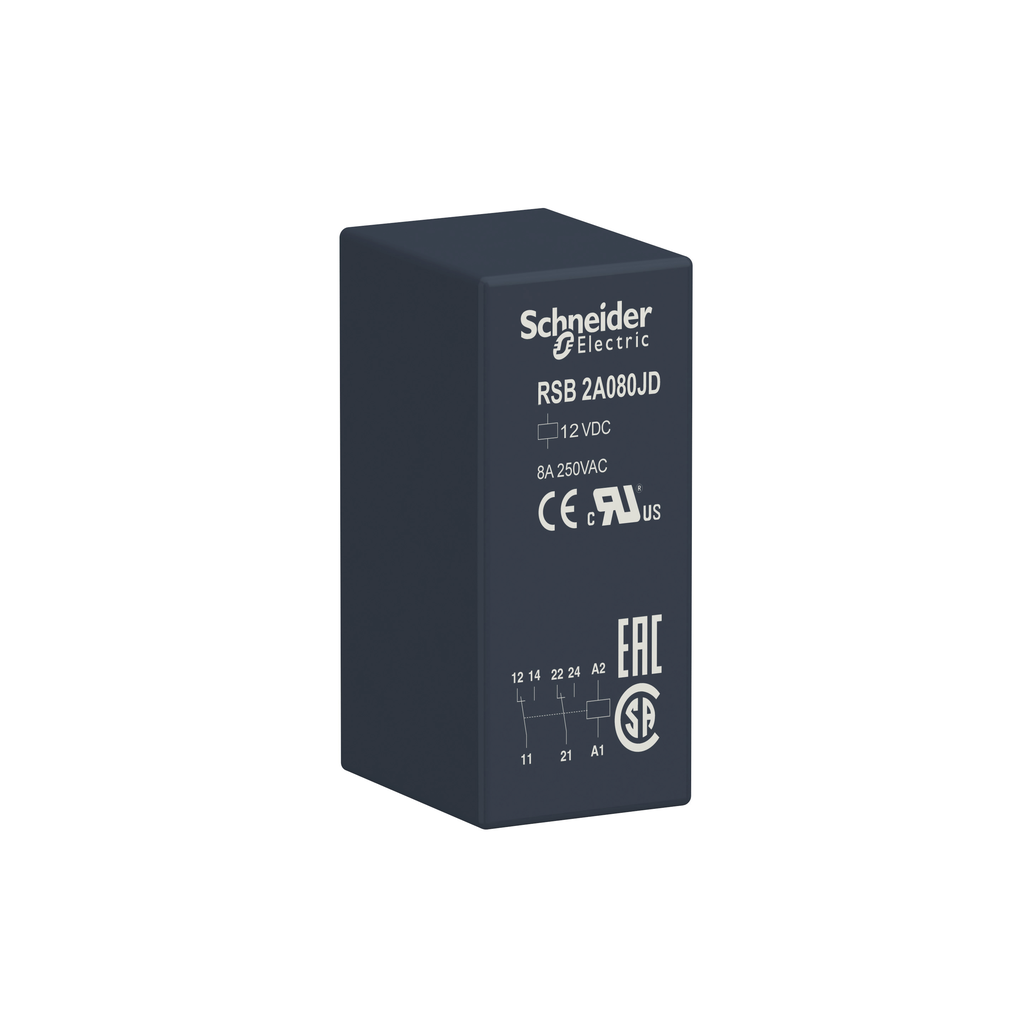

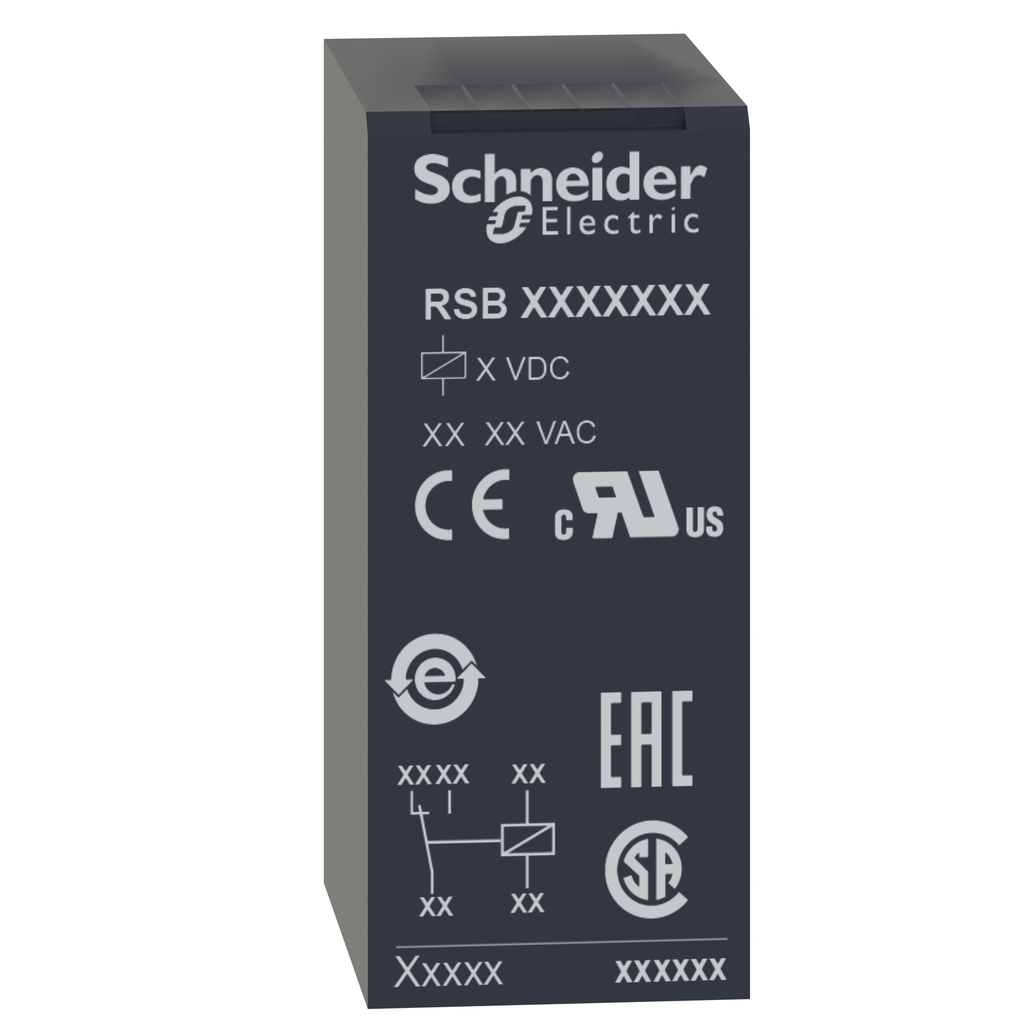

RSB relays are available in several contact configurations to suit different loads and switching needs:

• 1 changeover contact (1 CO) supporting up to 16 A

• 2 changeover contacts (2 CO) supporting up to 8 A

They cover a wide control voltage range, from 6 V to 240 V, in alternating and direct current (AC/DC), allowing them to be integrated into many industrial or commercial environments.

The range offers two supply options:

A standard version, which can be customized as required.

A pre-assembled version, delivered ready to use with:

→ Mounting base, plug-in protection module, plastic retaining clip, and identification label.

The bases are available in screw or spring-loaded (push-in) terminal versions, with separate contacts to ensure both electrical safety and wiring flexibility. Some versions include a status LED, allowing for quick visualization of coil energization. All models are equipped with a built-in manual test device, facilitating on-site inspections and repairs. A retaining clip is provided to ensure the relay is securely attached to its base, even in vibration-prone environments.

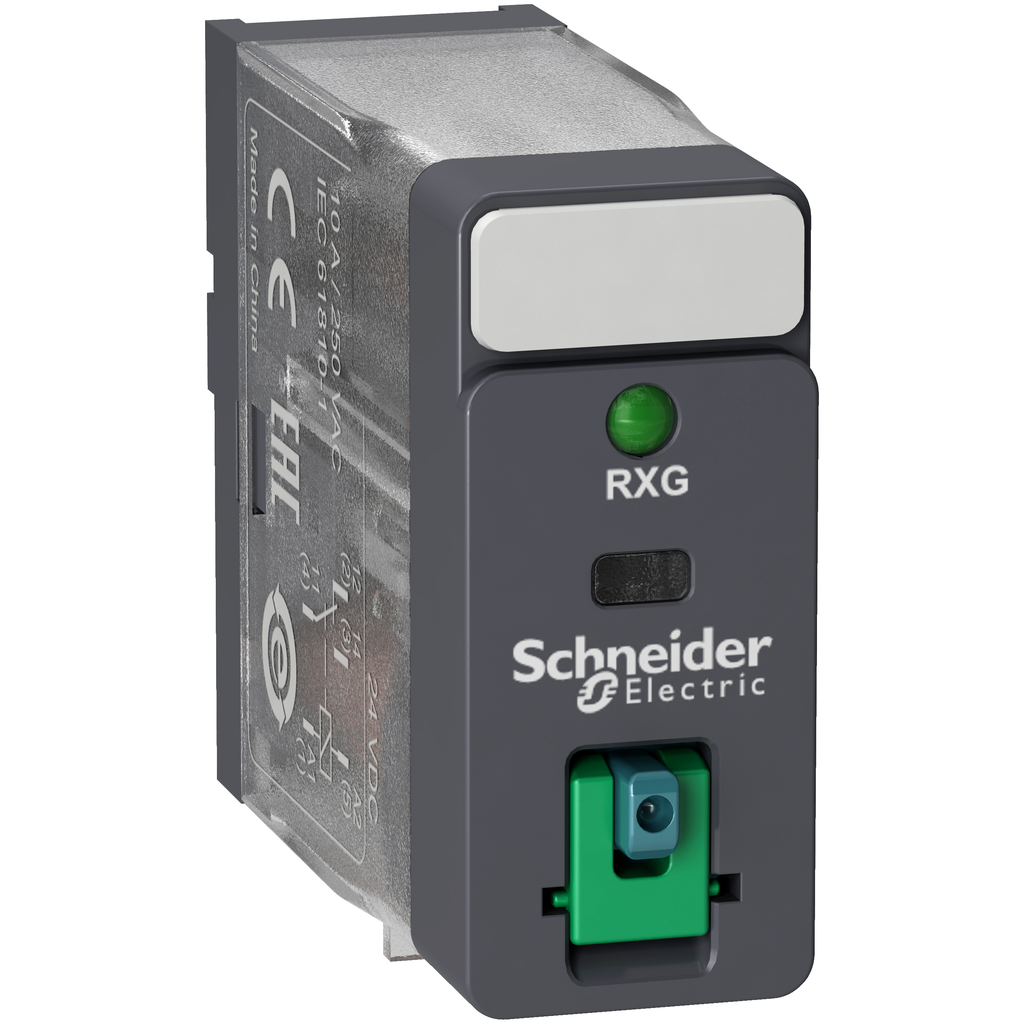

RXG relays are available in two configurations:

1 changeover contact (1 CO) capable of switching up to 10 A

2 changeover contacts (2 CO) each supporting up to 5 A

They accept a wide control voltage range, from 6 V to 230 V, in alternating and direct current (AC/DC), making them suitable for many industrial and commercial applications. Depending on the version chosen, the RXG relays include a status LED, providing instant visualization of coil energization. A lockable test button is also available on certain models, facilitating safe maintenance or operational verification operations. Each relay also features a mechanical indicator displaying the contact status in real time.

Thanks to their Faston terminals, the RXG relays allow for fast, reliable, and tool-free connection, optimizing installation times. They are available in standard version or with transparent housing, integrating LED and test button, thus offering a clear, secure and easy to diagnose solution.

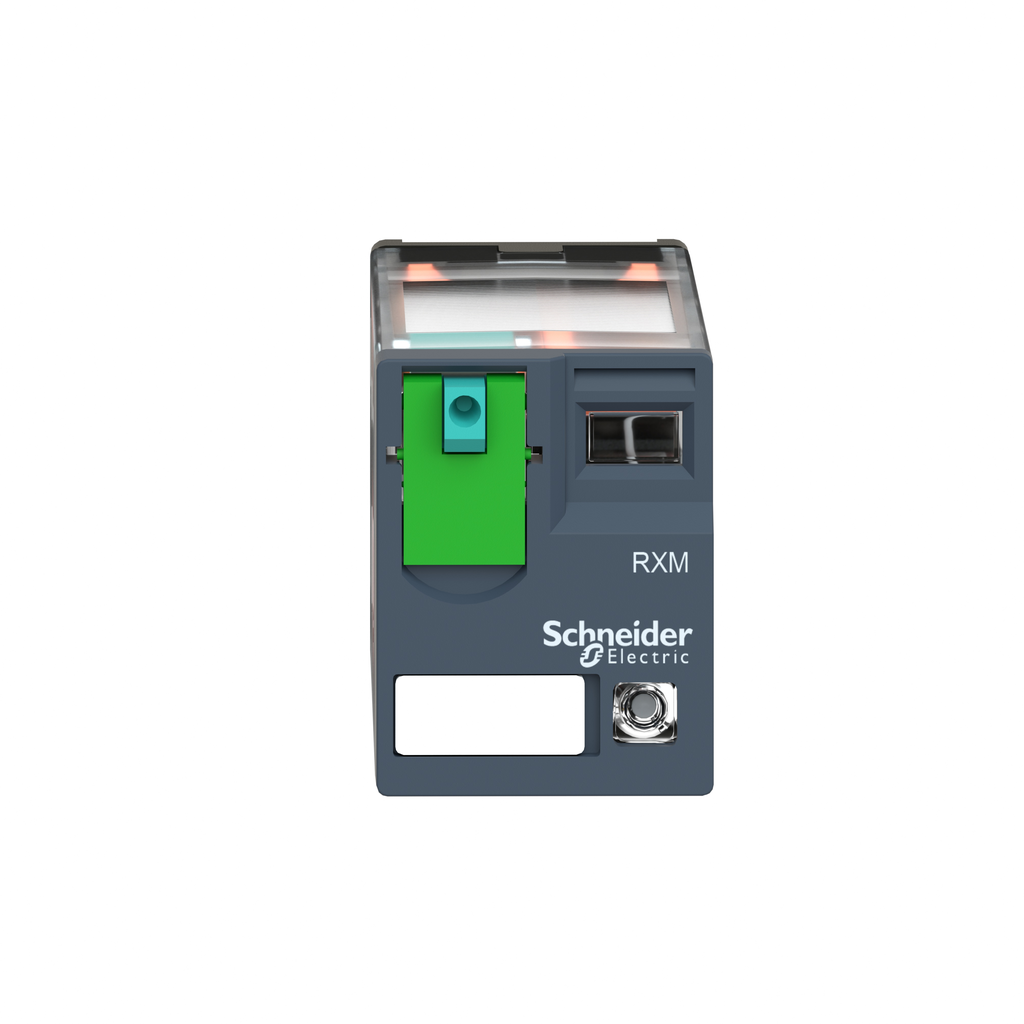

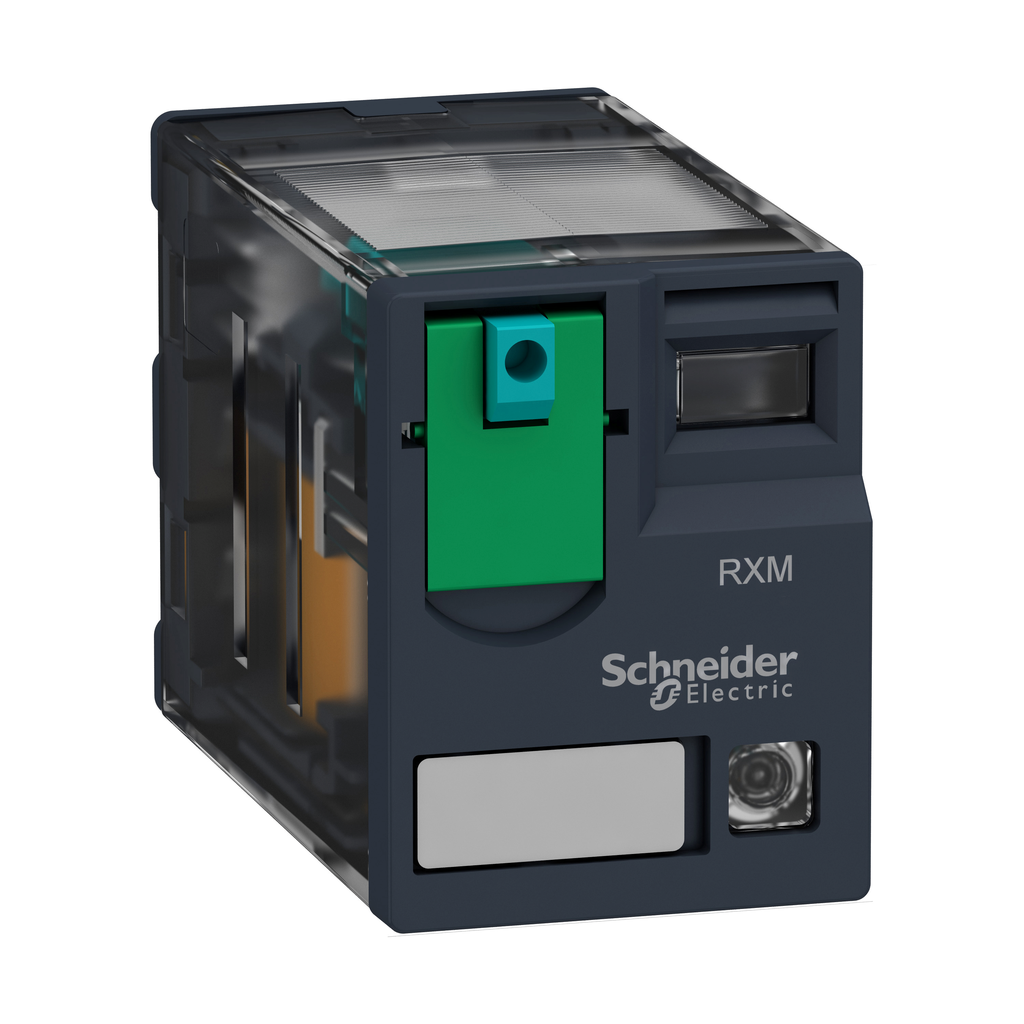

RXM relays are available in versions with 2, 3, or 4 changeover contacts (CO), with switching capacities adapted to each configuration:

Up to 12 A for 2 CO models

Up to 10 A for 3 CO models

Up to 6 A for 4 CO models

They are available in a standard version, as well as a low-level version, specially designed for processing weak signals (used in automation or precision electronic circuits).

RXM relays support a wide control voltage range, from 6 V to 240 V, in alternating or direct current (AC/DC), making them particularly versatile. Depending on the model, a status LED is integrated to quickly display coil energization. A lockable test button allows manual simulation of relay operation for testing or maintenance purposes. A mechanical position indicator completes these features, providing the user with an immediate visual reading of the status of the contacts.

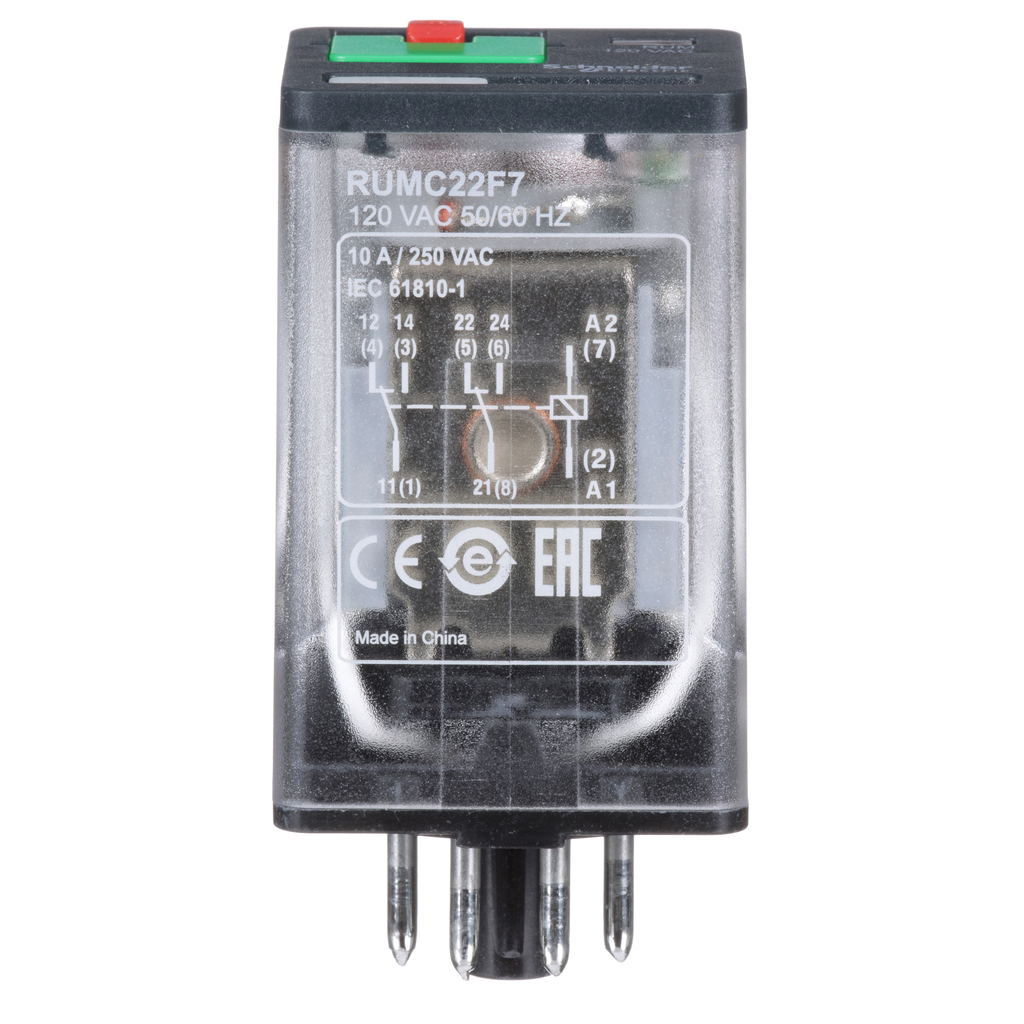

The Harmony range of RUM relays are available in versions with 2, 3, or 4 changeover contacts (CO), each capable of switching up to 10 A. This variety of configurations makes them easy to adapt to the specific needs of control or automation systems. They support a wide control voltage range, from 12 V to 240 V, in alternating or direct current (AC/DC), making them highly compatible with various electrical environments.

Depending on the model, RUM relays can be equipped with a manual test button, ideal for verifying proper relay operation without activating the actual electrical control. A mechanical contact position indicator allows for quick visual verification of the relay status, while some versions also incorporate a status LED, providing a clear indication of coil energization.

Finally, RUM relays are compatible with plug-in timing modules (optional), allowing functions such as on- or off-delay to be easily added without modifying existing wiring.

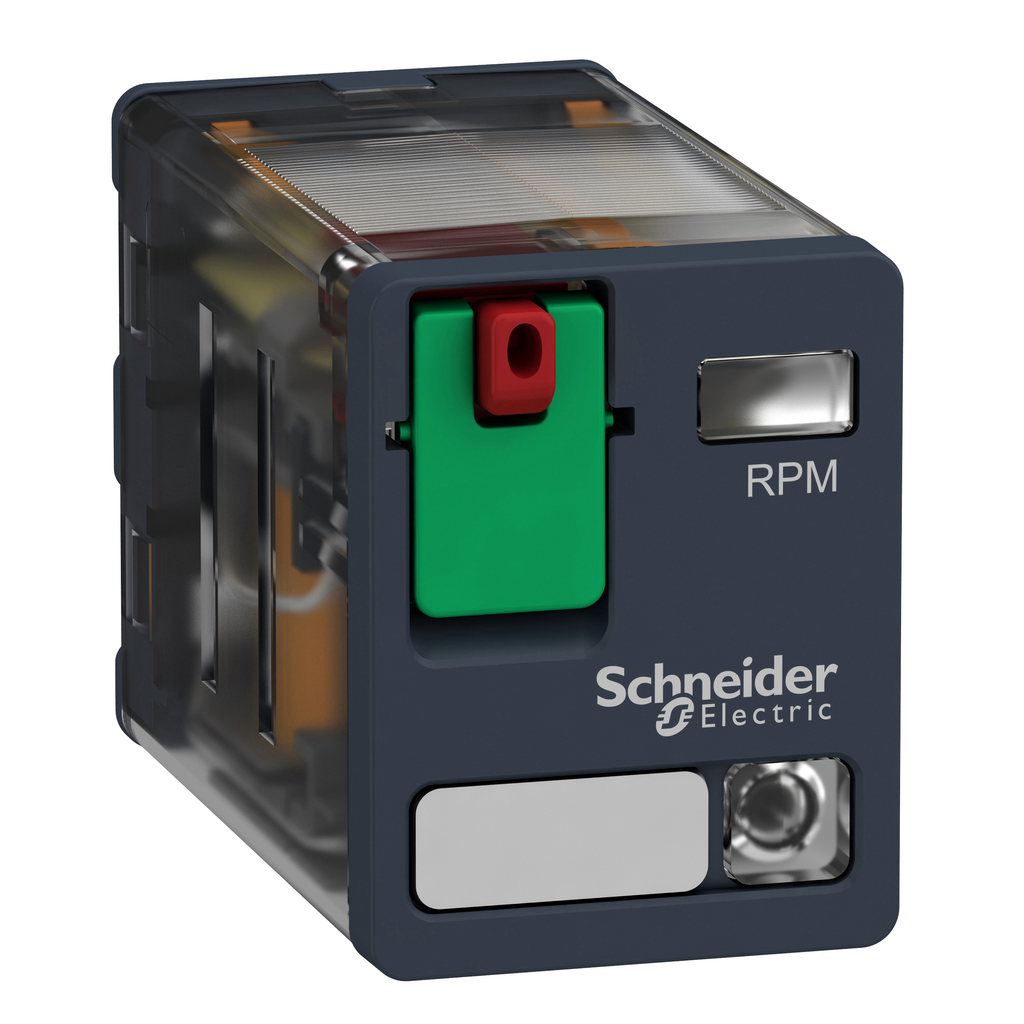

RPM relays are available in several contact configurations:

1NO, 2NO, 3NO, or 4NO,

with a switching capacity of up to 30A per contact depending on the model.

They cover a wide control voltage range, suitable for various industrial environments:

Alternating current (AC): from 24V to 240V

Direct current (DC): from 12V to 110V

Each relay is equipped with a mechanical indicator to visualize the contact position, facilitating maintenance and diagnostic operations. Some models also include a manual test button, allowing relay operation to be simulated without activating the electrical control. Others are equipped with a status LED, providing a clear visual indication of the relay's operating status.

Finally, RPM relays are distinguished by their long mechanical lifespan, reaching up to 10 million cycles, making them ideal for high-speed industrial applications or those requiring long-term reliability.

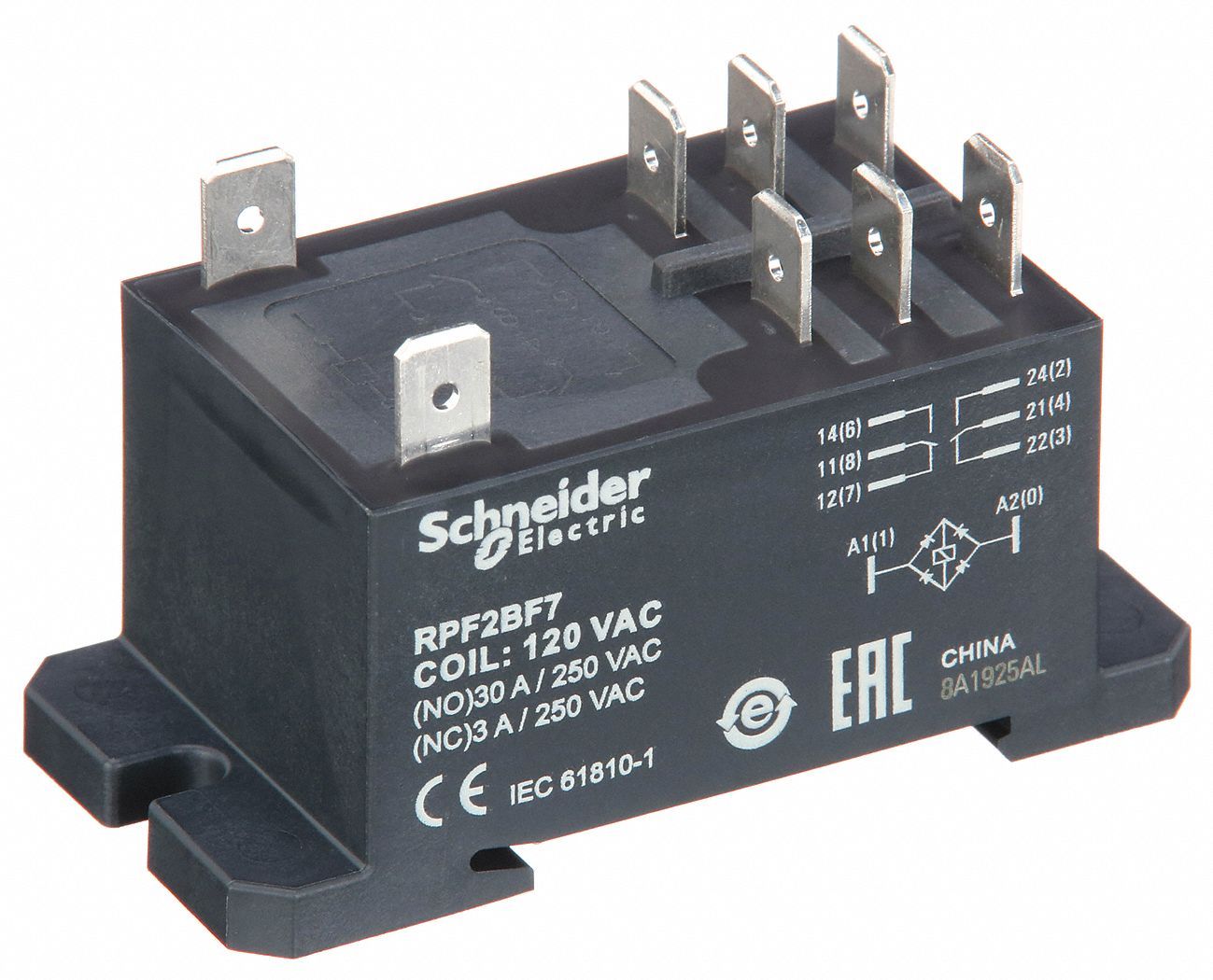

RPF relays are available in two contact versions: two normally open (2 NO) contacts or two changeover (2 CO) contacts, each capable of handling currents up to 30 A, subject to optimal mounting conditions. They support a wide control voltage range:

Alternating current (AC): from 24 V to 230 V

Direct current (DC): from 12 V to 24 V

Thanks to their compact size and Faston connection terminals, they allow for quick and easy installation in electrical cabinets. RPF relays are offered in a simplified and economical version, without integrated protection modules or additional functions such as LEDs or test buttons.

They nevertheless offer excellent electrical resistance, up to 264 V AC or 26.4 V DC, as well as a mechanical lifespan of up to 5 million cycles, making them ideal for rugged and repetitive applications.
