| Electrical Durability : | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Connections - Terminals : | screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1 |
| [Ui] Rated Insulation Voltage : | 600 V 3)EN/IEC 60947-1 |
| Operating Force : | 3.8 N NO changing electrical state |
| Short-Circuit Protection : | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| [Ie] Rated Operational Current : | 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 |
| Operating Travel : | 2.6 mm NO changing electrical state) || 4.3 mm total travel) |
| Contacts Material : | silver alloy (Ag/Ni) |
| Mechanical Durability : | 5000000 cycles |
| Positive Opening : | without |
| [Ith] Conventional Free Air Thermal Current : | 10 A EN/IEC 60947-5-1 |

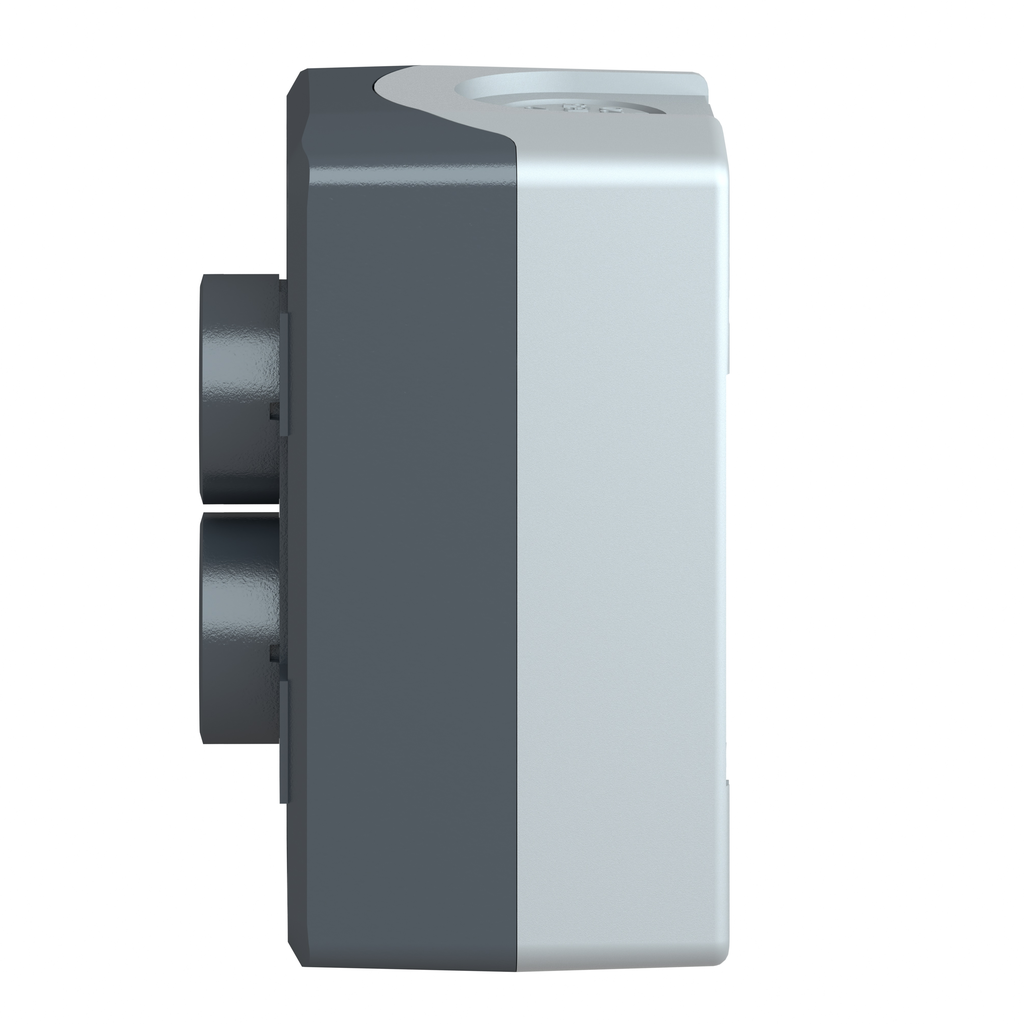

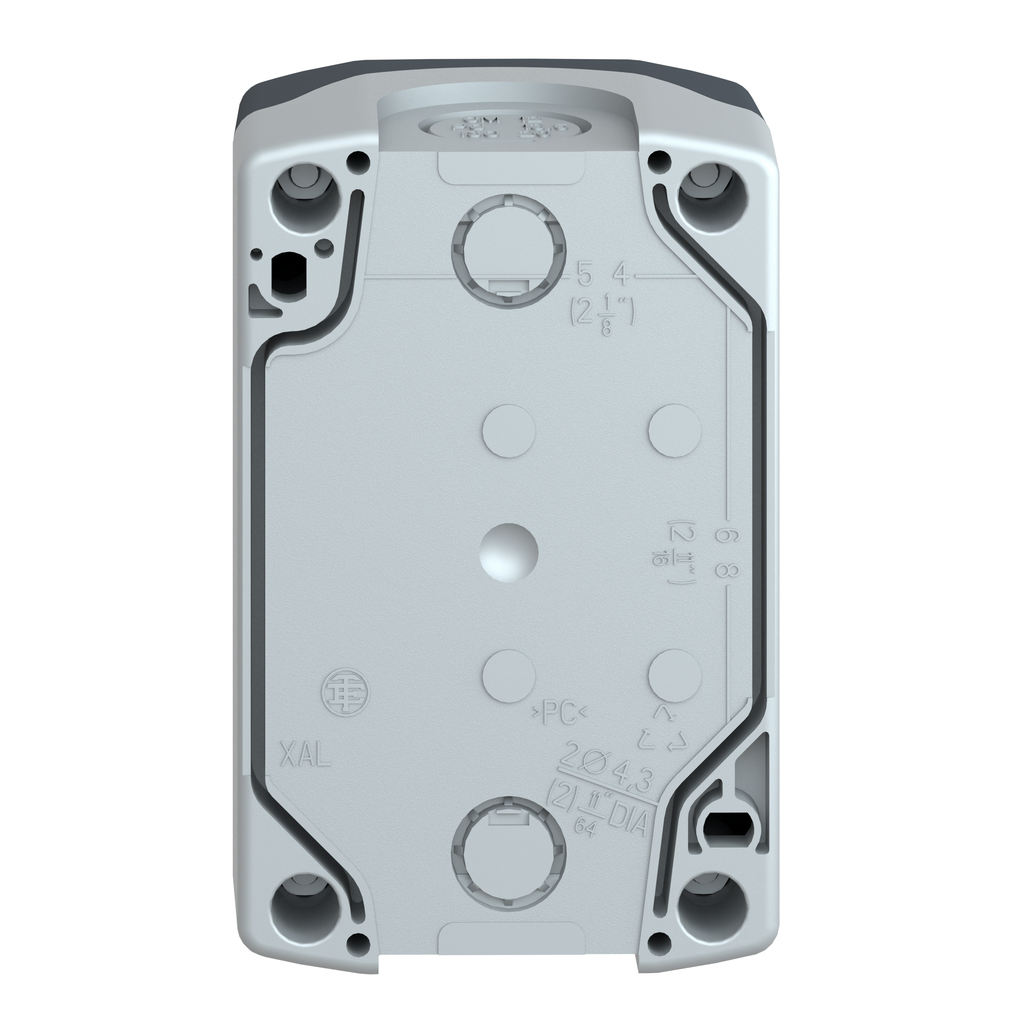

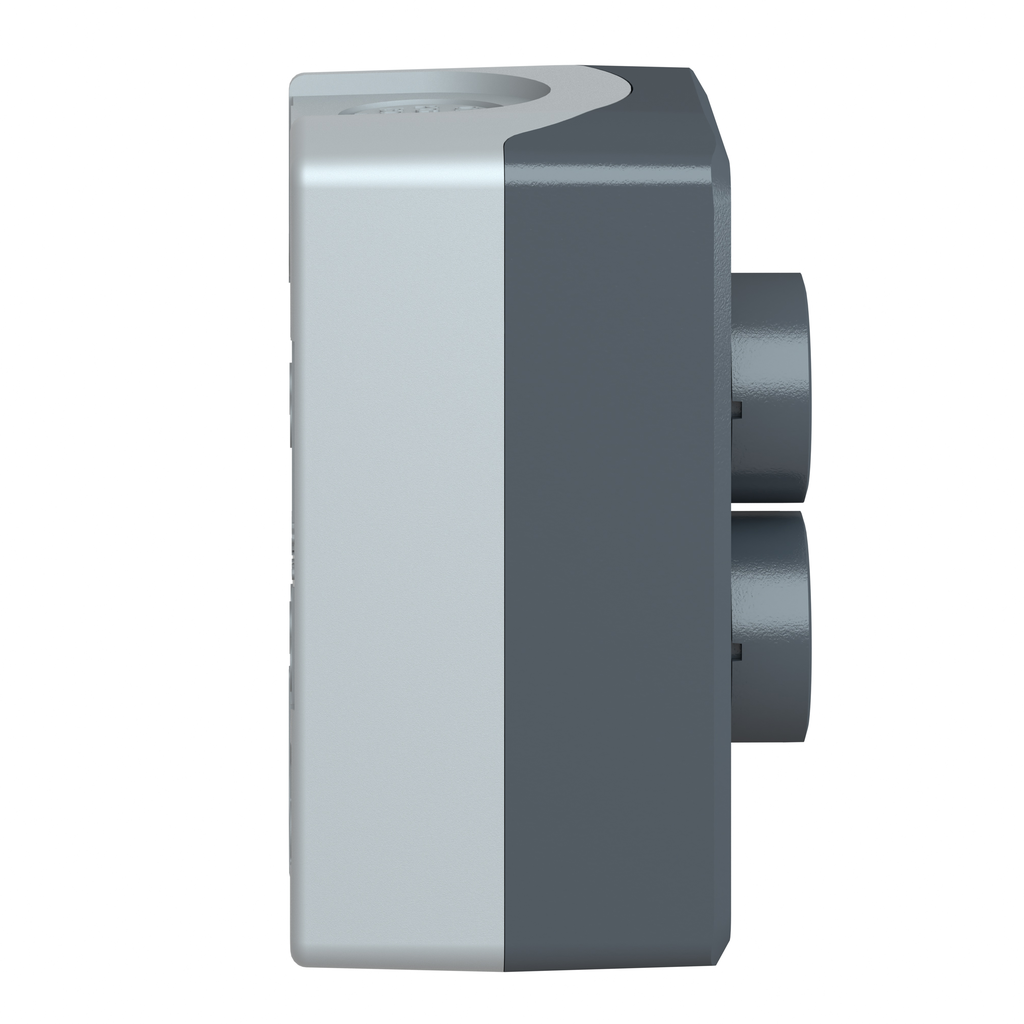

| Cable Entry : | 2 knock-outs for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm |
| Electrical Reliability : | λ < 10exp(-6) 5 V 1 mA EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA EN/IEC 60947-5-4 |
| Tightening Torque : | 0.8-1.2 N.m EN/IEC 60947-1 |

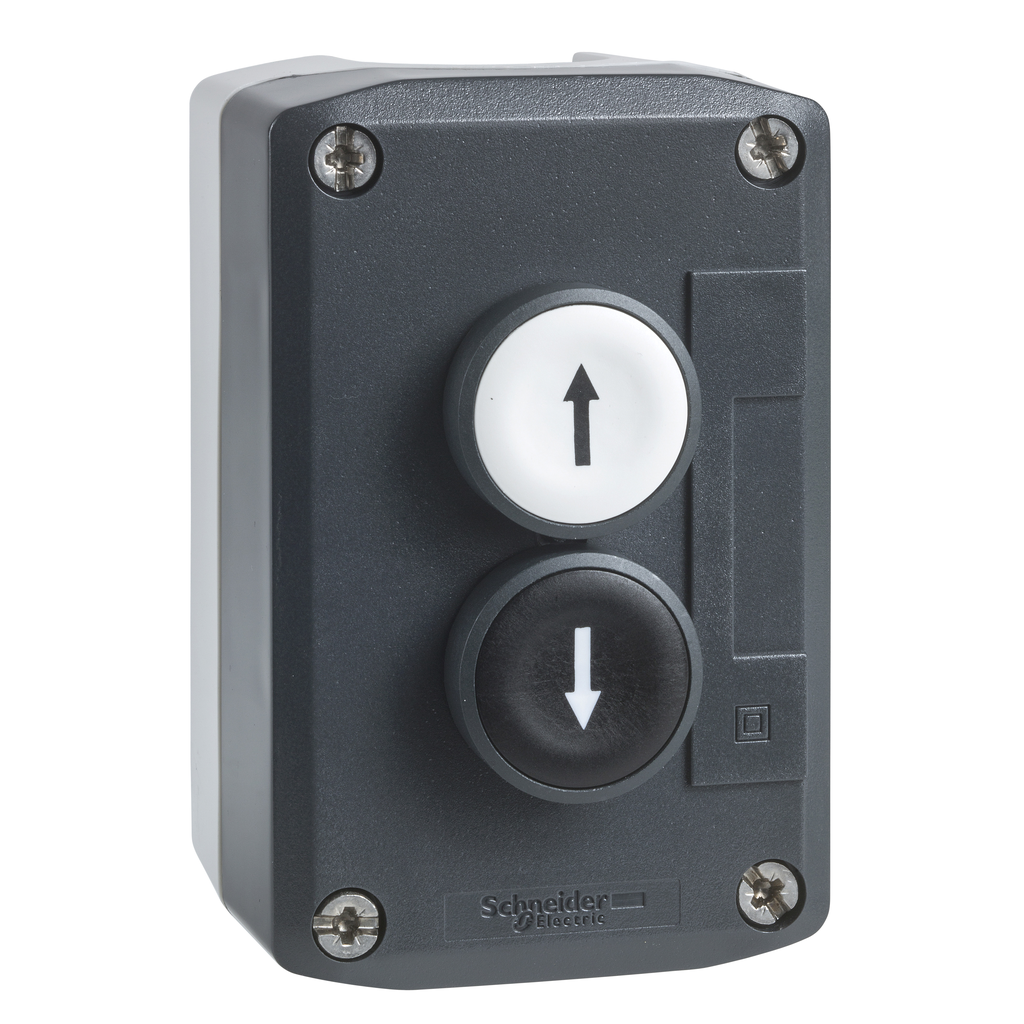

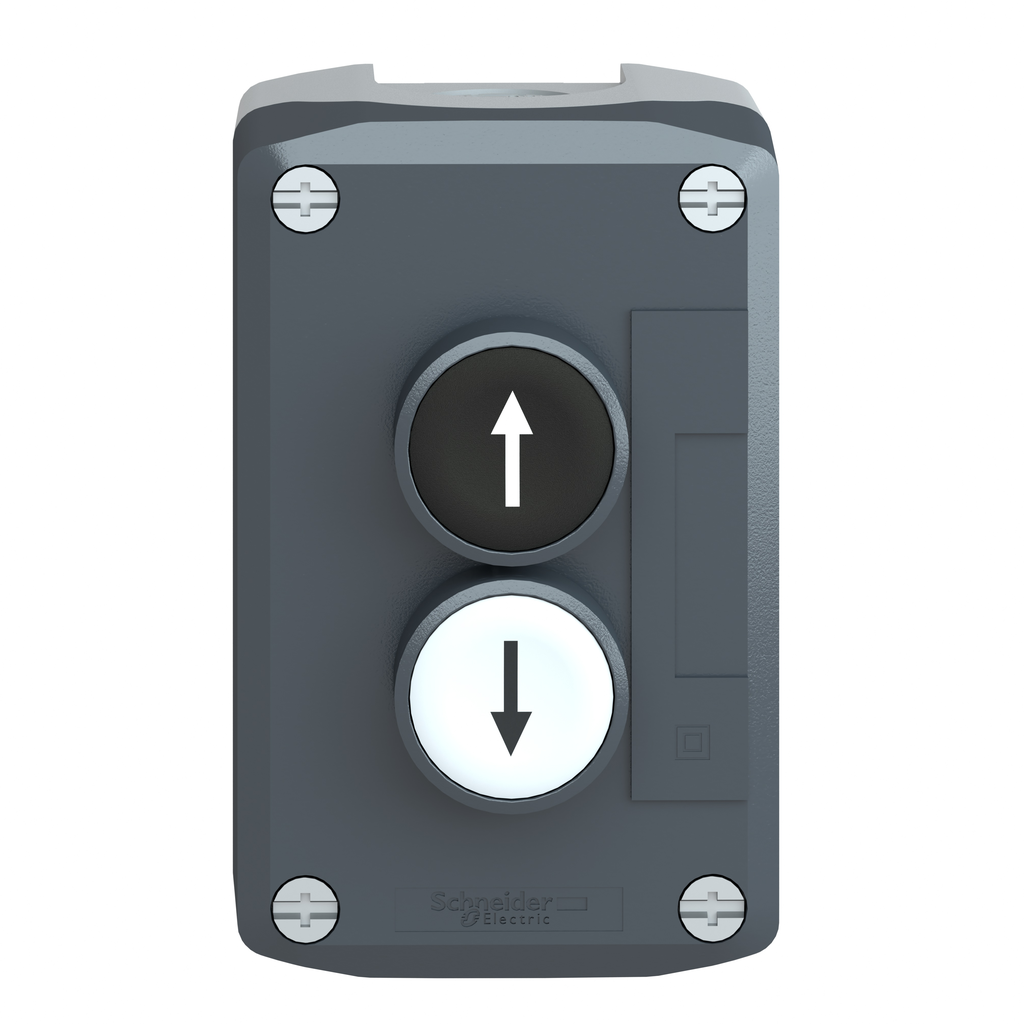

| Colour Of Marking : | black marking when white caps || white marking when green, red or black caps |
| Net Weight : | 0.233 kg |
| Shape Of Screw Head : | cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm |
| [Uimp] Rated Impulse Withstand Voltage : | 6 kV EN/IEC 60947-1 |
| Resistance To High Pressure Washer : | 7000000 Pa 55 °C 0.1 m |
