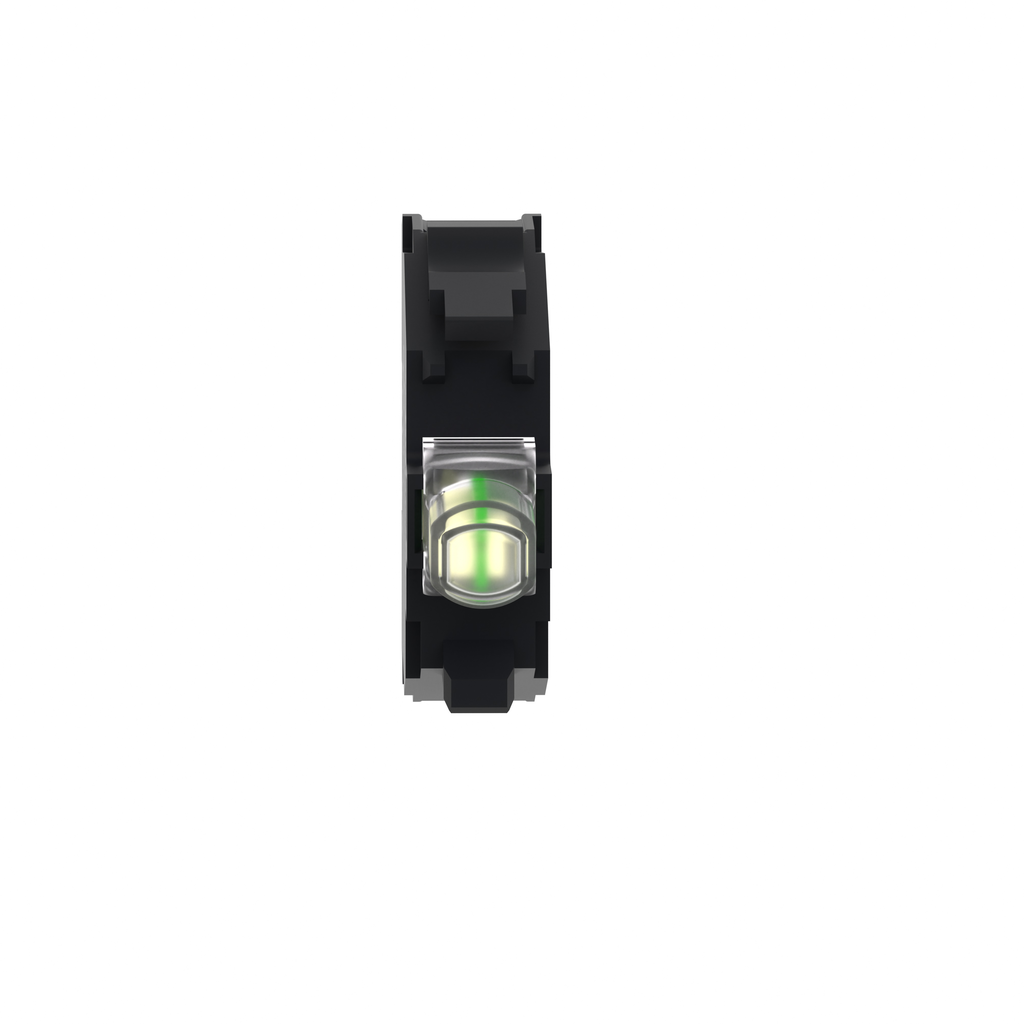

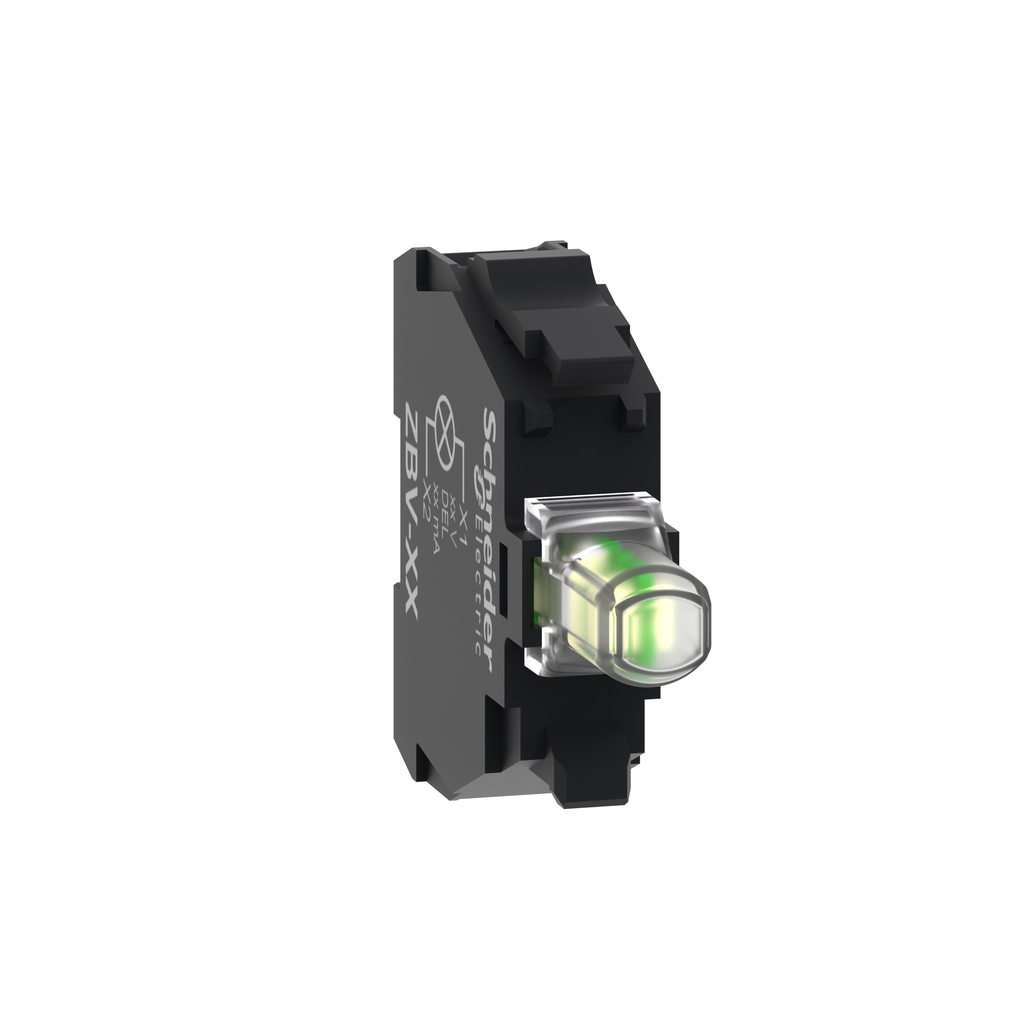

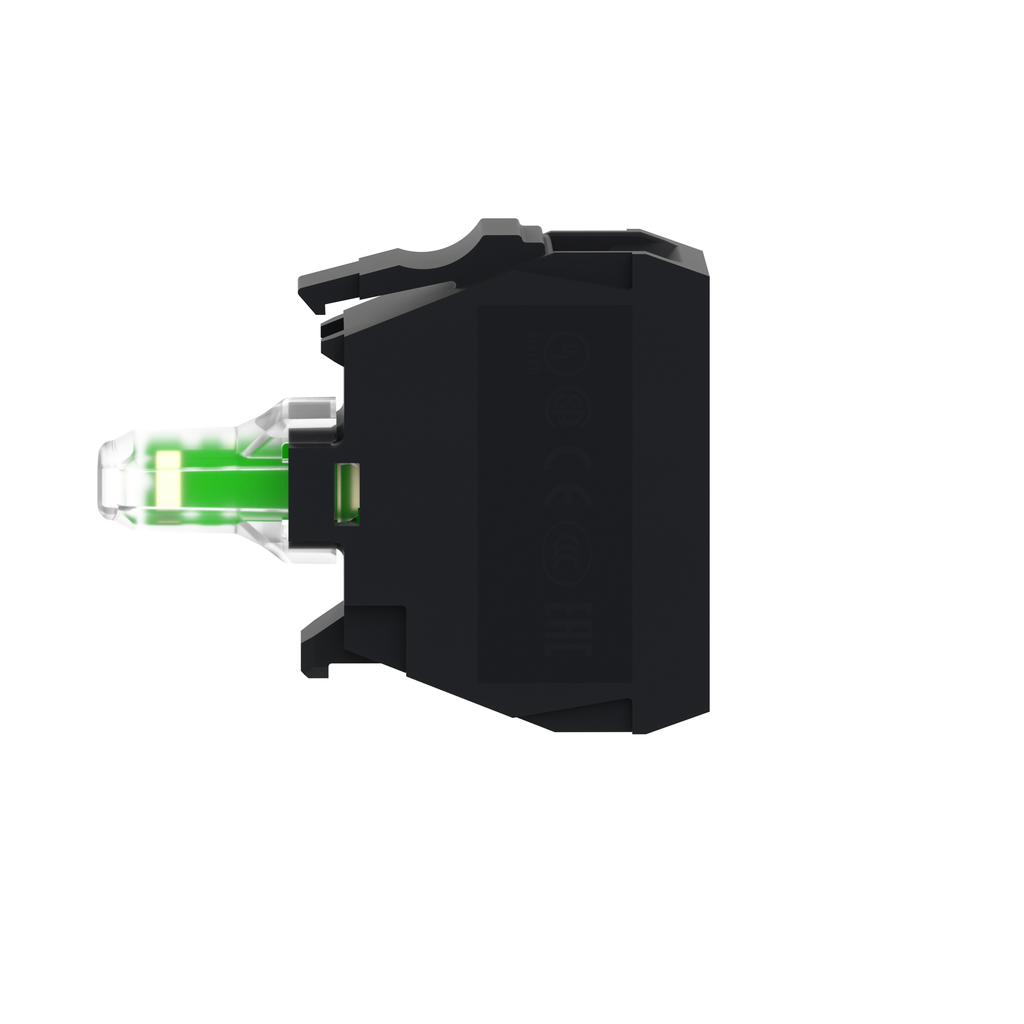

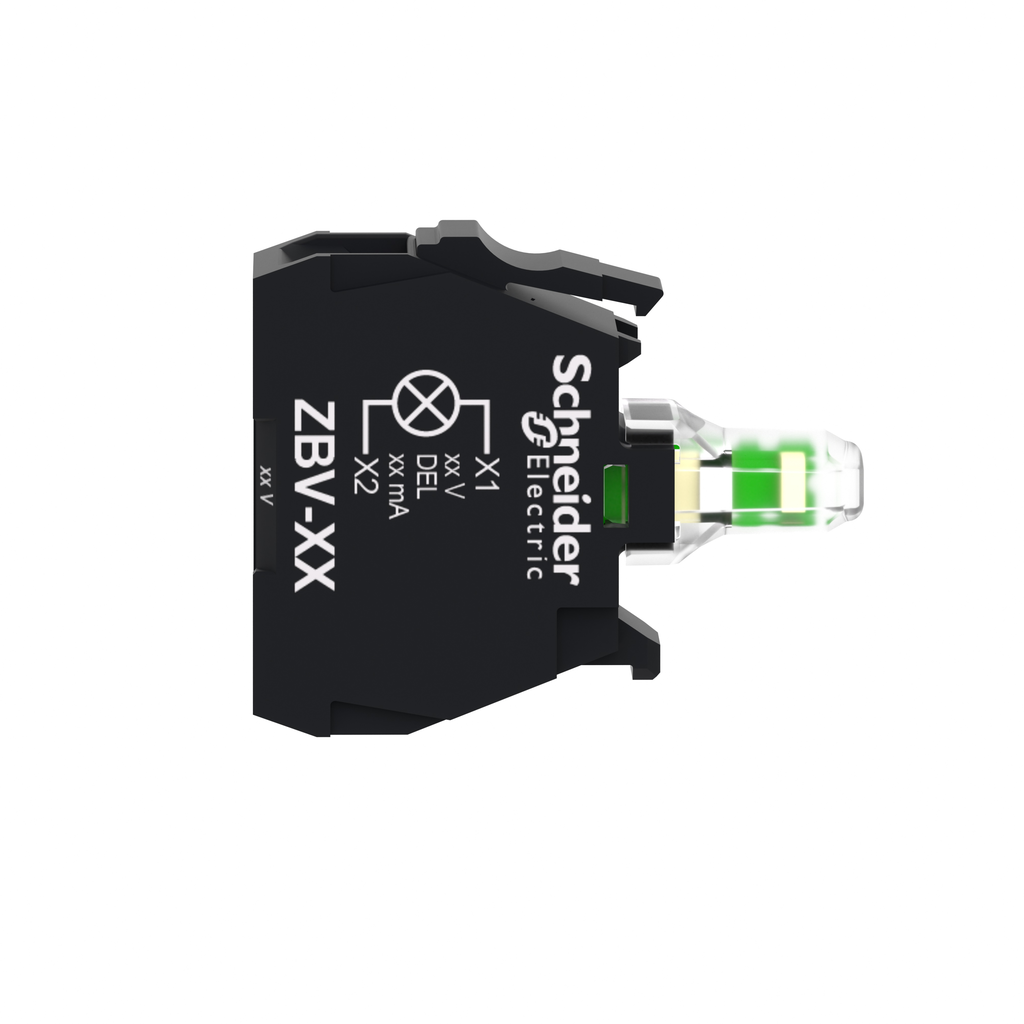

This Harmony ZB, XB5 white Light block operates with an integral LED. It is supplied with 24V AC/DC and uses screw clamp terminals. It has a plastic body. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It features high endurance LED lighting for less replacement and process downtimes. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Recommended tools
Environment
Product Certifications :
UL listed || CSA
[Us] Rated Supply Voltage :
24 V
Ambient Air Temperature For Operation :
-40-70 °C
Resistance To Electromagnetic Fields :
10 V/m IEC 61000-4-3
Standards :
JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-5 || IEC 60947-5-4 || UL 508 || JIS C8201-1
Ip Degree Of Protection :
IP20 IEC 60529
Ambient Air Temperature For Storage :
-40-70 °C
Resistance To Electrostatic Discharge :
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
