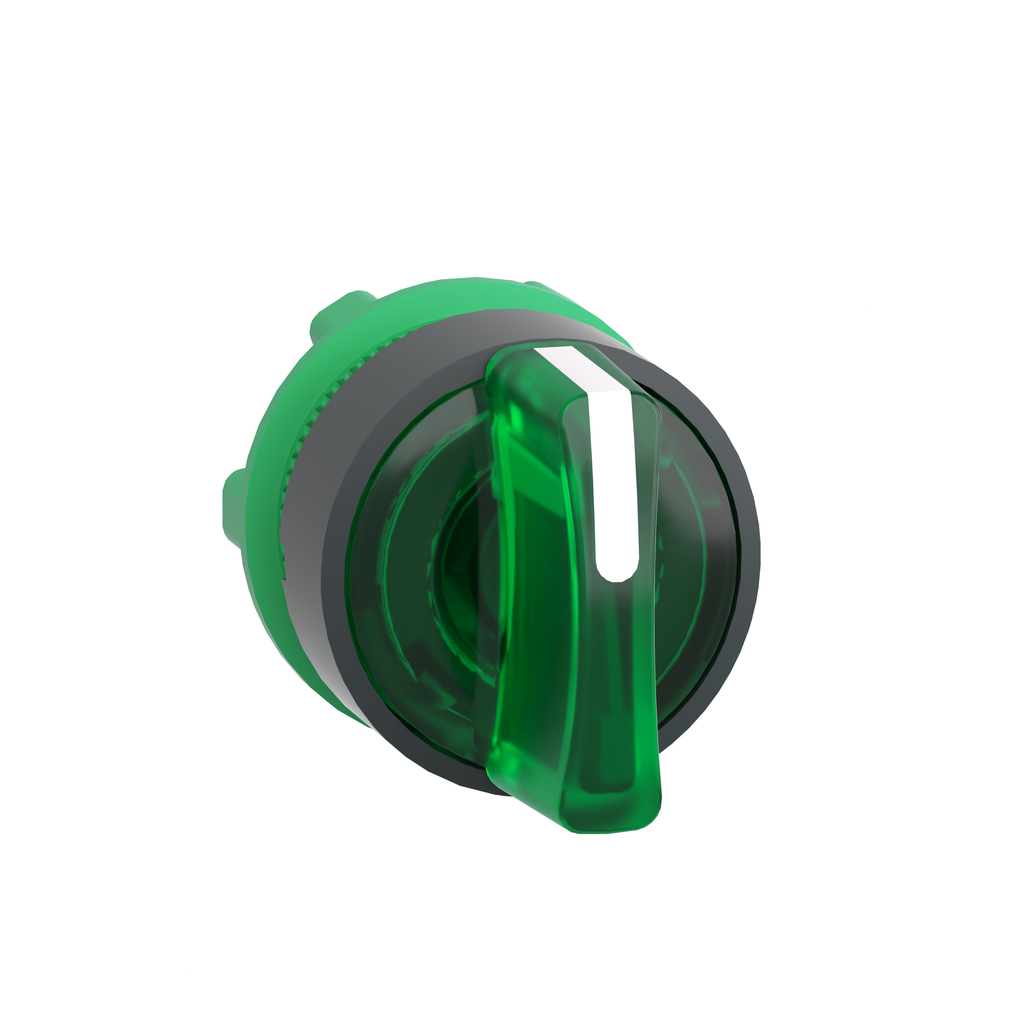

This green illuminated switch head for integral LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms. It offers a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It makes it ideal for operation in harsh environments.
Recommended tools
Environment
Product Certifications :
UL listed || CSA || LROS (Lloyds register of shipping) || GL || DNV || BV
Ik Degree Of Protection :
IK04 conforming to IEC 50102
Ambient Air Temperature For Operation :
-40-70 °C
Standards :
EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-5-5 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-1
Shock Resistance :
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc :
Yes
China Rohs Regulation :
X
Circularity Profile :
ENVEOLI1710010EN
Eu Rohs Directive :
Pro-active compliance (Product out of EU RoHS legal scope)
Important Information
Important Message :
A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Complementary
Electrical Composition Code :
M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M4 4 single and double front mounting integral LED
