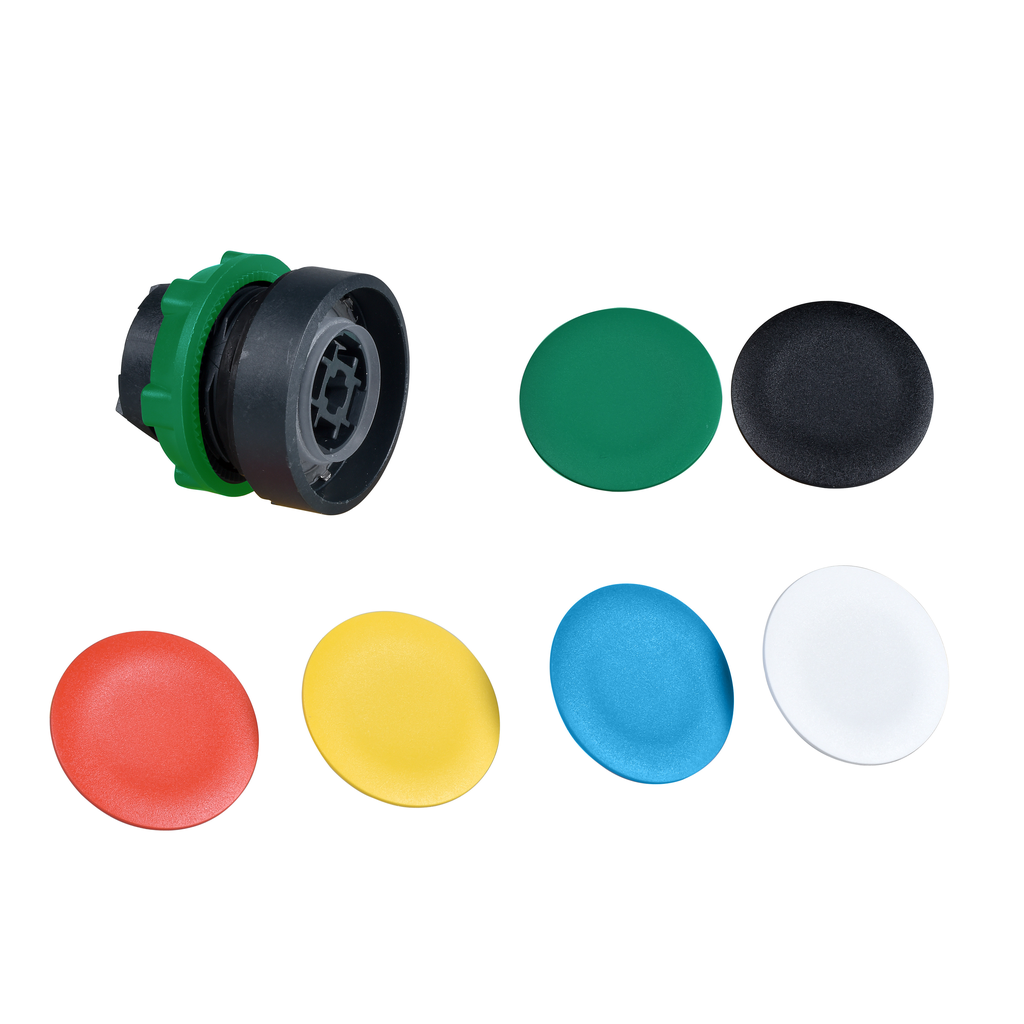

This Harmony XB5, flush head with unmarked caps set is supplied with 6 colored caps. This button head with set of colored caps provides 6 different cap colors for multi-purposes use in operation along with an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Recommended tools
Environment
Product Certifications :
BV || UL listed || GL || LROS (Lloyds register of shipping) || CSA || DNV
Ik Degree Of Protection :
IK03 conforming to IEC 50102
Ambient Air Temperature For Operation :
-40-70 °C
Standards :
IEC 60947-5-4 || JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || JIS C8201-1
Shock Resistance :
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc :
Yes
China Rohs Regulation :
X
Circularity Profile :
ENVEOLI1710010EN
Eu Rohs Directive :
Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
Electrical Composition Code :
C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
