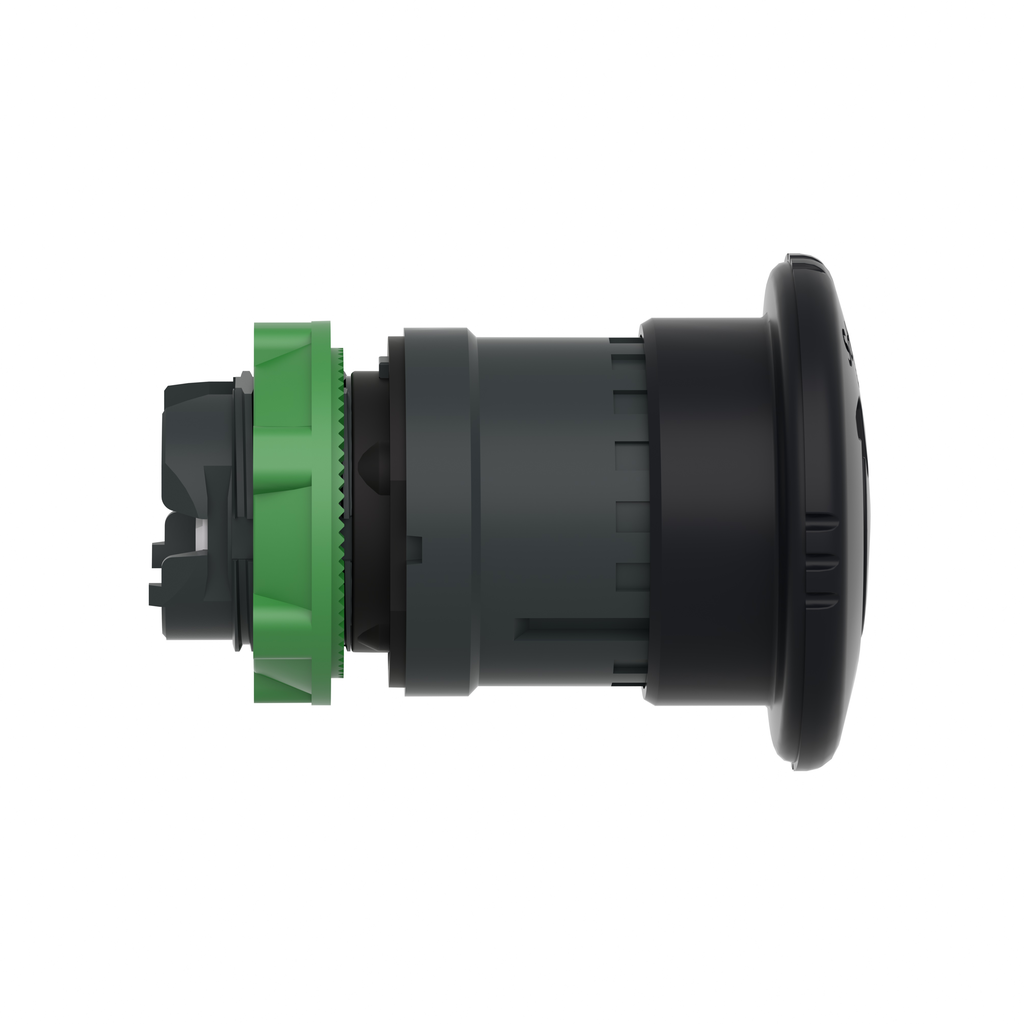

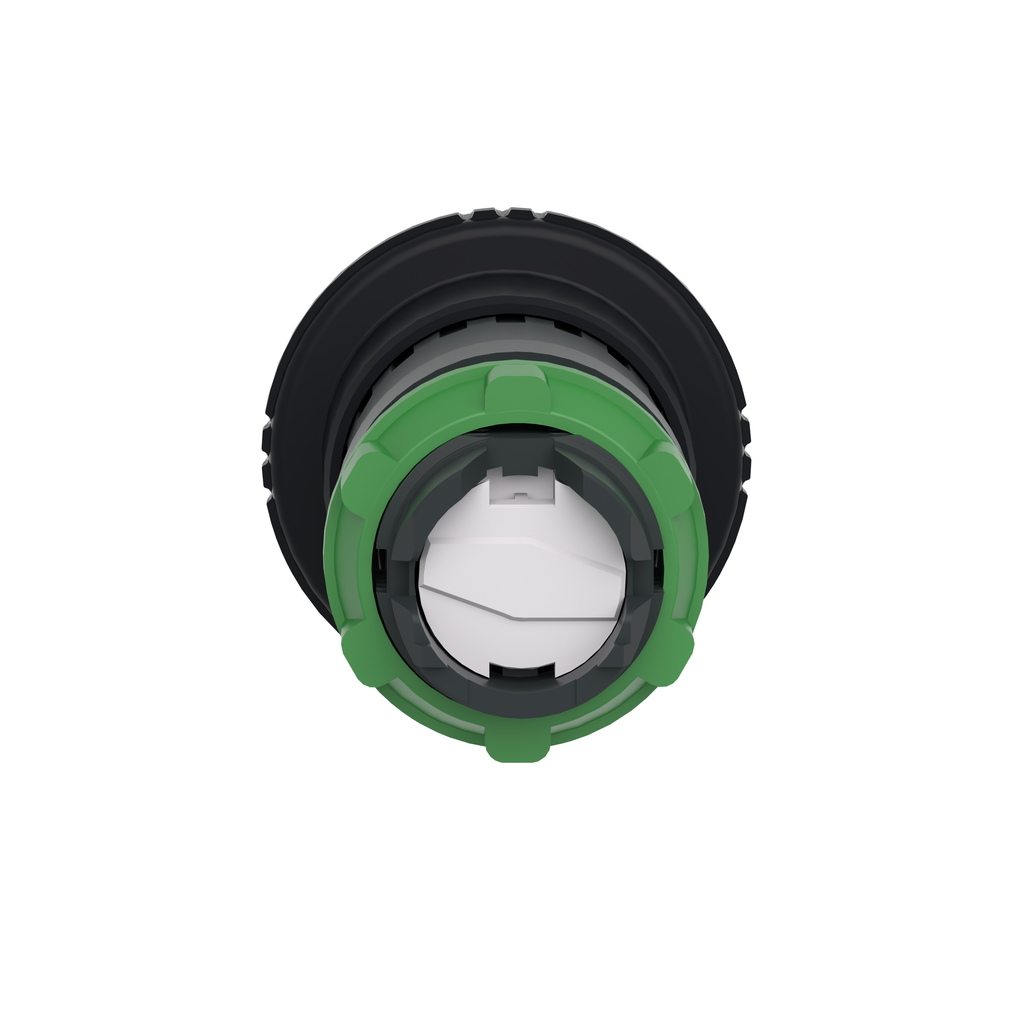

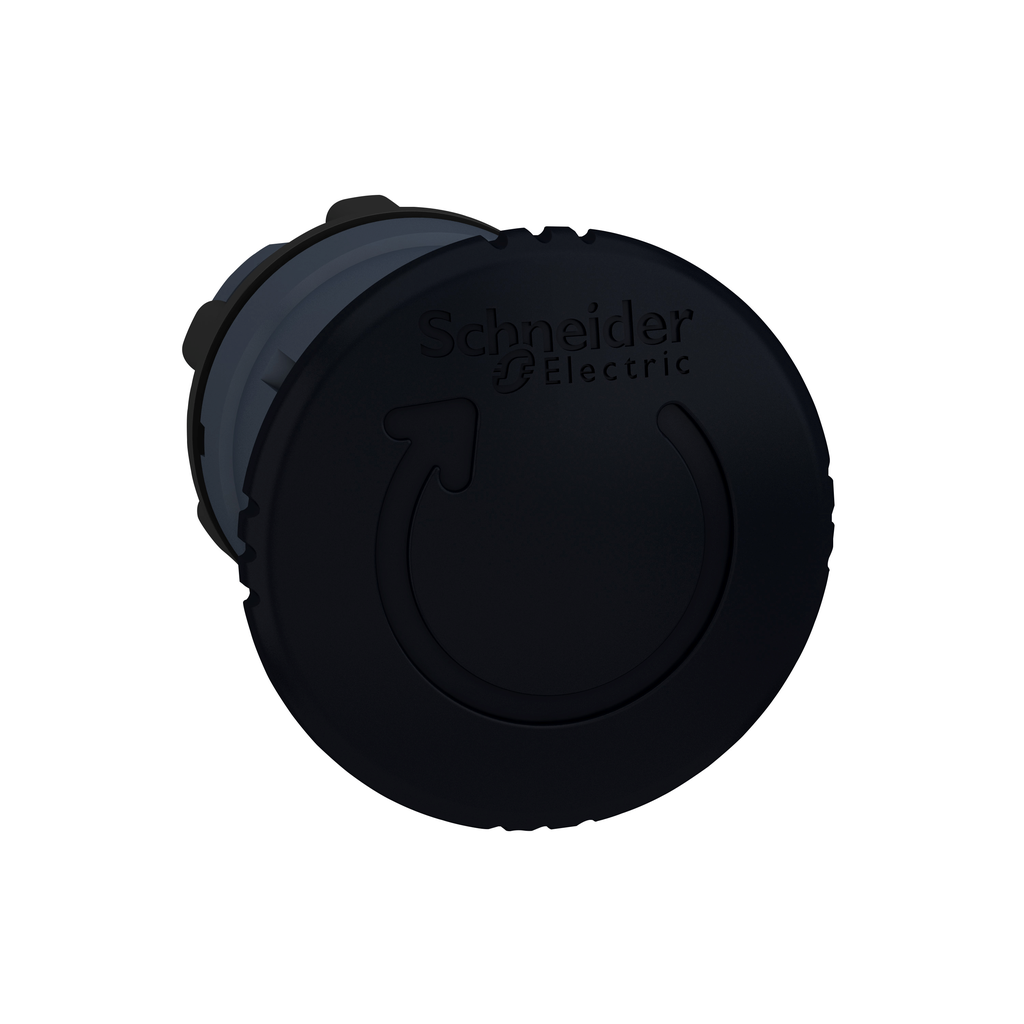

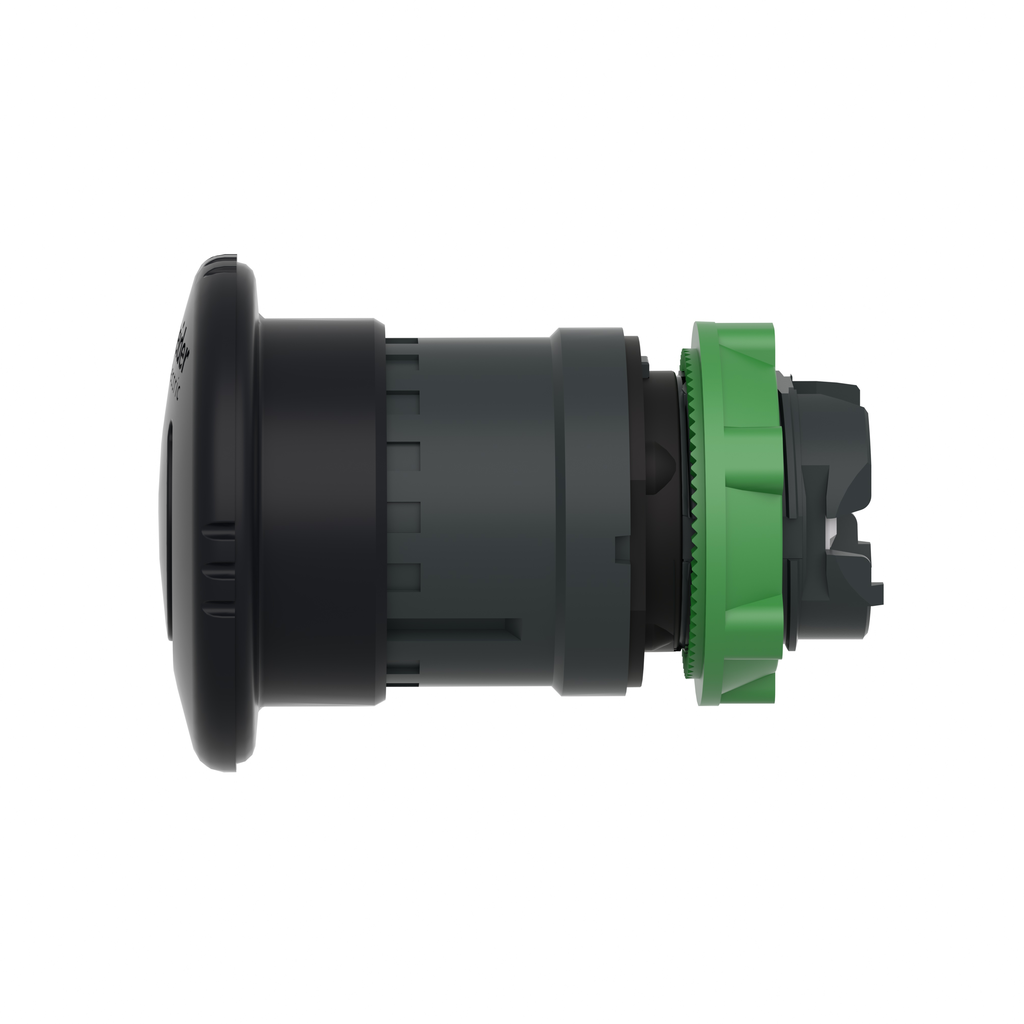

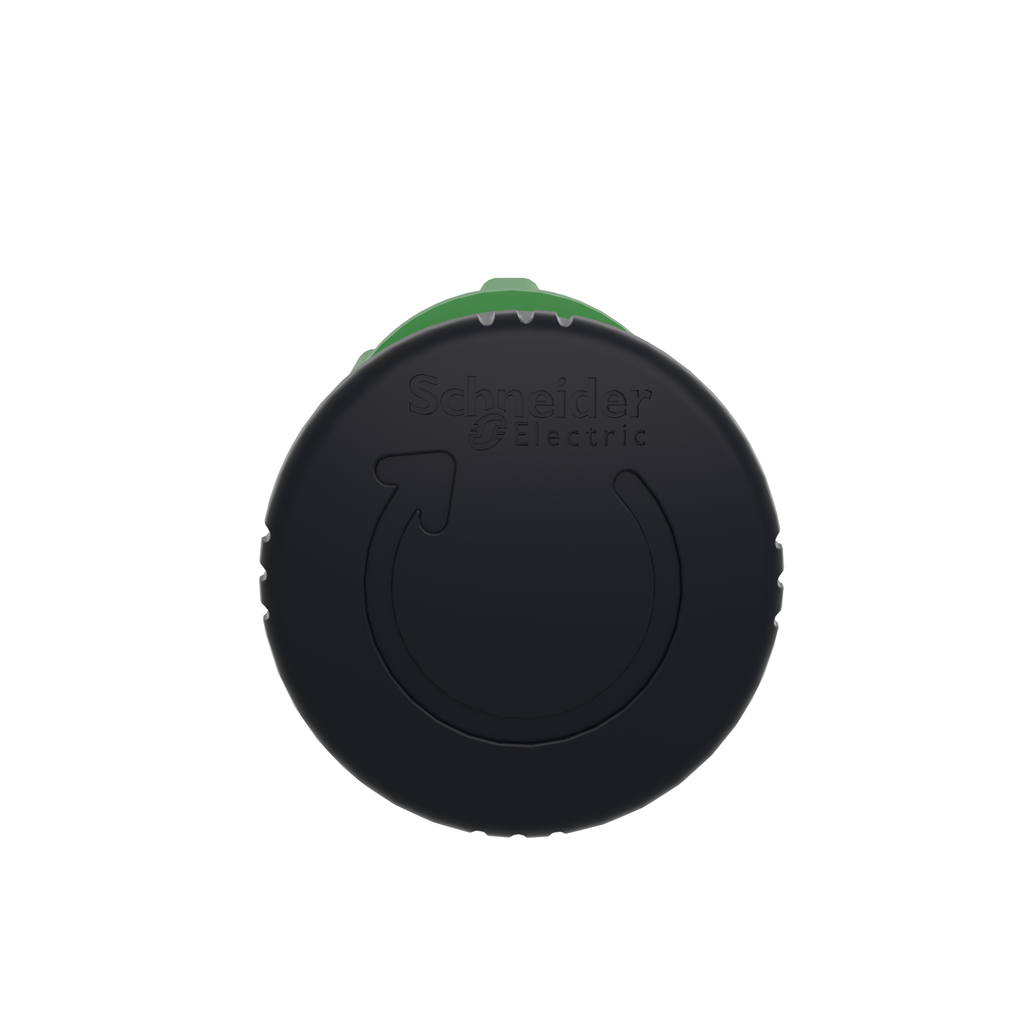

This black 40mm mushroom shaped push button head is ideal when quick actions are required. It fits for a process or machine to function correctly or where operator movements require highest ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Recommended tools
Environment
Product Certifications :
GL || DNV || LROS (Lloyds register of shipping) || UL listed || CSA || BV
Ik Degree Of Protection :
IK03 conforming to IEC 50102
Ambient Air Temperature For Operation :
-40-70 °C
Standards :
IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-4 || IEC 60947-1 || JIS C8201-5-1 || UL 508 || JIS C8201-1
Shock Resistance :
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc :
Yes
China Rohs Regulation :
X
Circularity Profile :
ENVEOLI1710010EN
Eu Rohs Directive :
Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
Electrical Composition Code :
C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C7 4 single front mounting || C8 4 single and double front mounting || C10 4 single and double front mounting
