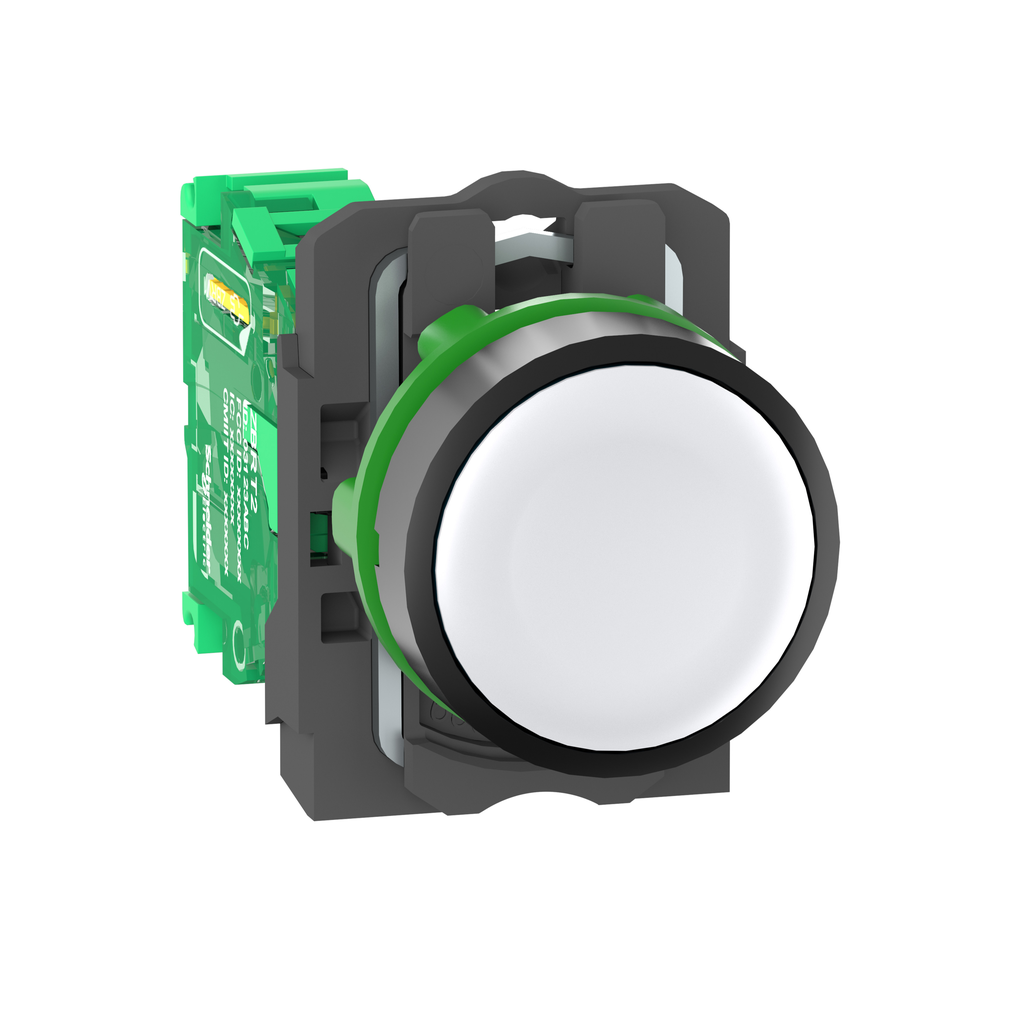

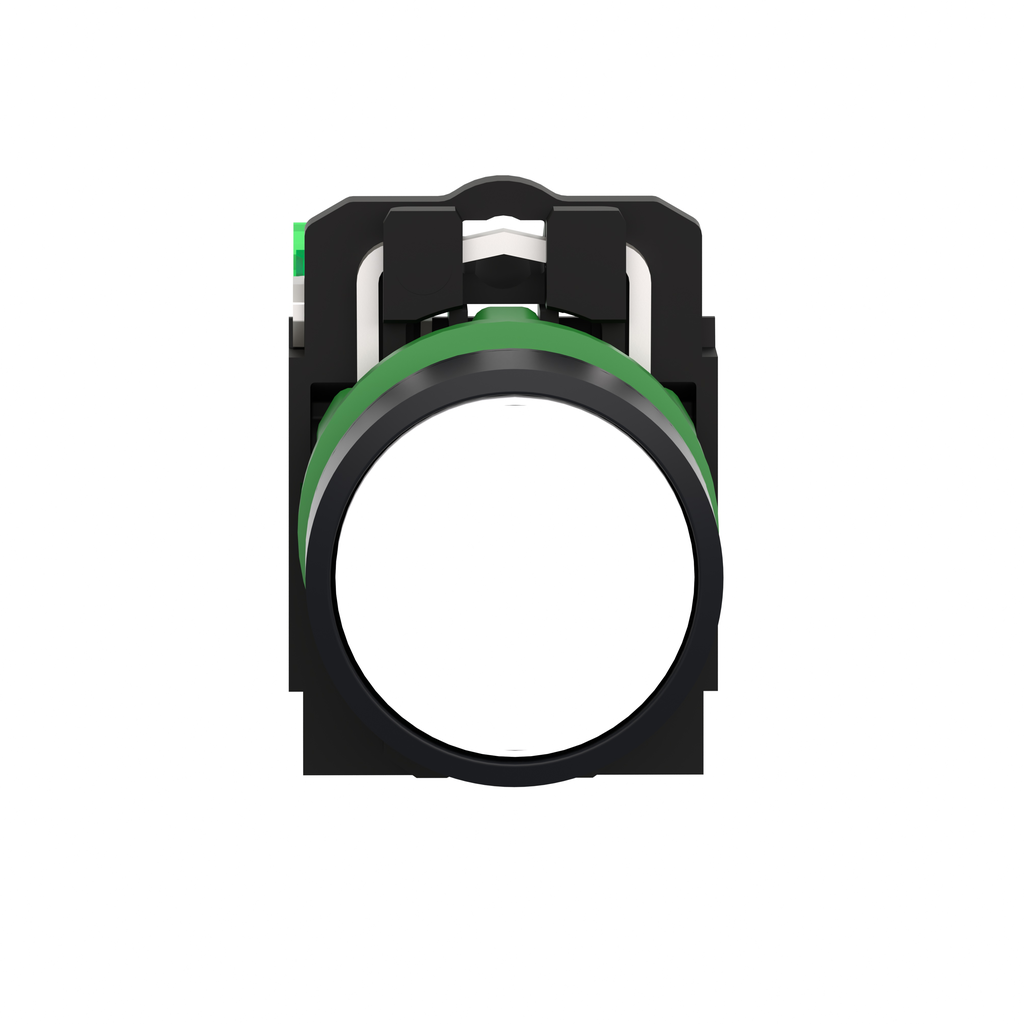

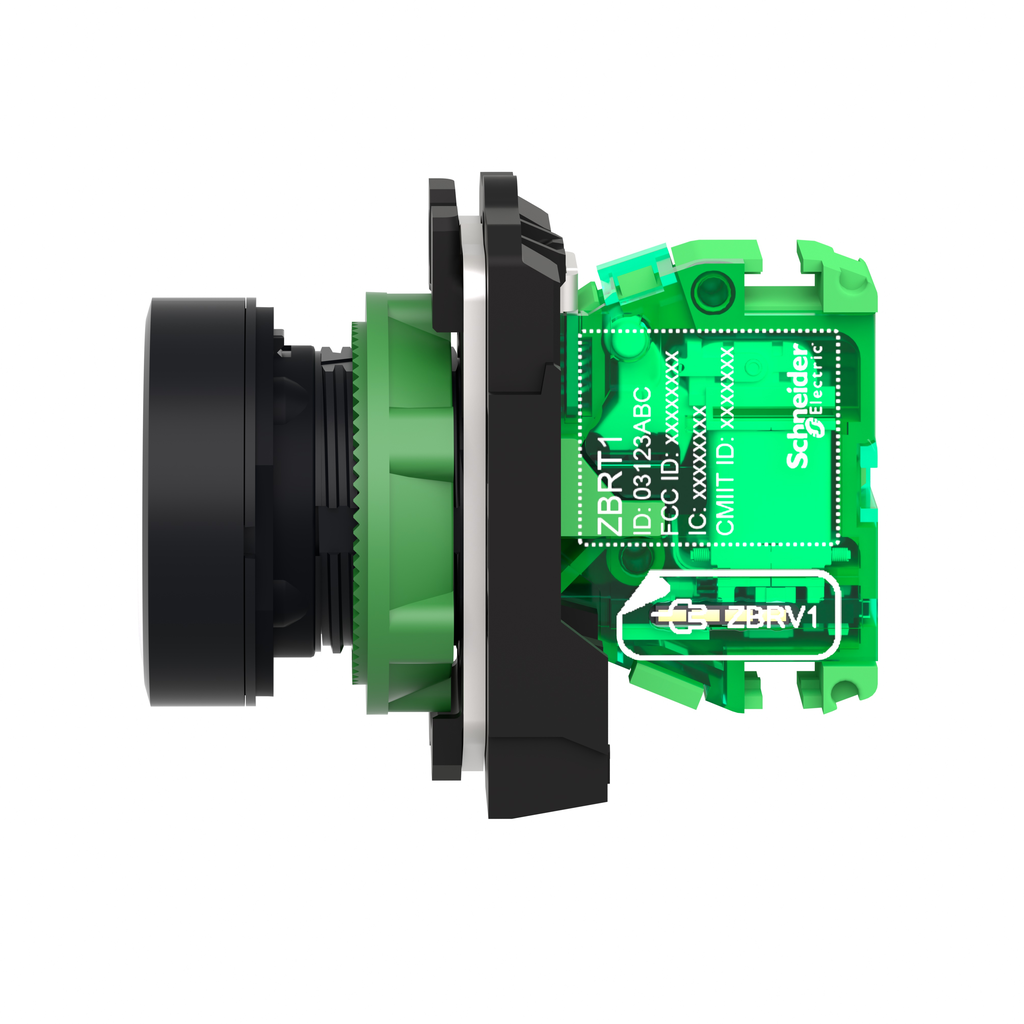

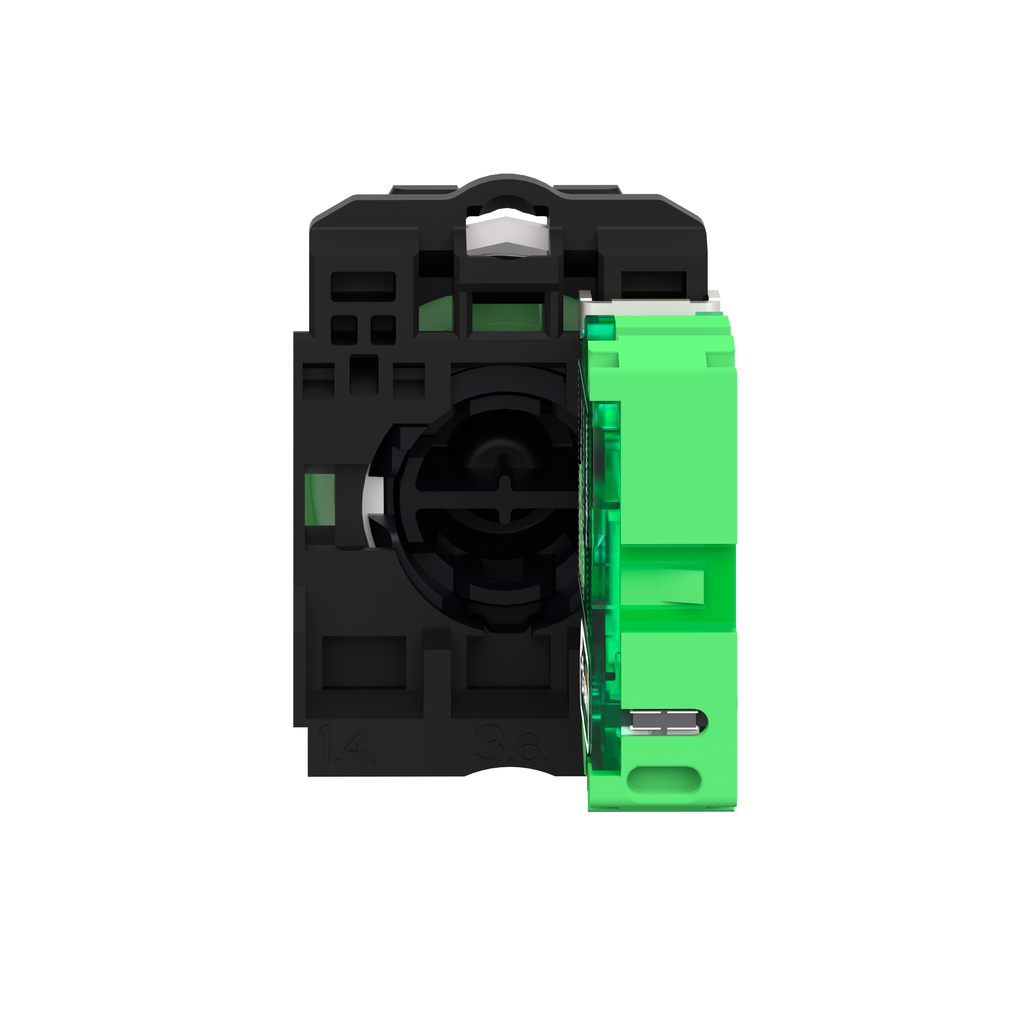

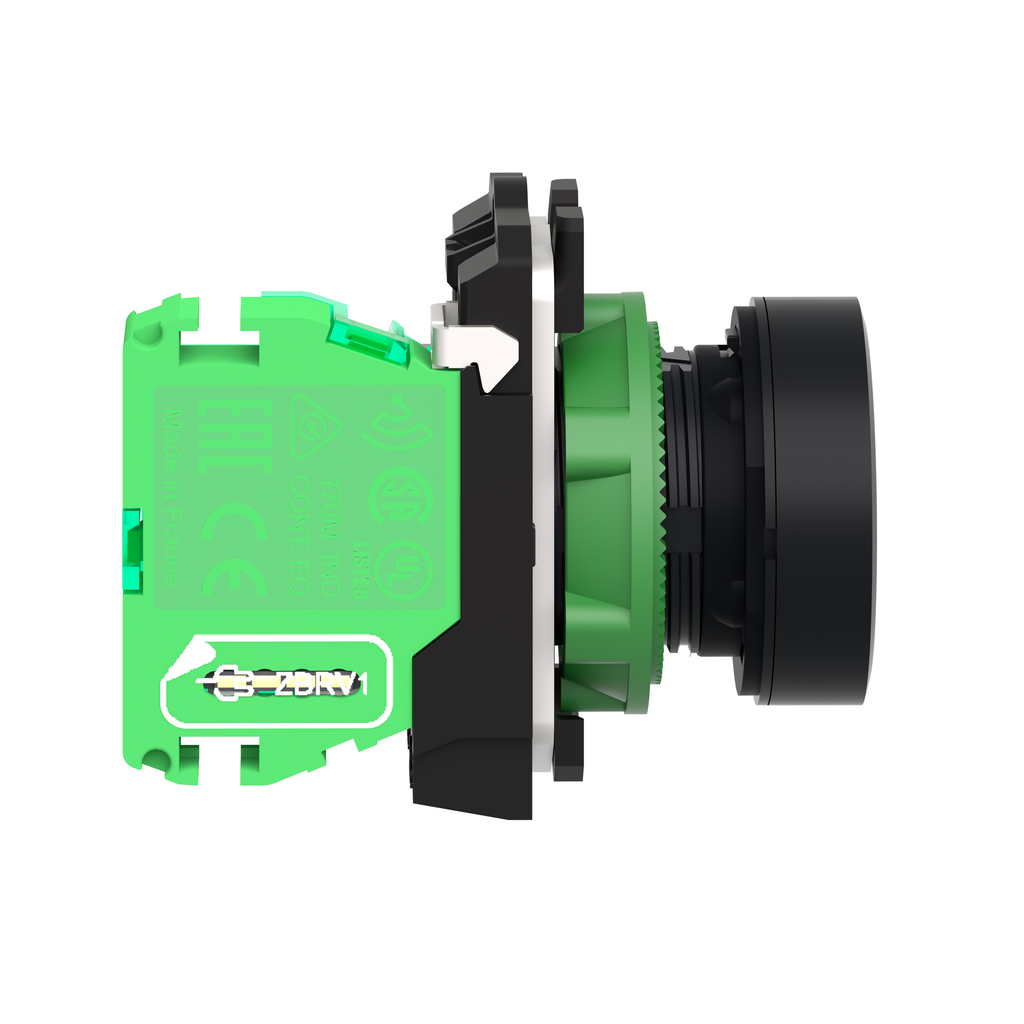

This wireless and batteryless push button is part of the range Harmony XB5R plastic and XB4R metal. It features a transmitter fitted with a fixing collar and a spring return flush push button head with white clipped-in cap. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. It weighs 45g.
Recommended tools
Environment
Product Certifications :
CSA || C-Tick || GOST || BT 2006/95/EC || UL
Ik Degree Of Protection :
IK03 conforming to IEC 50102
Ambient Air Temperature For Operation :
-40-70 °C
Electromagnetic Compatibility :
electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3 || susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3
Shock Resistance :
25 gn 6 ms) 6000 shocks IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance :
5 gn 11-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6
Ip Degree Of Protection :
IP66 IEC 60529 front face) || IP67 IEC 60529 front face) || IP69 IEC 60529 front face) || IP69K IEC 60529 front face)
Reference contains Substances of Very High Concern above the threshold
Weee :
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
China Rohs Regulation :
X
Circularity Profile :
ENVEOLI1103010EN
Eu Rohs Directive :
Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
Mechanical Robustness :
free fall resistance 1000 mm EN/IEC 60068-2-32
Operating Force :
10 N C/O changing electrical state
Modulation Technique :
O-QPSK
Standards :
CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || UL 508
Embedding Depth :
42 mm
Operating Travel :
4.3 mm total travel)
Fixing Mode :
fixing nut beneath head 2-2.4 N.m
Type Of Operator :
spring return push-button with transmitter
Electrical Composition Code :
PW1
Acquisition Time :
2 ms
Communication Port Protocol :
Zigbee green power 2.4 GHz IEEE 802.15.4
Shape Of Signaling Unit Head :
round
Response Time :
< 2 ms
Antenna Gain :
0 dBi
Net Weight :
0.045 kg
Cad Overall Height :
41.5 mm
Maximum Sensing Distance :
100 m in free field || 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure || 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
