Wireless push button and configurable receiver, Harmony XB5R, Harmony XB4, with 10 colored caps, metal, 22mm, 24...240V AC DC

Item ID #XB4RFA02

Schneider Electric

Wireless push button and configurable receiver, Harmony XB5R, Harmony XB4, with 10 colored caps, metal, 22mm, 24...240V AC DC

Name: Wireless push button and configurable receiver, Harmony XB5R, Harmony XB4, with 10 colored caps, metal, 22mm, 24...240V AC DC
Brand: Schneider Electric
SKU: XB4RFA02
Price: 369.00 CAD
Availability: OutOfStock

Item ID #XB4RFA02

Specifications

See all specifications

Product Certifications :	GOST \|\| CCC \|\| CSA \|\| UL \|\| C-Tick
Standards :	IEC 60947-1 \|\| IEC 60947-5-1 \|\| CSA C22.2 No 14 \|\| UL 508
Marking :	CE

Wireless and batteryless pushbuttons

EZ Selector

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

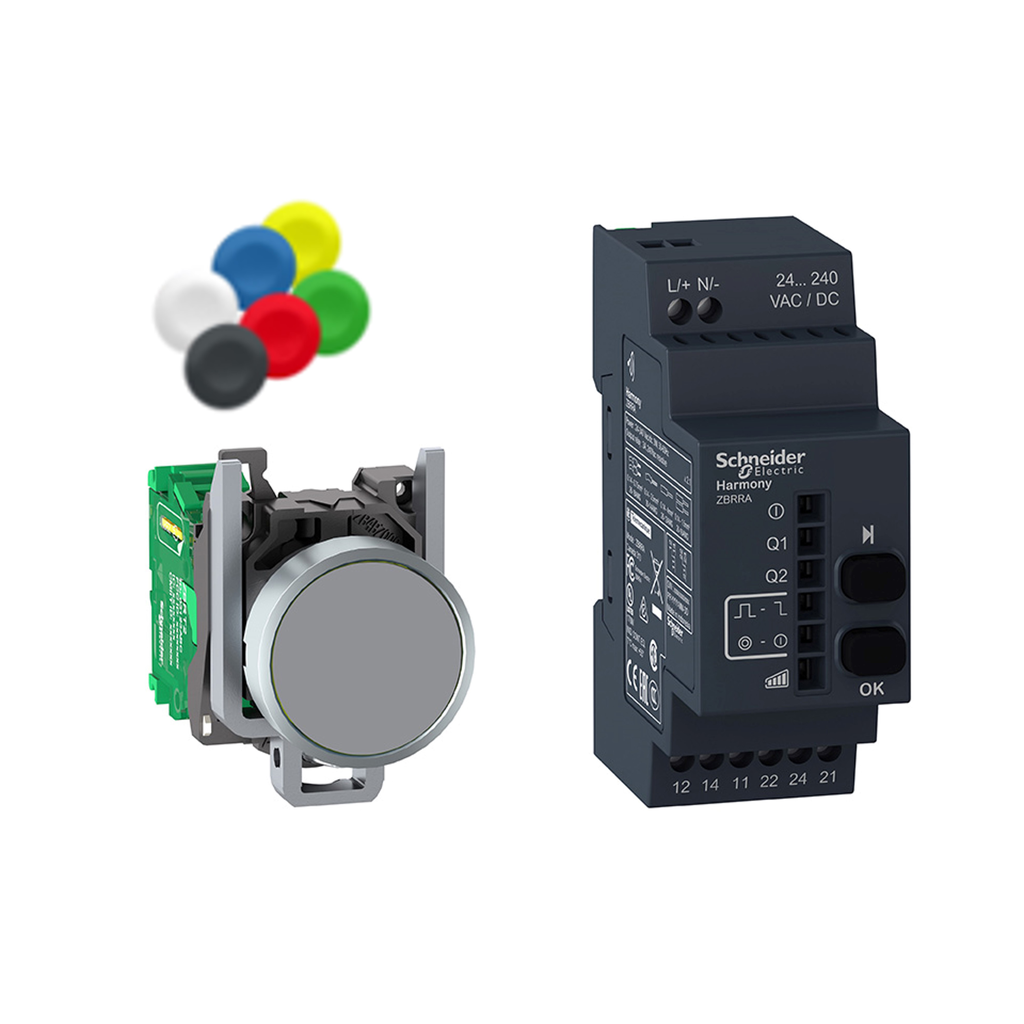

This Harmony XB4 flush wireless and batteryless push button and receiver unit set is supplied with a set of 10 colored caps and uses a 24V to 240V AC input. It has a metal bezel. This wireless batteryless push button provides a simple and reliable solution for remote control of machines, conveyors and cranes. The button is easily installed into standard 22mm diameter panel cut-outs, while the receiver is DIN rail mountable.

Recommended tools

Environment


Product Certifications :	GOST \|\| CCC \|\| CSA \|\| UL \|\| C-Tick
Standards :	IEC 60947-1 \|\| IEC 60947-5-1 \|\| CSA C22.2 No 14 \|\| UL 508
Marking :	CE
Radio Agreement :	ANATEL \|\| FCC \|\| RSS \|\| ARIB T66 \|\| ICASA \|\| SRRC

Description
Resources
Specifications

Wireless push button and configurable receiver, Harmony XB5R, Harmony XB4, with 10 colored caps, metal, 22mm, 24...240V AC DC

Item ID #XB4RFA02

Schneider Electric

Wireless push button and configurable receiver, Harmony XB5R, Harmony XB4, with 10 colored caps, metal, 22mm, 24...240V AC DC

Item ID #XB4RFA02

Wireless push button and configurable receiver, Harmony XB5R, Harmony XB4, with 10 colored caps, metal, 22mm, 24...240V AC DC

Specifications

See all specifications

Product Certifications :	GOST \|\| CCC \|\| CSA \|\| UL \|\| C-Tick
Standards :	IEC 60947-1 \|\| IEC 60947-5-1 \|\| CSA C22.2 No 14 \|\| UL 508
Marking :	CE

Wireless and batteryless pushbuttons

EZ Selector

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

Recommended tools

Environment


Product Certifications :	GOST \|\| CCC \|\| CSA \|\| UL \|\| C-Tick
Standards :	IEC 60947-1 \|\| IEC 60947-5-1 \|\| CSA C22.2 No 14 \|\| UL 508
Marking :	CE
Radio Agreement :	ANATEL \|\| FCC \|\| RSS \|\| ARIB T66 \|\| ICASA \|\| SRRC


Rohs Exemption Information :	Yes
Mercury Free :	Yes
Reach Regulation :	Reference contains Substances of Very High Concern above the threshold
Weee :	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
China Rohs Regulation :	X
Circularity Profile :	N/A
Eu Rohs Directive :	Pro-active compliance (Product out of EU RoHS legal scope)


[Us] Rated Supply Voltage :	24...240 V
[Us] Rated Supply Voltage :	24...240 V AC/DC 50/60 Hz
Control Type :	wireless and batteryless push-button Ø 22 mm assembled on fixing collar
Modulation Technique :	O-QPSK
Status Led :	1 LED green power ON \|\| 2 LEDs green relay ON \|\| 2 LEDs green function mode \|\| 1 LED green and yellow reception signal
Kit Composition :	1 22 mm \|\| 1 push-button head 22 mm \|\| 1 receiver \|\| 1 set of caps \|\| 1 fixing collars \|\| 1 transmitter
Communication Port Protocol :	Zigbee IEEE 802.15.4
Antenna Gain :	0 dBi
Max Power Consumption In W :	1 mW
Number Of Channels :	1
Type Of Receiver :	programmable receiver 2 relays)
Compatibility Code :	XB4R
Customizable :	no
Bandwidth :	5-5 MHz


Antenna Type :	omnidirectional
Range Of Product :	Harmony XB4R
Product Or Component Type :	wireless and batteryless package
Head Material :	metal
Level Or Class :	5M00G7W
Device Short Name :	XB4R
Transmission Frequency :	2405 MHz transmitter \|\| 2405 MHz receiver
