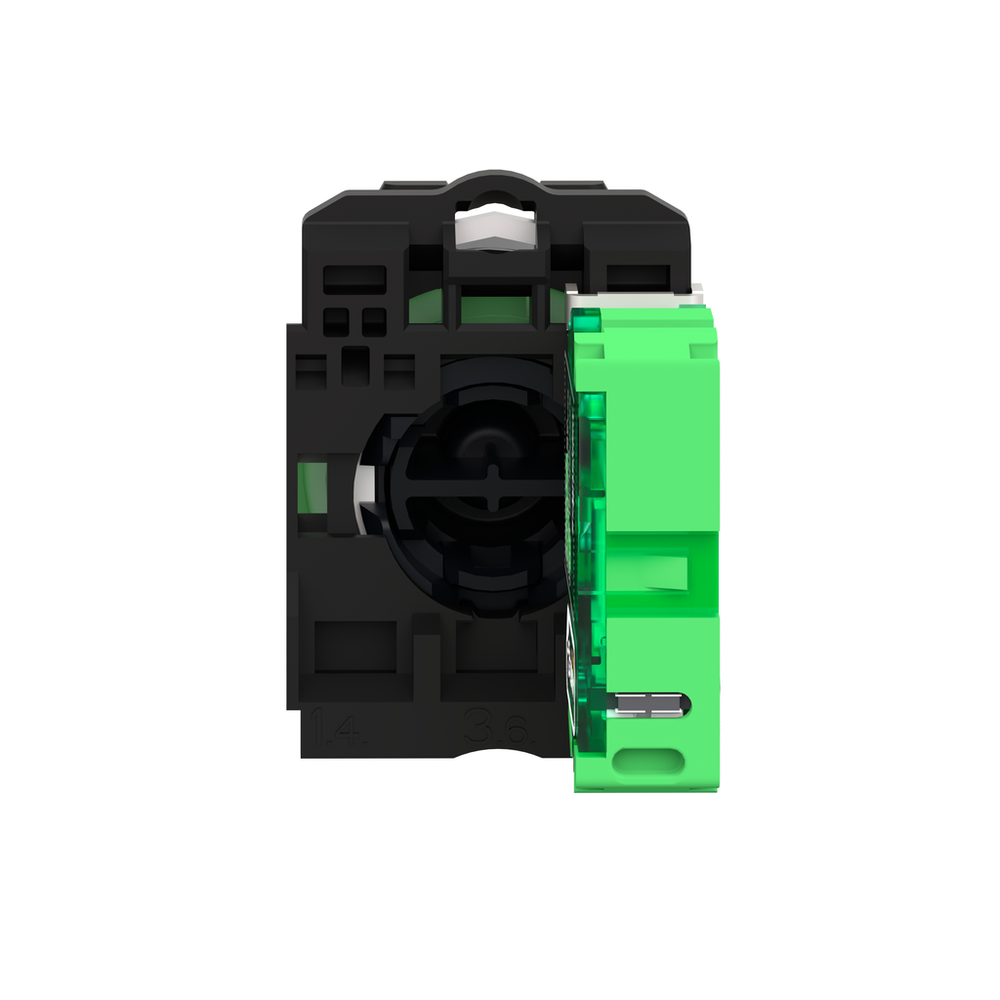

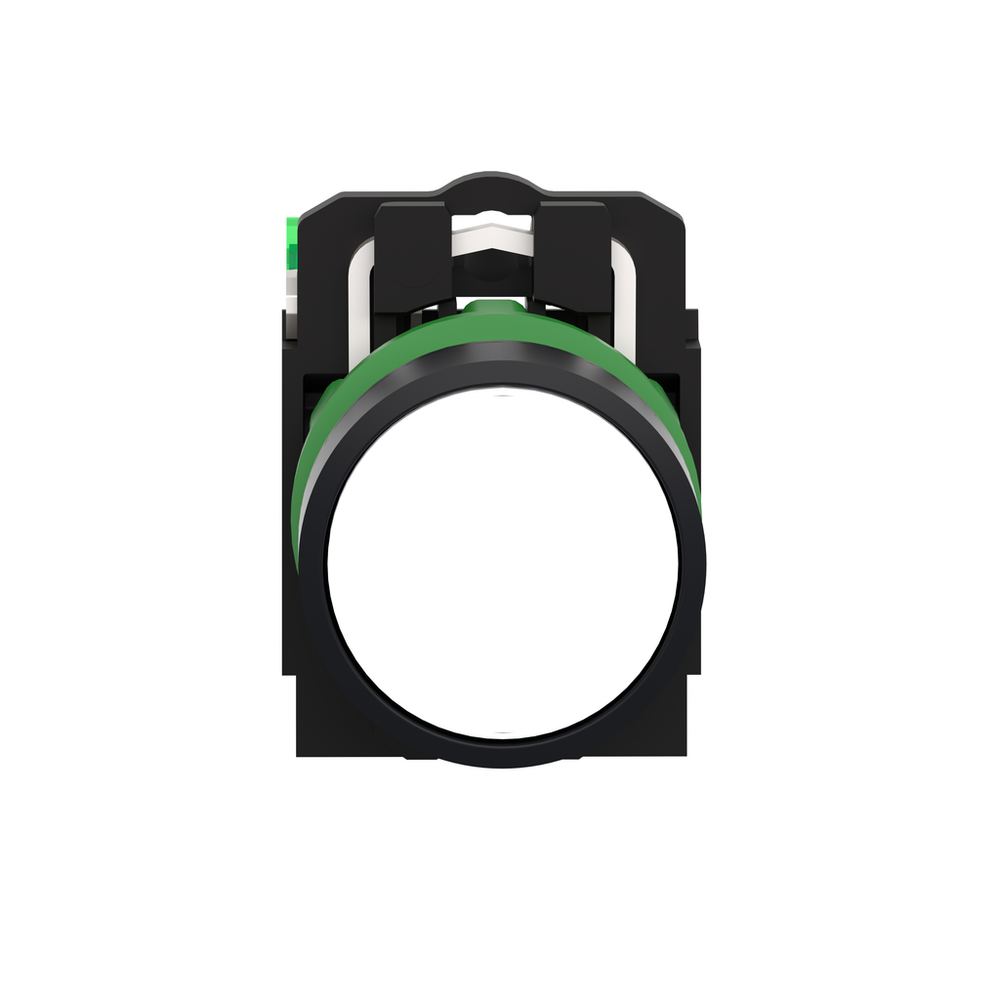

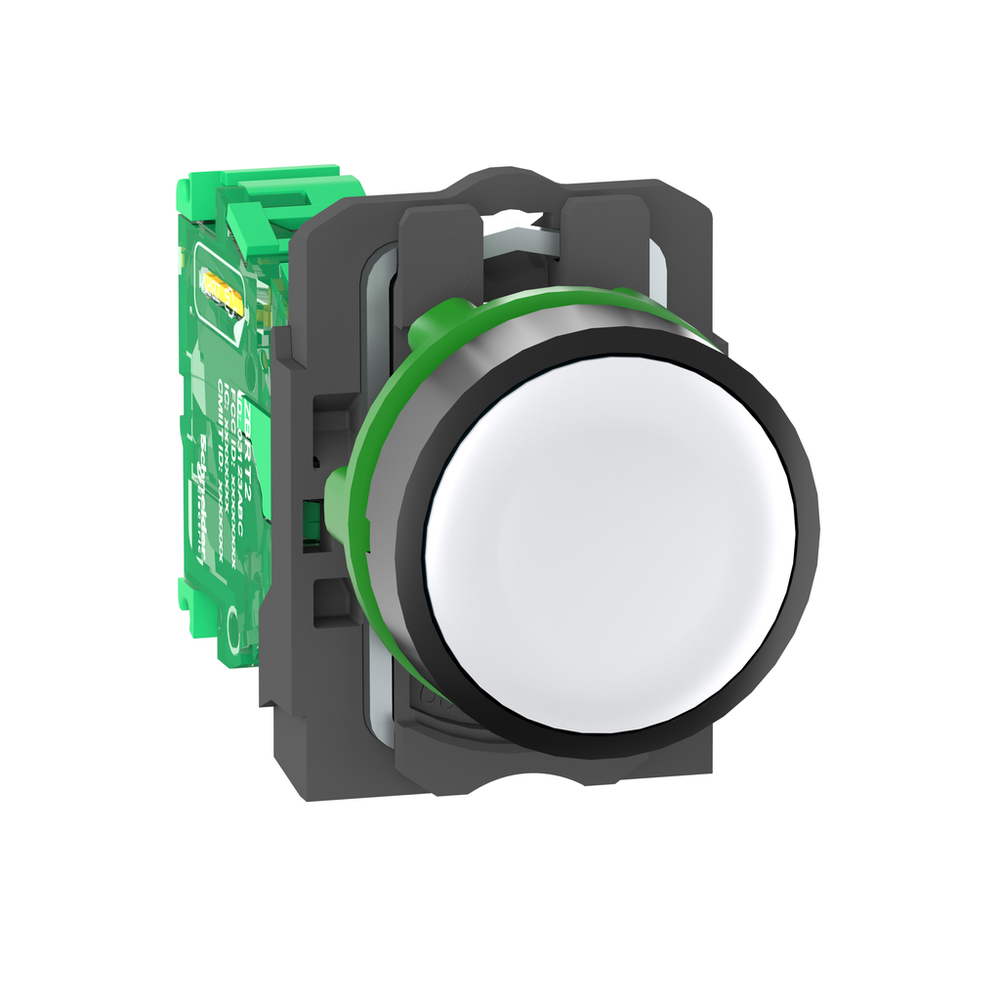

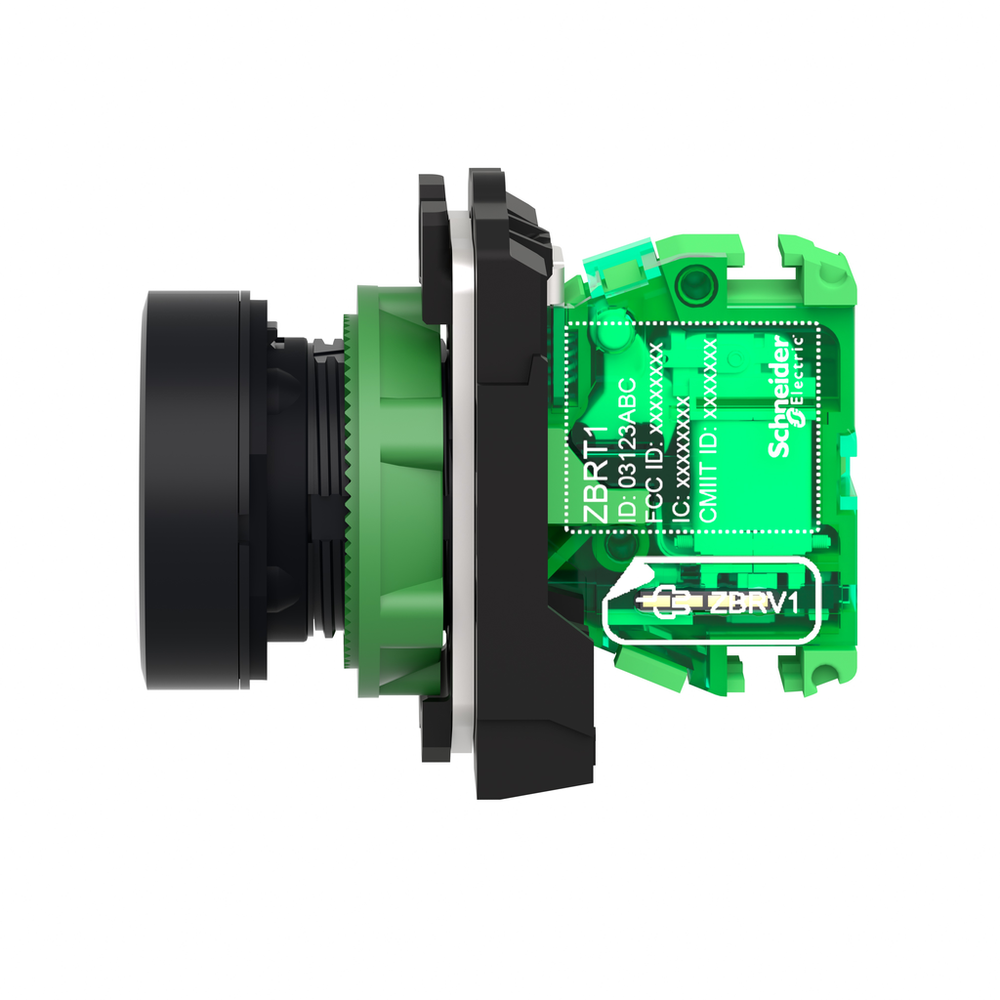

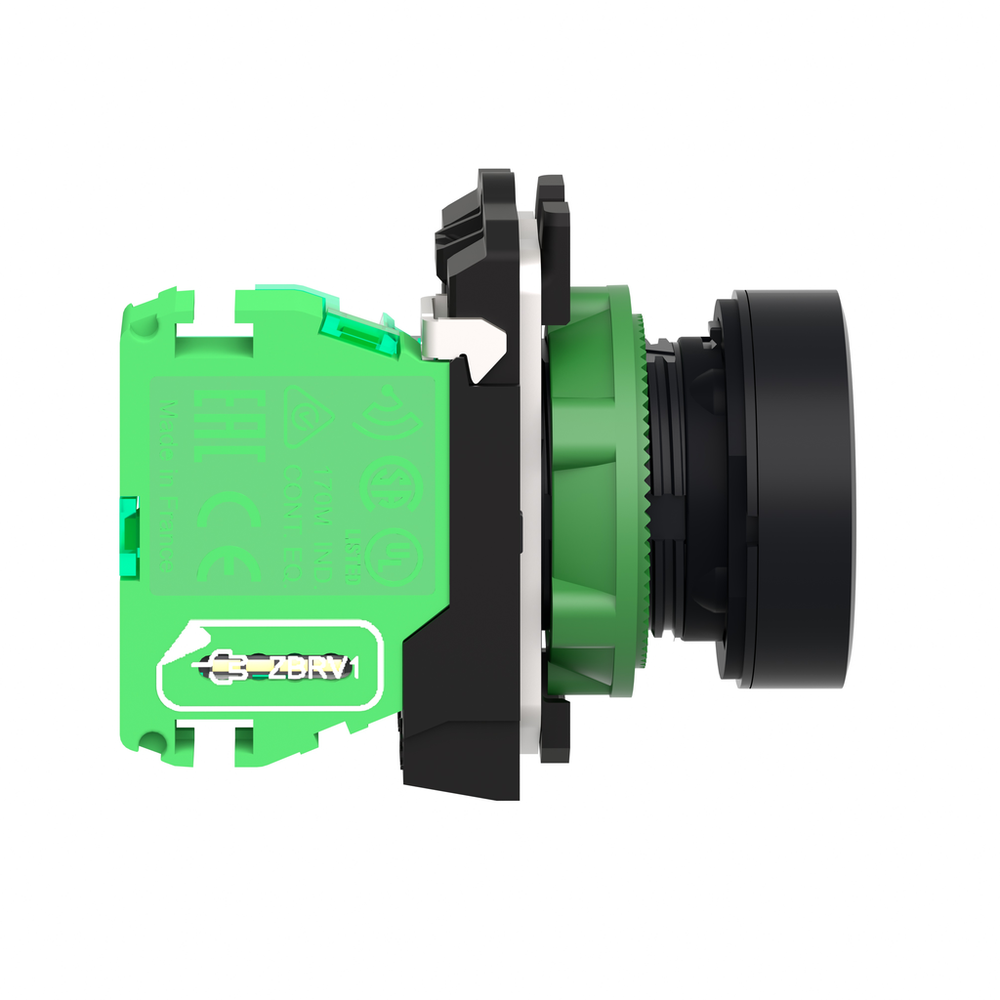

Wireless and batteryless transmitter, Harmony XB5R, push button, plastic, white, 22mm, spring return

Item ID #ZB5RTA1

Schneider Electric

Wireless and batteryless transmitter, Harmony XB5R, push button, plastic, white, 22mm, spring return

Name: Wireless and batteryless transmitter, Harmony XB5R, push button, plastic, white, 22mm, spring return
Brand: Schneider Electric
SKU: ZB5RTA1
Price: 152.00 CAD
Availability: OutOfStock

Item ID #ZB5RTA1

AUTOMATE - BUY - RECEIVE

Promo Schneider

Receive a $25 Visa prepaid card for every $500 increment of automation products.

Web only

Wireless and batteryless transmitter, Harmony XB5R, push button, plastic, white, 22mm, spring return

Specifications

See all specifications

Product Certifications :	CSA \|\| C-Tick \|\| GOST \|\| BT 2006/95/EC \|\| UL
Ik Degree Of Protection :	IK03 conforming to IEC 50102
Ambient Air Temperature For Operation :	-40-70 °C

EZ Selector

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

This wireless and batteryless push button is part of the range Harmony XB5R plastic and XB4R metal. It features a transmitter fitted with a fixing collar and a spring return flush push button head with white clipped-in cap. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. It weighs 45g.

Recommended tools

Environment


Product Certifications :	CSA \|\| C-Tick \|\| GOST \|\| BT 2006/95/EC \|\| UL
Ik Degree Of Protection :	IK03 conforming to IEC 50102
Ambient Air Temperature For Operation :	-40-70 °C
Electromagnetic Compatibility :	electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 \|\| electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 \|\| susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3 \|\| susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3
Shock Resistance :	25 gn 6 ms) 6000 shocks IEC 60068-2-27 \|\| 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 \|\| 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance :	5 gn 11-500 Hz)IEC 60068-2-6 \|\| +/- 10 mm 2-11 Hz)IEC 60068-2-6
Ip Degree Of Protection :	IP66 IEC 60529 front face) \|\| IP67 IEC 60529 front face) \|\| IP69 IEC 60529 front face) \|\| IP69K IEC 60529 front face)
Directives :	1999/5/EC - R&TTE directive \|\| 2004/108/EC - electromagnetic compatibility
Ambient Air Temperature For Storage :	-40-70 °C
Relative Humidity :	95-95 % -40-70 °C without condensation
Mechanical Durability :	1000000 cycles

Description
Resources
Specifications

Wireless and batteryless transmitter, Harmony XB5R, push button, plastic, white, 22mm, spring return

Item ID #ZB5RTA1

Schneider Electric

Wireless and batteryless transmitter, Harmony XB5R, push button, plastic, white, 22mm, spring return

Item ID #ZB5RTA1

AUTOMATE - BUY - RECEIVE

Promo Schneider

Receive a $25 Visa prepaid card for every $500 increment of automation products.

Web only

Wireless and batteryless transmitter, Harmony XB5R, push button, plastic, white, 22mm, spring return

Specifications

See all specifications

Product Certifications :	CSA \|\| C-Tick \|\| GOST \|\| BT 2006/95/EC \|\| UL
Ik Degree Of Protection :	IK03 conforming to IEC 50102
Ambient Air Temperature For Operation :	-40-70 °C

EZ Selector

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

Recommended tools

Environment


Product Certifications :	CSA \|\| C-Tick \|\| GOST \|\| BT 2006/95/EC \|\| UL
Ik Degree Of Protection :	IK03 conforming to IEC 50102
Ambient Air Temperature For Operation :	-40-70 °C
Electromagnetic Compatibility :	electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 \|\| electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 \|\| susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3 \|\| susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3
Shock Resistance :	25 gn 6 ms) 6000 shocks IEC 60068-2-27 \|\| 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 \|\| 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance :	5 gn 11-500 Hz)IEC 60068-2-6 \|\| +/- 10 mm 2-11 Hz)IEC 60068-2-6
Ip Degree Of Protection :	IP66 IEC 60529 front face) \|\| IP67 IEC 60529 front face) \|\| IP69 IEC 60529 front face) \|\| IP69K IEC 60529 front face)
Directives :	1999/5/EC - R&TTE directive \|\| 2004/108/EC - electromagnetic compatibility
Ambient Air Temperature For Storage :	-40-70 °C
Relative Humidity :	95-95 % -40-70 °C without condensation
Mechanical Durability :	1000000 cycles


Rohs Exemption Information :	Yes
Mercury Free :	Yes
Environmental Disclosure :	ENVPEP101106EN
Sustainable Offer Status :	Green Premium product
Reach Regulation :	Reference contains Substances of Very High Concern above the threshold
Weee :	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
China Rohs Regulation :	X
Circularity Profile :	ENVEOLI1103010EN
Eu Rohs Directive :	Pro-active compliance (Product out of EU RoHS legal scope)


Mechanical Robustness :	free fall resistance 1000 mm EN/IEC 60068-2-32
Operating Force :	10 N C/O changing electrical state
Modulation Technique :	O-QPSK
Standards :	CSA C22.2 No 14 \|\| EN/IEC 60947-1 \|\| EN/IEC 60947-5-1 \|\| UL 508
Embedding Depth :	42 mm
Operating Travel :	4.3 mm total travel)
Fixing Mode :	fixing nut beneath head 2-2.4 N.m
Type Of Operator :	spring return push-button with transmitter
Electrical Composition Code :	PW1
Acquisition Time :	2 ms
Communication Port Protocol :	Zigbee green power 2.4 GHz IEEE 802.15.4
Shape Of Signaling Unit Head :	round
Response Time :	< 2 ms
Antenna Gain :	0 dBi
Net Weight :	0.045 kg
Cad Overall Height :	41.5 mm
Maximum Sensing Distance :	100 m in free field \|\| 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure \|\| 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
Max Power Consumption In W :	1 mW
Number Of Channels :	16
Operator Profile :	white flush
Station Name :	XALD 1...5 cut-outs \|\| XALK 2...5 cut-outs
Radio Agreement :	ANATEL \|\| ARIB T66 \|\| FCC \|\| ICASA \|\| RSS
Cad Overall Width :	30 mm
Emission Power :	3 mW
Cad Overall Depth :	43 mm
Bandwidth :	5-5 MHz


Antenna Type :	omnidirectional
Range Of Product :	Harmony XB5
Transmission Frequency :	2405 MHz
Mounting Diameter :	22 mm
Product Or Component Type :	wireless and batteryless transmitter
Fixing Collar Material :	plastic
Level Or Class :	5M00G7W
Bezel Material :	dark grey plastic
Device Short Name :	XB5R
