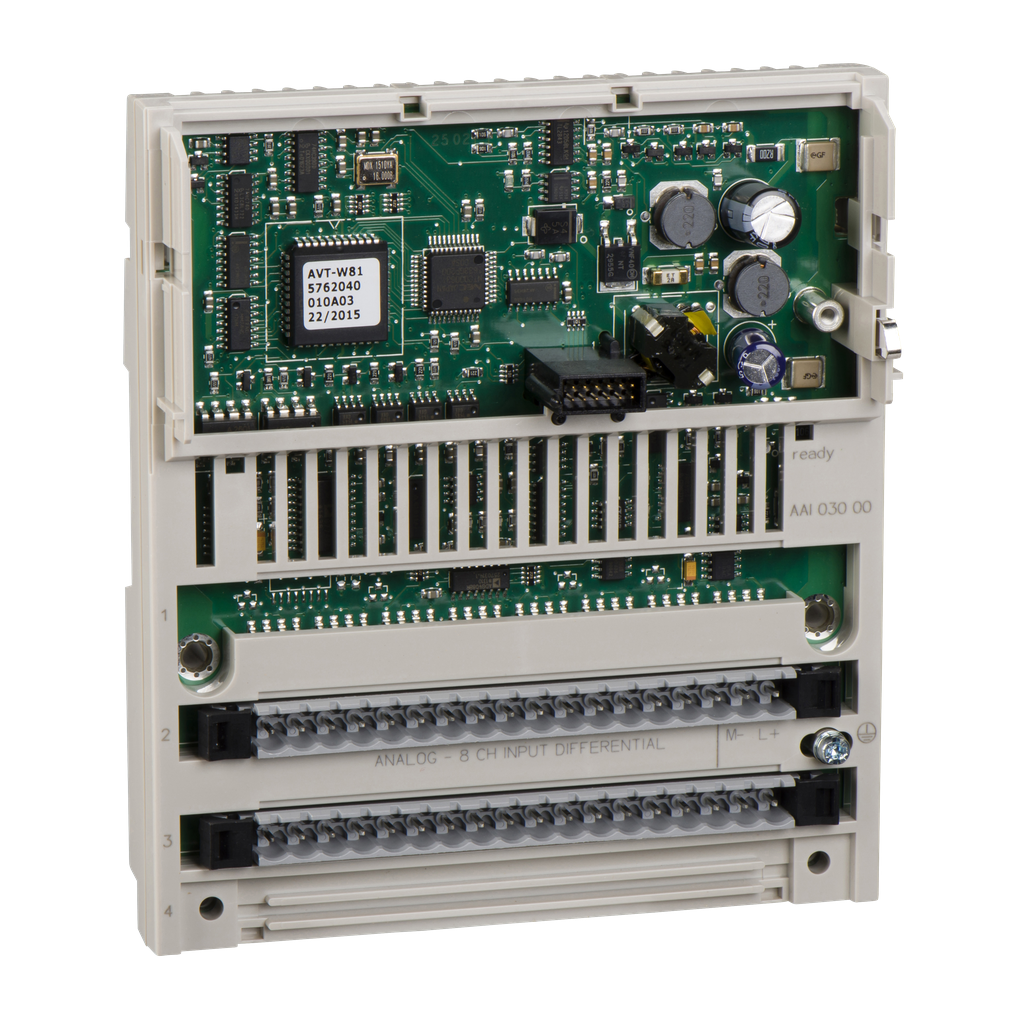

distributed analog input Modicon Momentum - 8 Input

Item ID #170AAI03000

Schneider Electric

distributed analog input Modicon Momentum - 8 Input

Name: distributed analog input Modicon Momentum - 8 Input
Brand: Schneider Electric
SKU: 170AAI03000
Price: 2380.00 CAD
Availability: OutOfStock

Item ID #170AAI03000

Specifications

See all specifications

Product Certifications :	FM Class 1 Division 2 \|\| CSA \|\| UL
Ambient Air Temperature For Operation :	0-60 °C
Resistance To Electromagnetic Fields :	10 V/m 80...1000 MHz IEC 801-3

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

SCHNEIDER MOMENTUM MODULE 8E +/-5V +/-10V 1-5V 4-20mA 14 BIT + SIGNED / 15 BIT

Recommended tools

Environment


Product Certifications :	FM Class 1 Division 2 \|\| CSA \|\| UL
Ambient Air Temperature For Operation :	0-60 °C
Resistance To Electromagnetic Fields :	10 V/m 80...1000 MHz IEC 801-3
Standards :	EN 50081-2 \|\| IEC 1131
Ambient Air Temperature For Storage :	-40-85 °C
Relative Humidity :	95-95 % without condensation
Resistance To Electrostatic Discharge :	4 kV contact IEC 801-2 \|\| 8 kV on air IEC 801-2
Protective Treatment :	TC
Operating Altitude :	<= 5000 m

Description
Resources
Specifications

distributed analog input Modicon Momentum - 8 Input

Item ID #170AAI03000

Schneider Electric

distributed analog input Modicon Momentum - 8 Input

Item ID #170AAI03000

distributed analog input Modicon Momentum - 8 Input

Specifications

See all specifications

Product Certifications :	FM Class 1 Division 2 \|\| CSA \|\| UL
Ambient Air Temperature For Operation :	0-60 °C
Resistance To Electromagnetic Fields :	10 V/m 80...1000 MHz IEC 801-3

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

SCHNEIDER MOMENTUM MODULE 8E +/-5V +/-10V 1-5V 4-20mA 14 BIT + SIGNED / 15 BIT

Recommended tools

Environment


Product Certifications :	FM Class 1 Division 2 \|\| CSA \|\| UL
Ambient Air Temperature For Operation :	0-60 °C
Resistance To Electromagnetic Fields :	10 V/m 80...1000 MHz IEC 801-3
Standards :	EN 50081-2 \|\| IEC 1131
Ambient Air Temperature For Storage :	-40-85 °C
Relative Humidity :	95-95 % without condensation
Resistance To Electrostatic Discharge :	4 kV contact IEC 801-2 \|\| 8 kV on air IEC 801-2
Protective Treatment :	TC
Operating Altitude :	<= 5000 m


Rohs Exemption Information :	Yes
Mercury Free :	Yes
Environmental Disclosure :	ENVPEP1403005EN
Sustainable Offer Status :	Green Premium product
Reach Regulation :	Reference contains Substances of Very High Concern above the threshold
Weee :	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
China Rohs Regulation :	X
Circularity Profile :	ENVEOLI1403005EN
Eu Rohs Directive :	Pro-active compliance (Product out of EU RoHS legal scope)


Electrical Connection :	2 connectors for removable terminal blocks
Height :	125 mm
Isolation Between Channels And Ground :	500 V AC for 1 minute
Data Format :	full 16 bits signed
Marking :	CE
External Power Requirement :	< 382 mA DC \|\| 20.4...28.8 V DC \|\| 24 V DC
Net Weight :	0.215 kg
Isolation Between Channels :	+/- 200 V DC for 1 minute
Permissible Common Mode Voltage :	100 V 47...63 Hz DC between channels to ground \|\| 250 V 47...63 Hz AC between channels to ground
Absolute Accuracy Error :	+/- 0.13 % full scale 25 °C 1...5 V \|\| +/- 0.41 % full scale 60 °C +/- 20 mA \|\| +/- 0.19 % full scale 60 °C 1...5 V \|\| +/- 0.21 % full scale 25 °C +/- 5 V \|\| +/- 0.26 % full scale 60 °C +/- 5 V \|\| +/- 0.27 % full scale 25 °C +/- 10 V \|\| +/- 0.27 % full scale 25 °C 4...20 mA \|\| +/- 0.32 % full scale 25 °C +/- 20 mA \|\| +/- 0.32 % full scale 60 °C +/- 10 V \|\| +/- 0.38 % full scale 60 °C 4...20 mA
Local Signalling :	ready 1 LED green) \|\| channel status 8 LEDs
Common Mode Rejection :	> 80 dB between channels to ground
Conversion Time :	12 ms 8
Width :	141.5 mm
Depth :	47.5 mm
Isolation Between Channels And Bus :	500 V AC for 1 minute
Reverse Polarity Protection :	internal


Range Of Product :	Modicon Momentum automation platform
Analogue Input Range :	+/- 20 mA 14 bits + sign 250 kOhm \|\| 4...20 mA 15 bits + sign 250 kOhm \|\| +/- 10 V 14 bits + sign > 0.1 kOhm \|\| +/- 5 V 14 bits + sign > 0.1 kOhm \|\| 1...5 V 15 bits + sign > 0.1 kOhm
Analogue Input Type :	differential
Product Or Component Type :	analogue input base
Analogue Input Number :	8
