Enclosed switch disconnector,TeSys Control,for ON/emergency stop,25A,conforming UL/CSA standard

Item ID #VC2GUN

Schneider Electric

Enclosed switch disconnector,TeSys Control,for ON/emergency stop,25A,conforming UL/CSA standard

Name: Enclosed switch disconnector,TeSys Control,for ON/emergency stop,25A,conforming UL/CSA standard
Brand: Schneider Electric
SKU: VC2GUN
Price: 320.00 CAD
Availability: InStock

Item ID #VC2GUN

Specifications

See all specifications

Ambient Air Temperature For Operation :	-20-50 °C
Standards :	IEC 60204 \|\| CSA C22.2 No 14 \|\| UL 508 \|\| IEC 60947-4-1
Ip Degree Of Protection :	IP65 IEC 60529

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

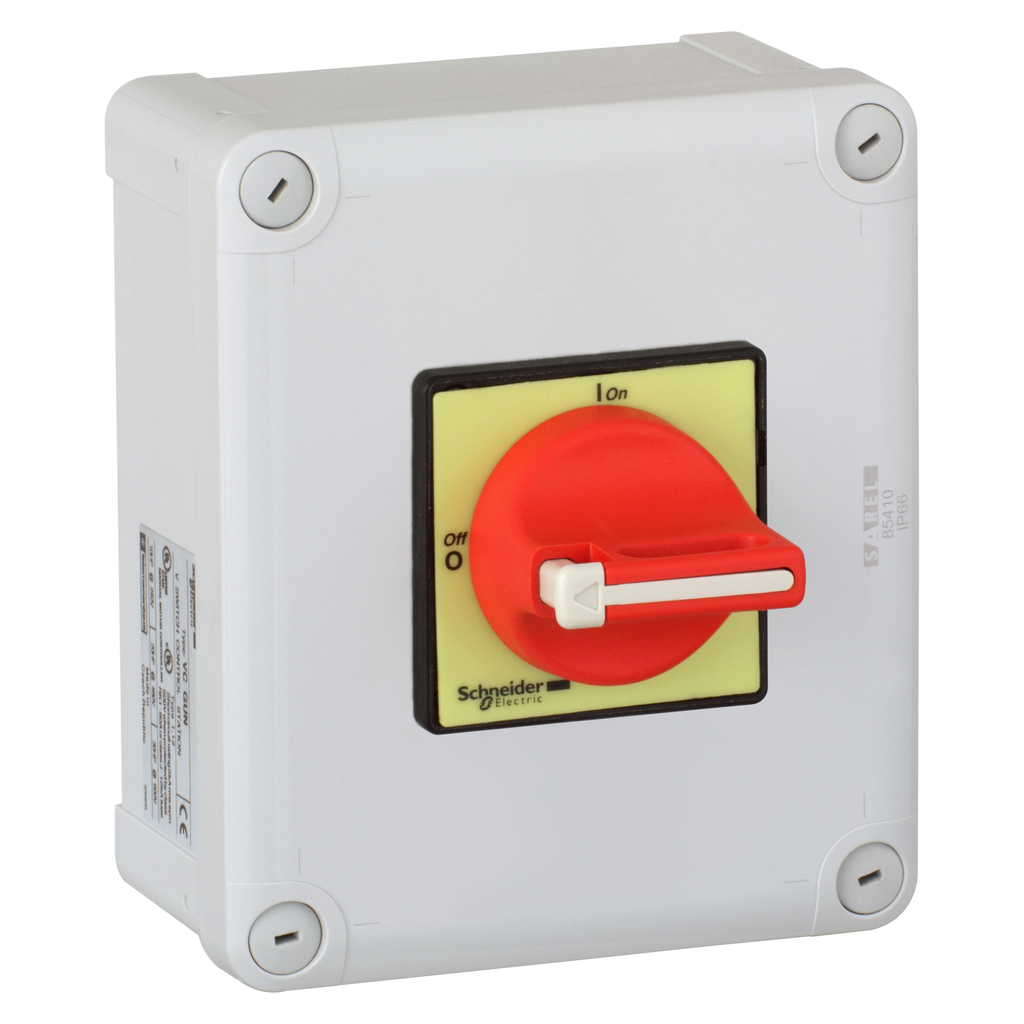

TeSys enclosed starter with switch disconnector, 3 poles, 25A/600V, for main and emergency stop switching in motor applications up to 15hp@600V. Enclosure fitted with a 3-pole switch body Vario V2, red rotary handle, yellow front plate with O/I marking. Possible attachement of 2 add-on modules to the internal switch body (main pole, neutral pole, earthing module, auxiliary contacts), to be ordered separately. NEMA type 1 and type 12 enclosure, IP65 protection, sealable, padlockable in O-Off position. It conforms to UL/CSA standards, Green Premium compliant (RoHS/REACh).

Recommended tools

Environment


Ambient Air Temperature For Operation :	-20-50 °C
Standards :	IEC 60204 \|\| CSA C22.2 No 14 \|\| UL 508 \|\| IEC 60947-4-1
Ip Degree Of Protection :	IP65 IEC 60529
Nema Degree Of Protection :	NEMA 12
Protective Treatment :	TC
Mechanical Robustness :	vibrations 10...150 Hz 1 gn) IEC 60068-2-6 \|\| shocks 11 ms 30 Gn) IEC 60068-2-27

Available0

Your price

$0.00

Offer Sustainability


Rohs Exemption Information :	Yes
Mercury Free :	Yes
Environmental Disclosure :	ENVPEP2211019
Sustainable Offer Status :	Green Premium product
Toxic Heavy Metal Free :	Yes
Reach Regulation :	Reference contains Substances of Very High Concern above the threshold
Weee :	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
China Rohs Regulation :	Product out of China RoHS scope. Substance declaration for your information
Circularity Profile :	N/A
Eu Rohs Directive :	Compliant with Exemptions

Complementary


[Ue] Rated Operational Voltage :	690 V AC 50/60 Hz
Height :	164 mm
Intermittent Duty Class :	30
[Ithe] Conventional Enclosed Thermal Current :	32 A
Marking :	0 - 1
Base Dimension :	60 x 60 mm
Net Weight :	0.5 kg
[Uimp] Rated Impulse Withstand Voltage :	8 kV
Making Capacity :	400 A 400 V AC-21A \|\| 400 A 400 V AC-22A \|\| 400 A 400 V AC-23A
Connections - Terminals :	screw clamp terminals 10-10 mm² solid - with cable end \|\| screw clamp terminals 6-6 mm² flexible
[Icm] Rated Short-Circuit Making Capacity :	1 kA 400 V at Ipeak
Electrical Durability :	100000 cycles AC-21 \|\| 30000 cycles DC-1...5
Environmental Characteristic :	standard environment
Suitability For Isolation :	yes
[Ie] Rated Operational Current :	29 A AC-23A)400 V
Mechanical Durability :	100000 cycles
Rated Power In Hp :	5 hp 240 V, UL \|\| 10 hp 480 V, UL \|\| 15 hp 600 V, UL
Fire Resistance :	960 °C IEC 60595-2-1
[Ithe] Conventional Enclosed Thermal Current :	32.0 A IEC 690 V \|\| 25 A UL 600 V
Width :	121 mm
Tightening Torque :	2.1-2.1 N.m screw clamp terminals
Depth :	132 mm
Breaking Capacity :	320 A 400 V AC-21A) \|\| 320 A 400 V AC-22A) \|\| 320 A 400 V AC-23A)
Rated Operational Power In W :	15 kW 400 V AC-23) \|\| 11 kW 400 V AC-3)
Rated Conditional Short-Circuit Current :	10 kA 400 V 50 A aM \|\| 10 kA 400 V 50 A gG
[Icw] Rated Short-Time Withstand Current :	480 A 400 V 1 s

Specifications


Rotary Handle Padlocking :	1 to 3 padlocks 4-8 mm
Handle Front Plate Colour :	yellow
Handle Colour :	red
Product Or Component Type :	enclosed emergency stop switch disconnector
Product Name :	TeSys VARIO
Performance Level :	high performance
Range :	TeSys
Control Type :	rotary handle
Poles Description :	3P
Device Short Name :	VC-GUN
