| Item ID |
|---|
| Title |
| China Rohs Regulation : | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information : | Yes |
| Mercury Free : | Yes |
| China Rohs Regulation : | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information : | Yes |
| Mercury Free : | Yes |
| Range Of Product : | Lexium 28 |

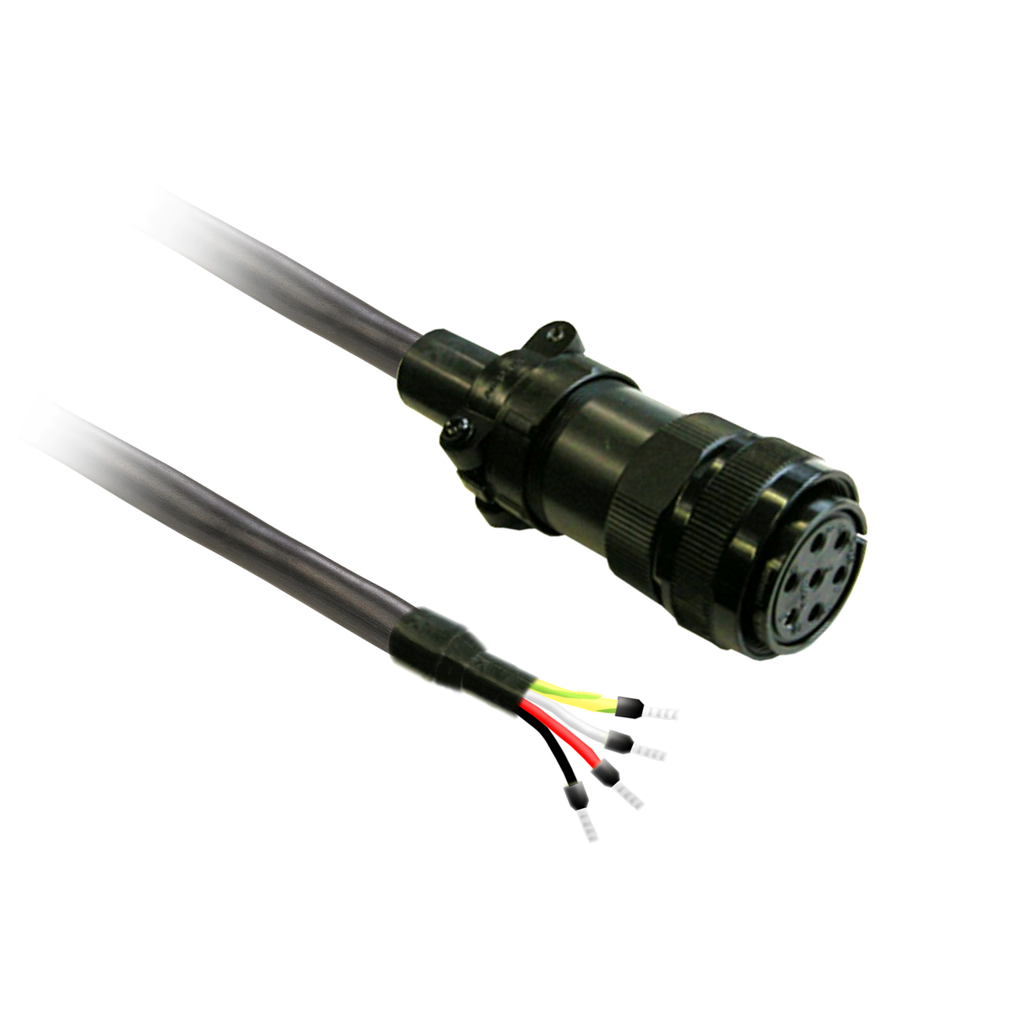

| Product Compatibility : | servo motor BCH2 1000 W 100 mm) without brake) || servo motor BCH2 2000 W 100 mm) without brake) || servo motor BCH2 300 W 130 mm) without brake) || servo motor BCH2 500 W 130 mm) without brake) || servo motor BCH2 600 W 130 mm) without brake) || servo motor BCH2 850 W 130 mm) without brake) || servo motor BCH2 900 W 130 mm) without brake) || servo motor BCH2 1000 W 130 mm) without brake) || servo motor BCH2 1500 W 130 mm) without brake) || servo motor BCH2 2000 W 130 mm) without brake) |
| Cable Length : | 5 m |
| Electrical Connection : | free end servo drive side || connector - MIL small servo motor side |
| Net Weight : | 0.7 kg |
| Awg Gauge : | 4 x AWG 16 |
