| Persona Type Ids : | LC, OM, OM8, PB, SI |
| Persona Type Names : | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
| Market Segmentation Id : | COMMERCIAL, INDUSTRIAL |
| Market Segmentation : | Commercial, Industrial |
| Device Composition : | fixing elements1 plate, self extinguishing polyurethane adhesive gasket with cross-section of 15 x 25 mm |
| Carbon Footprint Of The Distribution Phase [A4] : | 0.938044144, 0.9 kg CO2 eq. |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] : | 11 kg CO2 eq., 11.45568037 |
| Carbon Footprint Of The Installation Phase [A5] : | 1.080509749, 1 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] : | 21 kg CO2 eq., 21.17376228 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] : | kg CO2 eq., 0 |
| Local Data Status : | Publishable |
| Local Publishable Date : | 2026-02-24 |
| Return Indicator : | Y |
| Stocking Flag : | N |
| Stock Policy : | 2 |
| Weee Scope : | Out |
| Scope Perimeter : | At least in Europe |
| Eoli Availability Display : | No need of specific recycling operations |
| Reach Full Compliance Status : | Reference contains Substances of Very High Concern above the threshold |
| Reach Full Compliance Status Id : | CONTAINS_SVHC |
| Reach Compliance Directive : | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur In Scope : | No |
| Rohs Eur Status : | Compliant By Exemption |
| Rohs Eur Conformity Date : | 1912 |
| Rohs Eur Full Compliance Status : | Compliant By Exemption |
| China Rohs In Scope : | Yes |
| China Rohs Label : | 7 |
| With Recycled Cardboard : | No |
| Without Single Use Plastic : | No |
| Product Contributes To Saved And Avoided Emissions : | No |
| Tier Id : | 2 |
| Tier : | 2 |
| Function Option Id : | STANDARD |
| Function Option : | Standard |
| Product Kit Identifier : | N |
| Cable Entry : | 1 entry |
| Cable Gland Type : | standard |
| Device Application : | multi-purpose |
| Energy Efficiency Optimized : | False |
| Material : | galvanised steel |
| Mounting Location : | enclosure bottom |
| Product Availability : | Stock - Normally stocked in distribution facility |

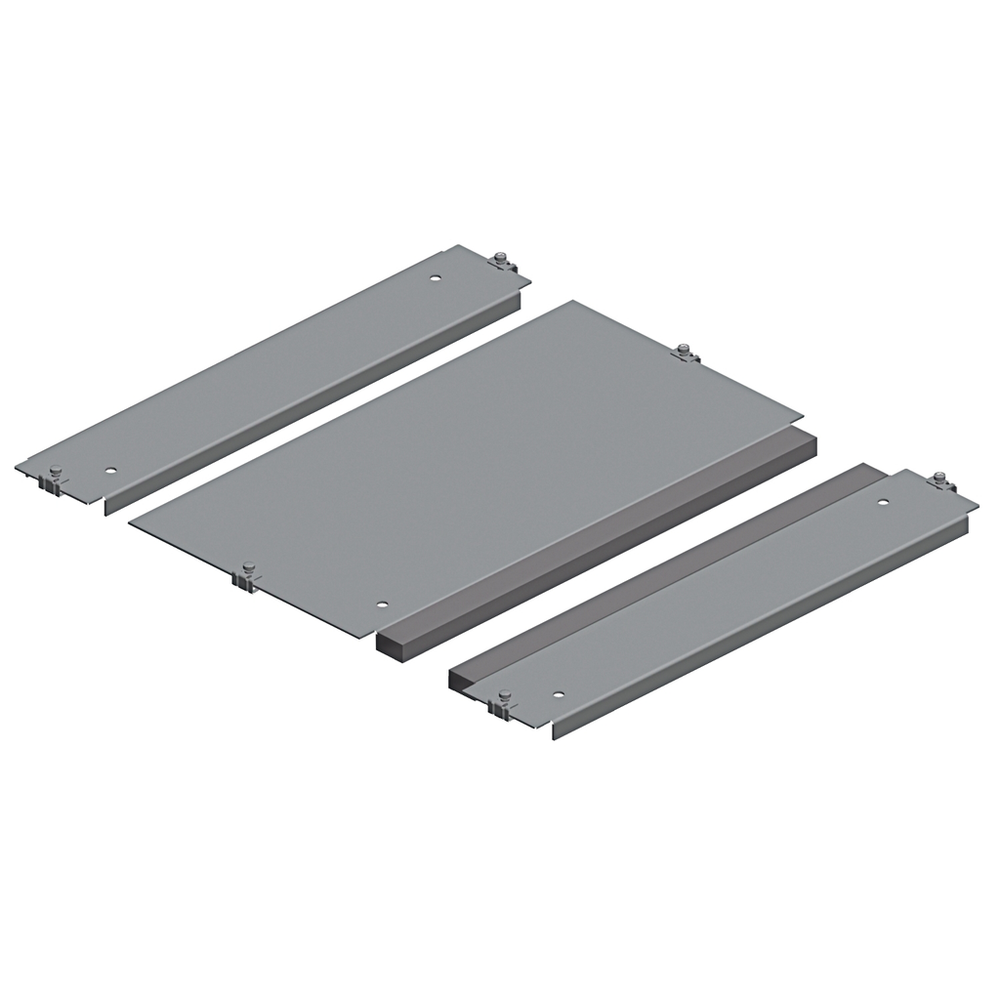

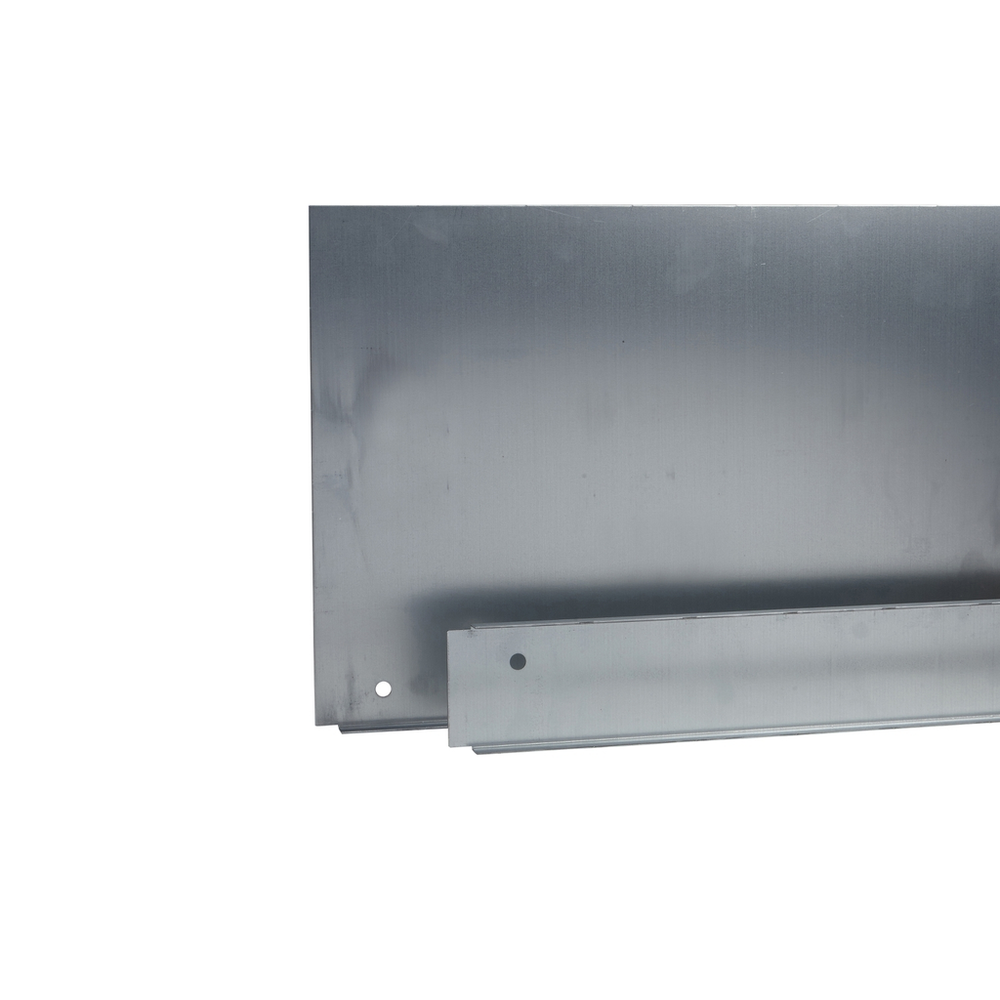

| Product Or Component Type : | cable gland plate |
| Quantity Per Set : | set of 1 |
| Range : | PanelSeT |
| Returnability : | Yes |
| Software Version : | v5.9.4 |
| Sustainable Packaging : | No |
| Thickness : | 1.5 mm |
| Total Lifecycle Carbon Footprint : | 35 kg CO2 eq. |
| Pep Code : | ENVPEP1109023EN |
| Database Version : | 2022-01 |
| Pep Verification Date : | 2023-03-30 |
| Pcr Version : | PEP-PCR-ed4-2021 09 06 |
| Psr Version : | PSR-0005-ed2-2016 03 29 |
| Type Of Verification For The Pep : | Independent internal review |
| Data Source : | extrapolated product |
| Functional-unit Description : | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208. |
| Functional-unit Quantity : | 1 |
| Functional-unit Unit : | unit |
| Reference Lifetime In Y : | 20 |
| Energy Model - Manufacturing [A1-a3] : | Electricity Mix; Production mix; Low voltage; FR |
| Recyclability Potential In % : | 98 |
| Height Nominal : | 30 mm |
| Height Useful : | 30 mm |
| Width Nominal : | nominal: 1000 mm |
| Width Real : | useful: 816 mm |
| Accessory / Separate Part Category : | cable management accessory |
| Nbr. Of Units In Pkg. : | 1 |
| Package Weight(Lbs) : | 5.000 kg |
| Silicone-free : | No |
| Take-back : | No |
| Warranty (In Months) : | 18 |
| Customs Code : | 7326908688 |
