1-phase true rms monitoring relay, over or under current, 1 SPDT relay output, IP20, DIN-rail mounting, measuring range 2 to 100A AC, power supply 24DC and 24 to 240VAC, 22.5x83.5x99.5mm housing
1-phase true rms monitoring relay, over or under current, 1 SPDT relay output, IP20, DIN-rail mounting, measuring range 2 to 100A AC, power supply 24DC and 24 to 240VAC, 22.5x83.5x99.5mm housing
Item ID #DIB01CM24100A
1-phase true rms monitoring relay, over or under current, 1 SPDT relay output, IP20, DIN-rail mounting, measuring range 2 to 100A AC, power supply 24DC and 24 to 240VAC, 22.5x83.5x99.5mm housing

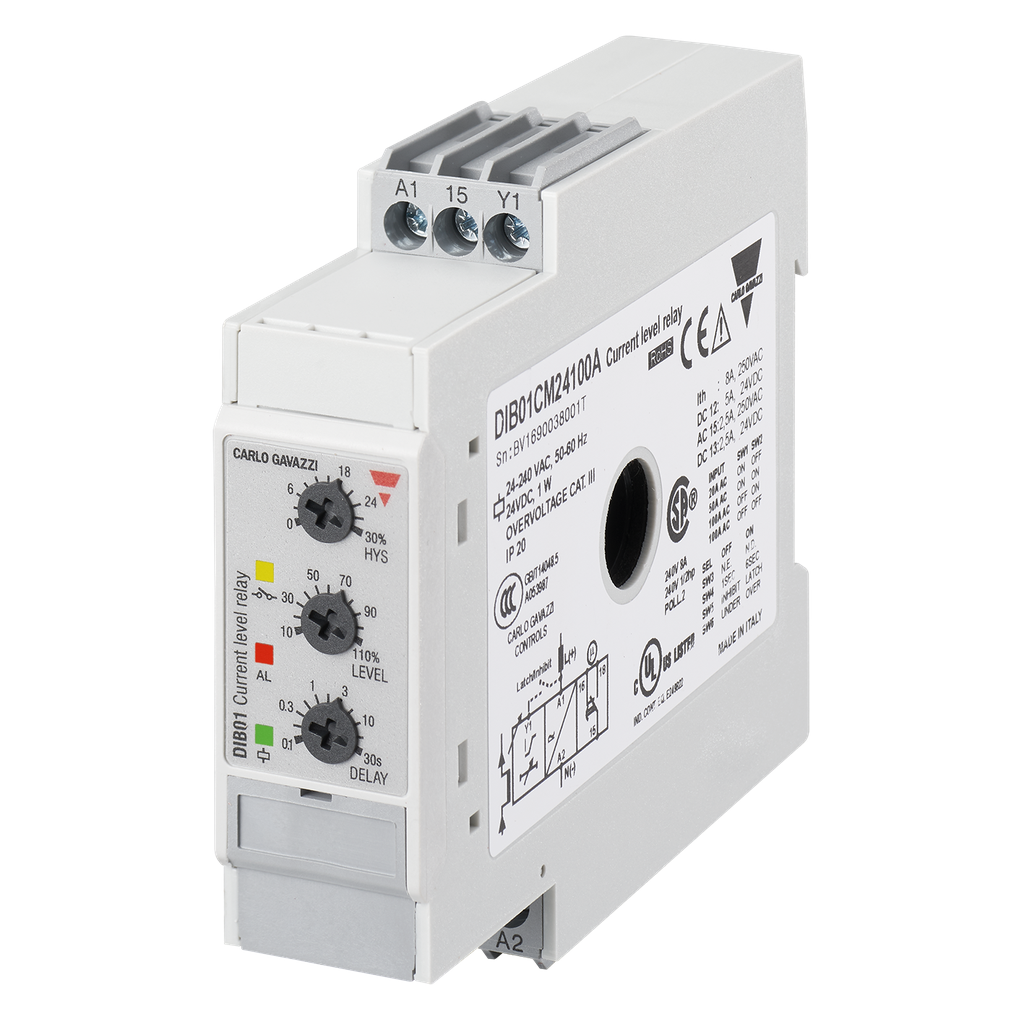

Carlo Gavazzi undercurrent/overcurrent monitoring relay, input 2-100A (maximum permissible current 200A for 30s), output NO+NC relay (SPDT), power supply 24Vdc or 24-240Vac
Recommended tools
Specifications
Type of electric connection :
Screw connection
With detachable clamps :
No
Over and under current detection :
No
Only over current detection :
Yes
Over or under current detection :
Yes
Hysteresis :
Yes
Rated current category :
Above 5 A
Measuring range :
Min.2-Max.100
Min. adjustable delay-on energization time :
0.1
Max. permitted delay-on energization time :
30
External current transformer :
No
Width :
22.5
Height :
80
Depth :
99.5
With approval according to UL :
Yes
Rail mounting possible :
Yes
Wall mounting/direct mounting :
No
Housing :
Din-Rail
Output :
1 x SPDT change-over contact
Rated supply voltage :
24-240 V AC
Product Main Family :
Monitoring relays
Product Main Family Group :
AC/DC current
Mounting :
Industrial DIN-rail
ac/dc current function :
ON/OFF monitoring | Overcurrent | Undercurrent | Over or undercurrent
1/3-phase current category :
Above 5 A
Output :
1 relay
Time delay :
Delay on alarm
Approvals, marks, declaration :
for Europe | for North America | for China | for Australia
