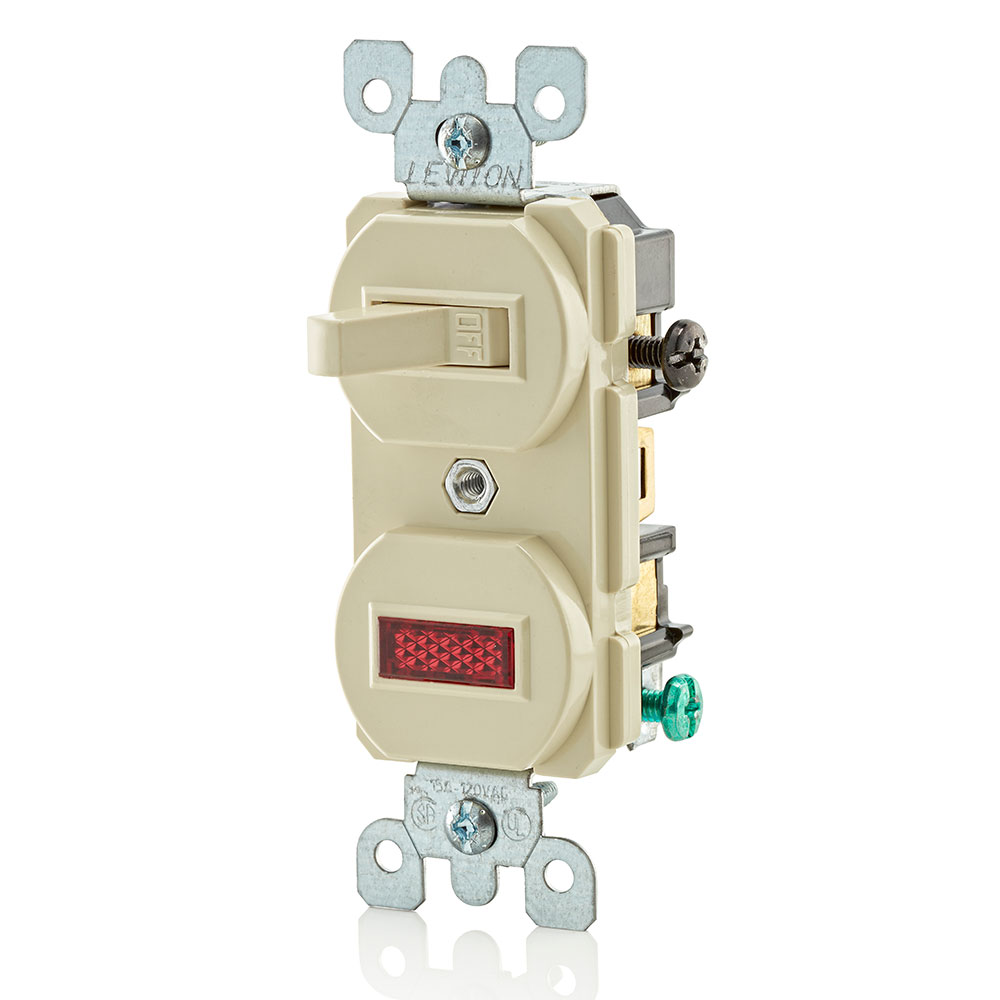

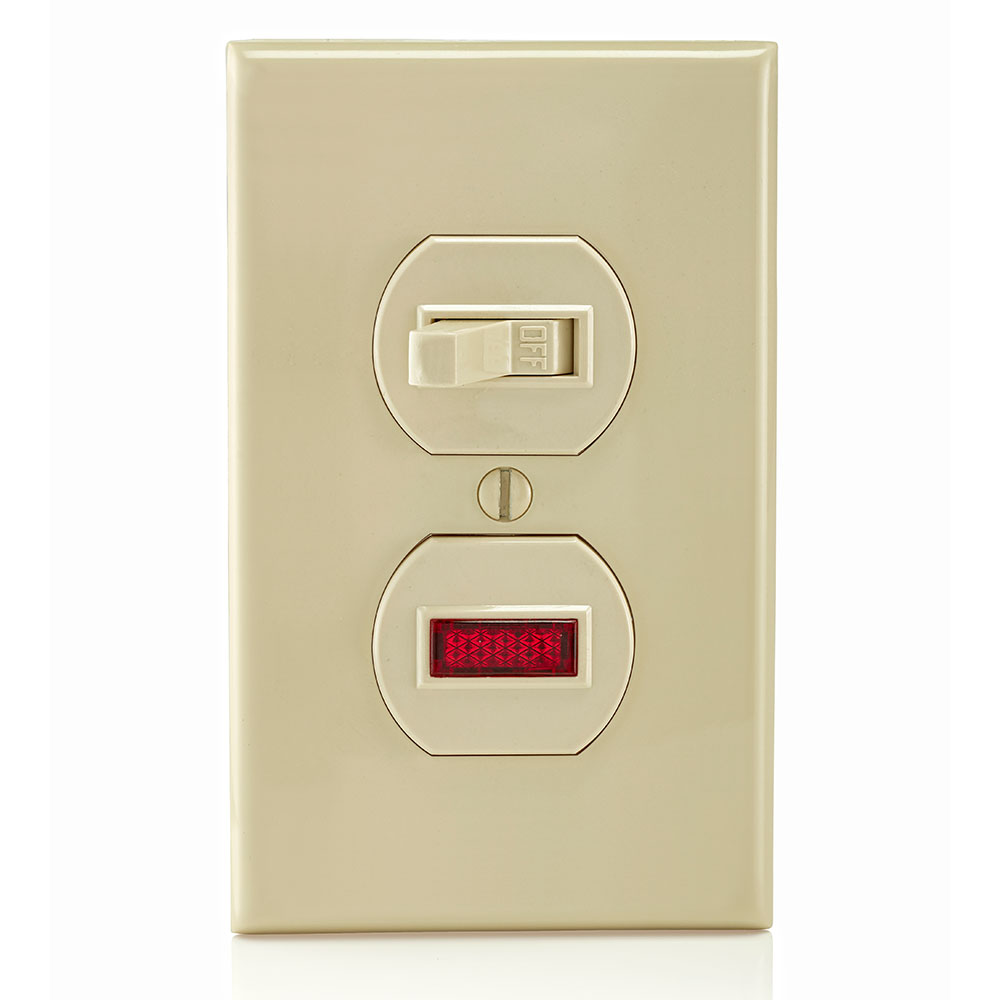

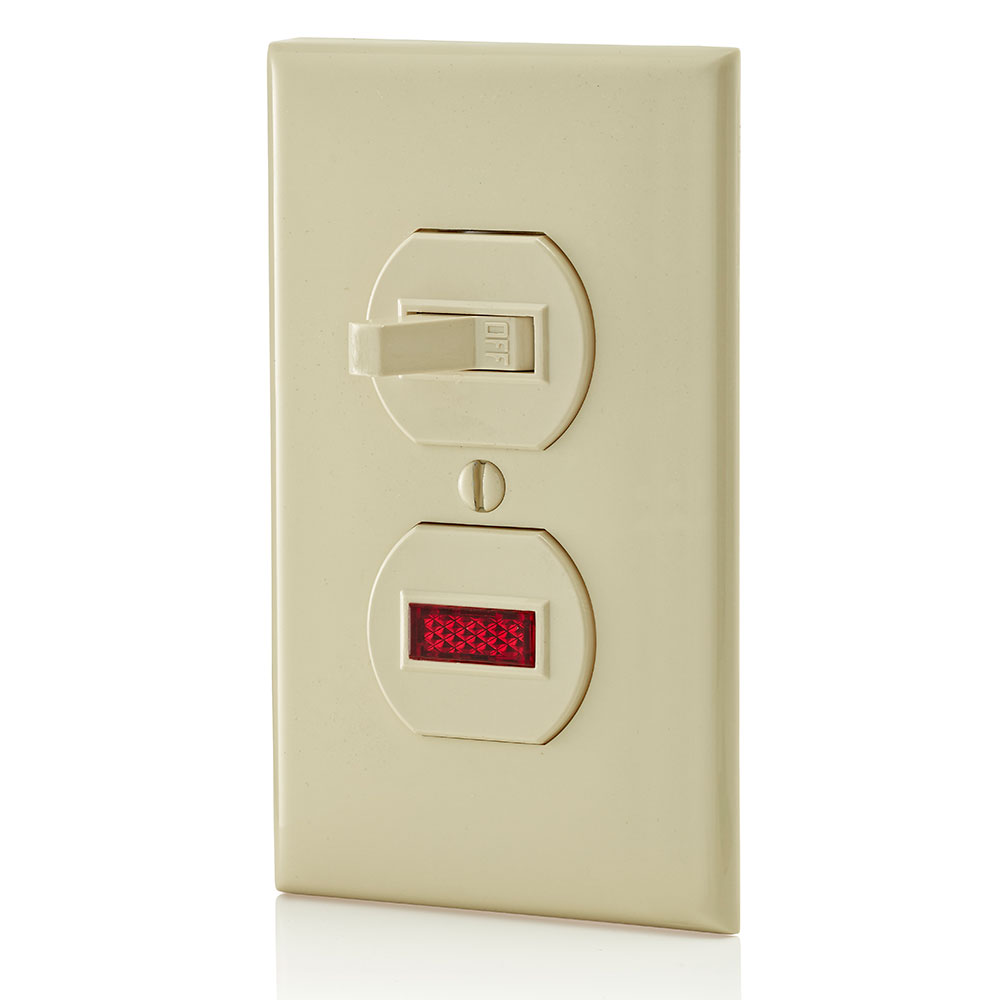

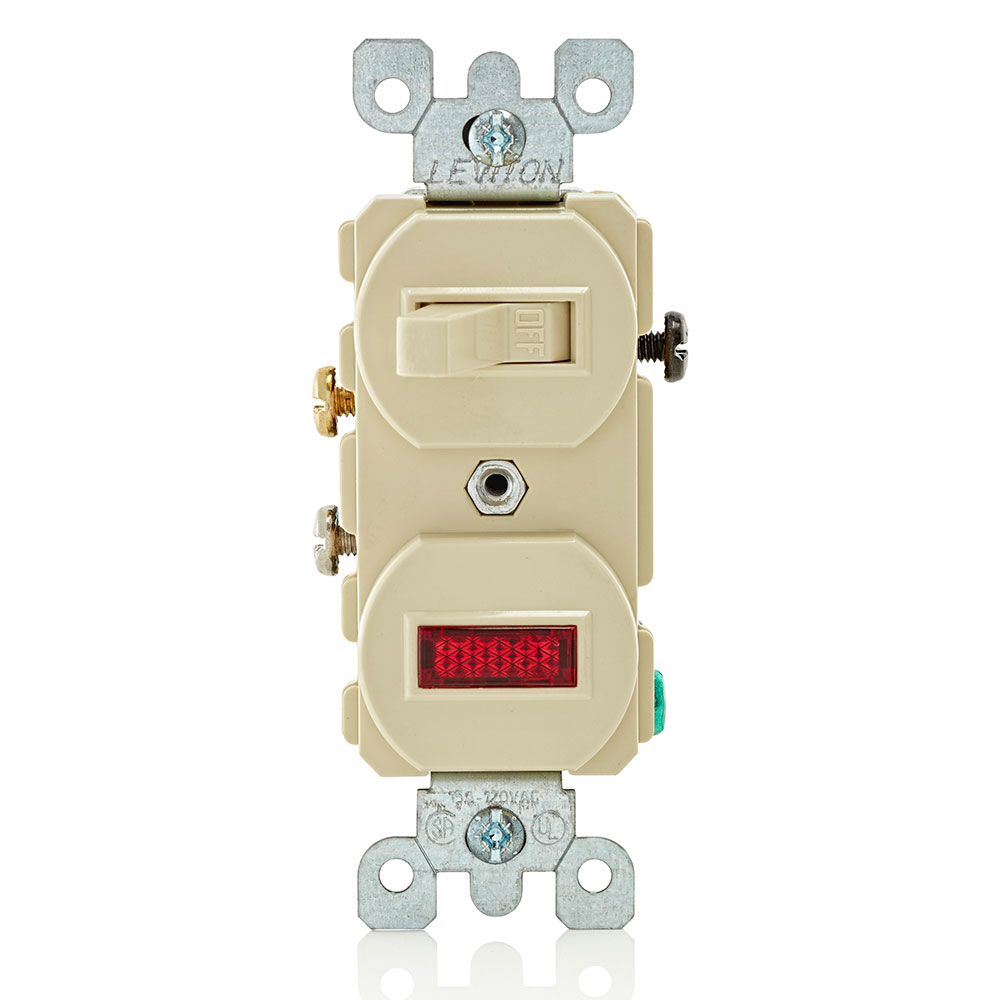

15 Amp, 120 Volt, Duplex Style Single-Pole / Neon Pilot AC Combination Switch, Commercial Grade, Non-Grounding, Side Wired , Ivory

Item ID #5226I

Leviton

15 Amp, 120 Volt, Duplex Style Single-Pole / Neon Pilot AC Combination Switch, Commercial Grade, Non-Grounding, Side Wired , Ivory

Name: 15 Amp, 120 Volt, Duplex Style Single-Pole / Neon Pilot AC Combination Switch, Commercial Grade, Non-Grounding, Side Wired , Ivory
Brand: Leviton
SKU: 5226I
Price: 16.03 CAD
Availability: OutOfStock

Item ID #5226I

Specifications

See all specifications

ANSI :	C-73
CSA C22.2 No. 111 :	File #152105
NEMA :	WD-1 & WD-6

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

15 Amp, 120 Volt, Duplex Style Single-Pole / Neon Pilot AC Combination Switch, Commercial Grade, Non-Grounding, Side Wired - Ivory

Recommended tools

Standards and Certifications


ANSI :	C-73
CSA C22.2 No. 111 :	File #152105
NEMA :	WD-1 & WD-6
NOM :	057
UL Standard :	UL 20
Warranty :	2-Year Limited

Description
Resources
Specifications

15 Amp, 120 Volt, Duplex Style Single-Pole / Neon Pilot AC Combination Switch, Commercial Grade, Non-Grounding, Side Wired , Ivory

Item ID #5226I

Leviton

15 Amp, 120 Volt, Duplex Style Single-Pole / Neon Pilot AC Combination Switch, Commercial Grade, Non-Grounding, Side Wired , Ivory

Item ID #5226I

15 Amp, 120 Volt, Duplex Style Single-Pole / Neon Pilot AC Combination Switch, Commercial Grade, Non-Grounding, Side Wired , Ivory

Specifications

See all specifications

ANSI :	C-73
CSA C22.2 No. 111 :	File #152105
NEMA :	WD-1 & WD-6

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

15 Amp, 120 Volt, Duplex Style Single-Pole / Neon Pilot AC Combination Switch, Commercial Grade, Non-Grounding, Side Wired - Ivory

Recommended tools

Standards and Certifications


ANSI :	C-73
CSA C22.2 No. 111 :	File #152105
NEMA :	WD-1 & WD-6
NOM :	057
UL Standard :	UL 20
Warranty :	2-Year Limited


Actuator Material :	Thermoplastic
Body Material :	Thermoplastic
Color :	Ivory
Strap Material :	Steel


Product ID :	Stamped on Strap
Terminal Accom. :	14-12 AWG
Terminal ID :	Brass-Hot Black-Hot White-Neutral Green-Gnd
Termination :	Side
Torque Range :	14 – 18 in.-lbs


Country of Origin :	Mexico
RoHS Compliant :	False


Amperage :	15 A
Feature :	Single-Pole / Neon Pilot
Product Type :	Switch/Pilot Combo
Type :	Duplex Style Combination Switch
Voltage :	120 VAC


Flammability :	Rated V-2 per UL 94
Operating Temperature :	-40°C to 65°C


Dielectric Voltage :	Withstands 1500V for 1 minute
Grounding :	Grounding
Neon Pilot Light Voltage :	120V AC
Overload UL20 Test :	100 cycles of OL at 4.8 times rated current
Pole :	1
Switch Amperage :	15 Amp
Switch Voltage :	120/277V AC
Temperature Rise :	Maximum 30 degrees C rise


HP Rating :	1/2HP-120V
Max. Amperage :	12 Amp
