| Item ID |
|---|
| Title |
| ANSI : | C-73 |
| Agency Certifications : | UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3 |
| NEMA : | WD-6 |
| ANSI : | C-73 |
| Agency Certifications : | UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3 |
| NEMA : | WD-6 |
| Diagnostics : | Indicator Light |
| Joules Rating : | 720 |
| MCOV : | 150V rms |
| Body Material : | Thermoplastic Nylon |
| Clamp Nuts : | Zinc-Plated Steel |
| Face Material : | Thermoplastic Nylon |
| Product ID : | Ratings are permanently marked on device |
| Terminal Accom. : | 14-10 AWG |
| Terminal ID : | Brass-Hot, Green-Ground, Silver-Neutral |
| Country of Origin : | Mexico |
| RoHS Compliant : | False |
| Brand : | Decora Plus |
| Color : | White |

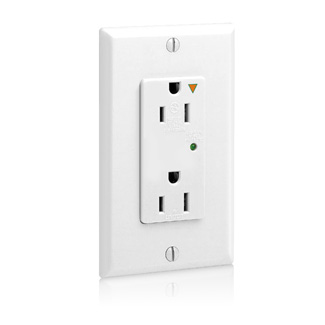

| Device Type : | Duplex Receptacle Outlet |
| Warranty : | 5-Year Limited |
| Flammability : | Rated V-2 per UL 94 |
| Operating Temperature : | -40°C to 60°C |
| Amperage : | 15 A |
| Current Limiting : | Full Rated Current |
| Dielectric Voltage : | Withstands 2000V per UL498 |
