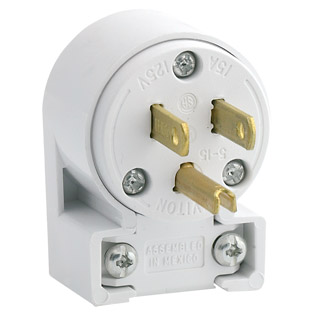

15 Amp, 125 Volt, NEMA 5-15P, 2-Pole, 3-Wire Grounding Angle Plug, Straight Blade, Commercial Grade, White

Item ID #515AN

Leviton

15 Amp, 125 Volt, NEMA 5-15P, 2-Pole, 3-Wire Grounding Angle Plug, Straight Blade, Commercial Grade, White

Name: 15 Amp, 125 Volt, NEMA 5-15P, 2-Pole, 3-Wire Grounding Angle Plug, Straight Blade, Commercial Grade, White
Brand: Leviton
SKU: 515AN
Price: 16.12 CAD
Availability: InStock

Item ID #515AN

Specifications

See all specifications

ANSI :	C-73
CSA C22.2 No. 42 :	File LR-406
NEMA :	WD-6

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

15 Amp, 125 Volt, NEMA 5-15P, 2-Pole, 3-Wire Grounding Angle Plug, Straight Blade, Commercial Grade - White

Recommended tools

Standards and Certifications


ANSI :	C-73
CSA C22.2 No. 42 :	File LR-406
NEMA :	WD-6
NOM :	057
UL498 :	File E13393
Warranty :	2-Year Limited

Description
Resources
Specifications

15 Amp, 125 Volt, NEMA 5-15P, 2-Pole, 3-Wire Grounding Angle Plug, Straight Blade, Commercial Grade, White

Item ID #515AN

Leviton

15 Amp, 125 Volt, NEMA 5-15P, 2-Pole, 3-Wire Grounding Angle Plug, Straight Blade, Commercial Grade, White

Item ID #515AN

15 Amp, 125 Volt, NEMA 5-15P, 2-Pole, 3-Wire Grounding Angle Plug, Straight Blade, Commercial Grade, White

Specifications

See all specifications

ANSI :	C-73
CSA C22.2 No. 42 :	File LR-406
NEMA :	WD-6

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

15 Amp, 125 Volt, NEMA 5-15P, 2-Pole, 3-Wire Grounding Angle Plug, Straight Blade, Commercial Grade - White

Recommended tools

Standards and Certifications


ANSI :	C-73
CSA C22.2 No. 42 :	File LR-406
NEMA :	WD-6
NOM :	057
UL498 :	File E13393
Warranty :	2-Year Limited


Assembly Screws :	Steel, Zinc Plated
Blades/Contacts :	Brass
Body Material :	PVC
Color :	White


Cord Range :	.245 - .700
Product ID :	Ratings and NEMA I.D. permanently marked on device
Terminal Accom. :	18-12 AWG
Terminal ID :	Brass-Hot, Green-Ground, Silver-Neutral


Country of Origin :	Mexico
RoHS Compliant :	False


Flammability :	Rated V-2 per UL 94
Operating Temperature :	-40°C to 60°C


Amperage :	15 A
Current Interrupting :	Certified for current interrupting at full rated current
Dielectric Voltage :	Withstands 2000V per UL498
Grounding :	Grounding
Pole :	2
Temperature Rise :	Max 30C after 50 cycles OL at 150 percent rated current
Voltage :	125 VAC
Wire :	3
