| Item ID |
|---|
| Title |
| ANSI : | C-73 |
| CSA C22.2 No. 42 : | File 152105 |
| NEMA : | WD-2 WD-6 |
| ANSI : | C-73 |
| CSA C22.2 No. 42 : | File 152105 |
| NEMA : | WD-2 WD-6 |
| Body Material : | Nylon |
| Color : | White |
| Face Material : | Nylon |
| Product ID : | Ratings are permanently marked on device |
| Screw Terminal Torque : | 14-18 in-lbs |
| Terminal Accom. : | 14-10 AWG |
| Country of Origin : | Mexico |
| RoHS Compliant : | True |

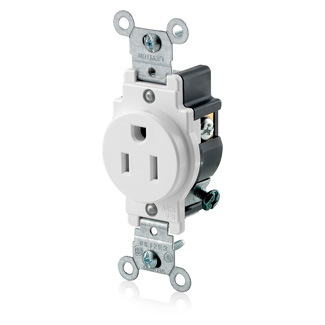

| Device Type : | Single Receptacle Outlet |
| Feature 4 : | Smooth Face |
| Grade : | Commercial Specification Grade |
| Flammability : | Rated V-2 per UL 94 |
| Operating Temperature : | -40°C to 60°C |
| Amperage : | 15 A |
| Current Limiting : | Full Rated Current |
| Dielectric Voltage : | Withstands 2000V per UL498 |
| At Rated Voltage : | 1/2 HP |
