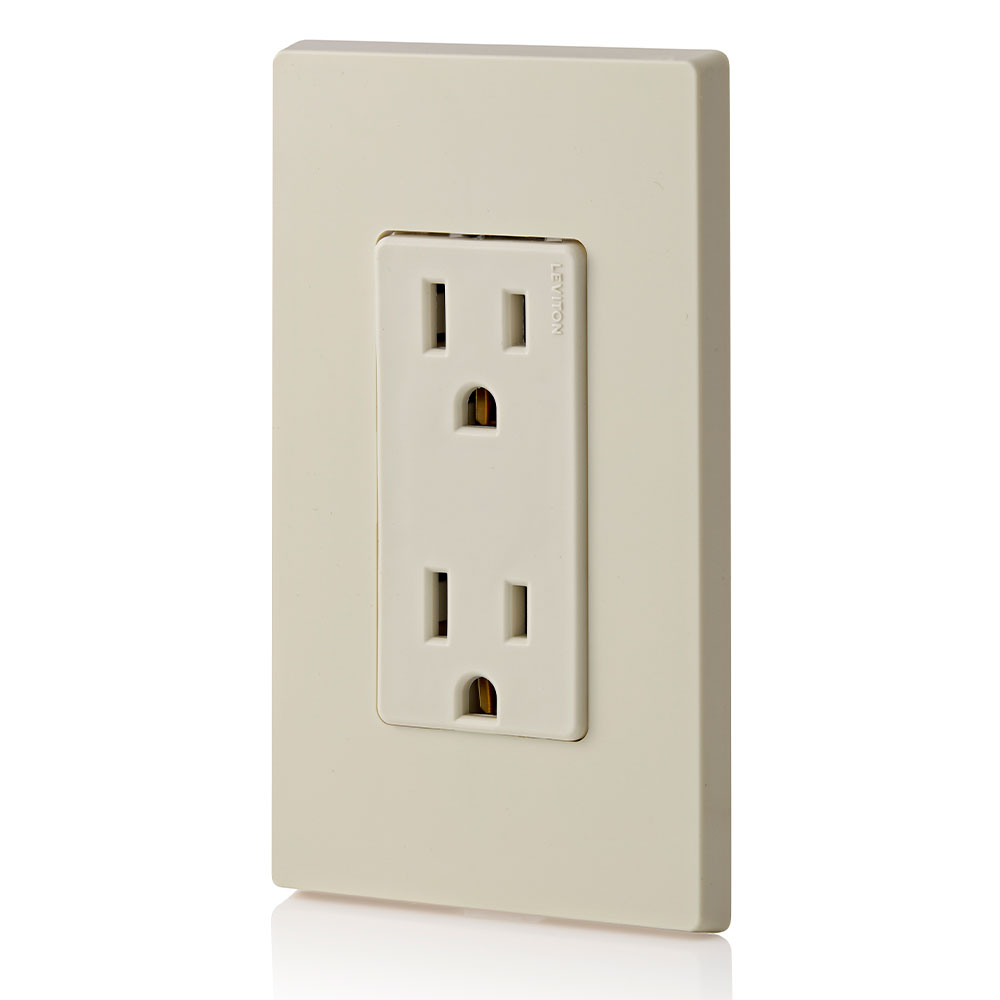

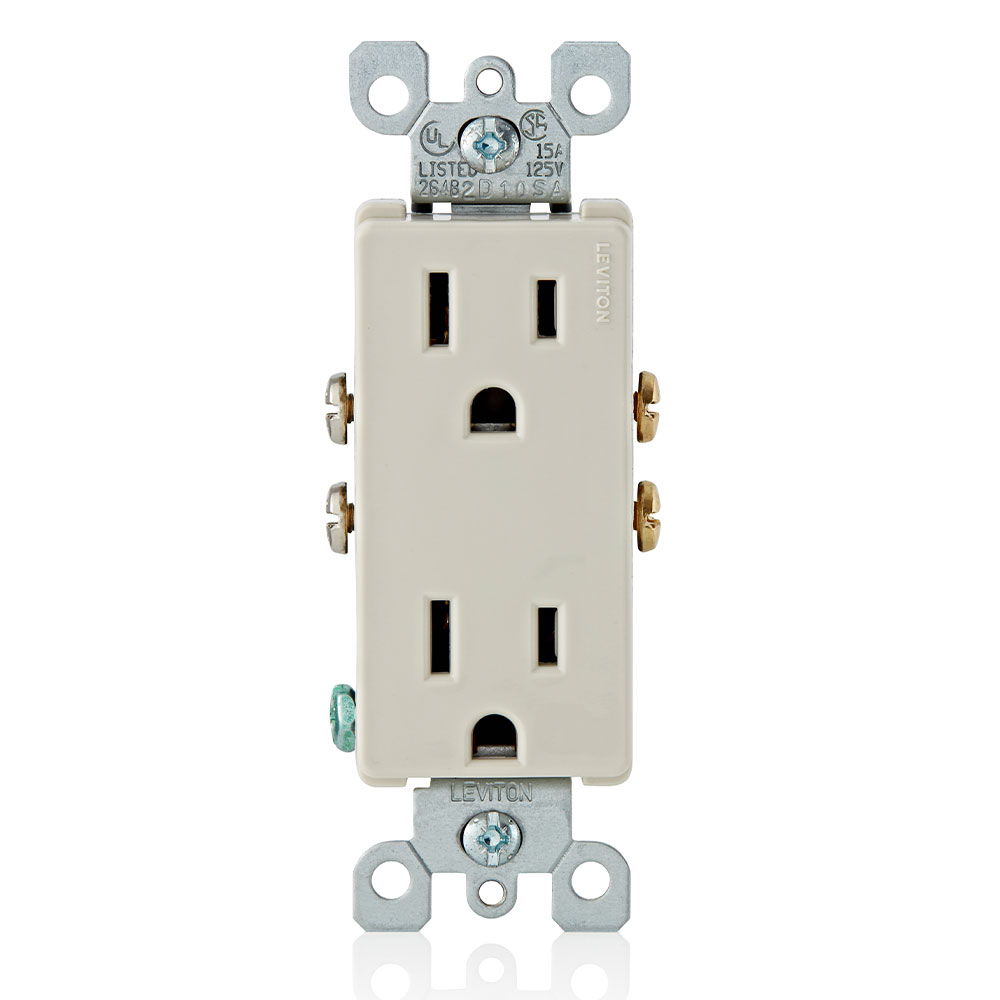

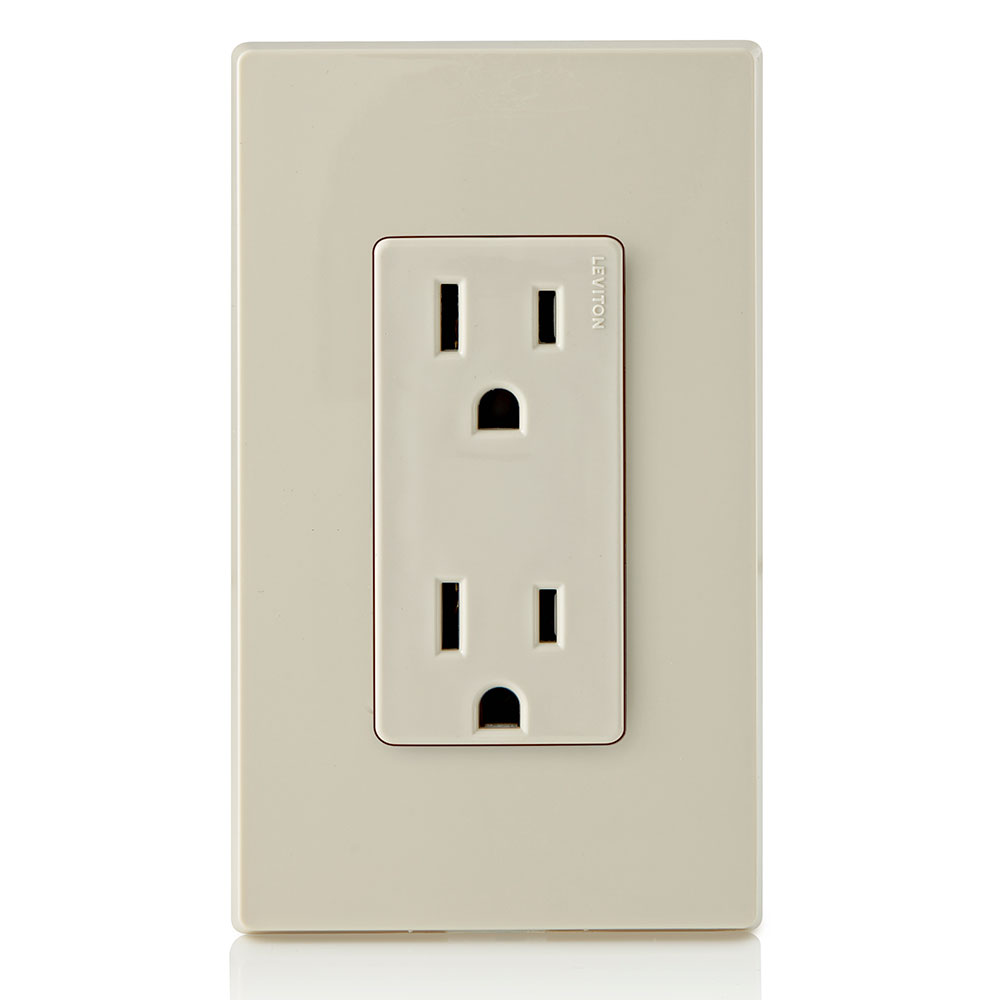

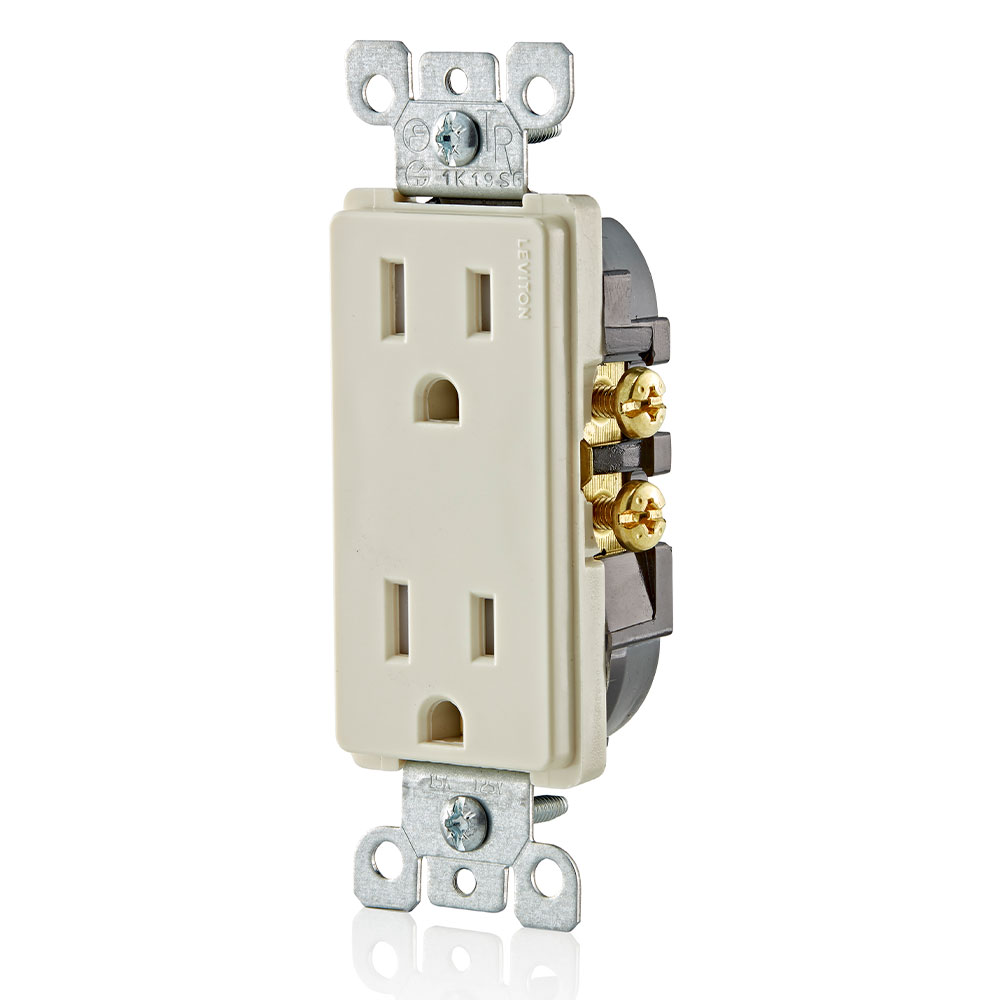

15 Amp Decora Duplex Outlet/Receptacle, Grounding, Light Almond

Item ID #5325T

Leviton

15 Amp Decora Duplex Outlet/Receptacle, Grounding, Light Almond

Name: 15 Amp Decora Duplex Outlet/Receptacle, Grounding, Light Almond
Brand: Leviton
SKU: 5325T
Price: 2.86 CAD
Availability: OutOfStock

Item ID #5325T

Specifications

See all specifications

Amperage :	15 A
Body Material :	Thermoplastic
Color :	Light Almond

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

15 Amp, 125 Volt, NEMA 5-15R, 2-Pole, 3-Wire, Decora Duplex Receptacle, Straight Blade, Residential Grade, Grounding, Quickwire Push-In & Side Wired, Steel Strap - Light Almond

Recommended tools

Product Features


Amperage :	15 A
Body Material :	Thermoplastic
Color :	Light Almond
Face Material :	Thermoplastic
Grounding :	Grounding
NEMA :	5-15R
Pole :	2
Strap Material :	Steel
Terminal Accom. :	Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only.
Termination :	Quickwire Push-In & Side
Torque Range :	14 – 18 in.-lbs
Type :	Duplex Receptacle
Voltage :	125 VAC
Warranty :	1-Year Limited
Wire :	3

Description
Resources
Specifications

15 Amp Decora Duplex Outlet/Receptacle, Grounding, Light Almond

Item ID #5325T

Leviton

15 Amp Decora Duplex Outlet/Receptacle, Grounding, Light Almond

Item ID #5325T

15 Amp Decora Duplex Outlet/Receptacle, Grounding, Light Almond

Specifications

See all specifications

Amperage :	15 A
Body Material :	Thermoplastic
Color :	Light Almond

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

15 Amp, 125 Volt, NEMA 5-15R, 2-Pole, 3-Wire, Decora Duplex Receptacle, Straight Blade, Residential Grade, Grounding, Quickwire Push-In & Side Wired, Steel Strap - Light Almond

Recommended tools

Product Features


Amperage :	15 A
Body Material :	Thermoplastic
Color :	Light Almond
Face Material :	Thermoplastic
Grounding :	Grounding
NEMA :	5-15R
Pole :	2
Strap Material :	Steel
Terminal Accom. :	Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only.
Termination :	Quickwire Push-In & Side
Torque Range :	14 – 18 in.-lbs
Type :	Duplex Receptacle
Voltage :	125 VAC
Warranty :	1-Year Limited
Wire :	3


CSA C22.2 No. 42 :	File 152105; Class 6233-01
NOM :	NOM Certified
UL 498 :	File E13399


Country of Origin :	Please Contact Customer Service
RoHS Compliant :	False
