| Item ID |
|---|
| Title |
| CSA C22.2 No. 42 : | File 152105; Class 6233-01 |
| NEMA : | WD-6 |
| NOM : | NOM Certified |
| CSA C22.2 No. 42 : | File 152105; Class 6233-01 |
| NEMA : | WD-6 |
| NOM : | NOM Certified |
| Body Material : | Thermoplastic |
| Color : | White |
| Face Material : | Thermoplastic |
| Grounding : | Grounding |
| Terminal Accom. : | 10-14 AWG |
| Terminal ID : | Brass-Hot, Green-Ground, White-Neutral |
| Country of Origin : | Please Contact Customer Service |
| RoHS Compliant : | False |
| Pole : | 2 |
| Termination : | Quickwire Push-In & Side |

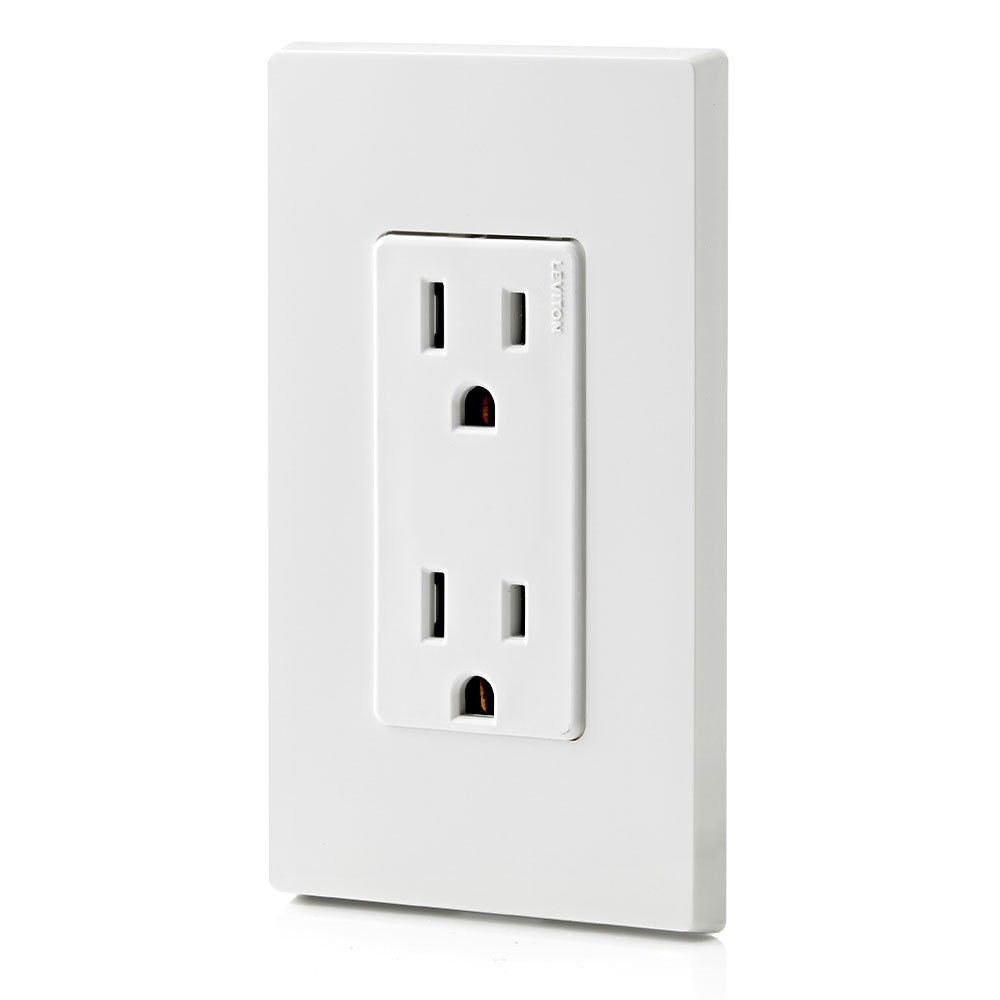

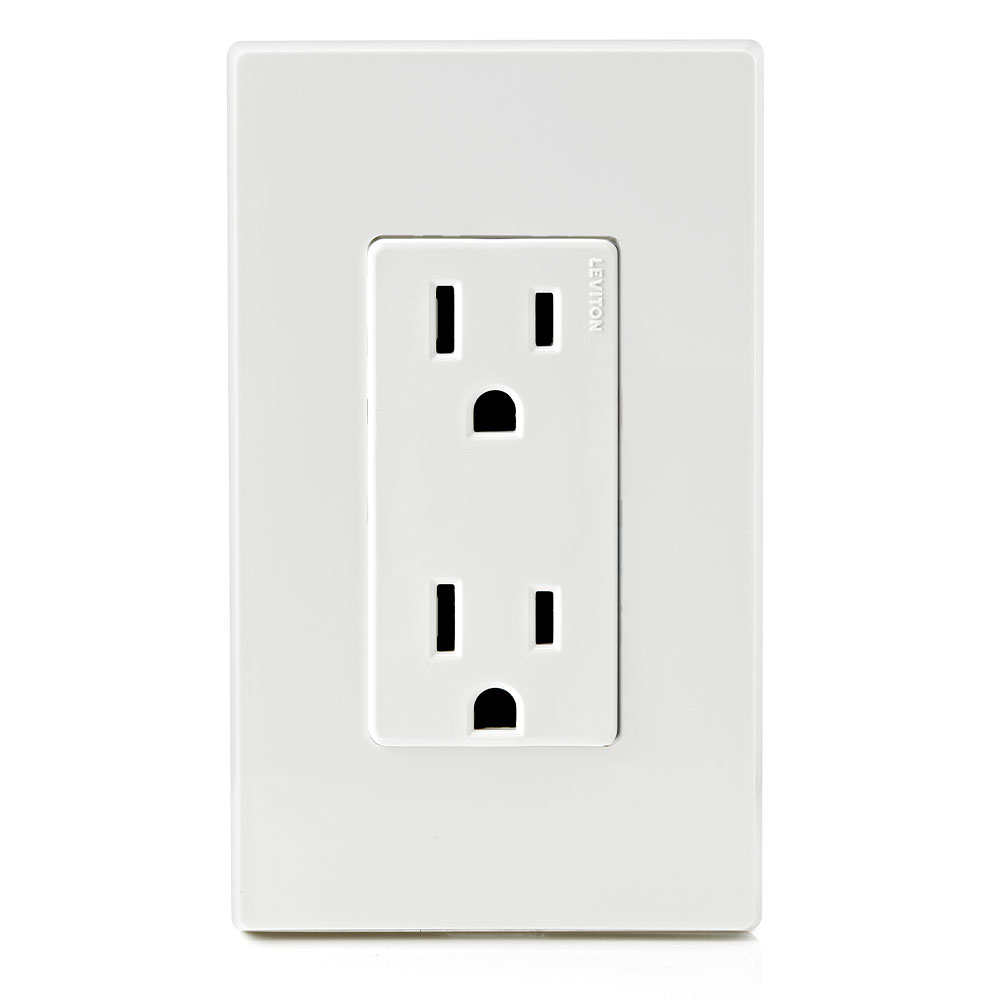

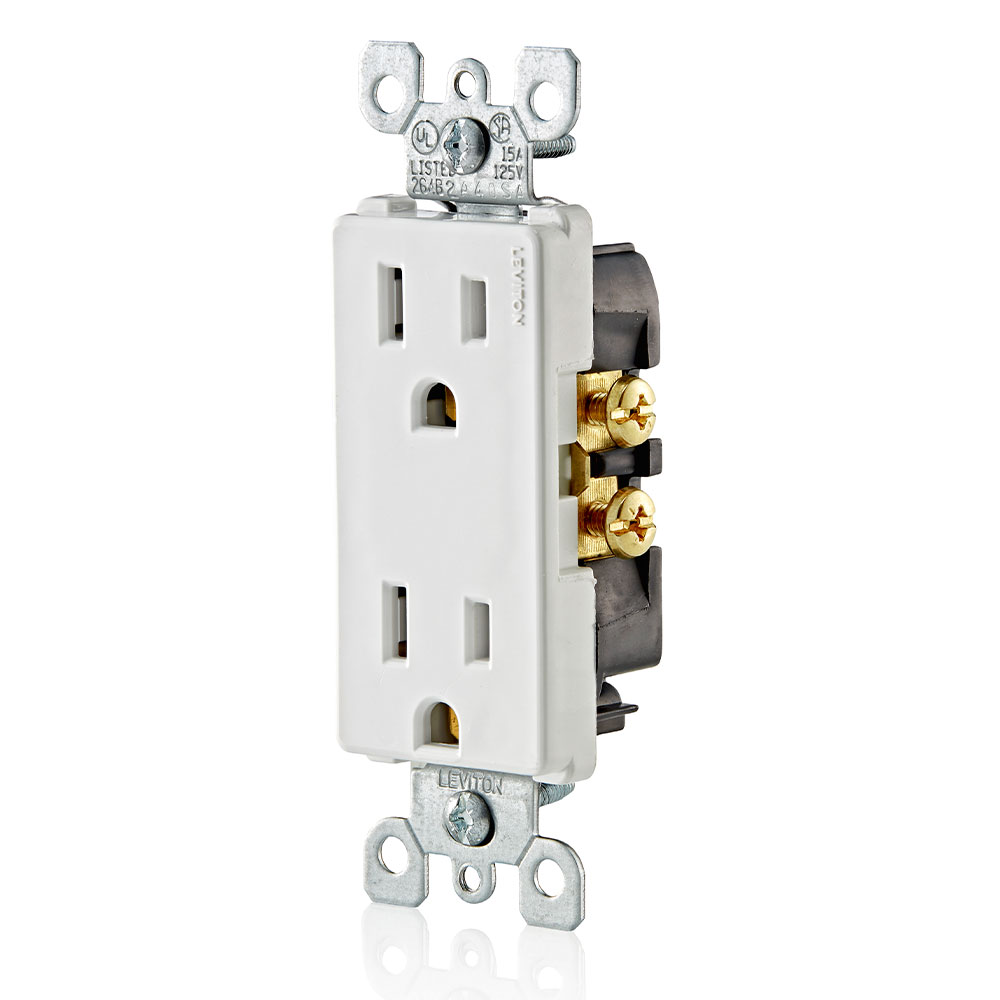

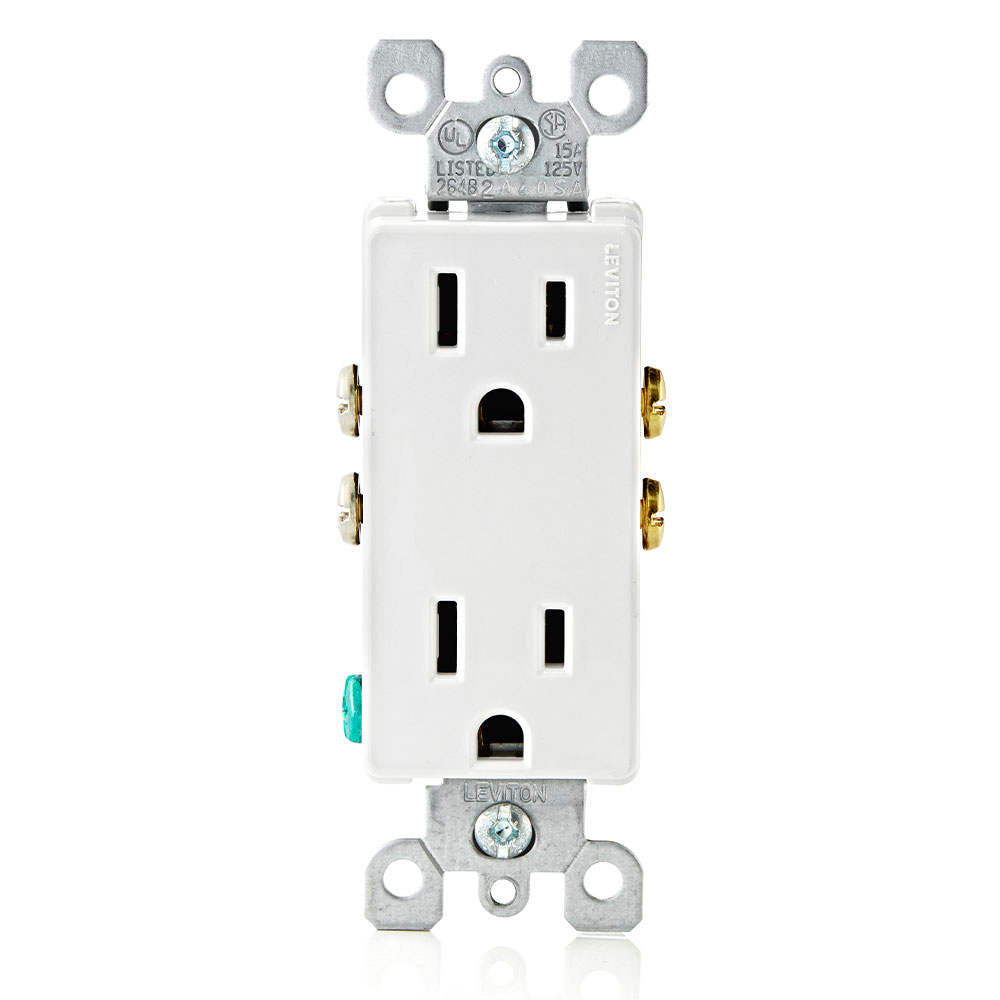

| Type : | Duplex Receptacle |
| Amperage : | 15 A |
| Voltage : | 125 VAC |
| Flammability : | Rated V-2 per UL 94 |
| Operating Temperature : | -40°C to 60°C |
