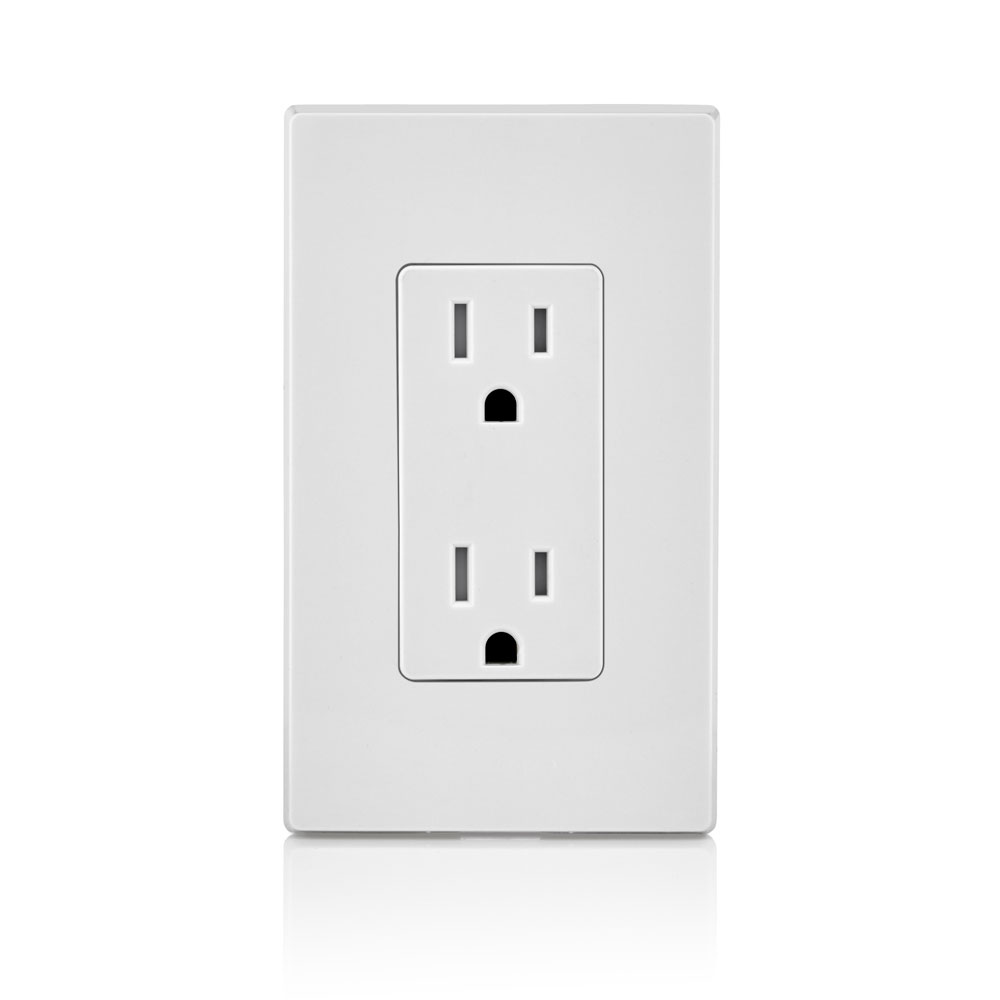

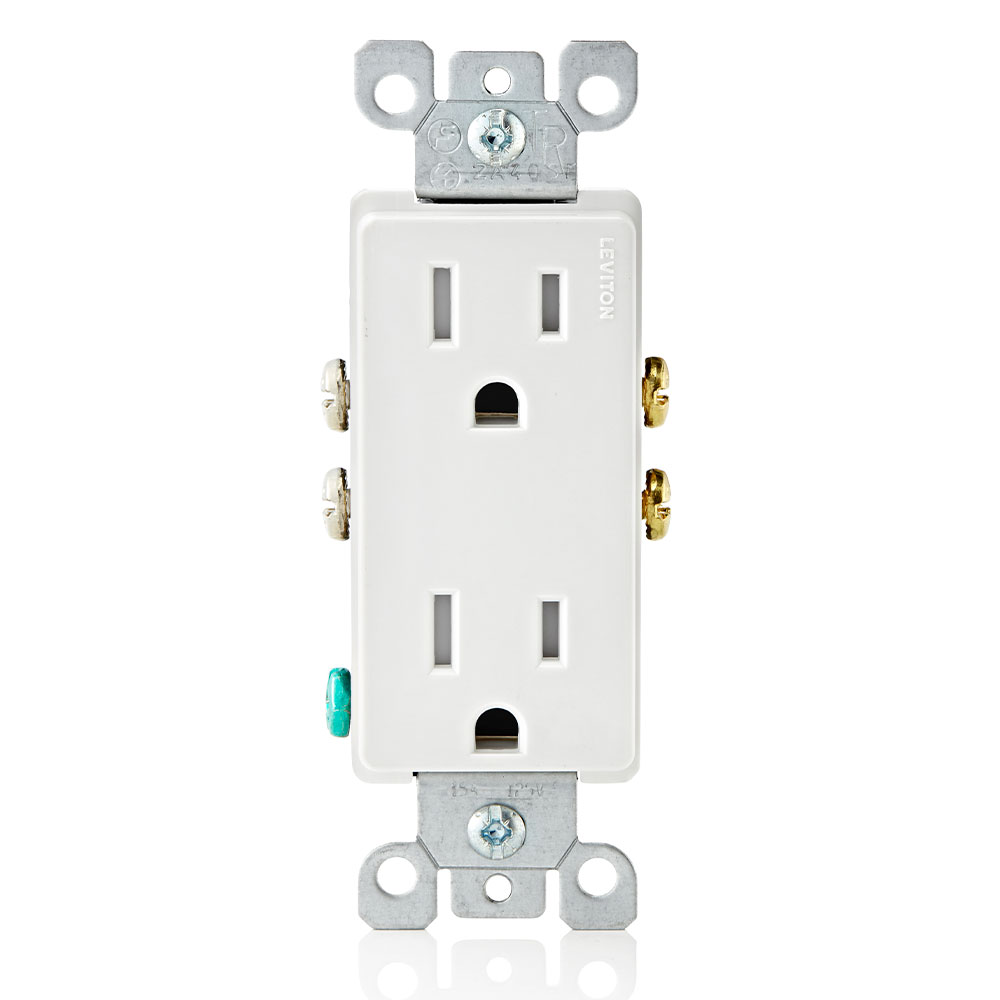

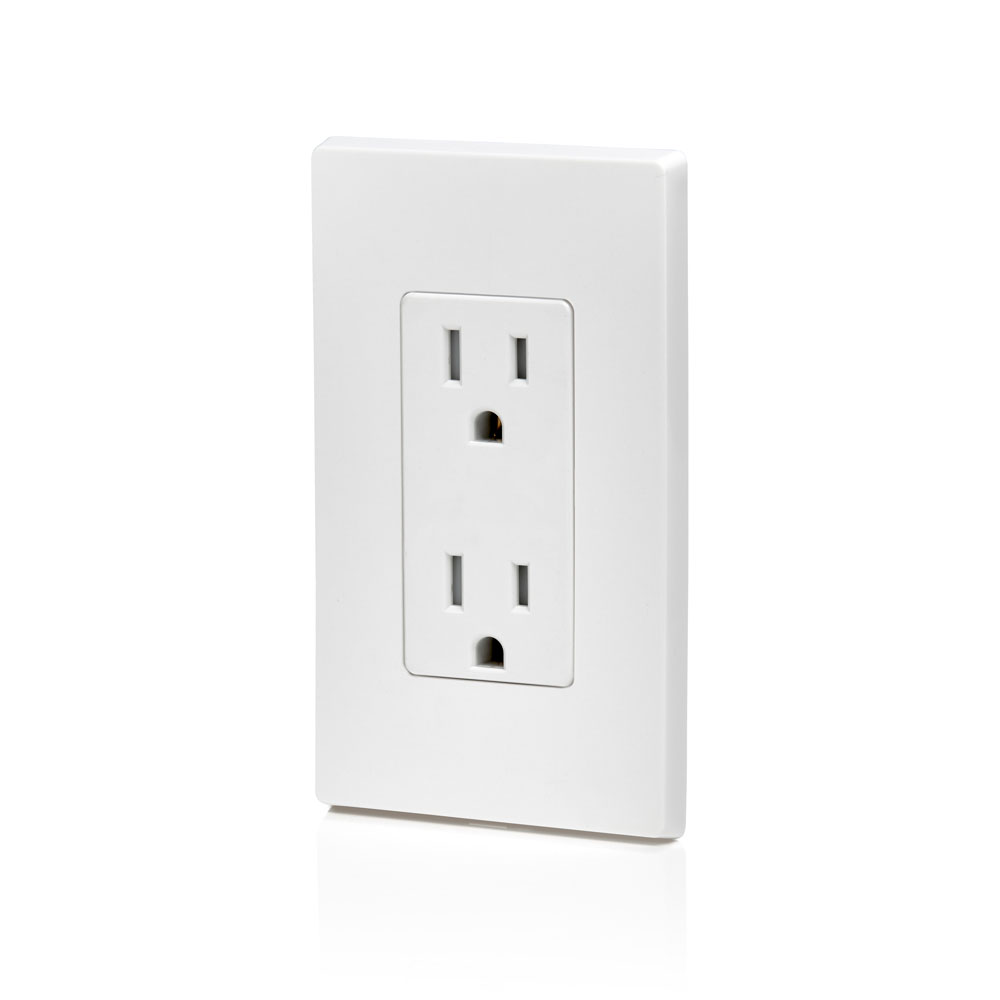

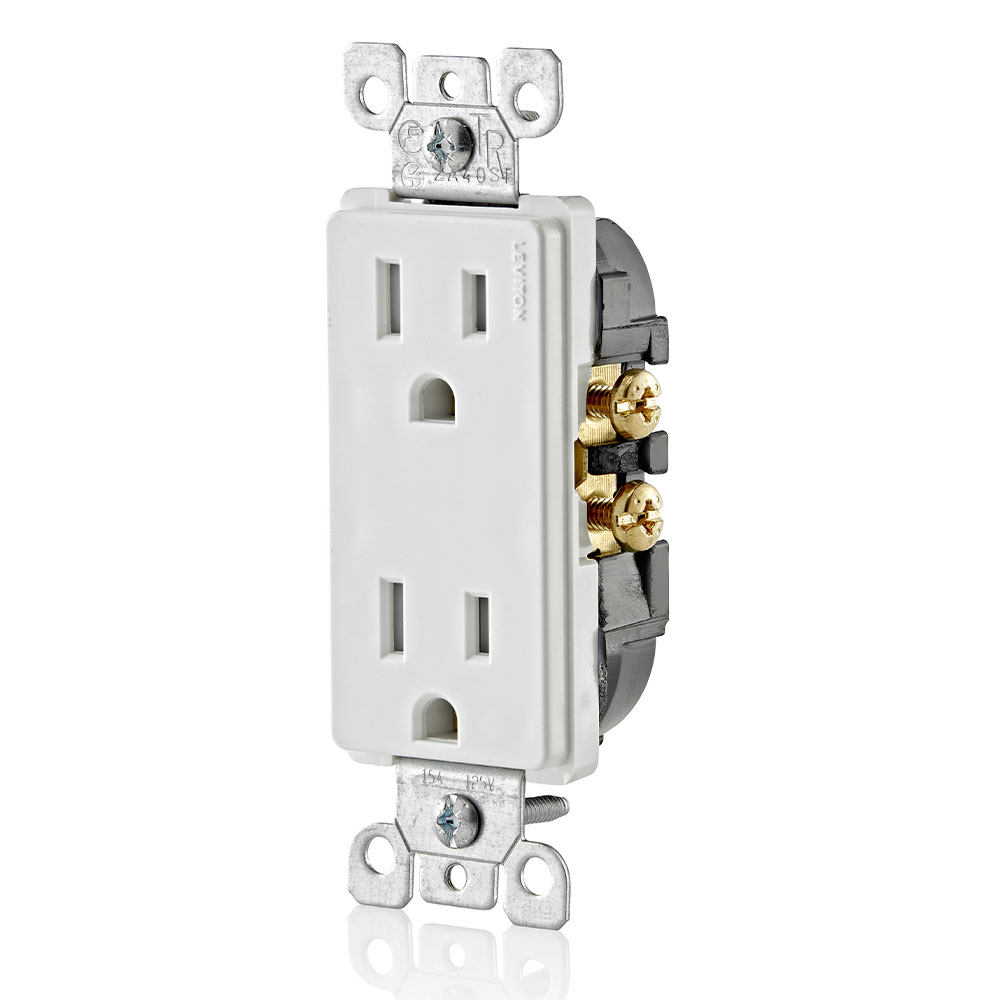

15 Amp Decora Tamper-Resistant Duplex Outlet/Receptacle, Grounding, White

Item ID #T5325W

Leviton

15 Amp Decora Tamper-Resistant Duplex Outlet/Receptacle, Grounding, White

Name: 15 Amp Decora Tamper-Resistant Duplex Outlet/Receptacle, Grounding, White
Brand: Leviton
SKU: T5325W
Price: 3.18 CAD
Availability: InStock

Item ID #T5325W

Specifications

See all specifications

CSA C22.2 No. 42 :	File 152105; Class 6233-01
NOM :	NOM Certified
UL 498 :	File E13399

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

15 Amp, 125 Volt, NEMA: 5-15R, Pole: 2, 3-Wire, Tamper-Resistant, Decora, Duplex Receptacle/Outlet, Straight Blade, Grounding, Quickwire Push-In & Side, Standards and Certifications: UL/CSA, Warranty: 2 Year Limited, NEC compliant - White

Recommended tools

Standards & Certifications


CSA C22.2 No. 42 :	File 152105; Class 6233-01
NOM :	NOM Certified
UL 498 :	File E13399

Description
Resources
Specifications

15 Amp Decora Tamper-Resistant Duplex Outlet/Receptacle, Grounding, White

Item ID #T5325W

Leviton

15 Amp Decora Tamper-Resistant Duplex Outlet/Receptacle, Grounding, White

Item ID #T5325W

15 Amp Decora Tamper-Resistant Duplex Outlet/Receptacle, Grounding, White

Specifications

See all specifications

CSA C22.2 No. 42 :	File 152105; Class 6233-01
NOM :	NOM Certified
UL 498 :	File E13399

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

Recommended tools

Standards & Certifications


CSA C22.2 No. 42 :	File 152105; Class 6233-01
NOM :	NOM Certified
UL 498 :	File E13399


Amperage :	15 A
Blade Type :	Straight Blade
Color :	White
Company/brand :	Decora
Feature :	Tamper-Resistant
Grounding :	Grounding
NEMA :	5-15R
Pole :	2
Terminal Accom. :	Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
Termination :	Quickwire Push-In & Side
Torque Range :	14 – 18 in.-lbs
Type :	Duplex Receptacle
Voltage :	125 VAC
Warranty :	2-Year Limited
Wire :	3


Country of Origin :	United States
RoHS Compliant :	False
