15 Amp Duplex Outlet/Receptacle, Contractor Pack, Grounding, White

Item ID #5320W

Leviton

15 Amp Duplex Outlet/Receptacle, Contractor Pack, Grounding, White

Name: 15 Amp Duplex Outlet/Receptacle, Contractor Pack, Grounding, White
Brand: Leviton
SKU: 5320W
Price: 1.54 CAD
Availability: InStock

Item ID #5320W

Specifications

See all specifications

Amperage :	15 A
Body Material :	Thermoplastic
Color :	White

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

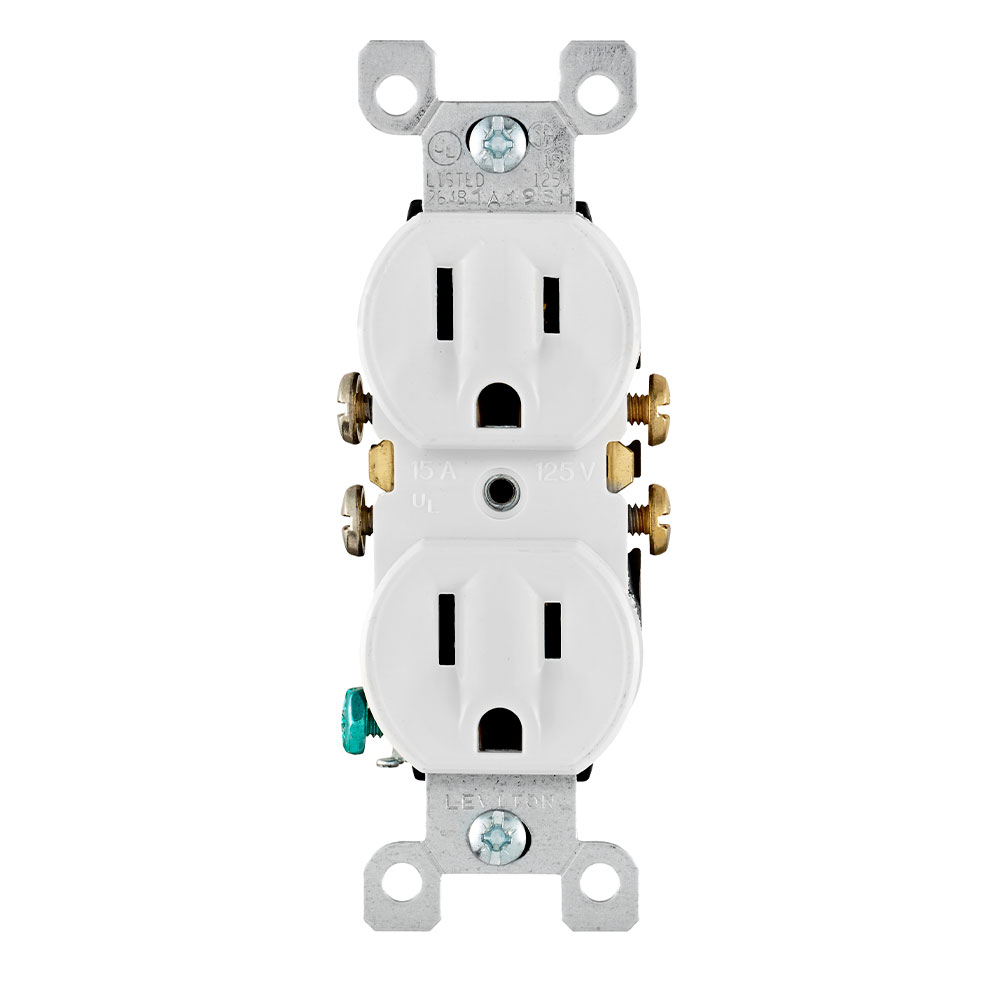

15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, With Ears Duplex Receptacle, Straight Blade, Residential Grade, Grounding, All Screws Backed Out Contractor Pack, Quickwire Push-In & Side Wired, Steel Strap, - White

Recommended tools

Product Features


Amperage :	15 A
Body Material :	Thermoplastic
Color :	White
Face Material :	Thermoplastic
Feature :	All Screws Backed Out
Grounding :	Grounding
Pole :	2
Strap Material :	Steel
Terminal Accom. :	Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
Termination :	Quickwire Push-In & Side
Torque Range :	14 – 18 in.-lbs
Type :	Duplex Receptacle
Voltage :	125 VAC
Warranty :	2-Year Limited
Wire :	3

Description
Resources
Specifications

15 Amp Duplex Outlet/Receptacle, Contractor Pack, Grounding, White

Item ID #5320W

Leviton

15 Amp Duplex Outlet/Receptacle, Contractor Pack, Grounding, White

Item ID #5320W

15 Amp Duplex Outlet/Receptacle, Contractor Pack, Grounding, White

Specifications

See all specifications

Amperage :	15 A
Body Material :	Thermoplastic
Color :	White

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

Recommended tools

Product Features


Amperage :	15 A
Body Material :	Thermoplastic
Color :	White
Face Material :	Thermoplastic
Feature :	All Screws Backed Out
Grounding :	Grounding
Pole :	2
Strap Material :	Steel
Terminal Accom. :	Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
Termination :	Quickwire Push-In & Side
Torque Range :	14 – 18 in.-lbs
Type :	Duplex Receptacle
Voltage :	125 VAC
Warranty :	2-Year Limited
Wire :	3


CSA C22.2 No. 42 :	File 152105; Class 6233-01
NEMA :	WD-6
NOM :	NOM Certified
UL 498 :	File E13399


Country of Origin :	Please Contact Customer Service
RoHS Compliant :	False
