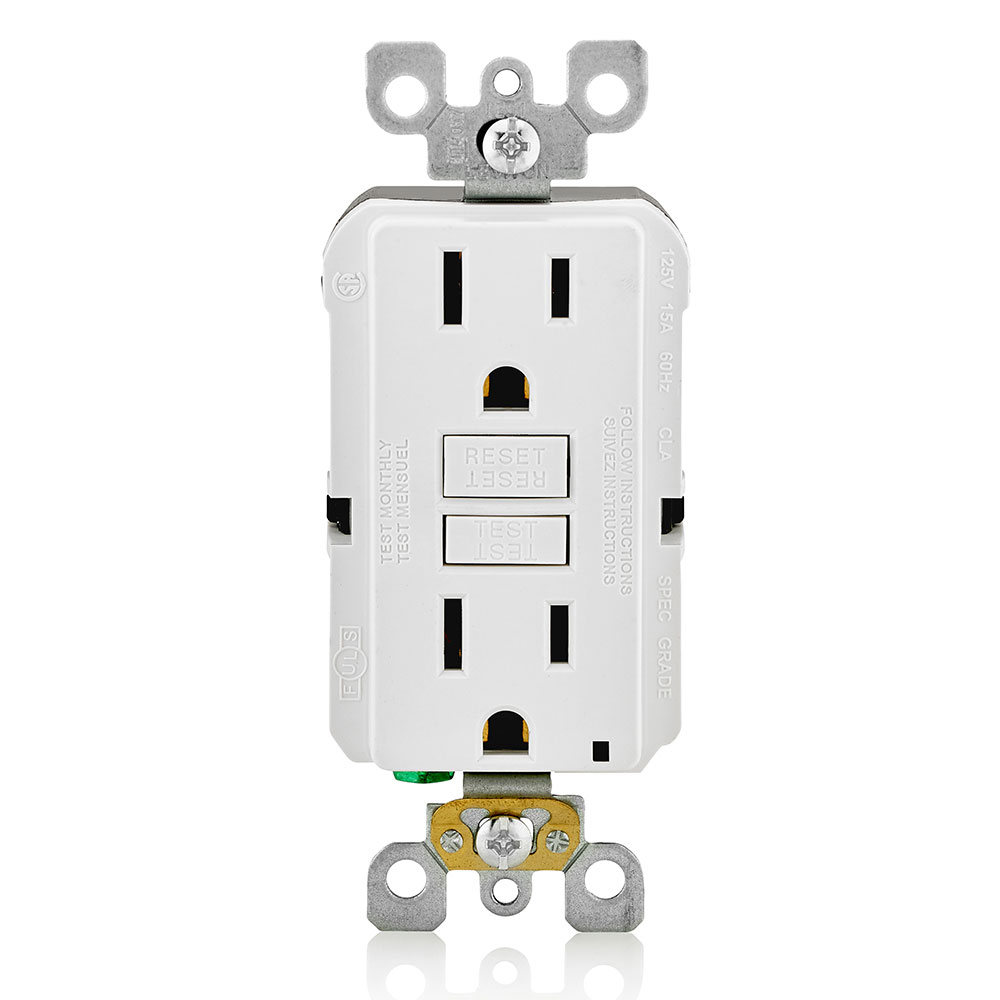

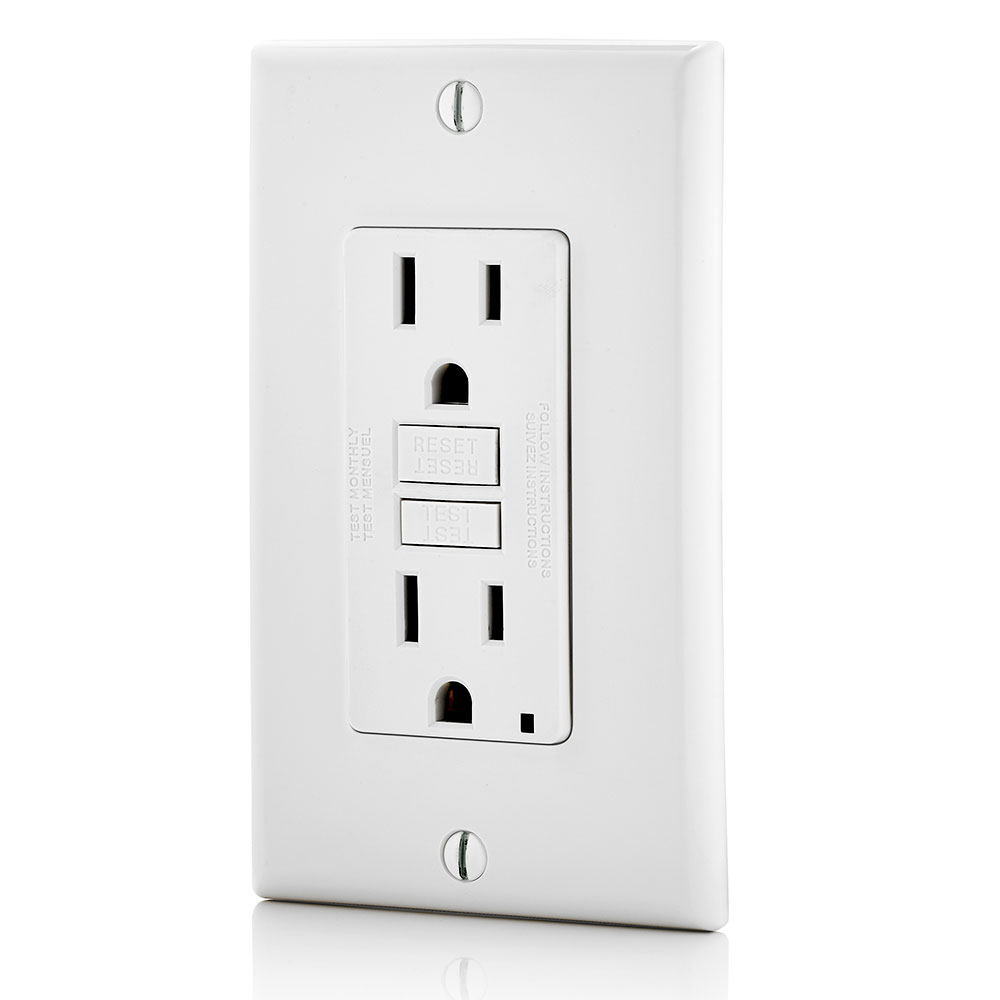

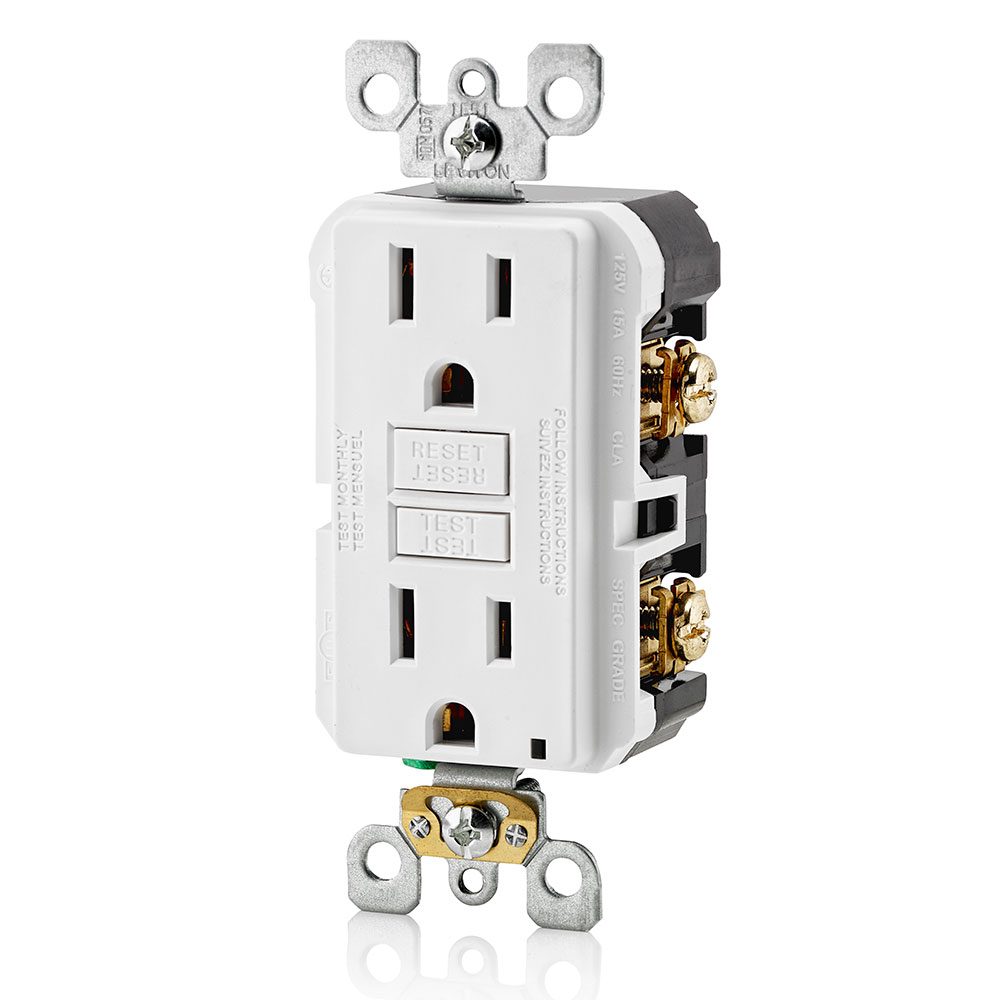

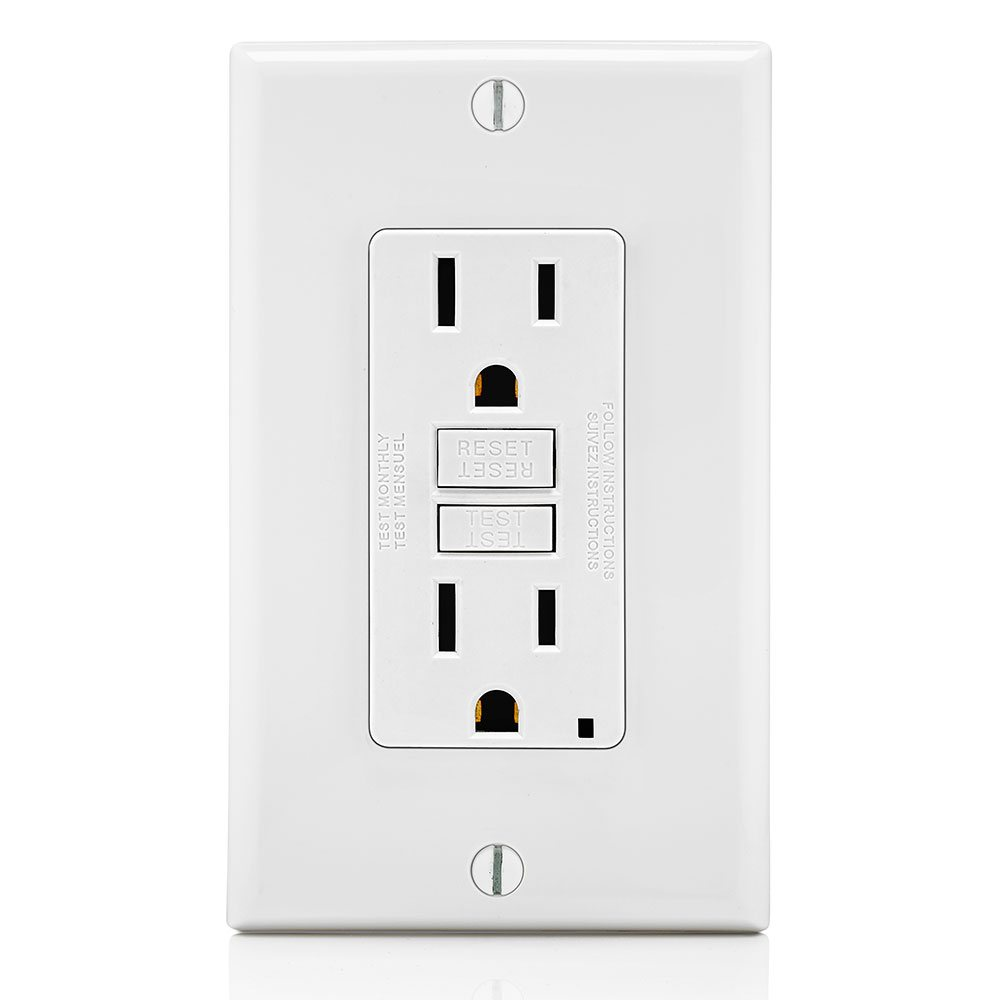

15 Amp, Self Test, Non Tamper-Resistant Slim GFCI Outlet with LED Indicator Light

Item ID #GFNT1W

Leviton

15 Amp, Self Test, Non Tamper-Resistant Slim GFCI Outlet with LED Indicator Light

Name: 15 Amp, Self Test, Non Tamper-Resistant Slim GFCI Outlet with LED Indicator Light
Brand: Leviton
SKU: GFNT1W
Price: 41.74 CAD
Availability: OutOfStock

Item ID #GFNT1W

Specifications

See all specifications

ANSI :	C-73
CSA C22.2 No. 42 :	Yes
CSA-C22.2 No. 144.1-06 :	File LR-57811

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Self-test SmartlockPro Slim GFCI, monochromatic, back and side wired, nylon wallplate/faceplate and self grounding clip included - White

Recommended tools

Standards and Certifications


ANSI :	C-73
CSA C22.2 No. 42 :	Yes
CSA-C22.2 No. 144.1-06 :	File LR-57811
Fed Spec WC-596 :	Yes
MIL-SPEC :	A-A-55459-SB
NOM :	Yes
UL498 :	Yes

Available0

Your price

$0.00

Material Specifications


Body Material :	Polycarbonate
Clamps :	Brass
Face Material :	Thermoplastic
Grounding Screw :	Plated Steel
Line Contacts :	Brass Double Wipe .031 Thick
Notes :	w/ Wallplate
Product ID :	Ratings are permanently marked on device
Terminal Accom. :	14-10 AWG
Terminal ID :	Brass-Hot, Green-Ground, Silver-Neutral
Terminal Screws :	Plated Steel
Yoke :	Zinc-Plated Steel

Mechanical Specifications


Amperage :	15 A
Body Material :	Polycarbonate
Brand :	SmartlockPro
Color :	White
Face Material :	Thermoplastic
Feature :	Self-Test
Grade :	Residential/Commercial Specification Grade
Grounding :	Self-Grounding
NEMA :	5-15R
Notes :	w/ Wallplate
Pole :	2
Product ID :	Ratings are permanently marked on device
Screw Terminal Torque :	14-18 in-lbs
Standards and Certifications :	UL/CSA, NEMA WD6, NEMA WD1
Strap Material :	Galvanized Steel
Tamper Resistant :	No
Terminal Accom. :	14-10 AWG
Terminal ID :	Brass-Hot, Green-Ground, Silver-Neutral
Termination :	Back & Side
Trip Level :	Class A, 5mA plus or minus 1mA
Type :	Standard
Voltage :	125 VAC
Warranty :	2-Year Limited
Wire :	3

Environmental Specifications


Body Material :	Polycarbonate
Clamps :	Brass
Face Material :	Thermoplastic
Grounding Screw :	Plated Steel
Line Contacts :	Brass Double Wipe .031 Thick
Notes :	w/ Wallplate
Operating Temperature :	-35C to +66C
Terminal Screws :	Plated Steel
Yoke :	Zinc-Plated Steel

Electrical Specifications


Dielectric Voltage :	Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Operating Temperature :	-35C to +66C
Short Circuit Current Rating :	10KA
Temperature Rise :	Max 30C after 100 cycles OL at 150 percent rated current

AC Horsepower Ratings


At Rated Voltage :	1 HP
Dielectric Voltage :	Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Short Circuit Current Rating :	10KA
Temperature Rise :	Max 30C after 100 cycles OL at 150 percent rated current


Country of Origin :	China
RoHS Compliant :	False
