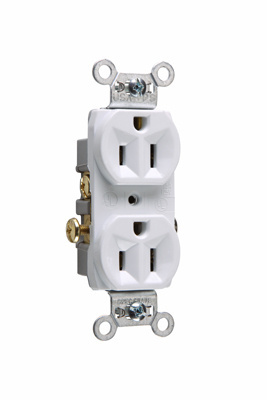

15A 125V Commercial Spec-Grade Duplex Receptacle, Side Wire, White

Item ID #CR15W

Pass & Seymour

15A 125V Commercial Spec-Grade Duplex Receptacle, Side Wire, White

Name: 15A 125V Commercial Spec-Grade Duplex Receptacle, Side Wire, White
Brand: Pass & Seymour
SKU: CR15W
Price: 3.18 CAD
Availability: InStock

Item ID #CR15W

Specifications

See all specifications

Depth :	0.78 in
Amperage :	15.0 A
Height :	2.635 in

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

Commercial Spec Grade Duplex Receptacle, Side Wire 15A 125V

Recommended tools

Specifications


Depth :	0.78 in
Amperage :	15.0 A
Height :	2.635 in
Width :	1.322 in
Standard :	UL 498
Country of Origin :	Mexico
Voltage :	125.0 V
Mounting Type :	Box
Number of Wires :	3.0
Indoor/Outdoor :	Indoor
Wire Size :	14 - 10 AWG
Wall Plate Included :	No
Features :	Impact Resistant
Number of Receptacles :	2.0
Outlet Type :	Straight Blade
Number of Poles :	Double Pole
Application Sector :	Commercial
Connection Location :	Side Only
NEMA Configuration Code :	5-15R
Wire Connection Type :	Screw Terminals
Warranty Type :	1-Year Limited Warranty
Operating Temperature Max :	60.0 °C
Operating Temperature Min :	-40.0 °C
Operating Temperature :	-40°-60°C
Features :	Single Piece Plated Steel Mounting Strap
Color :	White
Finish :	Matte
Product Line :	Pass & Seymour

Description
Resources
Specifications

15A 125V Commercial Spec-Grade Duplex Receptacle, Side Wire, White

Item ID #CR15W

Pass & Seymour

15A 125V Commercial Spec-Grade Duplex Receptacle, Side Wire, White

Item ID #CR15W

15A 125V Commercial Spec-Grade Duplex Receptacle, Side Wire, White

Specifications

See all specifications

Depth :	0.78 in
Amperage :	15.0 A
Height :	2.635 in

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

Commercial Spec Grade Duplex Receptacle, Side Wire 15A 125V

Recommended tools

Specifications


Depth :	0.78 in
Amperage :	15.0 A
Height :	2.635 in
Width :	1.322 in
Standard :	UL 498
Country of Origin :	Mexico
Voltage :	125.0 V
Mounting Type :	Box
Number of Wires :	3.0
Indoor/Outdoor :	Indoor
Wire Size :	14 - 10 AWG
Wall Plate Included :	No
Features :	Impact Resistant
Number of Receptacles :	2.0
Outlet Type :	Straight Blade
Number of Poles :	Double Pole
Application Sector :	Commercial
Connection Location :	Side Only
NEMA Configuration Code :	5-15R
Wire Connection Type :	Screw Terminals
Warranty Type :	1-Year Limited Warranty
Operating Temperature Max :	60.0 °C
Operating Temperature Min :	-40.0 °C
Operating Temperature :	-40°-60°C
Features :	Single Piece Plated Steel Mounting Strap
Color :	White
Finish :	Matte
Product Line :	Pass & Seymour
